Page 3737 of 5621
LAN-68
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 January2006 M35/M45

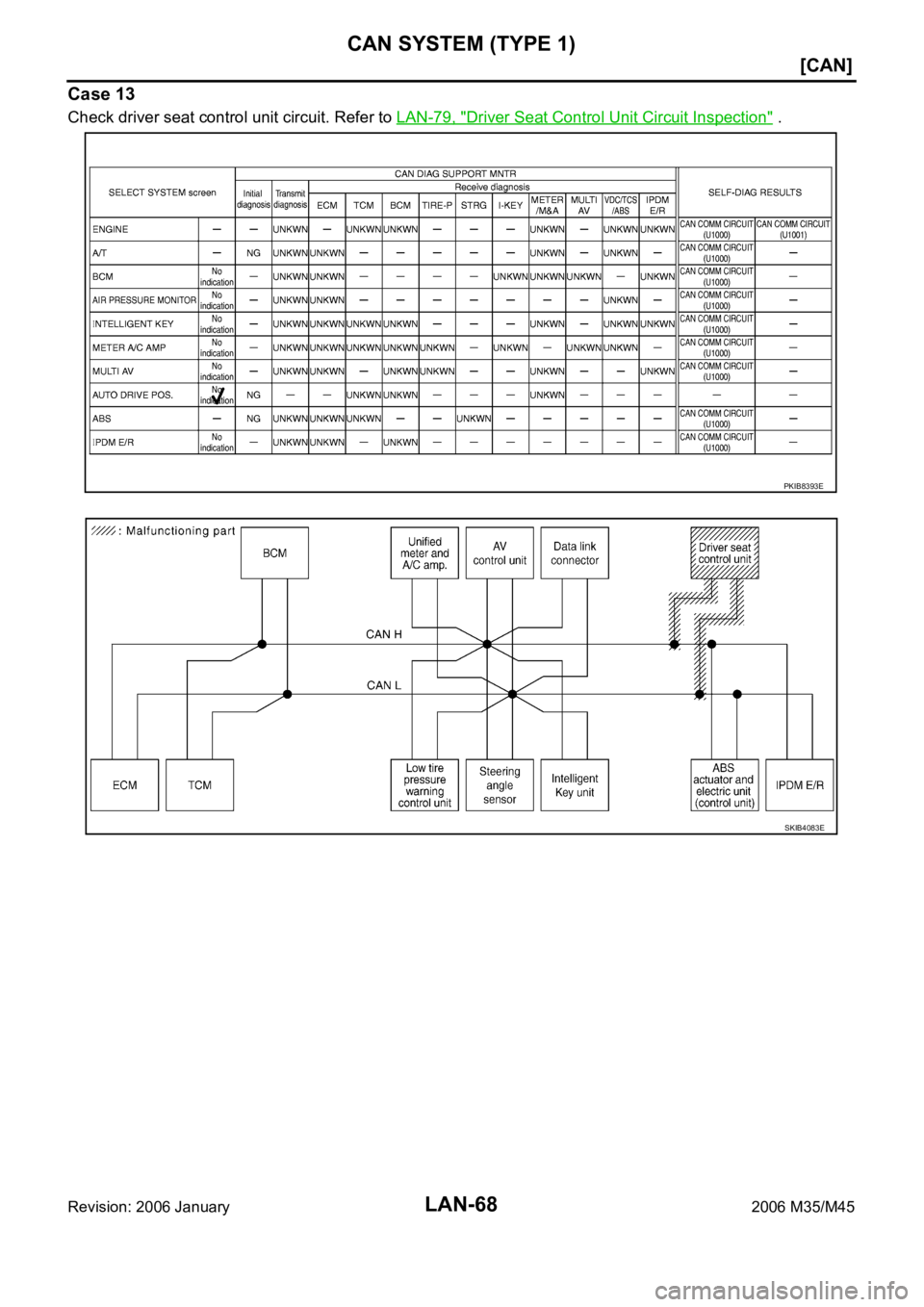

Case 13
Check driver seat control unit circuit. Refer to LAN-79, "Driver Seat Control Unit Circuit Inspection" .
PKIB8393E
SKIB4083E
Page 3738 of 5621
CAN SYSTEM (TYPE 1)
LAN-69
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

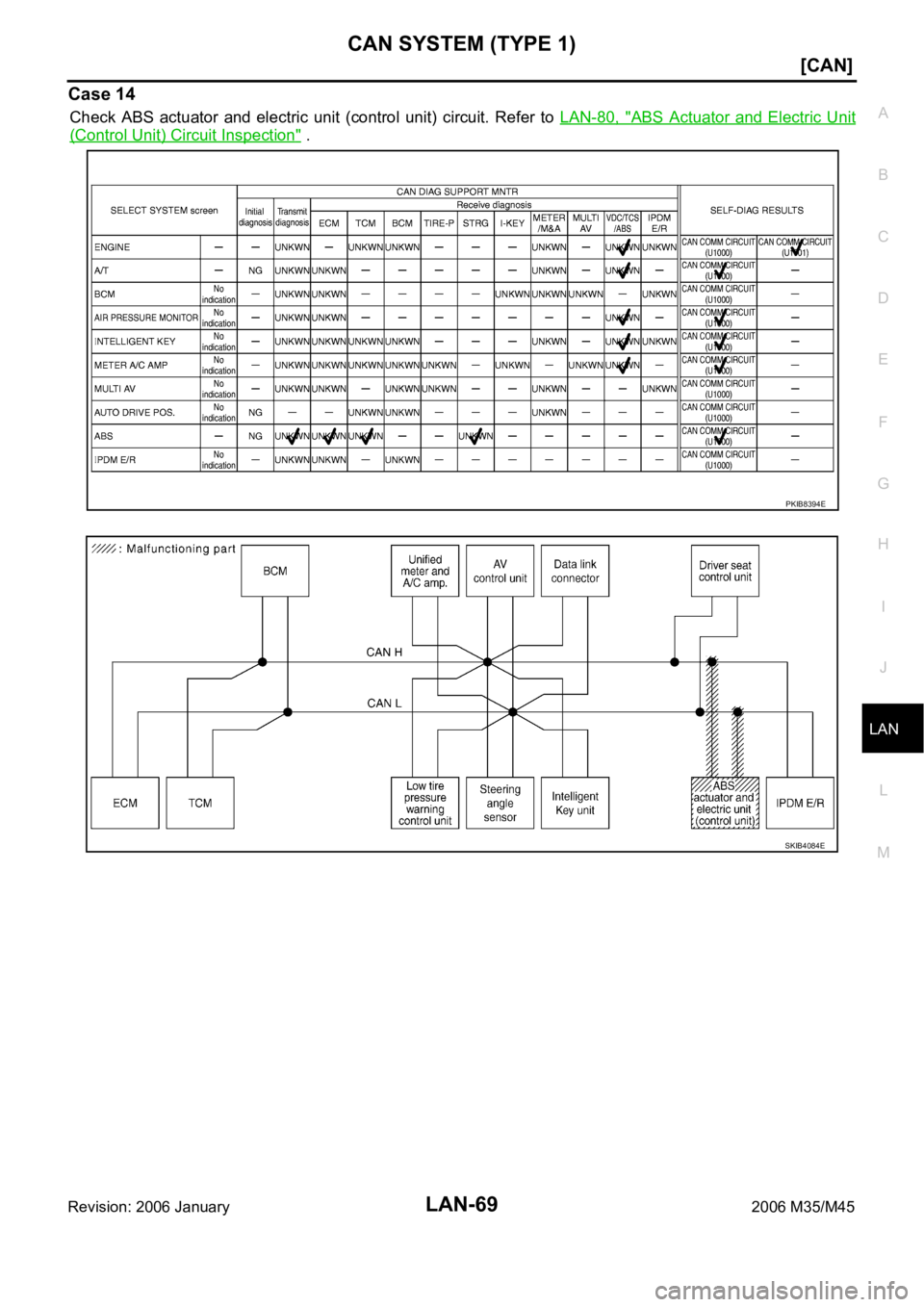

Case 14
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-80, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIB8394E
SKIB4084E
Page 3739 of 5621
LAN-70
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 January2006 M35/M45

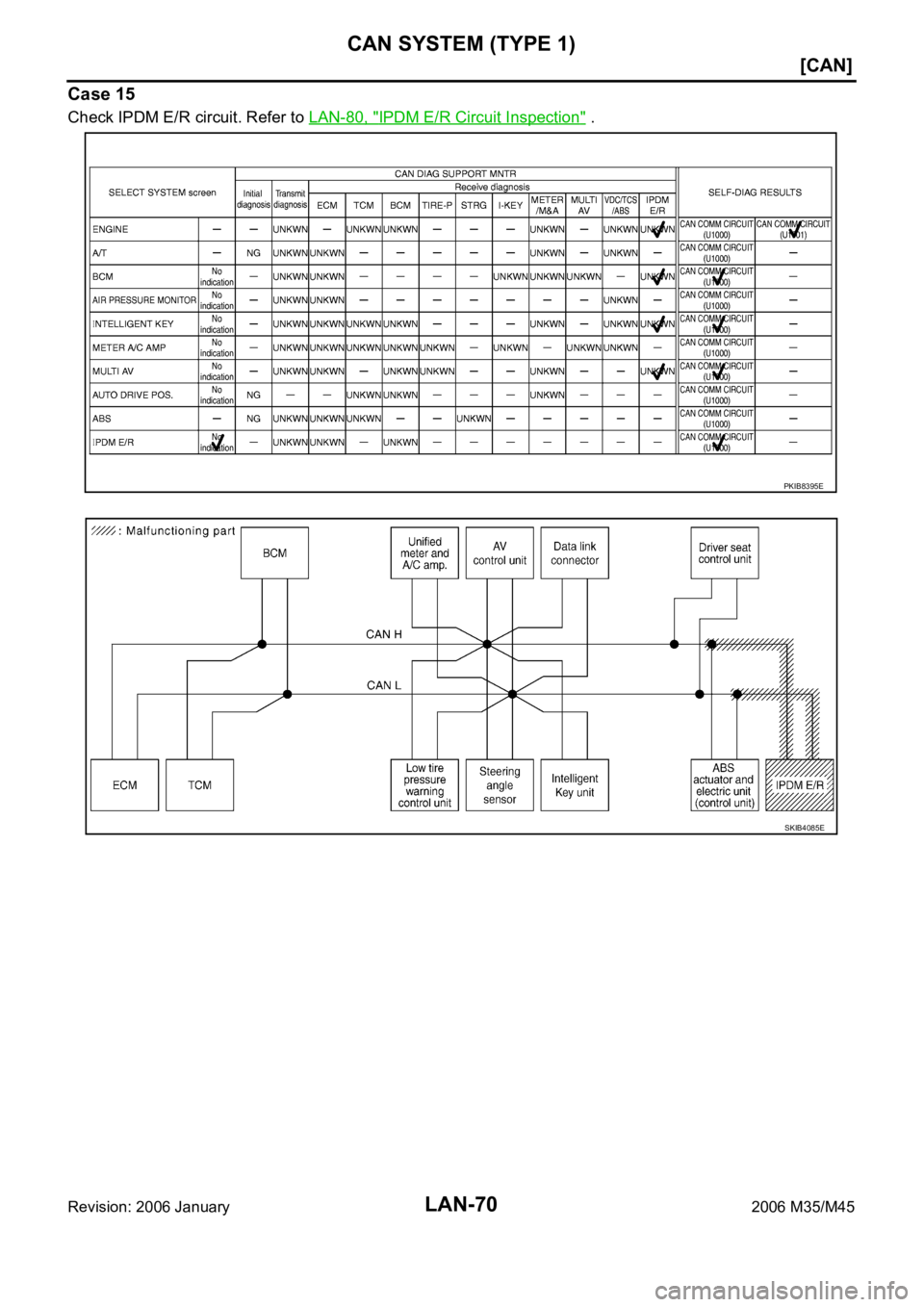

Case 15
Check IPDM E/R circuit. Refer to LAN-80, "IPDM E/R Circuit Inspection" .
PKIB8395E
SKIB4085E
Page 3740 of 5621
CAN SYSTEM (TYPE 1)
LAN-71
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

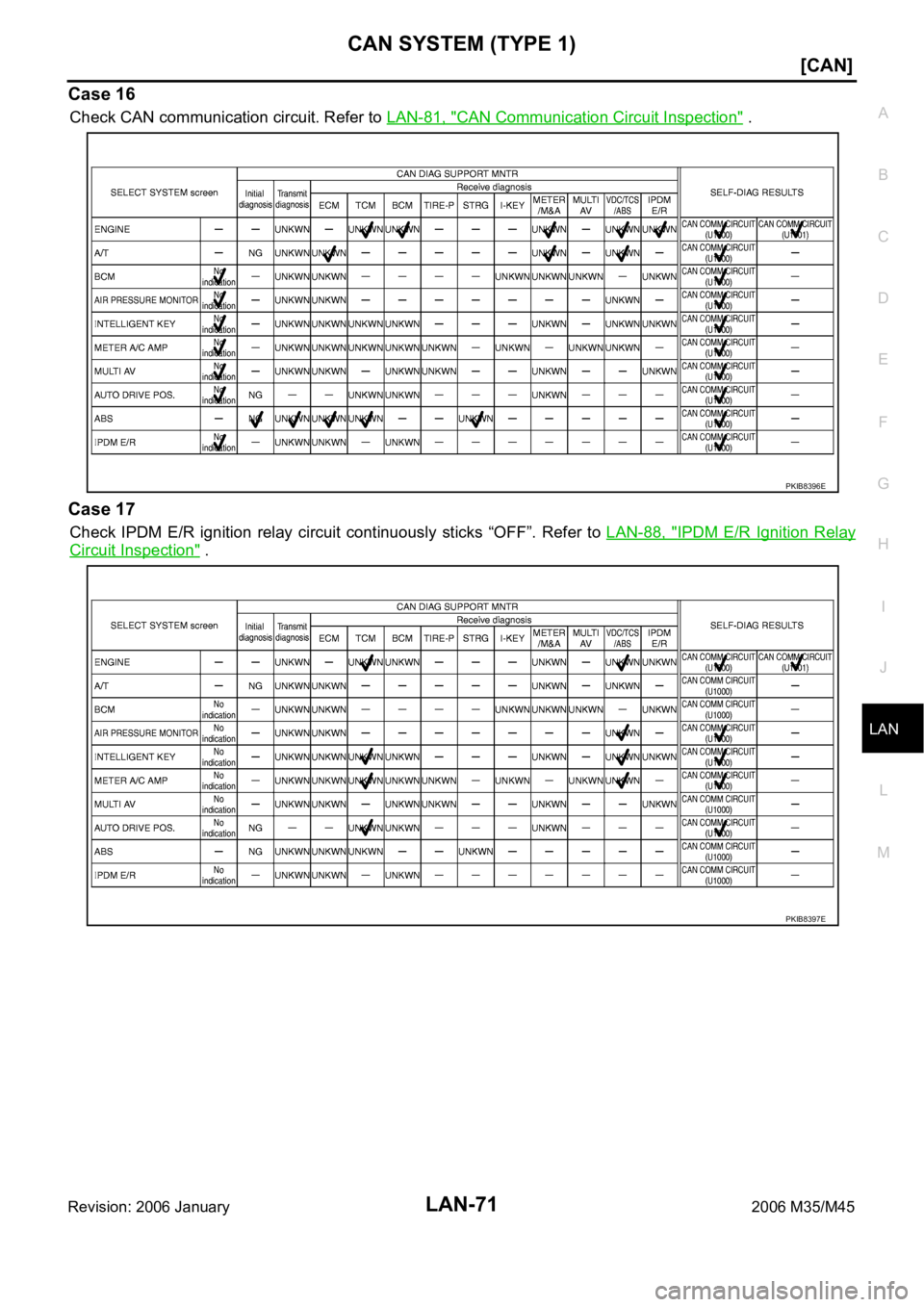

Case 16
Check CAN communication circuit. Refer to LAN-81, "CAN Communication Circuit Inspection" .
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-88, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIB8396E
PKIB8397E
Page 3741 of 5621
LAN-72
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 January2006 M35/M45

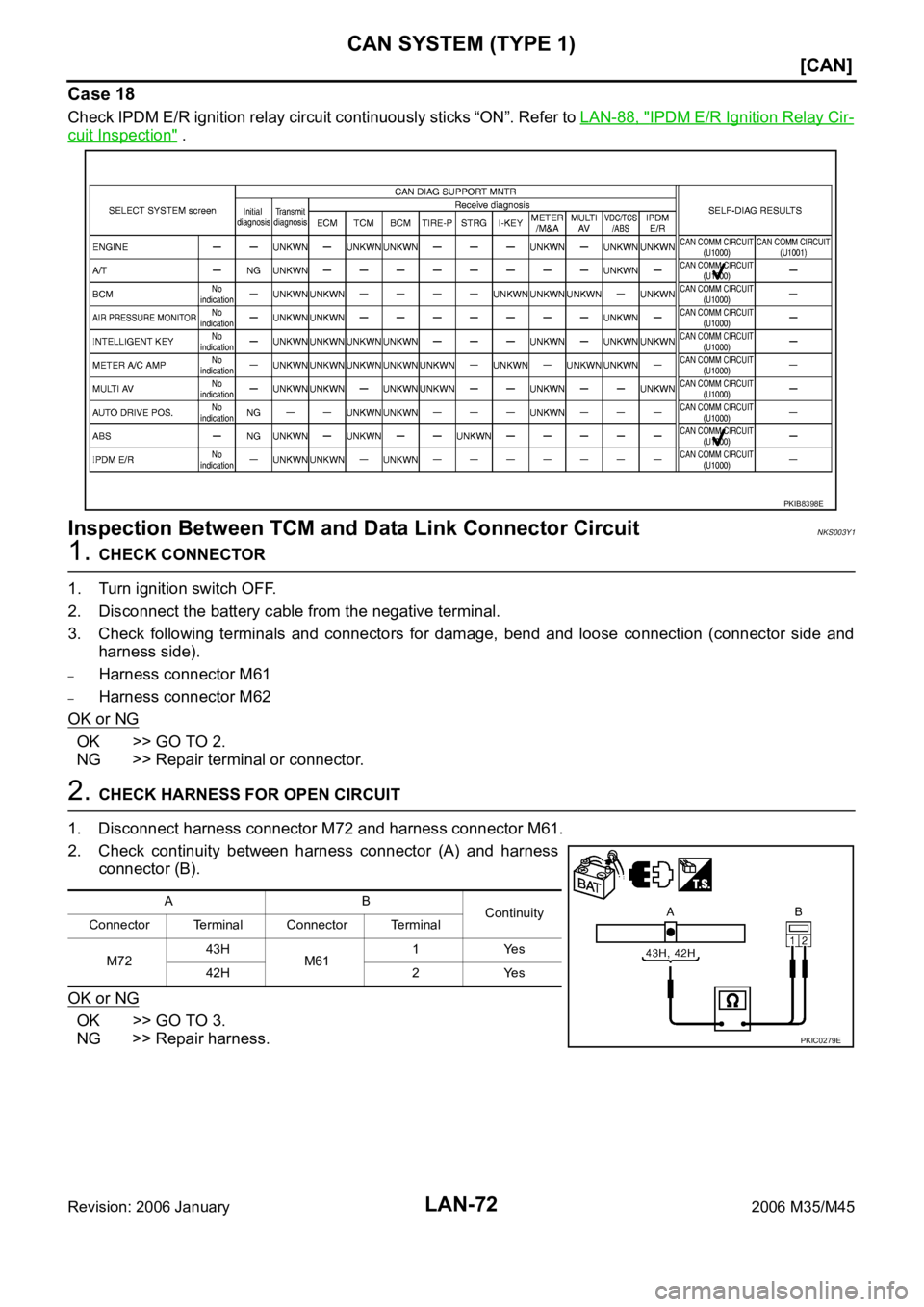

Case 18
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-88, "IPDM E/R Ignition Relay Cir-
cuit Inspection" .
Inspection Between TCM and Data Link Connector CircuitNKS003Y1
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector M61
–Harness connector M62
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector M72 and harness connector M61.
2. Check continuity between harness connector (A) and harness
connector (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
PKIB8398E
AB
Continuity
Connector Terminal Connector Terminal
M7243H
M61 1 Yes
42H 2 Yes
PKIC0279E
Page 3742 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 1)
LAN-73
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector (A) and data link con INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 1)
LAN-73
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector (A) and data link con](/manual-img/42/57023/w960_57023-3741.png)
CAN SYSTEM (TYPE 1)
LAN-73
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

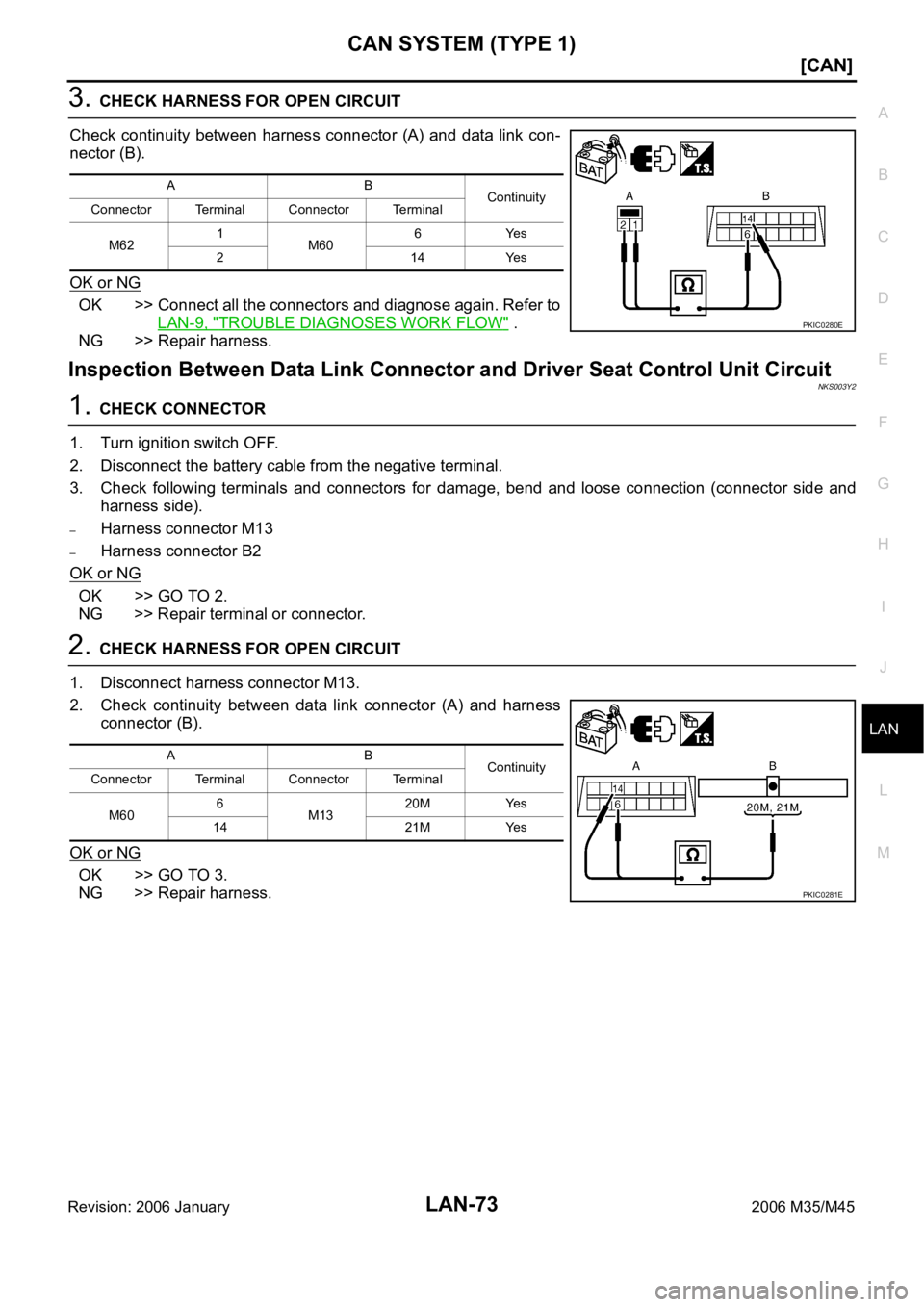

3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector (A) and data link con-
nector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between Data Link Connector and Driver Seat Control Unit CircuitNKS003Y2
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector M13
–Harness connector B2
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector M13.
2. Check continuity between data link connector (A) and harness
connector (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
AB
Continuity
Connector Terminal Connector Terminal
M621
M606 Yes
214Yes
PKIC0280E
AB
Continuity
Connector Terminal Connector Terminal
M606
M1320M Yes
14 21M Yes
PKIC0281E
Page 3743 of 5621
![INFINITI M35 2006 Factory Service Manual LAN-74
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector B15.
2. Check continuity between harness connector (A) and INFINITI M35 2006 Factory Service Manual LAN-74
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector B15.
2. Check continuity between harness connector (A) and](/manual-img/42/57023/w960_57023-3742.png)
LAN-74
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector B15.
2. Check continuity between harness connector (A) and harness
connector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit
(Control Unit) Circuit
NKS003Y3
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector B3
–Harness connector E105
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector B15 and harness connector B3.
2. Check continuity between harness connector (A) and harness
connector (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
AB
Continuity
Connector Terminal Connector Terminal
B220M
B153 Yes
21M 19 Yes
PKIC0282E
AB
Continuity
Connector Terminal Connector Terminal
B153
B3 9Yes
19 8 Yes
PKIC0283E
Page 3744 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 1)
LAN-75
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 1)
LAN-75
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.](/manual-img/42/57023/w960_57023-3743.png)
CAN SYSTEM (TYPE 1)
LAN-75
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between harness connector (A) and ABS actu-
ator and electric unit (control unit) harness connector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
ECM Circuit InspectionNKS003Y4
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ECM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector terminals.
OK or NG
OK >> Replace ECM.
NG >> Repair harness between ECM and A/T assembly.
TCM Circuit InspectionNKS003Y5
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–A/T assembly connector
–Harness connector F102
–Harness connector M72
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
AB
Continuity
Connector Terminal Connector Terminal
E1059
E30 35 Yes
814Yes
PKIC0284E
ECM connector TerminalResistance
(Approx.)
M71 94 86 108 – 132
PKIA9860E
