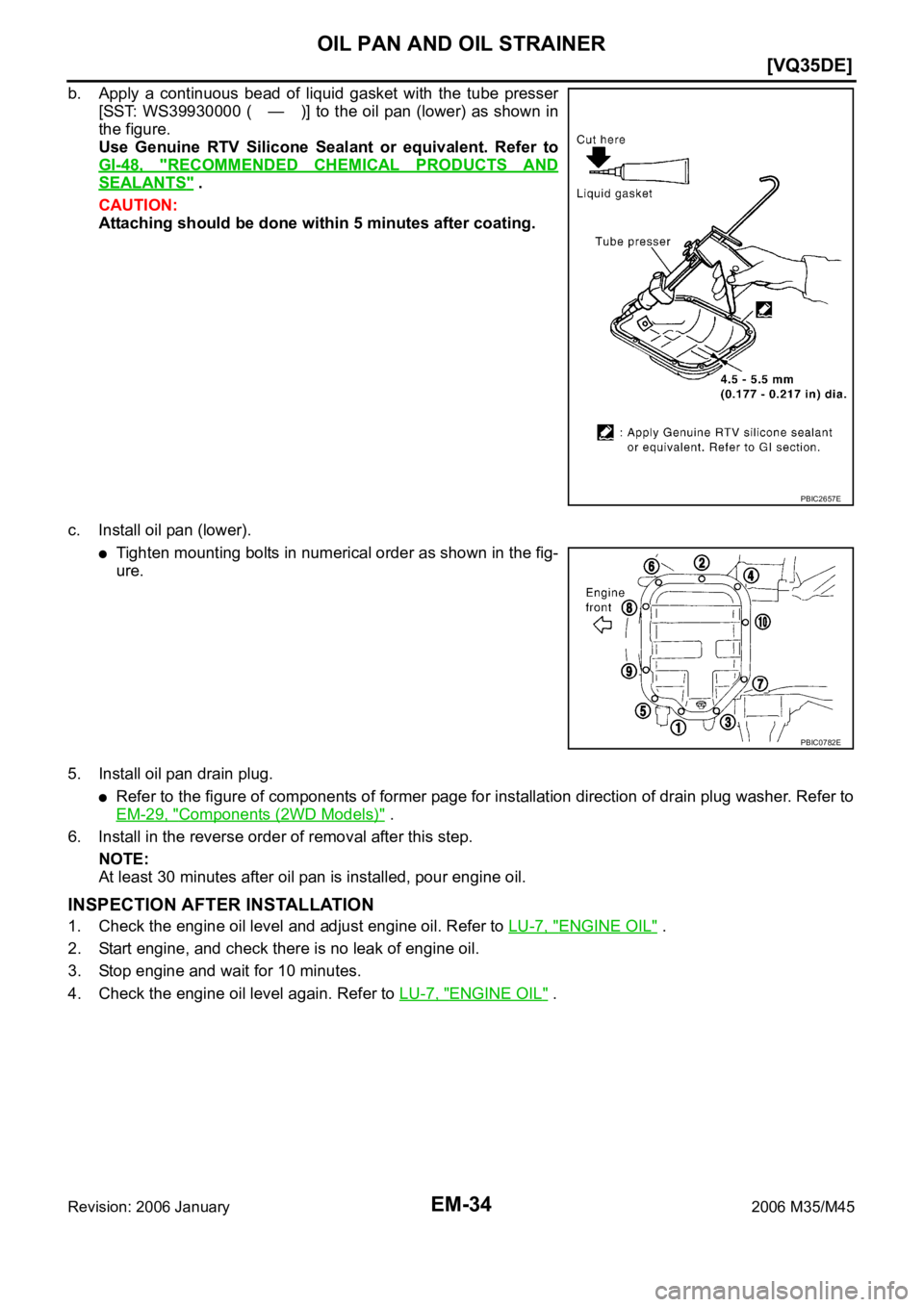

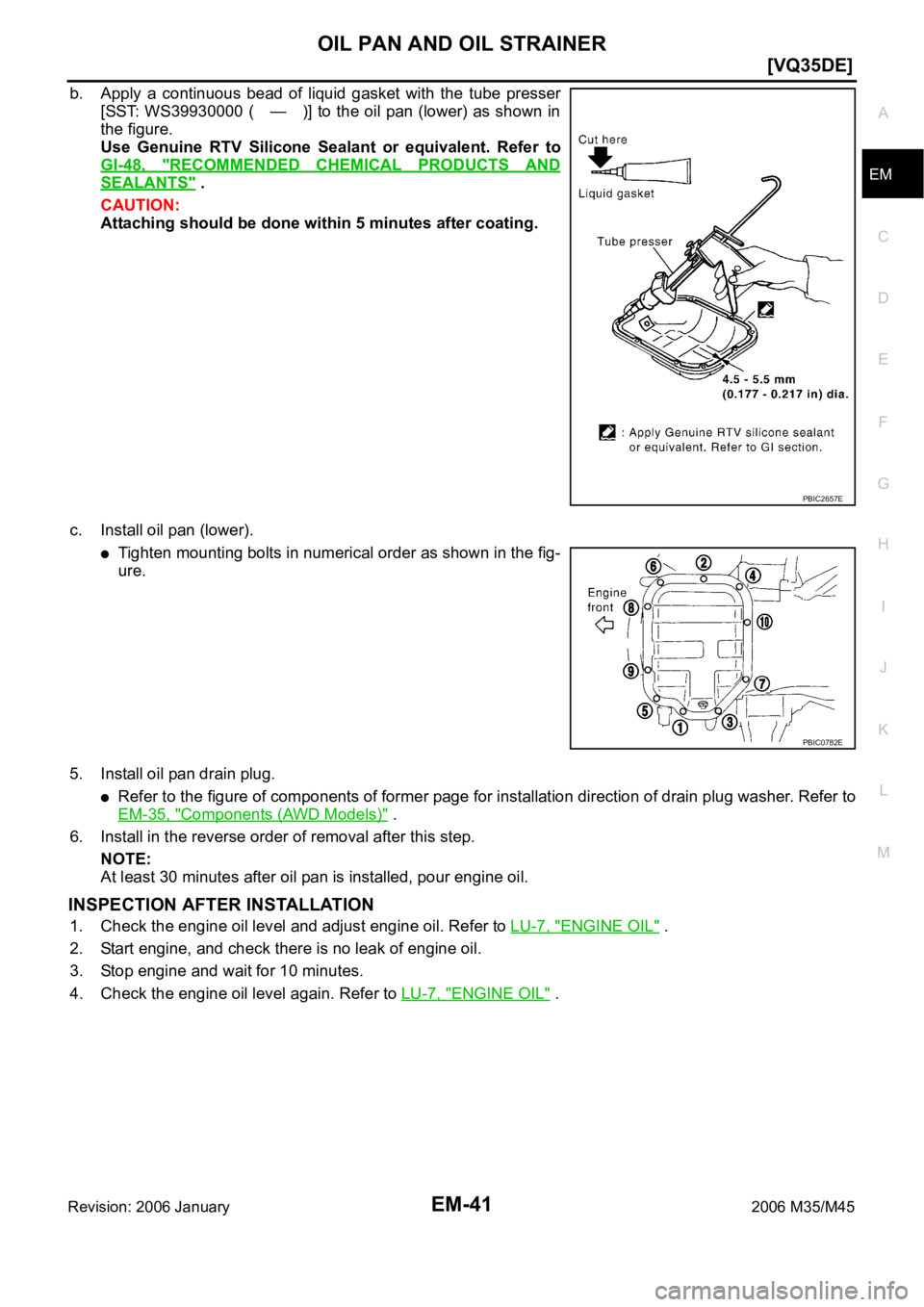

![INFINITI M35 2006 Factory Service Manual EM-34
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
b. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to the oil pan (lower) INFINITI M35 2006 Factory Service Manual EM-34
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
b. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to the oil pan (lower)](/manual-img/42/57023/w960_57023-3096.png)
EM-34
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
b. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to the oil pan (lower) as shown in
the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
CAUTION:
Attaching should be done within 5 minutes after coating.
c. Install oil pan (lower).
Tighten mounting bolts in numerical order as shown in the fig-
ure.
5. Install oil pan drain plug.
Refer to the figure of components of former page for installation direction of drain plug washer. Refer to
EM-29, "
Components (2WD Models)" .
6. Install in the reverse order of removal after this step.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and adjust engine oil. Refer to LU-7, "ENGINE OIL" .
2. Start engine, and check there is no leak of engine oil.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level again. Refer to LU-7, "
ENGINE OIL" .
PBIC2657E
PBIC0782E
Page 3098 of 5621
OIL PAN AND OIL STRAINER
EM-35
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

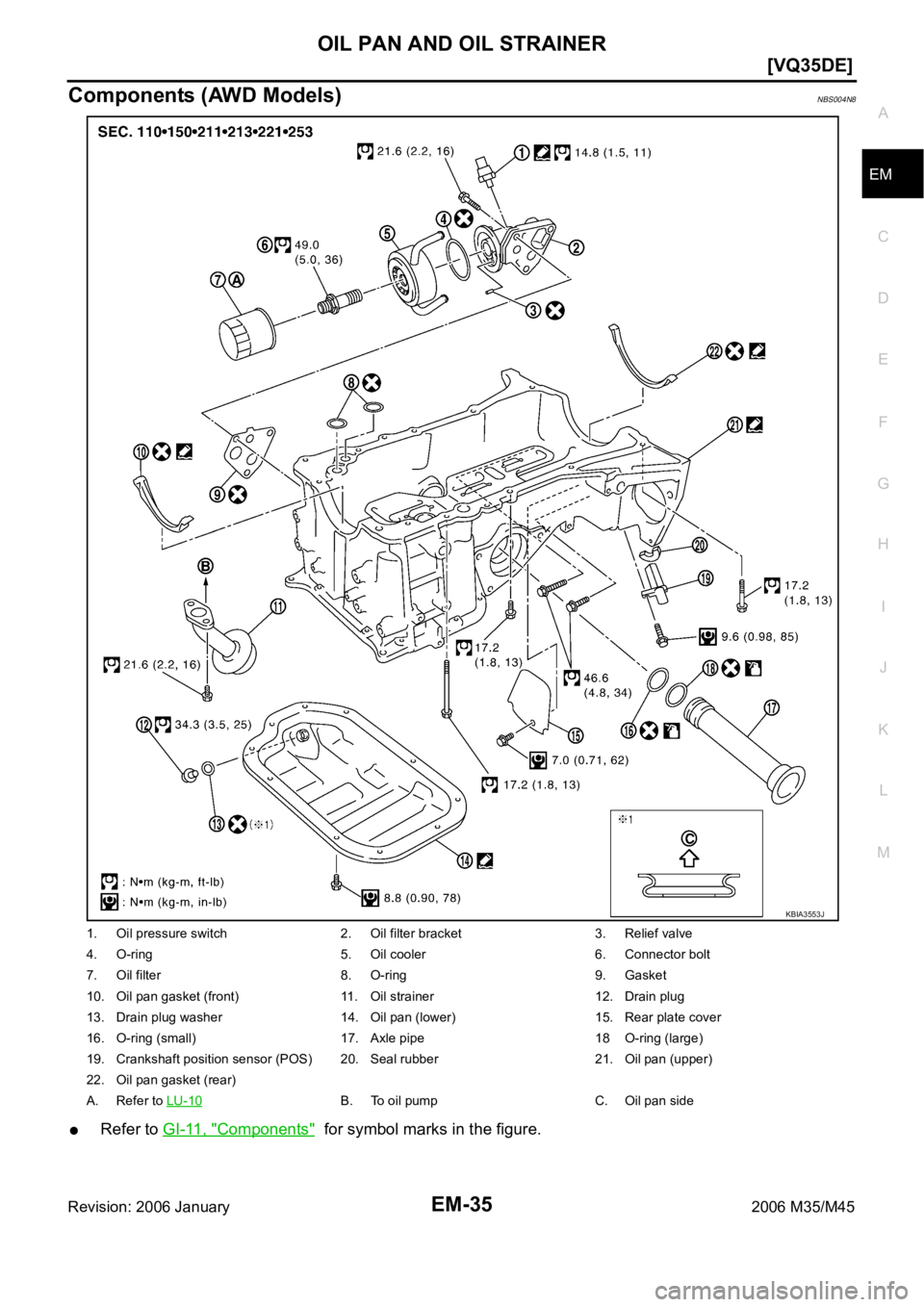

Components (AWD Models)NBS004N8
Refer to GI-11, "Components" for symbol marks in the figure.
1. Oil pressure switch 2. Oil filter bracket 3. Relief valve
4. O-ring 5. Oil cooler 6. Connector bolt
7. Oil filter 8. O-ring 9. Gasket
10. Oil pan gasket (front) 11. Oil strainer 12. Drain plug
13. Drain plug washer 14. Oil pan (lower) 15. Rear plate cover
16. O-ring (small) 17. Axle pipe 18 O-ring (large)
19. Crankshaft position sensor (POS) 20. Seal rubber 21. Oil pan (upper)
22. Oil pan gasket (rear)
A. Refer to LU-10
B. To oil pump C. Oil pan side
KBIA3553J
Page 3099 of 5621
![INFINITI M35 2006 Factory Service Manual EM-36
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
Removal and Installation (AWD Models)NBS004N9
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil w INFINITI M35 2006 Factory Service Manual EM-36
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
Removal and Installation (AWD Models)NBS004N9
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil w](/manual-img/42/57023/w960_57023-3098.png)
EM-36
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
Removal and Installation (AWD Models)NBS004N9
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
When removing oil pan (lower) only, steps 2 to 6 are not necessary. Perform step 25 after completing step 7.
1. Remove front and rear engine undercover with power tool.
2. Remove front tire.
3. Remove hood assembly. Refer to BL-15, "
HOOD" .
4. Remove engine room cover (RH and LH). Refer to EM-14, "
ENGINE ROOM COVER" .
5. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
6. Remove air duct (inlet). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
7. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
8. Drain engine coolant. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
9. Remove air duct from air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
10. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
11. Remove front drive shaft (RH and LH). Refer to FA X - 8 , "
FRONT DRIVE SHAFT" .
12. Remove side shaft. Refer to FFD-13, "
FRONT FINAL DRIVE ASSEMBLY" .
13. Install engine slinger to sling engine assembly for positioning. Refer to EM-113, "
ENGINE ASSEMBLY" .
14. Remove front suspension member. Refer to Refer to FSU-23, "
FRONT SUSPENSION ASSEMBLY" .
15. Remove engine mounting bracket, engine mounting bracket (lower) and insulator. Refer to EM-113,
"ENGINE ASSEMBLY" .
16. Remove front propeller shaft. Refer to PR-4, "
FRONT PROPELLER SHAFT" .
17. Remove oil filter and oil filter bracket. Refer to LU-12, "
OIL FILTER BRACKET (AWD)" .
18. Remove alternator stay. Refer to SC-23, "
CHARGING SYSTEM" .
19. Remove idler pulley and bracket. Refer to EM-15, "
DRIVE BELTS" .
20. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-14, "
OIL
COOLER" .
21. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT- 2 7 1 , "
TRANSMISSION
ASSEMBLY" .
22. Remove front final drive assembly. Refer to FFD-13, "
FRONT FINAL DRIVE ASSEMBLY" .
23. Remove starter motor. Refer to SC-10, "
STARTING SYSTEM" .
24. Remove crankshaft position sensor (POS).
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
25. Remove oil pan (lower) as follows:Slinger bolts:
: 28.0 Nꞏm (2.9 kg-m, 21 ft-lb)
Page 3100 of 5621

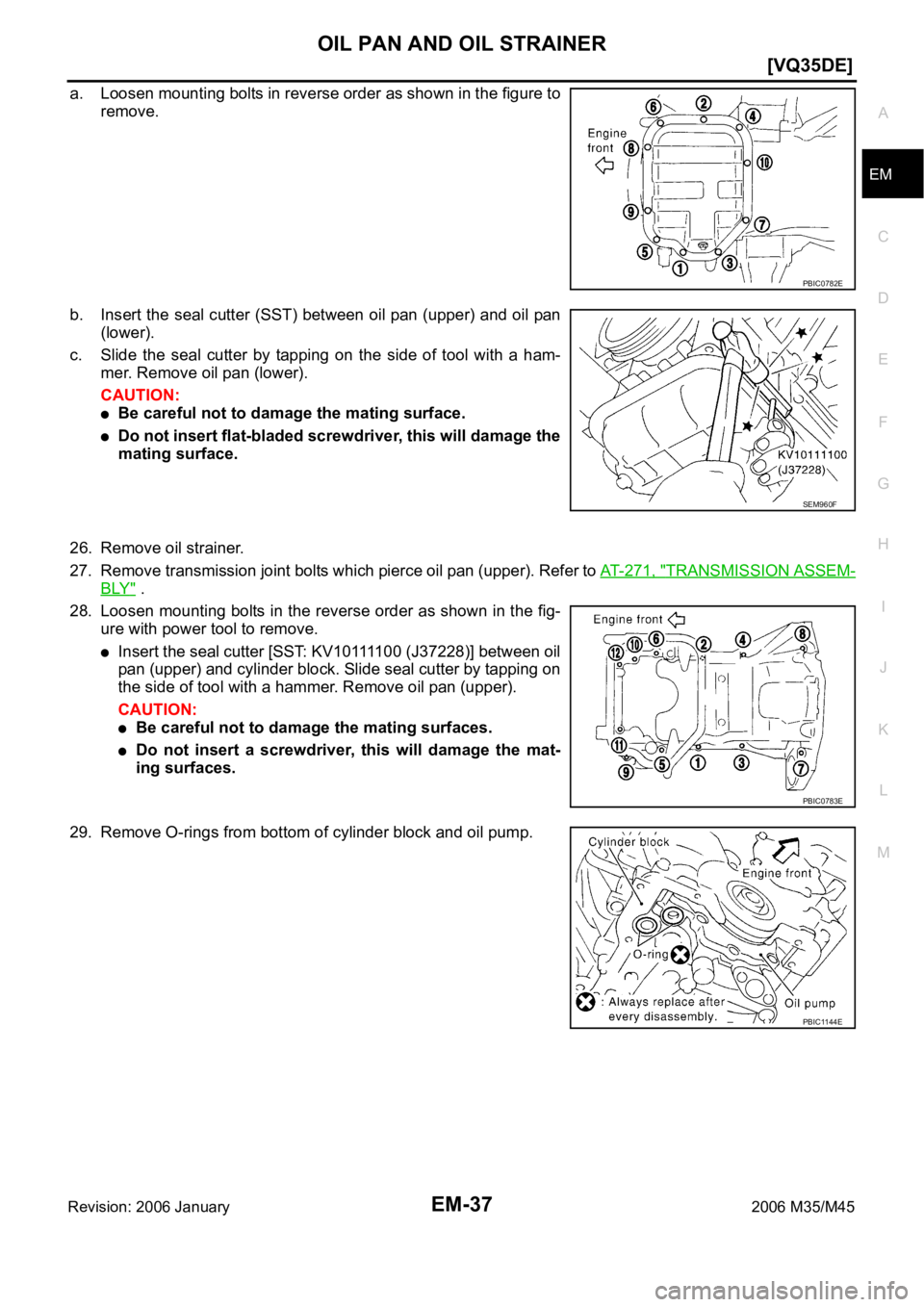

![INFINITI M35 2006 Factory Service Manual OIL PAN AND OIL STRAINER
EM-37
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
a. Loosen mounting bolts in reverse order as shown in the figure to
remove.
b. Insert the seal cutt INFINITI M35 2006 Factory Service Manual OIL PAN AND OIL STRAINER
EM-37
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
a. Loosen mounting bolts in reverse order as shown in the figure to
remove.
b. Insert the seal cutt](/manual-img/42/57023/w960_57023-3099.png)
OIL PAN AND OIL STRAINER
EM-37
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
a. Loosen mounting bolts in reverse order as shown in the figure to
remove.
b. Insert the seal cutter (SST) between oil pan (upper) and oil pan
(lower).
c. Slide the seal cutter by tapping on the side of tool with a ham-
mer. Remove oil pan (lower).
CAUTION:
Be careful not to damage the mating surface.
Do not insert flat-bladed screwdriver, this will damage the
mating surface.
26. Remove oil strainer.
27. Remove transmission joint bolts which pierce oil pan (upper). Refer to AT- 2 7 1 , "
TRANSMISSION ASSEM-
BLY" .
28. Loosen mounting bolts in the reverse order as shown in the fig-
ure with power tool to remove.
I n s e r t t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] b e t w e e n o i l
pan (upper) and cylinder block. Slide seal cutter by tapping on
the side of tool with a hammer. Remove oil pan (upper).
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert a screwdriver, this will damage the mat-
ing surfaces.
29. Remove O-rings from bottom of cylinder block and oil pump.
PBIC0782E
SEM960F
PBIC0783E
PBIC1144E
Page 3101 of 5621

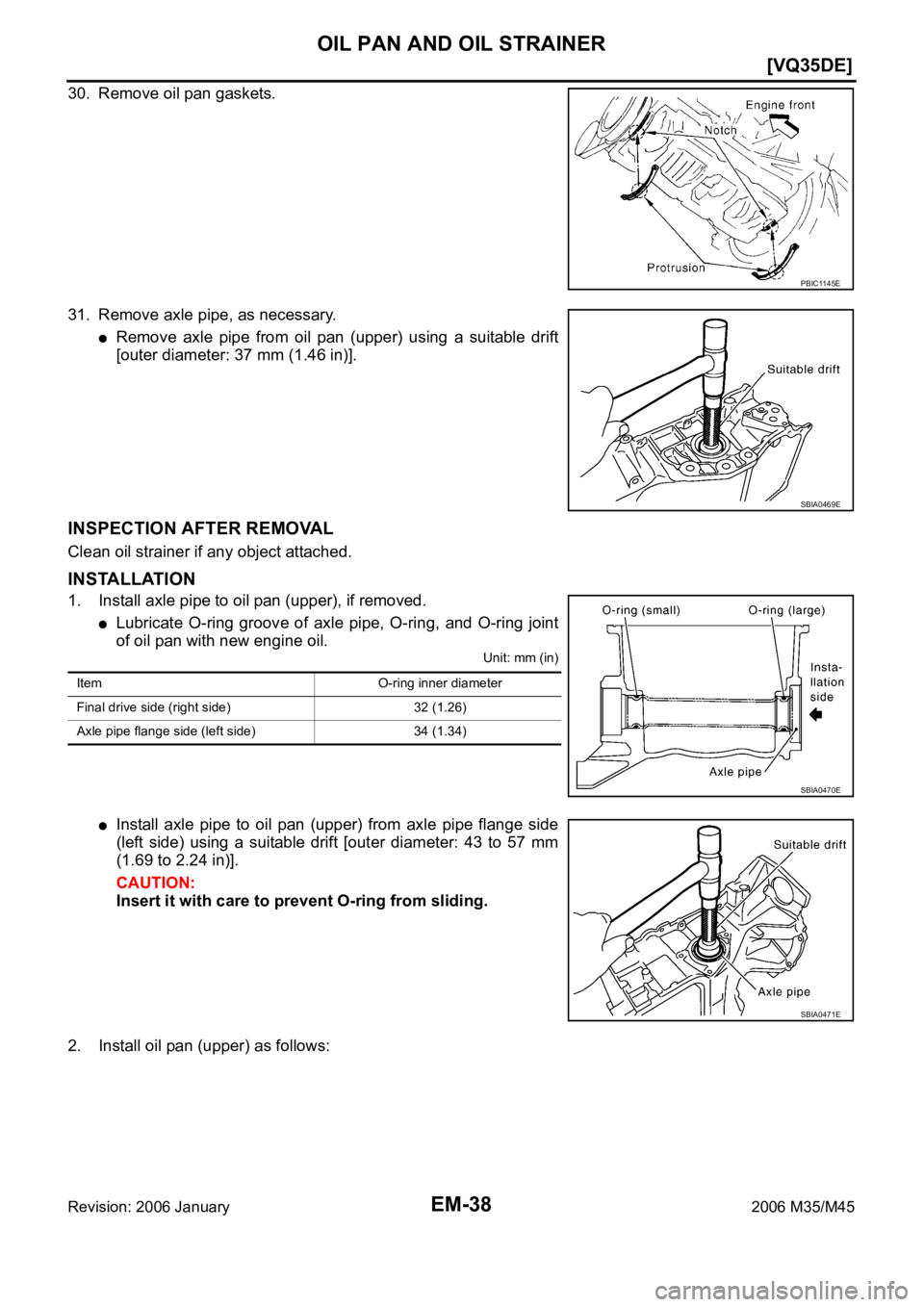

EM-38
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
30. Remove oil pan gaskets.
31. Remove axle pipe, as necessary.
Remove axle pipe from oil pan (upper) using a suitable drift
[outer diameter: 37 mm (1.46 in)].
INSPECTION AFTER REMOVAL
Clean oil strainer if any object attached.
INSTALLATION
1. Install axle pipe to oil pan (upper), if removed.
Lubricate O-ring groove of axle pipe, O-ring, and O-ring joint
of oil pan with new engine oil.
Unit: mm (in)
Install axle pipe to oil pan (upper) from axle pipe flange side
(left side) using a suitable drift [outer diameter: 43 to 57 mm
(1.69 to 2.24 in)].
CAUTION:
Insert it with care to prevent O-ring from sliding.
2. Install oil pan (upper) as follows:
PBIC1145E
SBIA0469E
Item O-ring inner diameter
Final drive side (right side) 32 (1.26)
Axle pipe flange side (left side) 34 (1.34)
SBIA0470E
SBIA0471E
Page 3102 of 5621

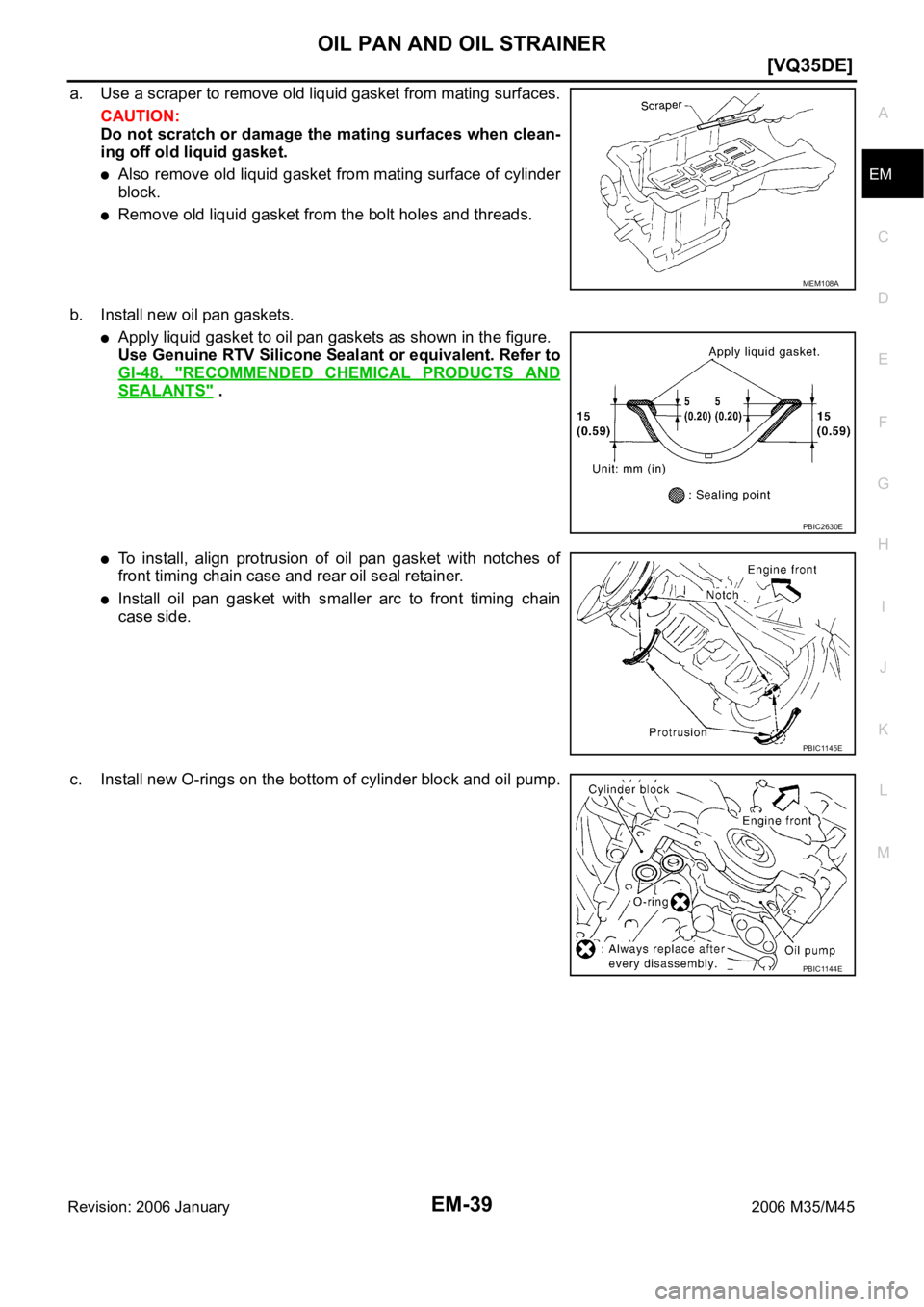

OIL PAN AND OIL STRAINER
EM-39
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
a. Use a scraper to remove old liquid gasket from mating surfaces.
CAUTION:
Do not scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
Also remove old liquid gasket from mating surface of cylinder
block.
Remove old liquid gasket from the bolt holes and threads.
b. Install new oil pan gaskets.
Apply liquid gasket to oil pan gaskets as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
To install, align protrusion of oil pan gasket with notches of
front timing chain case and rear oil seal retainer.
Install oil pan gasket with smaller arc to front timing chain
case side.
c. Install new O-rings on the bottom of cylinder block and oil pump.
MEM108A
PBIC2630E
PBIC1145E
PBIC1144E
Page 3103 of 5621

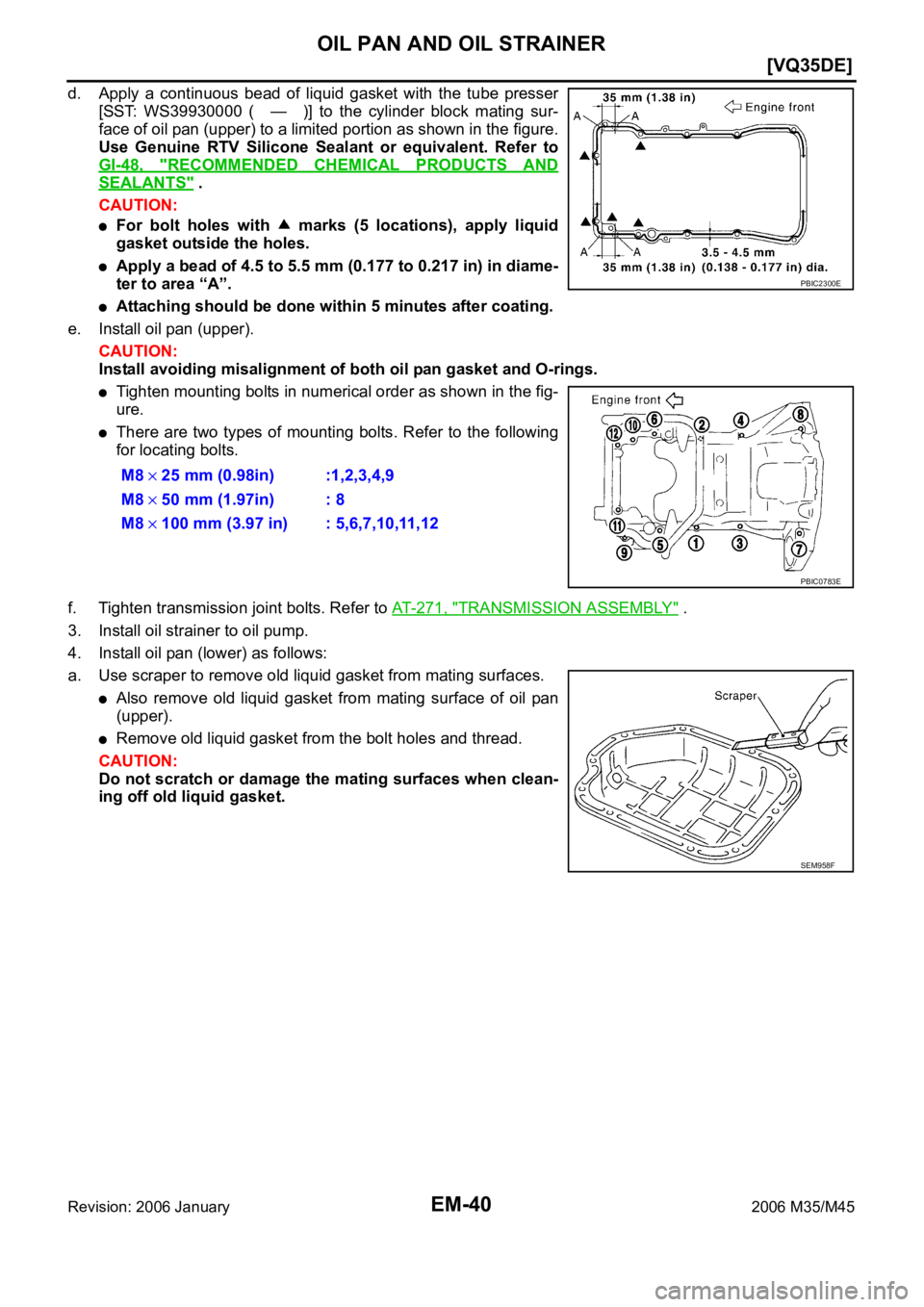

![INFINITI M35 2006 Factory Service Manual EM-40
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
d. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to the cylinder b INFINITI M35 2006 Factory Service Manual EM-40
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
d. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to the cylinder b](/manual-img/42/57023/w960_57023-3102.png)
EM-40
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
d. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to the cylinder block mating sur-
face of oil pan (upper) to a limited portion as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
CAUTION:
For bolt holes with marks (5 locations), apply liquid
gasket outside the holes.
Apply a bead of 4.5 to 5.5 mm (0.177 to 0.217 in) in diame-
ter to area “A”.
Attaching should be done within 5 minutes after coating.
e. Install oil pan (upper).
CAUTION:
Install avoiding misalignment of both oil pan gasket and O-rings.
Tighten mounting bolts in numerical order as shown in the fig-
ure.
There are two types of mounting bolts. Refer to the following
for locating bolts.
f. Tighten transmission joint bolts. Refer to AT-271, "
TRANSMISSION ASSEMBLY" .
3. Install oil strainer to oil pump.
4. Install oil pan (lower) as follows:
a. Use scraper to remove old liquid gasket from mating surfaces.
Also remove old liquid gasket from mating surface of oil pan
(upper).
Remove old liquid gasket from the bolt holes and thread.
CAUTION:
Do not scratch or damage the mating surfaces when clean-
ing off old liquid gasket.M8
25 mm (0.98in) :1,2,3,4,9
M8
50 mm (1.97in) : 8
M8
100 mm (3.97 in) : 5,6,7,10,11,12
PBIC2300E
PBIC0783E
SEM958F
Page 3104 of 5621
![INFINITI M35 2006 Factory Service Manual OIL PAN AND OIL STRAINER
EM-41
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
b. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — INFINITI M35 2006 Factory Service Manual OIL PAN AND OIL STRAINER
EM-41
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
b. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( —](/manual-img/42/57023/w960_57023-3103.png)
OIL PAN AND OIL STRAINER
EM-41
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
b. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to the oil pan (lower) as shown in
the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
CAUTION:
Attaching should be done within 5 minutes after coating.
c. Install oil pan (lower).
Tighten mounting bolts in numerical order as shown in the fig-
ure.
5. Install oil pan drain plug.
Refer to the figure of components of former page for installation direction of drain plug washer. Refer to
EM-35, "
Components (AWD Models)" .
6. Install in the reverse order of removal after this step.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and adjust engine oil. Refer to LU-7, "ENGINE OIL" .
2. Start engine, and check there is no leak of engine oil.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level again. Refer to LU-7, "
ENGINE OIL" .
PBIC2657E
PBIC0782E
