Page 4233 of 5621

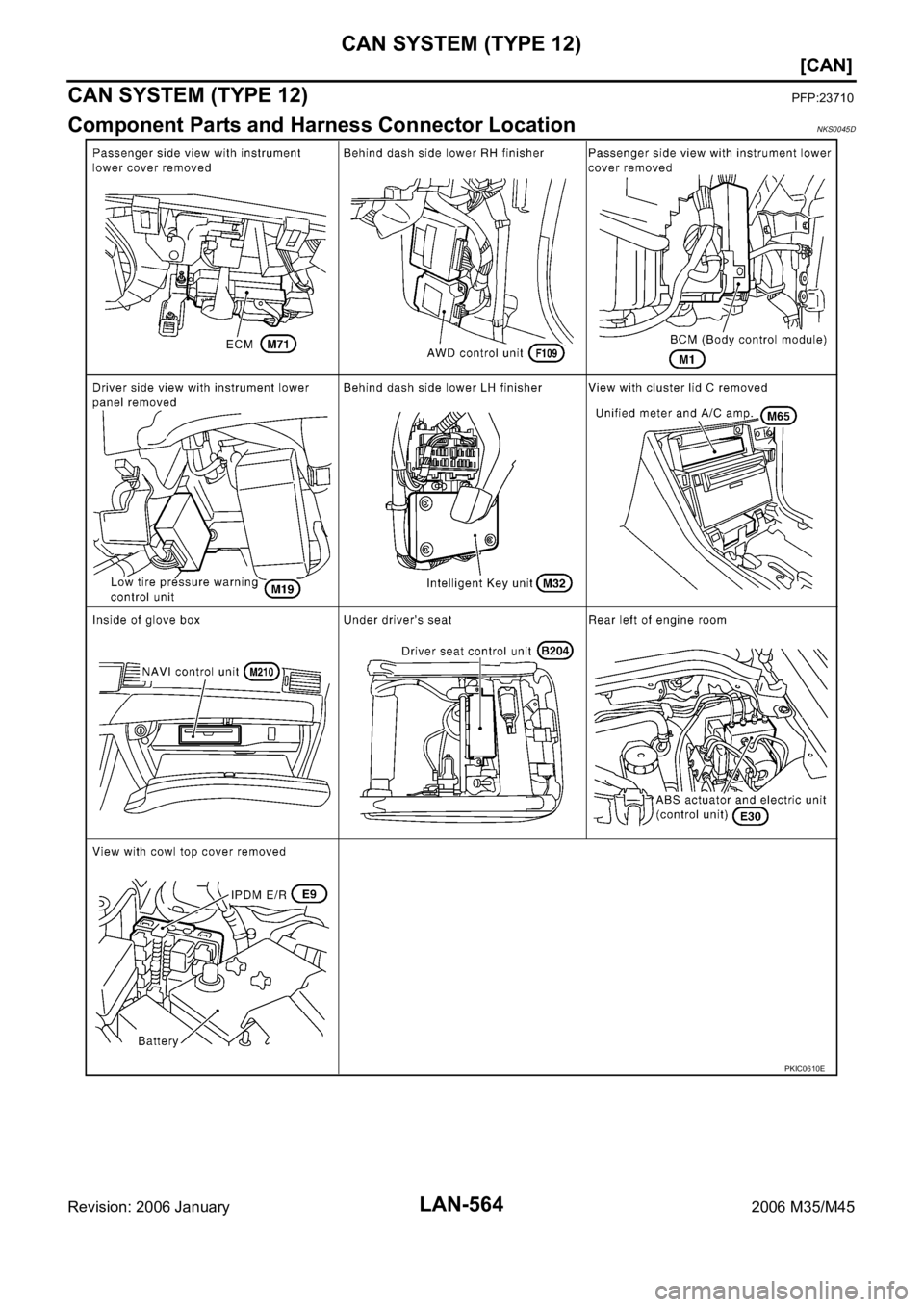

INFINITI M35 2006 Factory Service Manual LAN-564 [CAN] CAN SYSTEM (TYPE 12) Revision: 2006 January2006 M35/M45 CAN SYSTEM (TYPE 12)PFP:23710 Component Parts and Harness Connector LocationNKS0045D PKIC0610E

Page 4234 of 5621

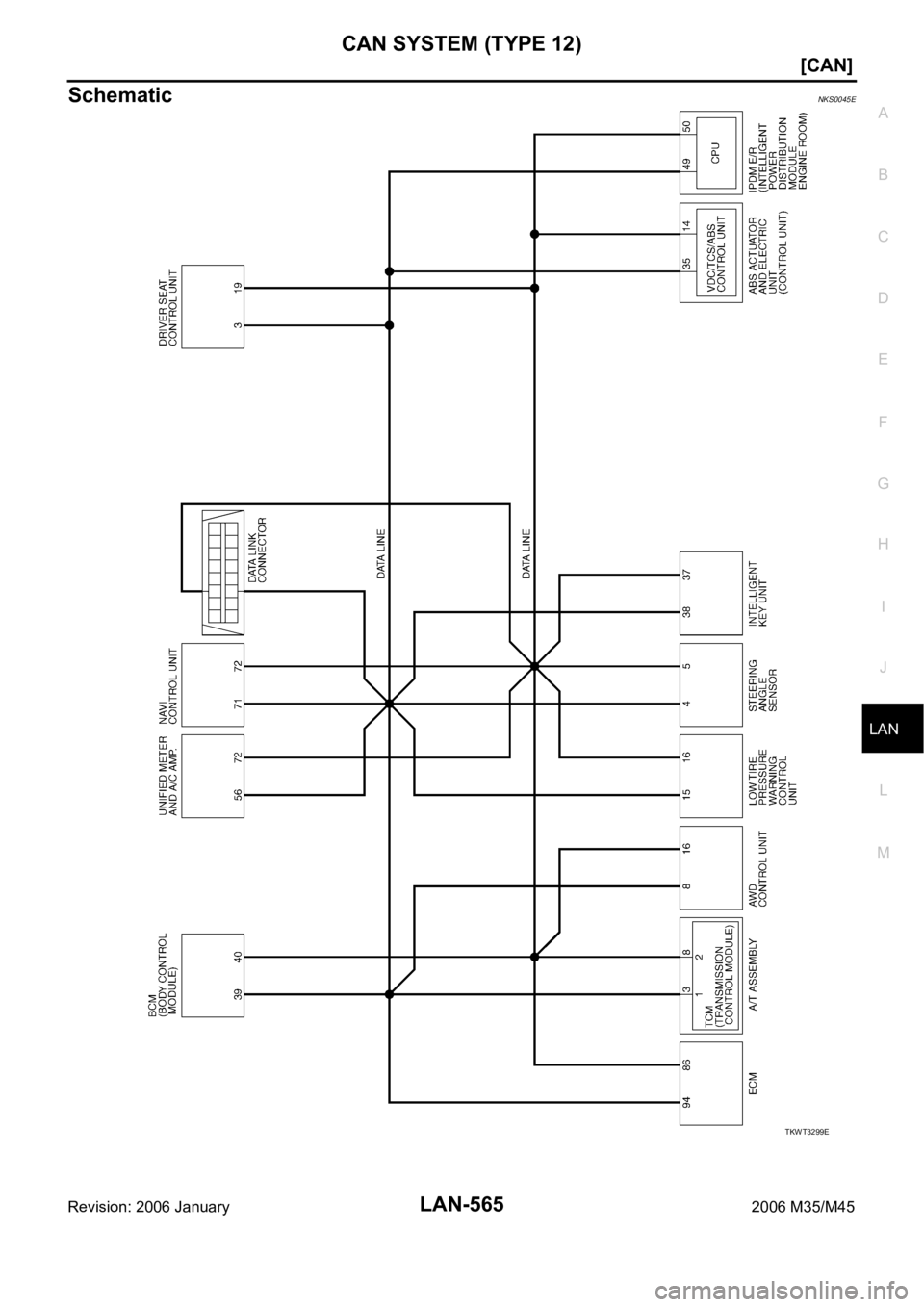

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 12) LAN-565 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 SchematicNKS0045E TKWT3299E

Page 4235 of 5621

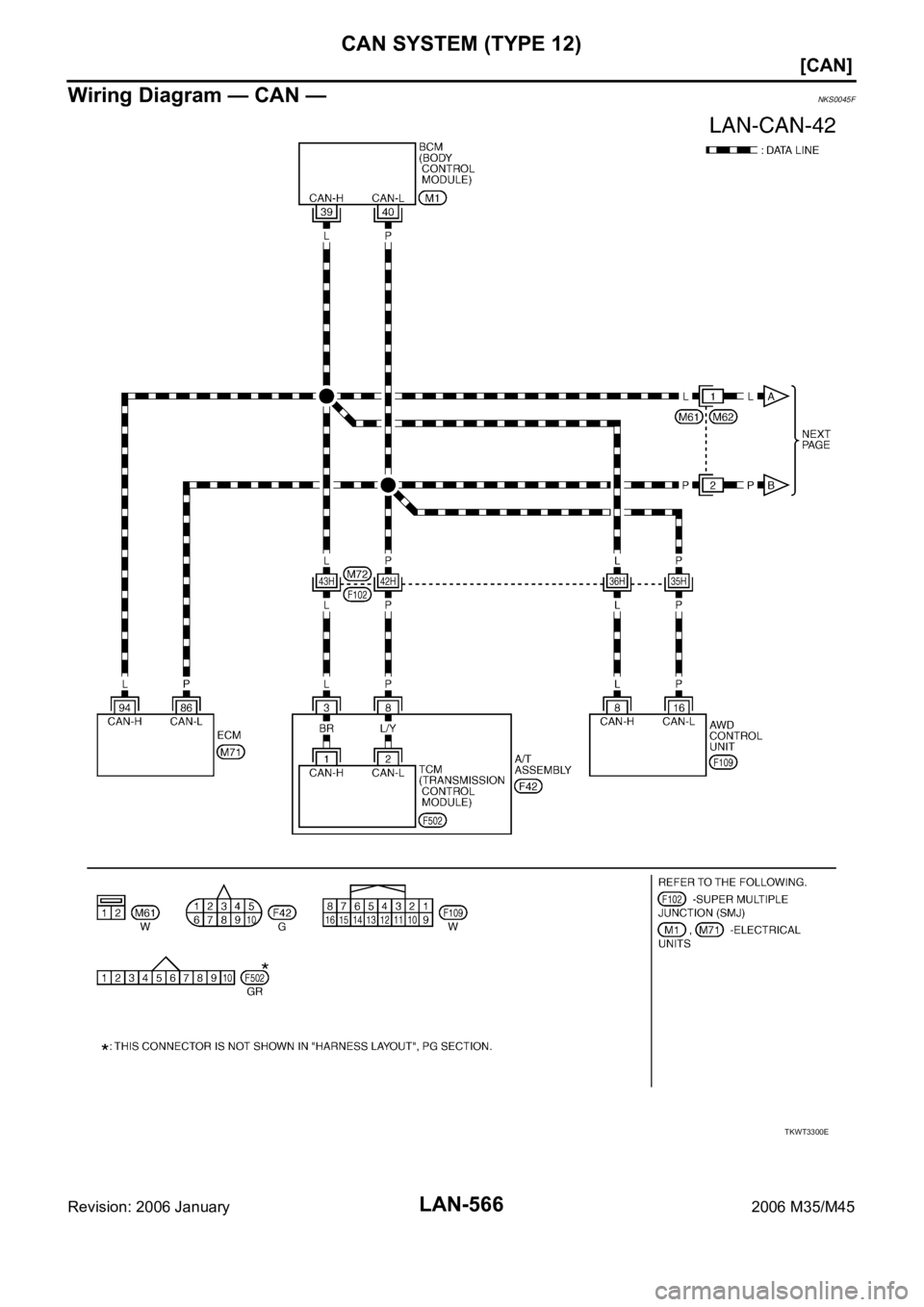

INFINITI M35 2006 Factory Service Manual LAN-566 [CAN] CAN SYSTEM (TYPE 12) Revision: 2006 January2006 M35/M45 Wiring Diagram — CAN —NKS0045F TKWT3300E

Page 4236 of 5621

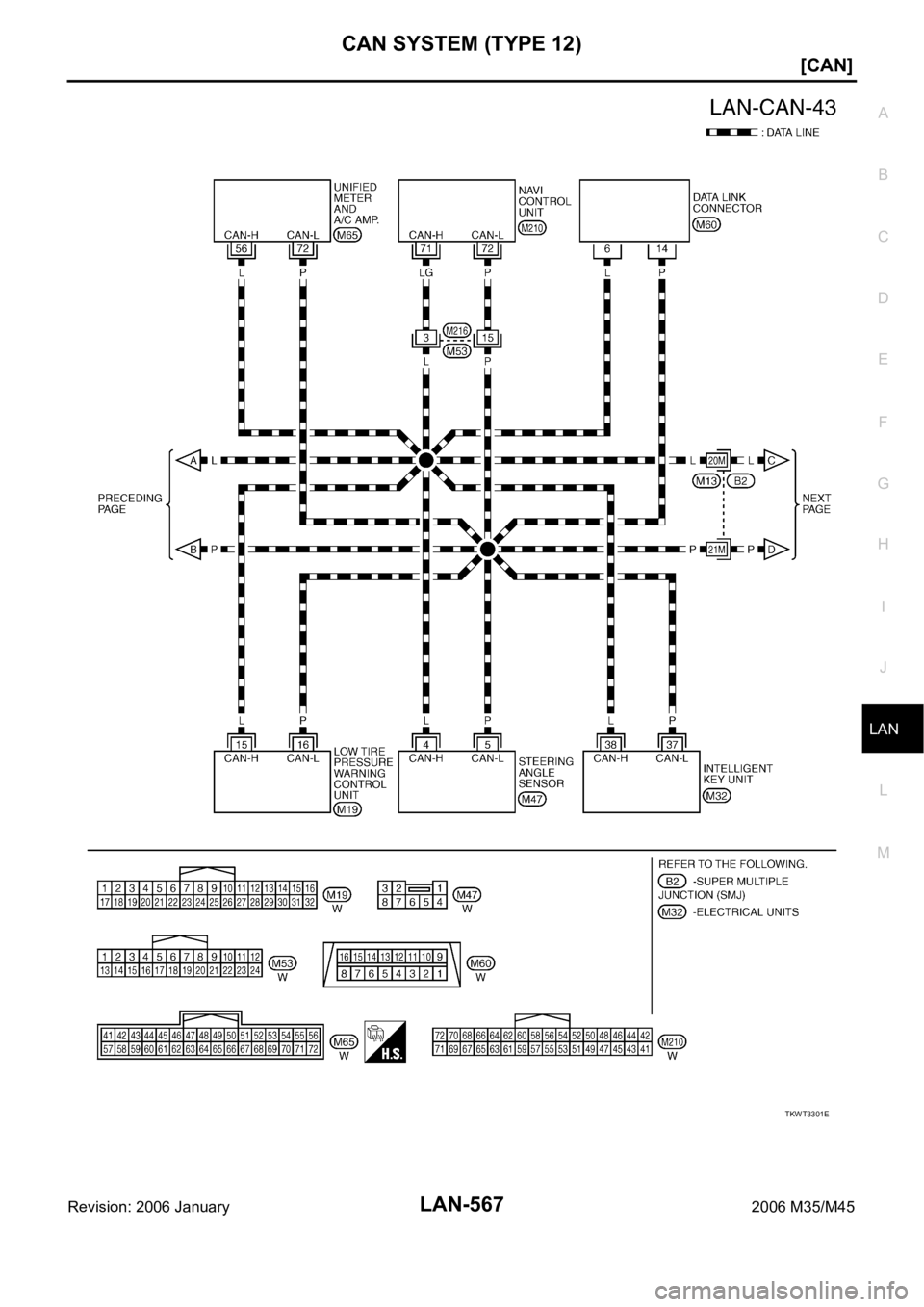

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 12) LAN-567 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 TKWT3301E

Page 4237 of 5621

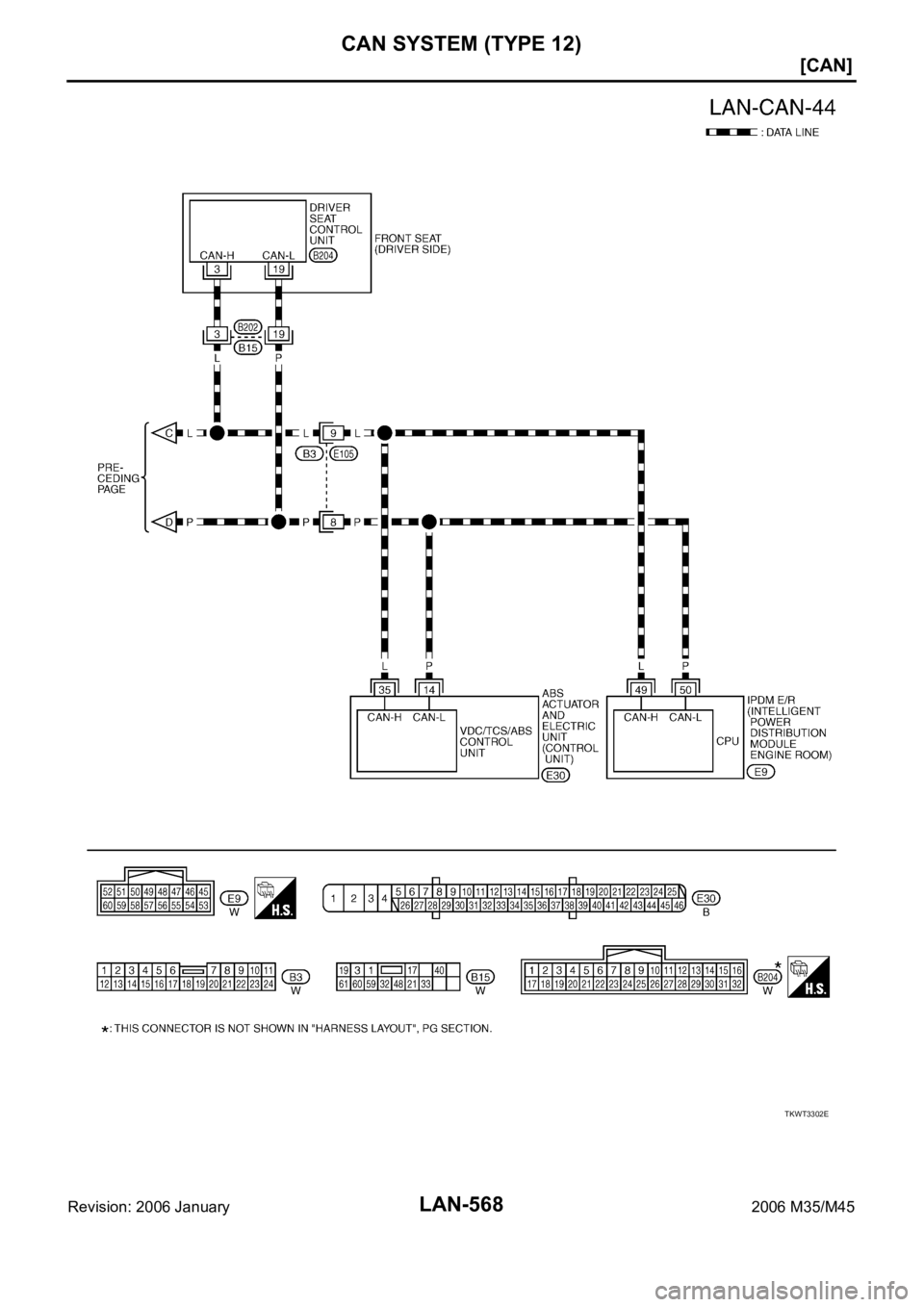

INFINITI M35 2006 Factory Service Manual LAN-568 [CAN] CAN SYSTEM (TYPE 12) Revision: 2006 January2006 M35/M45 TKWT3302E

Page 4238 of 5621

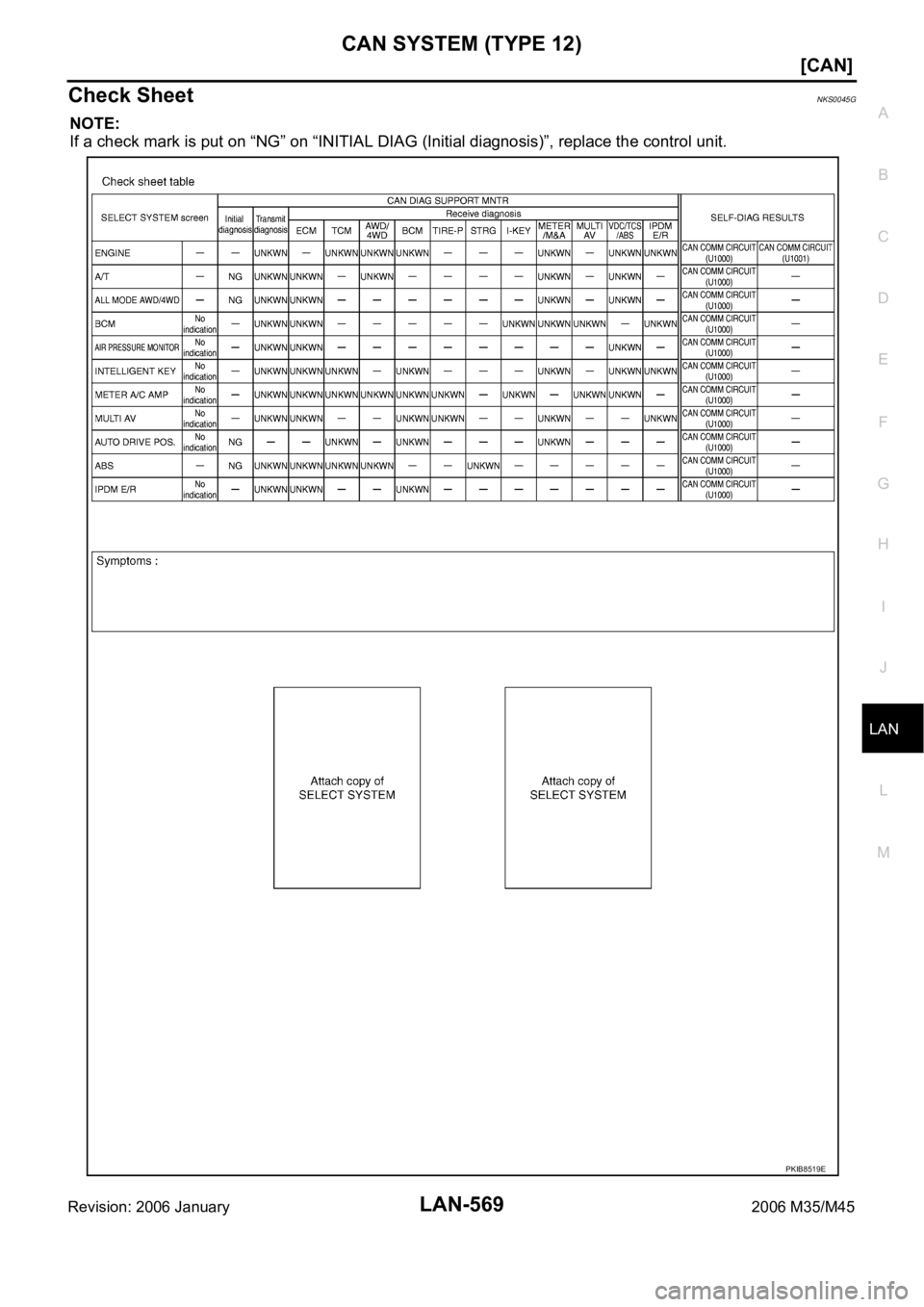

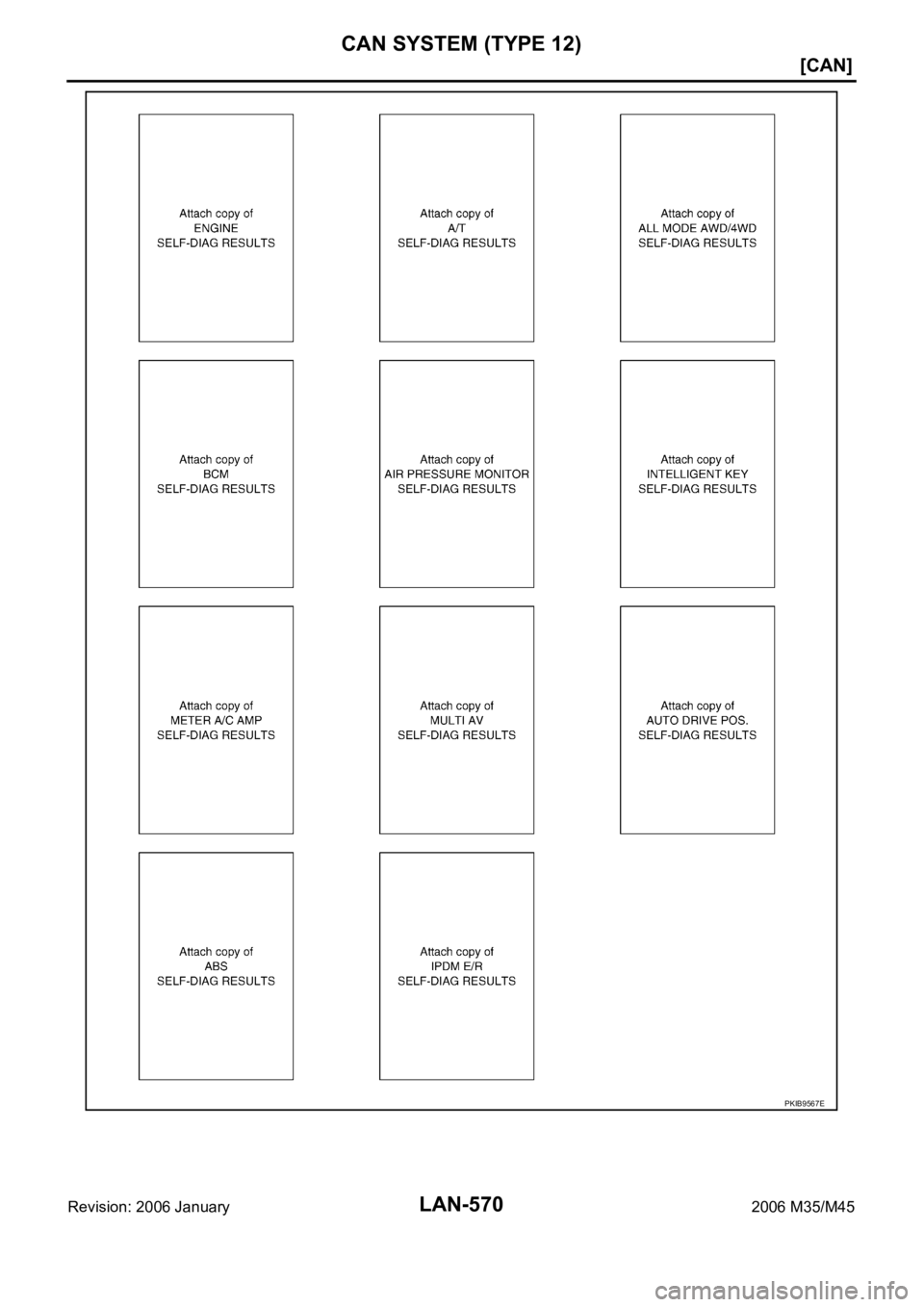

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 12) LAN-569 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Check SheetNKS0045G NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”,

Page 4239 of 5621

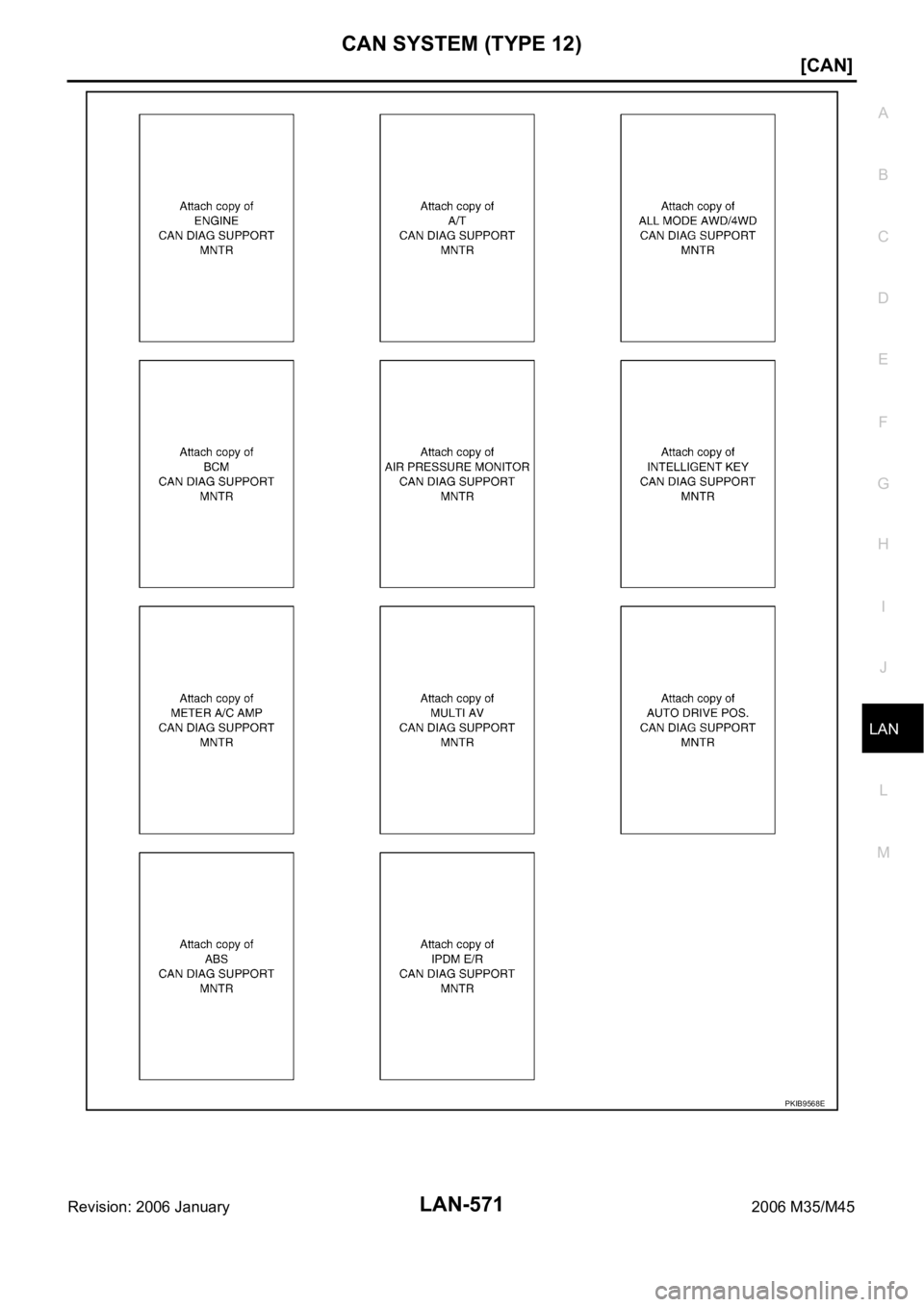

INFINITI M35 2006 Factory Service Manual LAN-570 [CAN] CAN SYSTEM (TYPE 12) Revision: 2006 January2006 M35/M45 PKIB9567E

Page 4240 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 12) LAN-571 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 PKIB9568E
