Page 3945 of 5621

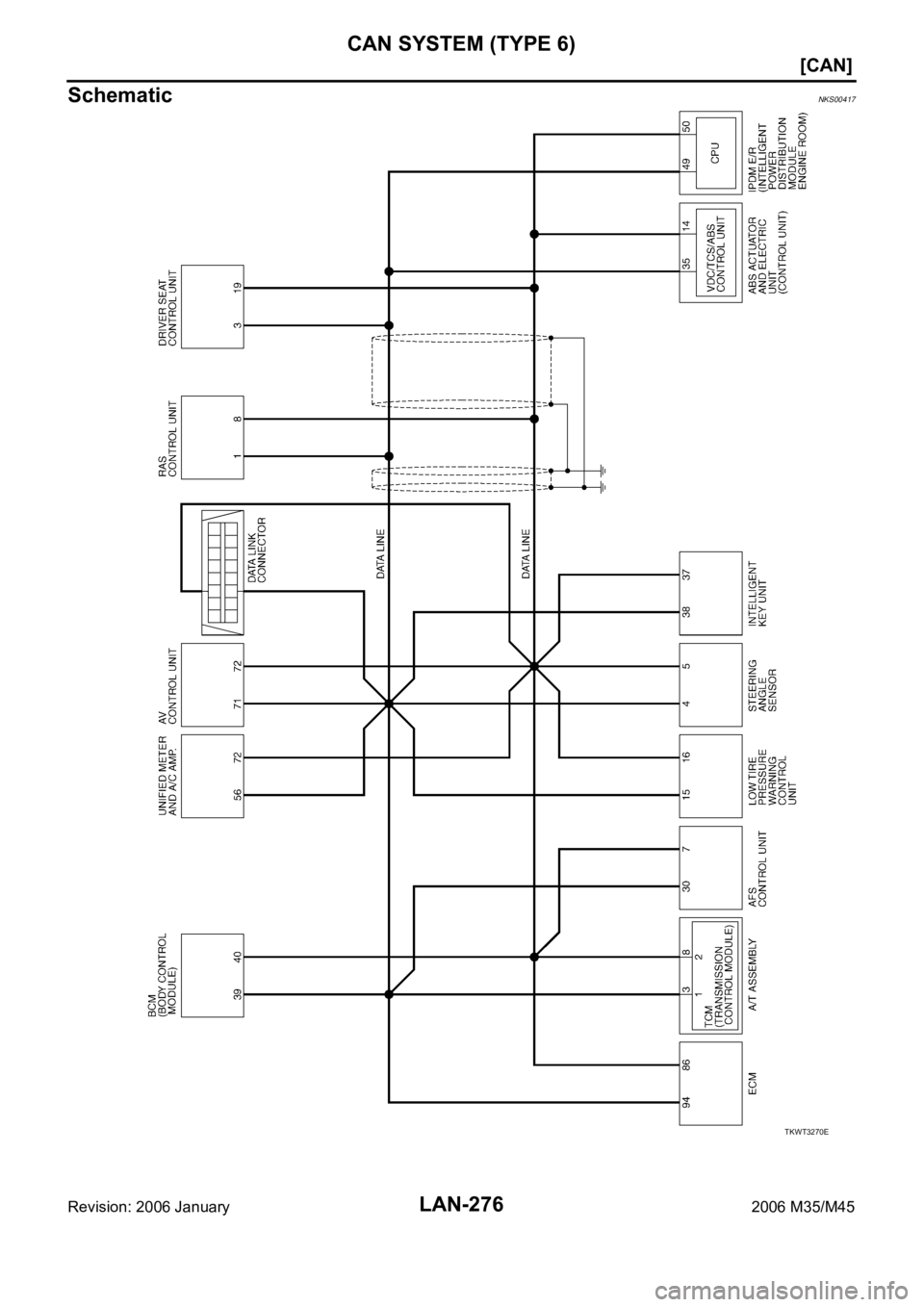

INFINITI M35 2006 Factory Service Manual LAN-276 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 SchematicNKS00417 TKWT3270E

Page 3946 of 5621

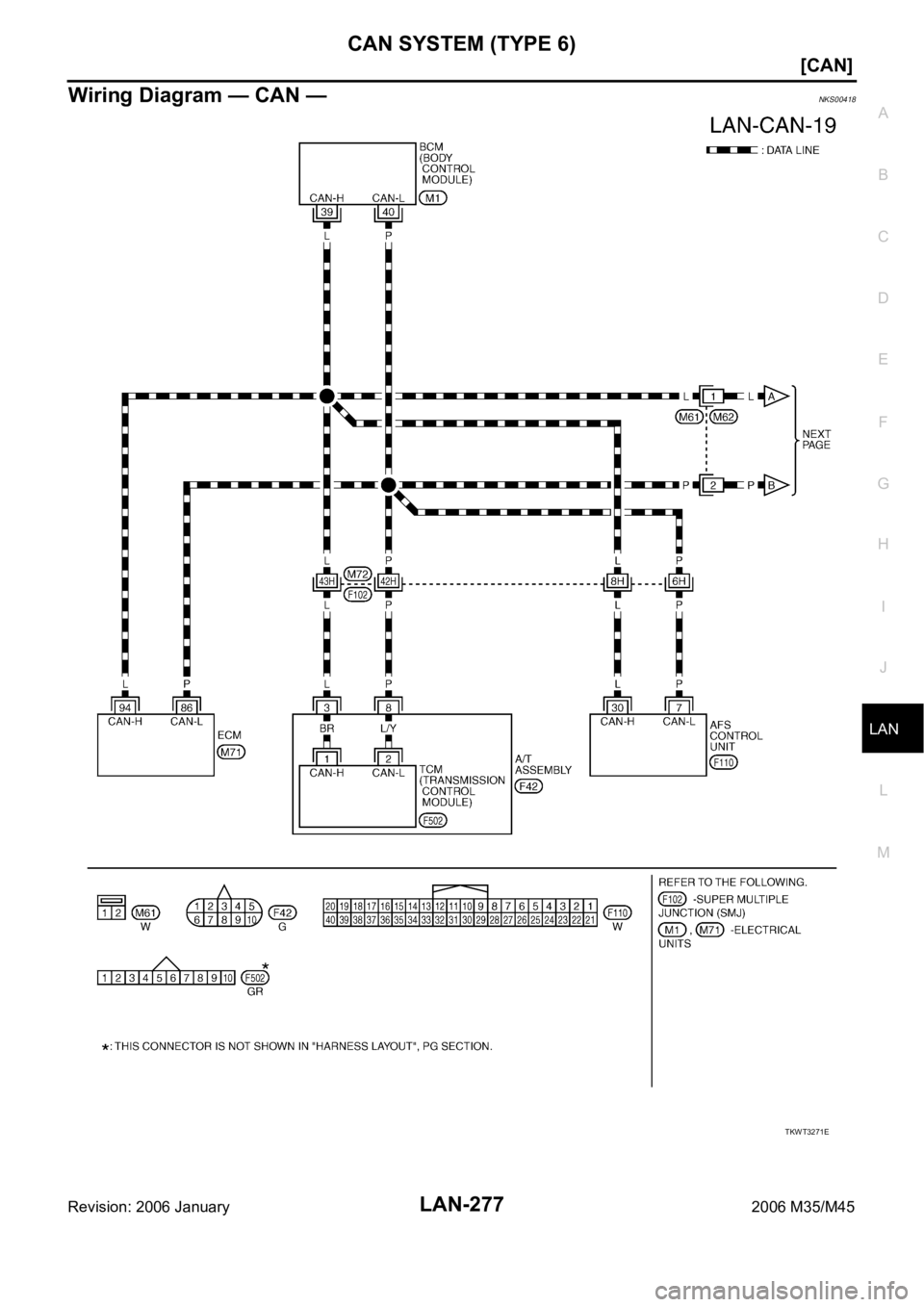

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-277 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Wiring Diagram — CAN —NKS00418 TKWT3271E

Page 3947 of 5621

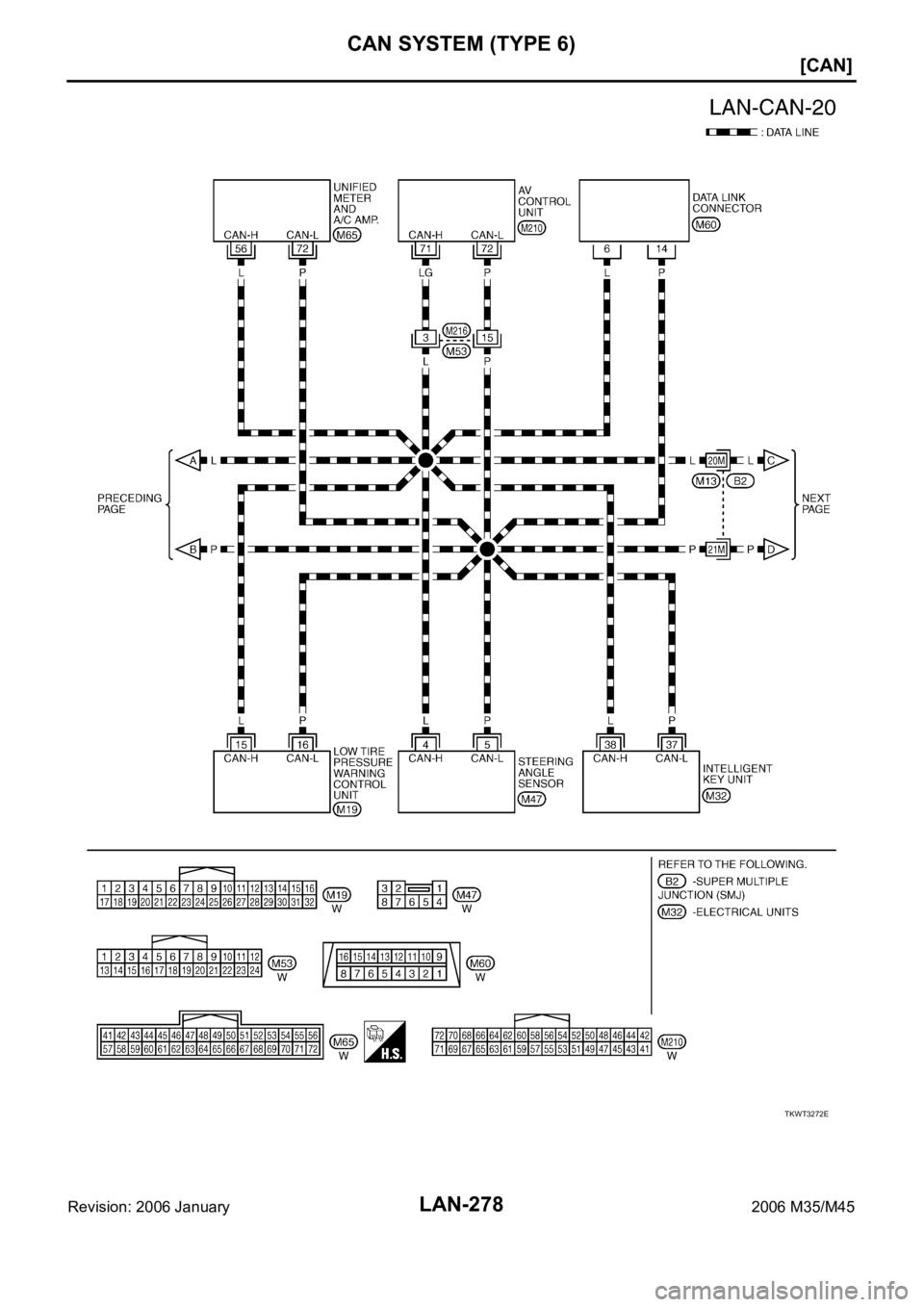

INFINITI M35 2006 Factory Service Manual LAN-278 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 TKWT3272E

Page 3948 of 5621

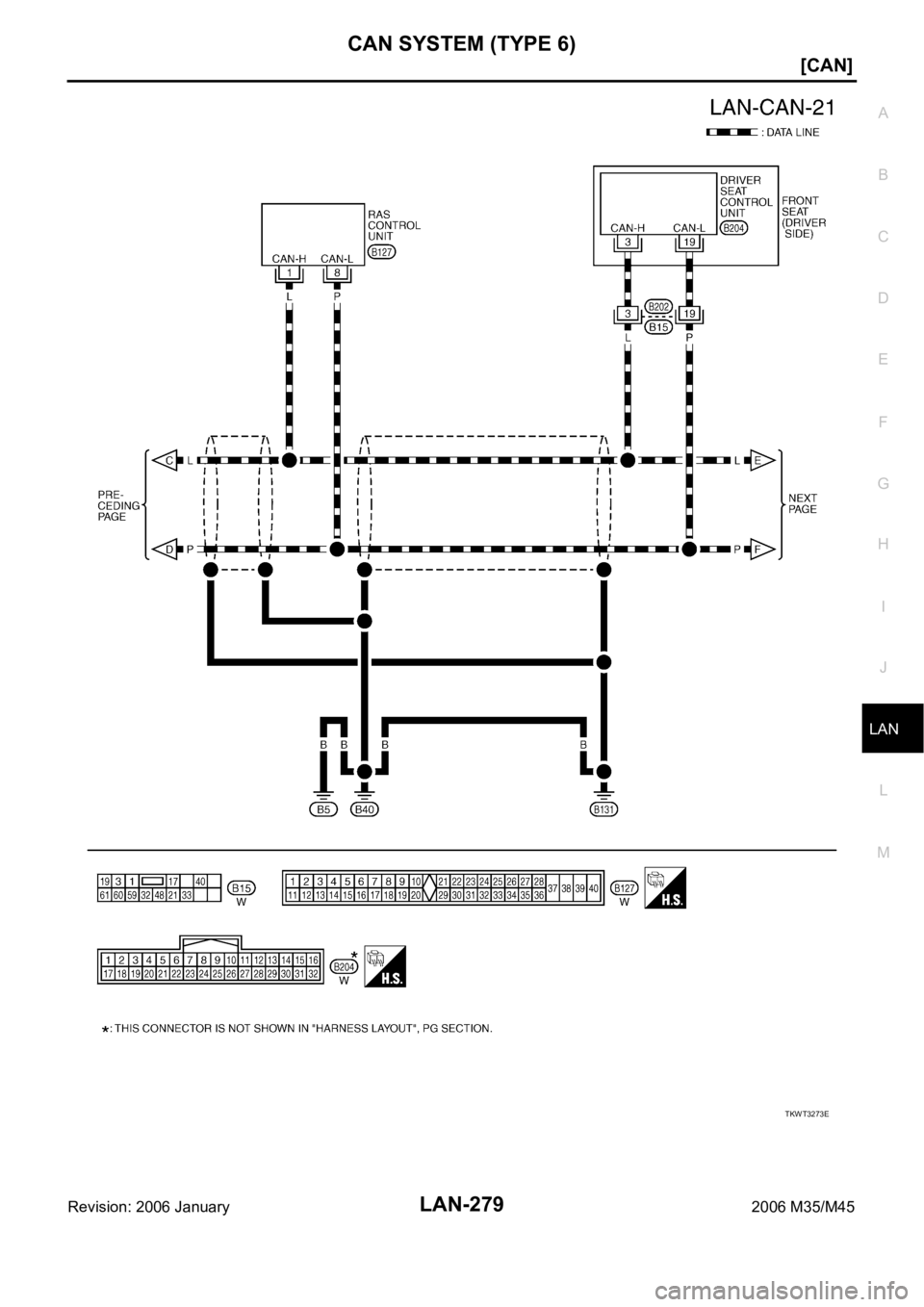

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-279 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 TKWT3273E

Page 3949 of 5621

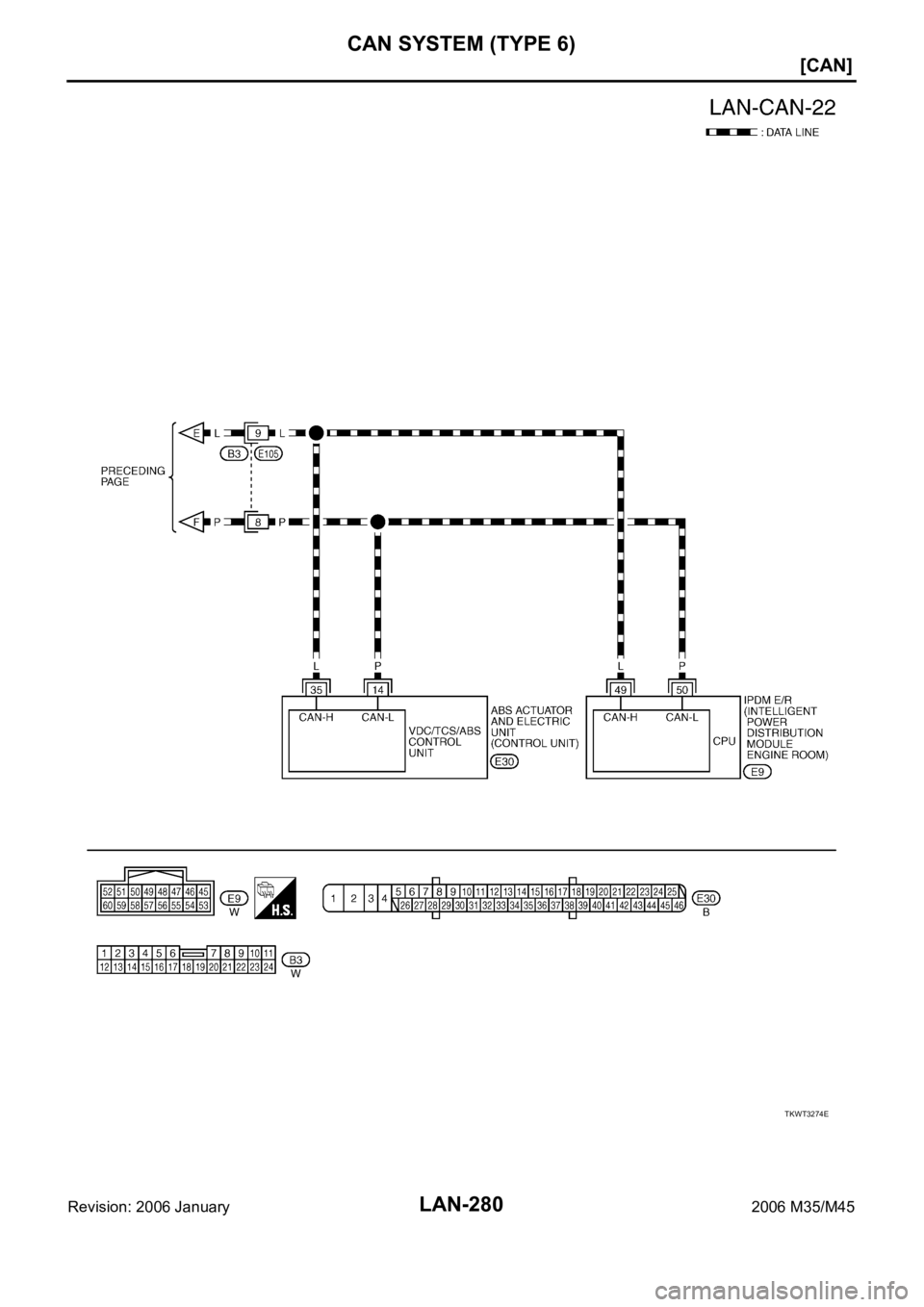

INFINITI M35 2006 Factory Service Manual LAN-280 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 TKWT3274E

Page 3950 of 5621

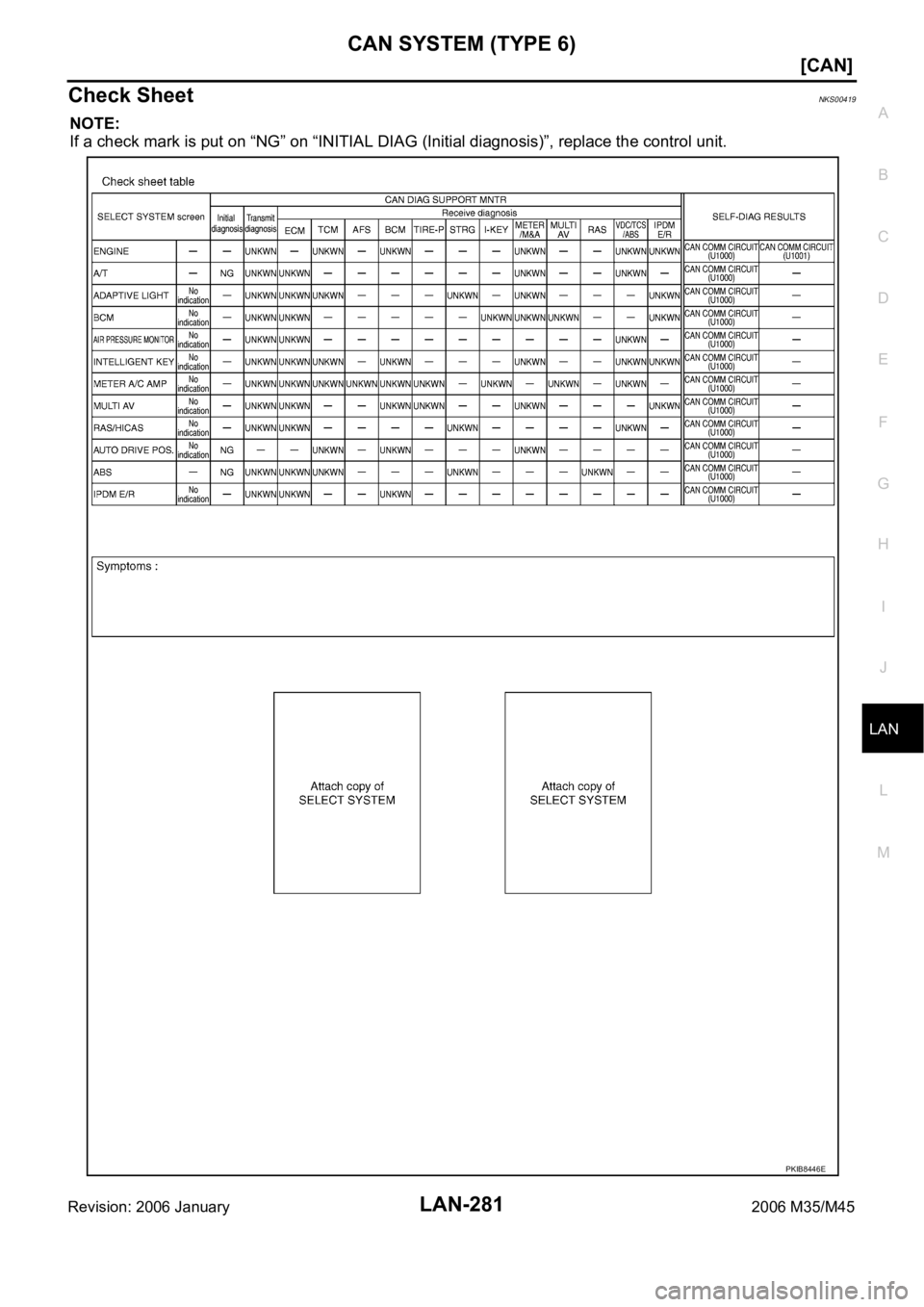

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-281 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Check SheetNKS00419 NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”,

Page 3951 of 5621

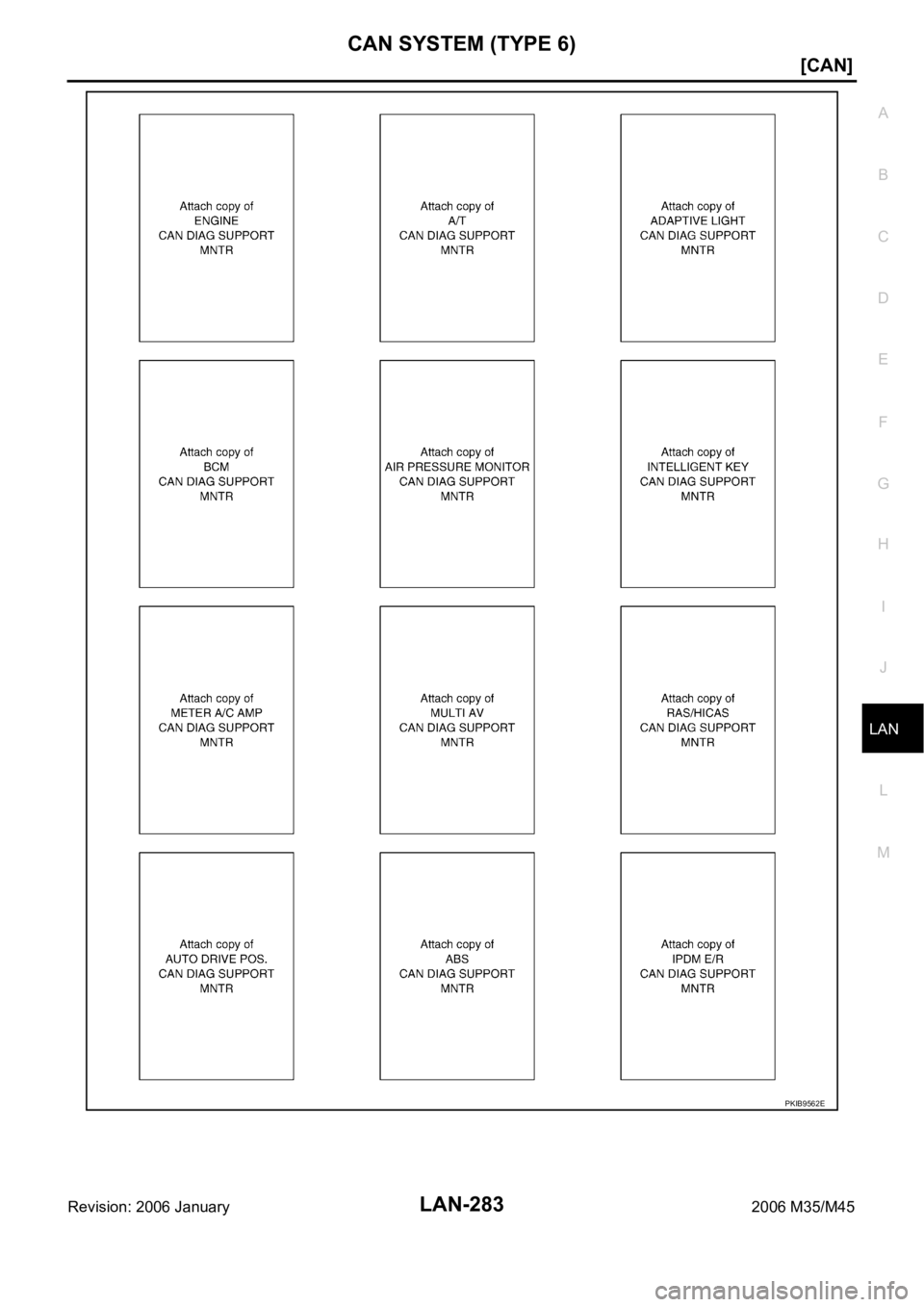

INFINITI M35 2006 Factory Service Manual LAN-282 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 PKIB9561E

Page 3952 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-283 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 PKIB9562E
