INFINITI M35 2006 Factory Service Manual SE-108
POWER SEAT(REAR)
Revision: 2006 January2006 M35/M45
Automatic Return Cancel Switch Circuit InspectionNIS0027D

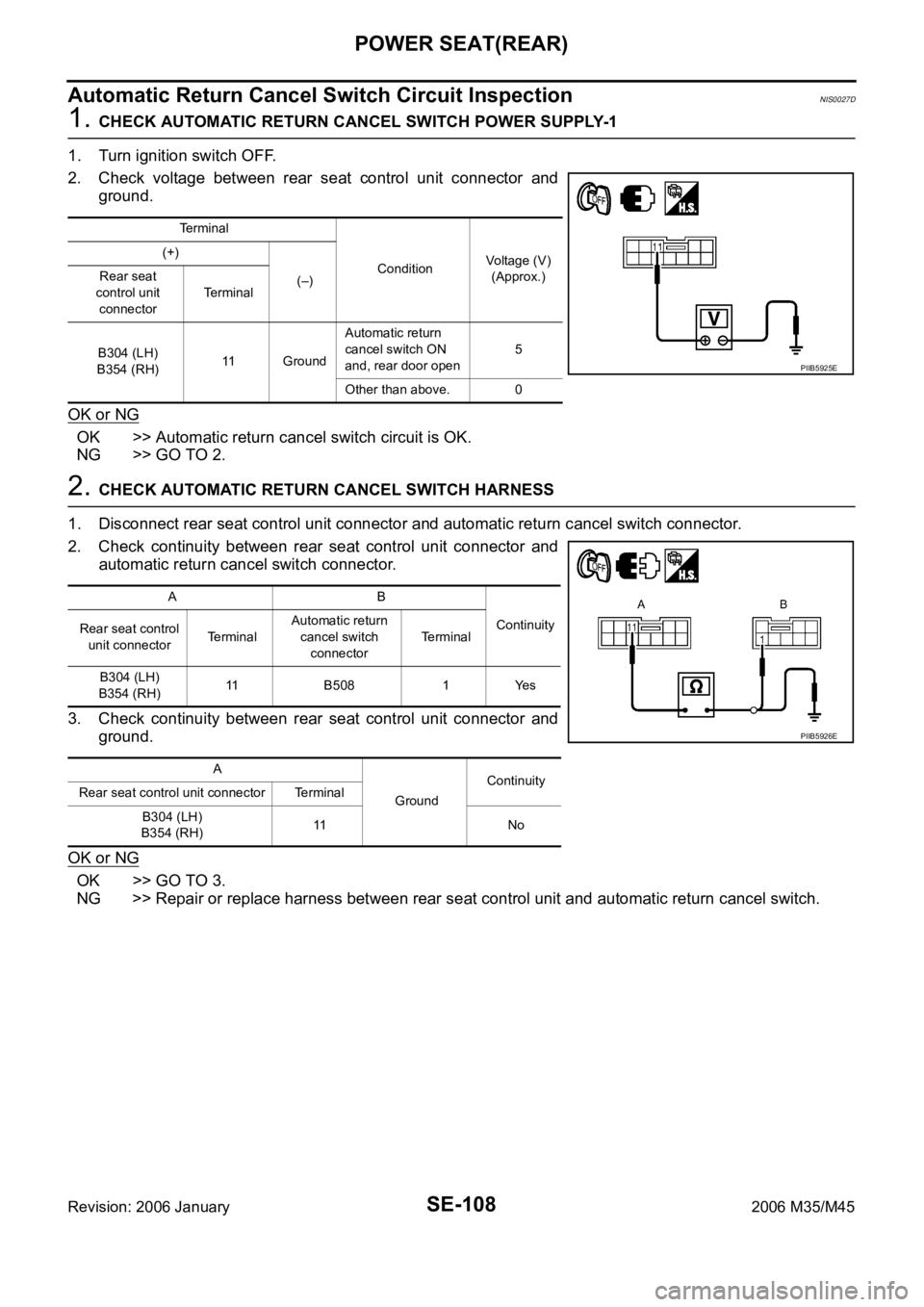

1. CHECK AUTOMATIC RETURN CANCEL SWITCH POWER SUPPLY-1
1. Turn ignition switch OFF.

Page 5290 of 5621

INFINITI M35 2006 Factory Service Manual POWER SEAT(REAR)
SE-109
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
3. CHECK AUTOMATIC RETURN CANCEL SWITCH POWER SUPPLY-2
1. Connect rear seat control unit connector.
2. Check volta

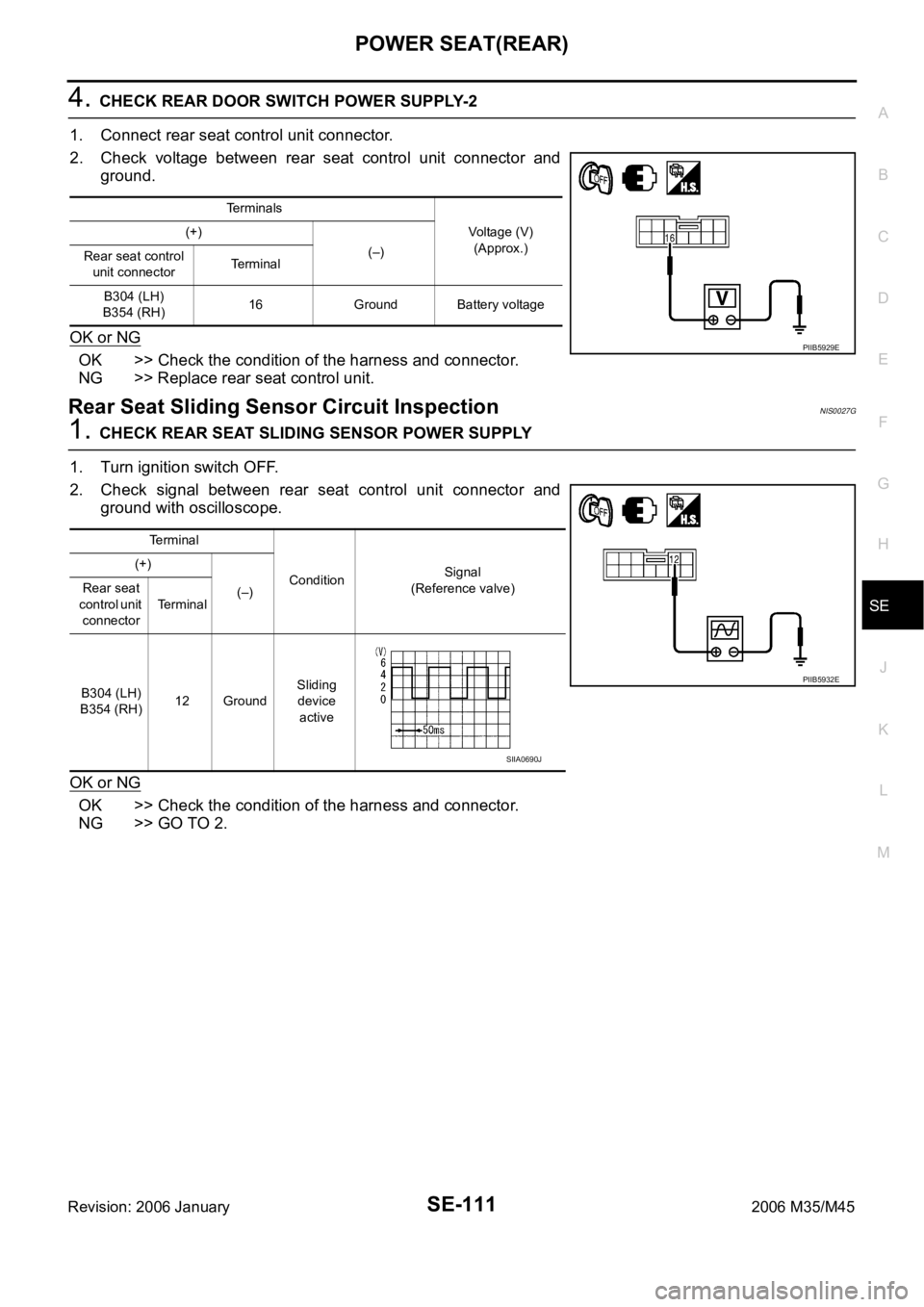

Page 5291 of 5621

INFINITI M35 2006 Factory Service Manual SE-110
POWER SEAT(REAR)
Revision: 2006 January2006 M35/M45
Rear Door Switch Circuit InspectionNIS0027F
1. CHECK REAR DOOR SWITCH POWER SUPPLY-1
1. Turn ignition switch OFF.
2. Check voltage between

Page 5292 of 5621

INFINITI M35 2006 Factory Service Manual POWER SEAT(REAR)
SE-111
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
4. CHECK REAR DOOR SWITCH POWER SUPPLY-2
1. Connect rear seat control unit connector.
2. Check voltage between r

Page 5293 of 5621

INFINITI M35 2006 Factory Service Manual SE-112
POWER SEAT(REAR)
Revision: 2006 January2006 M35/M45
2. CHECK REAR SEAT SLIDING SENSOR HARNESS
1. Disconnect rear seat control unit connector and rear seat sliding motor connector.
2. Check con

Page 5294 of 5621

INFINITI M35 2006 Factory Service Manual CLIMATE CONTROLLED SEAT
SE-113
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
CLIMATE CONTROLLED SEATPFP:870U6
Component Parts and Harness Connector LocationNIS0027H
System DescriptionNI

Page 5295 of 5621

INFINITI M35 2006 Factory Service Manual SE-114
CLIMATE CONTROLLED SEAT
Revision: 2006 January2006 M35/M45
At the time of work, please turn OFF a switch, and carry it out after checking that the thermal elec-
tric device has got cold.
Power

SE-114
CLIMATE CONTROLLED SEAT
Revision: 2006 January2006 M35/M45
At the time of work, please turn OFF a switch, and carry it out after checking that the thermal elec-
tric device has got cold.
Power is at all times supplied
through 15A fuse [No. 41 located in the fuse fusible link and relay unit]
to climate controlled seat relay terminals 5.
through 15A fuse [No. 42 located in the fuse fusible link and relay unit]
to climate controlled seat relay terminals 7.
When the ignition switch turned to ON or START position,
Power is supplied
through 10A fuse [No. 12, located in the fuse block (J/B)]
to climate controlled seat relay terminal 2.
Then ground is supplied
to climate controlled seat relay terminal 1,
through body grounds E22 and E43.
Then climate controlled seat relay is energized.
When climate controlled seat relay is turned to ON,
Power is supplied,
through climate controlled seat relay terminal 3,
to climate controlled seat control unit (passenger side) terminal 2 and 4.
through climate controlled seat relay terminal 6,
to climate controlled seat control unit (driver side) terminal 2 and 4.
When climate controlled switch select HEAT, ground is supplied
through climate controlled seat switch terminal 1 and 3,
to climate controlled seat control unit terminal 10.
Then, the climate controlled seat control unit receives climate controlled seat switch HEAT signal.
When climate controlled seat switch select COOL, ground is supplied
through climate controlled seat switch terminal 1 and 2,
to climate controlled seat control unit terminal 20,
Then, the climate controlled seat control unit receives climate controlled switch COOL signal.
When blower motor rotates, signal is transmitted
to climate controlled seat control unit terminal 18,
through climate controlled seat blower motor terminal 1.
This is climate controlled seat blower motor tachometer signal.
When climate controlled seat control unit receives climate controlled seat switch signal and tachometer signal,
Power is supplied
to climate controlled seat blower motor terminal 4,
through climate controlled seat control unit terminal 17.
This is blower motor revolution control signal.
When blower motor receivers blower motor revolution control signal,
Power is supplied
through climate controlled seat control unit terminal 14,
to climate controlled seat blower motor terminal 2.
When number of rotations correspond signal,
Ground is supplied
to climate controlled seat blower motor terminal 3,
through climate controlled seat control unit terminal 7,
through climate controlled seat control unit terminal 3,
through body grounds B5, B40 and B131.
Then motor revolution is controlled.
When the ignition switch turned to ON or START position,
Power is supplied

Page 5296 of 5621

INFINITI M35 2006 Factory Service Manual CLIMATE CONTROLLED SEAT
SE-115
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
to seat cushion thermal electric device terminal 1,
through climate controlled seat control unit terminal 2

CLIMATE CONTROLLED SEAT
SE-115
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
to seat cushion thermal electric device terminal 1,
through climate controlled seat control unit terminal 22.
Then ground is supplied
to climate controlled seat control unit terminal 21,
through seat cushion thermal electric device terminal 2,
Then the climate controlled seat control unit recognizes seat cushion thermal electric device sensor signal.
When climate controlled seat control unit recognizes climate controlled seat switch HEAT signal and, seat
cushion thermal electric device sensor signal,
Power is supplied
to seat cushion thermal electric device terminal 4,
through climate controlled seat control unit terminal 5.
Then ground is supplied
through seat cushion thermal electric device terminal 6,
to climate controlled seat control unit terminal 6,
through climate controlled seat control unit terminal 3,
through body grounds B5, B40 and B131.
When climate controlled seat control unit recognizes climate controlled seat switch COOL signal and seat
cushion thermal electric device sensor signal,
Power is supplied
to seat cushion thermal electric device terminal 6,
through climate controlled seat control unit terminal 6.
Then ground is supplied
through seat cushion thermal electric device terminal 4,
to climate controlled seat control unit terminal 5.
through climate controlled seat control unit terminal 3,
through body grounds B5, B40 and B131.
When the ignition switch turned to ON or START position,
Power is supplied
to seatback thermal electric device terminal 1,
through climate controlled seat control unit terminal 23.
Then ground is supplied
to climate controlled seat control unit terminal 24,
through seatback thermal electric device terminal 2,
through climate controlled seat control unit terminal 3,
through body grounds B5, B40 and B131.
Then the climate controlled seat control unit recognizes seatback thermal electric device sensor signal.
When climate controlled seat control unit recognizes climate controlled seat switch HEAT signal and seatback
thermal electric device sensor signal,
Power is supplied
to seatback thermal electric device terminal 4,
through climate controlled seat control unit terminal 15,
ground is supplied
to climate controlled seat control unit terminal 16,
through seatback thermal electric device terminal 6,
through climate controlled seat control unit terminal 3,
through body grounds B5, B40 and B131.
This seatback thermal electric device generates heat wind is warmed.
When climate controlled seat control unit recognizes climate controlled seat switch COOL signal and seatback
thermal electric device sensor signal,
Power is supplied
to seatback thermal electric device terminal 6,
