2006 INFINITI M35 Factory Service Manual

sport mode service interval reset key parking brake checking oil start stop button

Page 1377 of 5621

INFINITI M35 2006 Factory Service Manual CO-2Revision: 2006 January2006 M35/M45
VK45DE
PRECAUTIONS ......................................................... 34
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BE

CO-2Revision: 2006 January2006 M35/M45
VK45DE
PRECAUTIONS ......................................................... 34
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................. 34
PREPARATION ......................................................... 35
Special Service Tools ............................................. 35
Commercial Service Tools ...................................... 35
OVERHEATING CAUSE ANALYSIS ........................ 36
Troubleshooting Chart ............................................ 36
COOLING SYSTEM .................................................. 38
Cooling Circuit ........................................................ 38
System Chart .......................................................... 39
ENGINE COOLANT .................................................. 40
Inspection ............................................................... 40
LEVEL CHECK .................................................... 40
LEAK CHECK ...................................................... 40
Changing Engine Coolant ....................................... 40
DRAINING ENGINE COOLANT .......................... 40
REFILLING ENGINE COOLANT ......................... 41
FLUSHING COOLING SYSTEM ......................... 42
RADIATOR ................................................................ 43
Components ........................................................... 43
Removal and Installation ........................................ 43
REMOVAL ........................................................
... 43
INSTALLATION .................................................... 45
INSPECTION AFTER INSTALLATION ................ 45
Checking Radiator Cap .......................................... 45
Checking Radiator .................................................. 45
RADIATOR (ALUMINUM TYPE) ............................... 47
Components ........................................................... 47
Disassembly and Assembly .................................... 47
PREPARATION ................................................... 47
DISASSEMBLY ................................................... 47
ASSEMBLY ......................................................... 48
INSPECTION ....................................................... 50COOLING FAN .......................................................... 51
Components ............................................................ 51
Removal and Installation ......................................... 51
REMOVAL ............................................................ 51
INSTALLATION .................................................... 51
INSPECTION AFTER INSTALLATION ................ 51
Disassembly and Assembly .................................... 52
DISASSEMBLY .................................................... 52
INSPECTION AFTER DISASSEMBLY ................ 52
ASSEMBLY .......................................................... 52
WATER PUMP ........................................................... 53
Components ............................................................ 53
Removal and Installation ......................................... 53
REMOVAL ............................................................ 53
INSPECTION AFTER REMOVAL ........................ 54
INSTALLATION .................................................... 54
INSPECTION AFTER INSTALLATION ................ 54
THERMOSTAT AND WATER CONTROL VALVE ..... 55
Components ............................................................ 55
Removal and Installation ......................................... 55
REMOVAL ............................................................ 55
INSPECTION AFTER REMOVAL ........................ 56
INSTALLATION .................................................... 56
INSPECTION AFTER INSTALLATION ................ 57
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 58
Standard and Limit .................................................. 58
ENGINE COOLANT CAPACITY (APPROXI-
MATE) .................................................................. 58
RADIATOR ........................................................... 58
THERMOSTAT ..................................................... 58
WATER CONTROL VALVE .................................. 58

Page 1378 of 5621

INFINITI M35 2006 Factory Service Manual PRECAUTIONS
CO-3
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
[VQ35DE]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT

PRECAUTIONS
CO-3
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
[VQ35DE]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NBS005RT
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WAR NING :
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Liquid GasketNBS004QK
REMOVAL OF LIQUID GASKET SEALING
After removing mounting nuts and bolts, separate the mating
surface using the seal cutter (SST) and remove old liquid gasket
sealing.
CAUTION:
Be careful not to damage the mating surfaces.
Tap the seal cutter to insert it, and then slide it by tapping on the
side as shown in the figure.
In areas where seal cutter is difficult to use, use a plastic ham-
mer to lightly tap the parts, to remove it.
CAUTION:
If for some unavoidable reason tool such as a screwdriver
is used, be careful not to damage the mating surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove old liquid gasket adhering to the liquid
gasket application surface and the mating surface.
Remove liquid gasket completely from the groove of the liquid
gasket application surface, mounting bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
PBIC0002E
PBIC0003E

Page 1379 of 5621

INFINITI M35 2006 Factory Service Manual CO-4
[VQ35DE]
PRECAUTIONS
Revision: 2006 January2006 M35/M45
3. Attach liquid gasket tube to the tube presser [SST: WS39930000
(—)].
Use Genuine RTV Silicone Sealant or equivalent. Refer to

Page 1380 of 5621

INFINITI M35 2006 Factory Service Manual PREPARATION
CO-5
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
PREPARATIONPFP:00002
Special Service ToolsNBS004QL
The actual shapes of Kent-Moore tools may differ from those of

Page 1381 of 5621

INFINITI M35 2006 Factory Service Manual CO-6
[VQ35DE]
PREPARATION
Revision: 2006 January2006 M35/M45
Commercial Service ToolsNBS004QM
Tool nameDescription
Power toolLoosening nuts and bolts
Radiator cap tester Checking radiator and radiator

Page 1382 of 5621

INFINITI M35 2006 Factory Service Manual OVERHEATING CAUSE ANALYSIS
CO-7
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartNBS004QN
Symptom Check items
Cooling sys-

Page 1383 of 5621

INFINITI M35 2006 Factory Service Manual CO-8
[VQ35DE]
OVERHEATING CAUSE ANALYSIS
Revision: 2006 January2006 M35/M45
Except cool-
ing system
parts mal-
function— Overload on engineAbusive drivingHigh engine rpm under no
load
Driving in l

Page 1384 of 5621

INFINITI M35 2006 Factory Service Manual COOLING SYSTEM
CO-9
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2006 January2006 M35/M45
COOLING SYSTEMPFP:21020

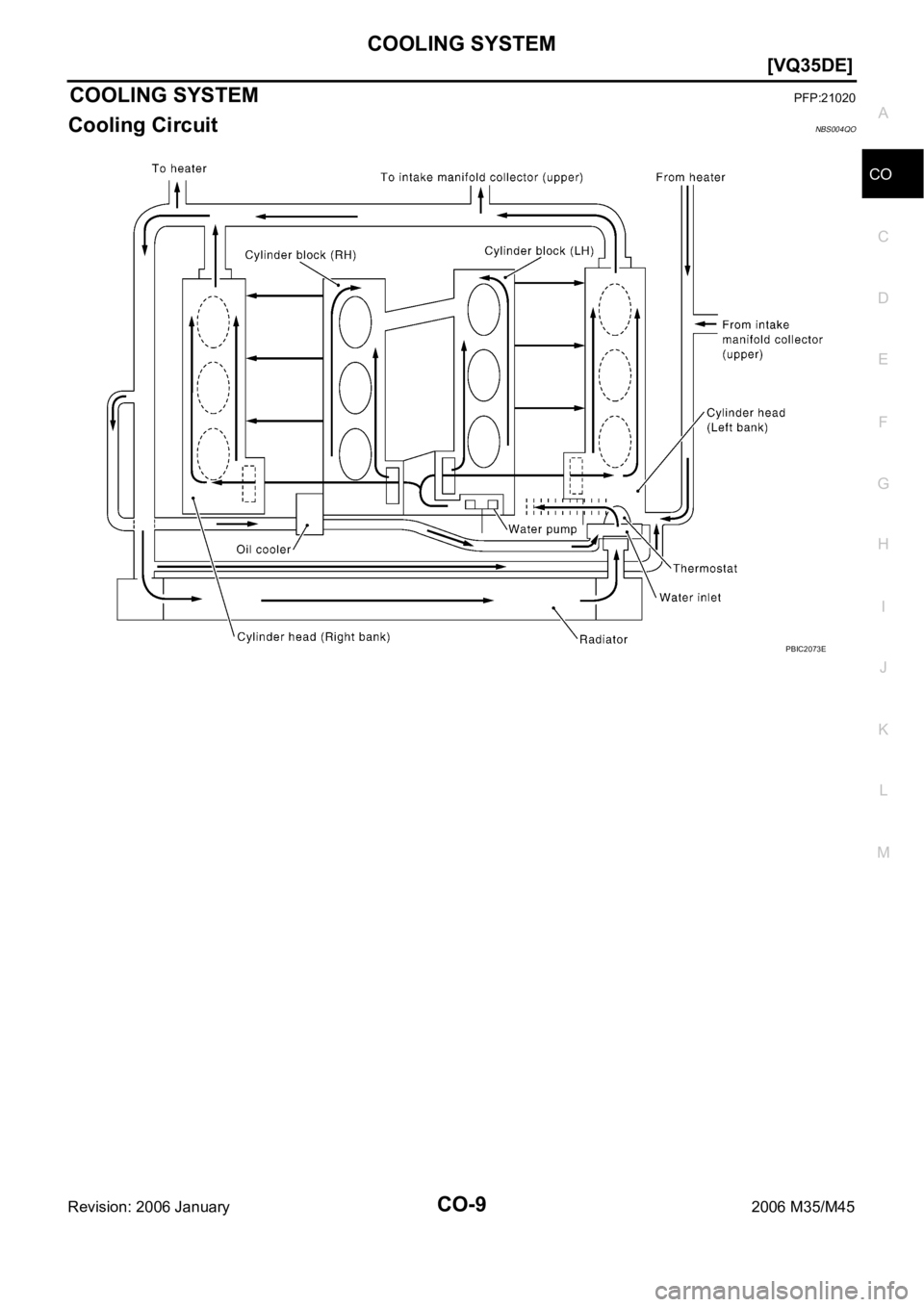

Cooling CircuitNBS004QO
PBIC2073E
