INFINITI M35 2006 Factory Service Manual EC-618
[VQ35DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 January2006 M35/M45
11 . CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if fore

Page 2162 of 5621

INFINITI M35 2006 Factory Service Manual DTC P2118 THROTTLE CONTROL MOTOR
EC-619
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P2118 THROTTLE CONTROL MOTORPFP:16119
Component DescriptionNBS0056A
The throttle contr

Page 2163 of 5621

INFINITI M35 2006 Factory Service Manual EC-620
[VQ35DE]
DTC P2118 THROTTLE CONTROL MOTOR
Revision: 2006 January2006 M35/M45

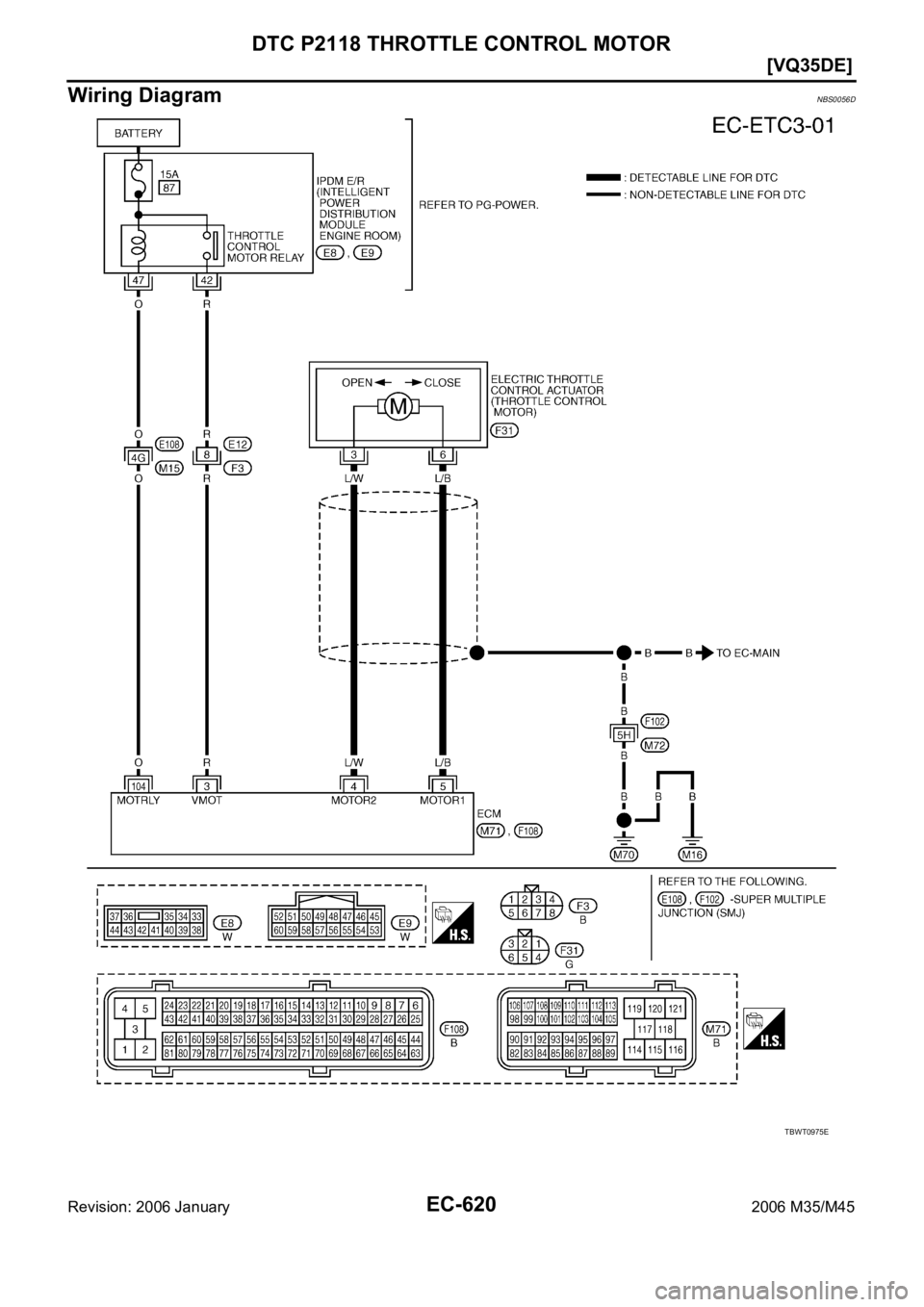

Wiring DiagramNBS0056D
TBWT0975E

Page 2164 of 5621

INFINITI M35 2006 Factory Service Manual DTC P2118 THROTTLE CONTROL MOTOR
EC-621
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.

Page 2165 of 5621

INFINITI M35 2006 Factory Service Manual EC-622
[VQ35DE]
DTC P2118 THROTTLE CONTROL MOTOR
Revision: 2006 January2006 M35/M45
2. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect electric throttle control act

Page 2166 of 5621

INFINITI M35 2006 Factory Service Manual DTC P2118 THROTTLE CONTROL MOTOR
EC-623
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS0056G
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-19, "I

Page 2167 of 5621

INFINITI M35 2006 Factory Service Manual EC-624
[VQ35DE]
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
Revision: 2006 January2006 M35/M45
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
Component DescriptionNBS0056H
Electric throttle co

EC-624
[VQ35DE]
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
Revision: 2006 January2006 M35/M45
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
Component DescriptionNBS0056H
Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagnosis LogicNBS0056I
This self-diagnosis has one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureNBS0056J
NOTE:
Perform PROCEDURE FOR MALFUNCTION A AND B first. If the DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION C.
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to D position and wait at least 3 seconds.
4. Shift selector lever to P position.
5. Turn ignition switch OFF and wait at least 10 seconds.
6. Turn ignition switch ON and wait at least 1 second.
7. Shift selector lever to D position and wait at least 3 seconds.
8. Shift selector lever to P position.
9. Turn ignition switch OFF, wait at least 10 seconds, and then turn
ON.
10. If DTC is detected, go to EC-625, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2119
2119Electric throttle control
actuatorA)Electric throttle control actuator does not func-
tion properly due to the return spring malfunc-
tion.
Electric throttle control actuator
B)Throttle valve opening angle in fail-safe mode is
not in specified range.
C) ECM detect the throttle valve is stuck open.
Detected items Engine operating condition in fail-safe mode
Malfunction AThe ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction CWhile the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or more.
SEF058Y

Page 2168 of 5621

INFINITI M35 2006 Factory Service Manual DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
EC-625
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch ON and wa
