EM-66
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
Loosen mounting bolts in reverse order as shown in the fig-
ure.
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d
gasket for removal.
CAUTION:
Shaft is internally jointed with camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.
21. Remove collared O-ring from front timing chain case (left and
right side).
22. Remove rocker covers (right and left bank). Refer to EM-51, "
ROCKER COVER" .
23. Remove oil pans (lower and upper). Refer to EM-29, "
OIL PAN AND OIL STRAINER" .
24. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
a. Rotate crankshaft pulley clockwise to align timing mark (grooved
line without color) with timing indicator.
b. Make sure that intake and exhaust cam noses on No. 1 cylinder
(engine front side of right bank) are located as shown in the fig-
ure.
If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
25. Remove crankshaft pulley as follows:
SEM728G
PBIC2631E
KBIA1717J
SEM418G
Page 3130 of 5621
TIMING CHAIN
EM-67
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
a. Remove rear cover plate (2WD) or starter motor (AWD) and set
the ring gear stopper (SST) as shown in the figure. Refer to SC-
10, "STARTING SYSTEM" .
b. Loosen crankshaft pulley bolt and rotate bolt seating surface at
10 mm (0.39 in) from its original position.
CAUTION:
Do not remove crankshaft pulley bolt as it will be used as a
supporting point for suitable puller.
c. Place suitable puller tab on holes of crankshaft pulley, and pull
crankshaft pulley through.
CAUTION:
Do not put suitable puller tab on crankshaft pulley periph-
ery, as this will damage internal damper.
26. Remove front timing chain case as follows:
a. Loosen mounting bolts in reverse order as shown in the figure.
PBIC1098E
PBIC1103E
EMQ0477D
KBIA1303E
Page 3131 of 5621
![INFINITI M35 2006 Factory Service Manual EM-68
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
b. Insert a suitable tool into the notch at the top of front timing chain
case as shown (1).
c. Pry off case by moving the tool as shown INFINITI M35 2006 Factory Service Manual EM-68
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
b. Insert a suitable tool into the notch at the top of front timing chain
case as shown (1).
c. Pry off case by moving the tool as shown](/manual-img/42/57023/w960_57023-3130.png)
EM-68
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
b. Insert a suitable tool into the notch at the top of front timing chain
case as shown (1).
c. Pry off case by moving the tool as shown (2).
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d
gasket for removal.
CAUTION:
Do not use a screwdriver or something similar.
After removal, handle front timing chain case carefully so
it does not tilt, cant, or warp under a load.
27. Remove O-rings from rear timing chain case.
28. Remove water pump cover and chain tensioner cover from front timing chain case, if necessary.
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d g asket for removal.
29. Remove front oil seal from front timing chain case using a suit-
able tool.
Use a screwdriver for removal.
CAUTION:
Be careful not to damage front timing chain case.
30. Remove timing chain tensioner (primary) as follows:
a. Remove lower mounting bolt.
b. Loosen upper mounting bolt slowly, and then turn timing chain
tensioner (primary) on the mounting bolt so that plunger is fully
expanded.
NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).
c. Remove upper mounting bolt, and then remove timing chain ten-
sioner (primary).
SEM156F
PBIC2548E
EMQ0032D
PBIC3562E
Page 3132 of 5621
![INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-69
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
31. Remove internal chain guide, tension guide and slack guide.
NOTE:
Tension guide can be removed after remov INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-69
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
31. Remove internal chain guide, tension guide and slack guide.
NOTE:
Tension guide can be removed after remov](/manual-img/42/57023/w960_57023-3131.png)
TIMING CHAIN
EM-69
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
31. Remove internal chain guide, tension guide and slack guide.
NOTE:
Tension guide can be removed after removing timing chain (pri-
mary).
32. Remove timing chain (primary) and crankshaft sprocket.
CAUTION:
After removing timing chain (primary), do not turn crankshaft and camshaft separately, or valves
will strike the piston heads.
33. Remove timing chain (secondary) and camshaft sprockets as follows:
a. Attach suitable stopper pin to the right and left timing chain ten-
sioners (secondary).
NOTE:
Use approximately 0.5 mm (0.02 in) dia. hard metal pin as a
stopper pin.
For removal of timing chain tensioner (secondary), refer to
EM-84, "
CAMSHAFT" . [Removing camshaft bracket (No. 1)
is required.]
b. Remove camshaft sprocket (INT and EXH) mounting bolts.
Secure the hexagonal portion of camshaft using a wrench to
loosen mounting bolts.
CAUTION:
Do not loosen the mounting bolts with securing anything
other than the camshaft hexagonal portion or with ten-
sioning the timing chain.
c. Remove timing chain (secondary) together with camshaft sprockets.
Turn camshaft slightly to secure slackness of timing chain on timing chain tensioner (secondary) side.
PBIC2266E
PBIC2047E
KBIA1698J
Page 3133 of 5621
![INFINITI M35 2006 Factory Service Manual EM-70
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunger (guide).
Remo INFINITI M35 2006 Factory Service Manual EM-70
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunger (guide).
Remo](/manual-img/42/57023/w960_57023-3132.png)
EM-70
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunger (guide).
Remove timing chain (secondary) together with camshaft
sprockets with timing chain loose from guide groove.
CAUTION:
Be careful of plunger coming-off when removing timing
chain (secondary). This is because plunger of timing
chain tensioner (secondary) moves during operation,
leading to coming-off of fixed stopper pin.
NOTE:
Camshaft sprocket (INT) is two-for-one structure of primary
and secondary sprockets.
When handling camshaft sprocket (INT), be careful of the fol-
lowing caution:
CAUTION:
Handle carefully to avoid any shock to camshaft
sprocket.
Do not disassemble. (Do not loosen bolts “A” as
shown in the figure).
34. Remove rear timing chain case as follows:
a. Loosen and remove mounting bolts in reverse order as shown in
the figure.
b. Cut liquid gasket using the seal cutter [SST: KV10111100
(J37228)] and remove rear timing chain case.
CAUTION:
Do not remove plate metal cover of oil passage.
After removal, handle rear timing chain case carefully so
it does not tilt, cant, or warp under a load.
PBIC1978E
PBIC2980E
SEM735G
KBIA1307E
Page 3134 of 5621
TIMING CHAIN
EM-71
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
35. Remove O-rings from cylinder head.
36. Remove O-rings from cylinder block.
37. Remove timing chain tensioners (secondary) from cylinder head as follows, if necessary.
a. Remove camshaft brackets (No. 1). Refer to EM-85, "
REMOVAL" .
b. Remove timing chain tensioners (secondary) with a stopper pin attached.
38. Use a scraper to remove all traces of liquid gasket from front
and rear timing chain cases, and opposite mating surfaces.
Remove old liquid gasket from the bolt hole and thread.
SBIA0496E
PBIC0788E
SEM737G
PBIC2084E
Page 3135 of 5621
EM-72
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45

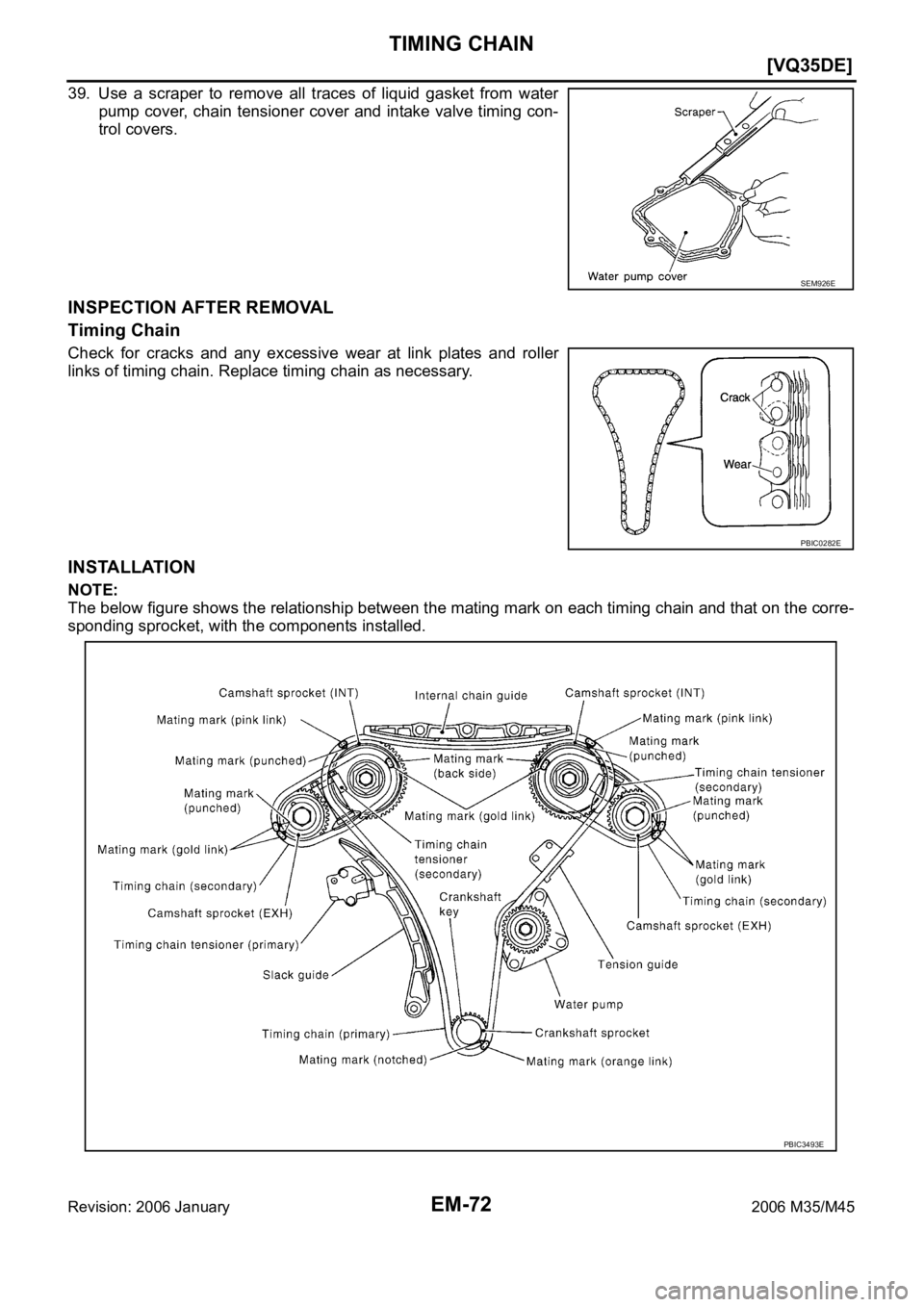

39. Use a scraper to remove all traces of liquid gasket from water
pump cover, chain tensioner cover and intake valve timing con-
trol covers.
INSPECTION AFTER REMOVAL
Timing Chain
Check for cracks and any excessive wear at link plates and roller
links of timing chain. Replace timing chain as necessary.
INSTALLATION
NOTE:
The below figure shows the relationship between the mating mark on each timing chain and that on the corre-
sponding sprocket, with the components installed.
SEM926E
PBIC0282E
PBIC3493E
Page 3136 of 5621
TIMING CHAIN
EM-73
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
1. Install timing chain tensioners (secondary) to cylinder head as follows if removed. Refer to EM-89,
"INSTALLATION" .
a. Install timing chain tensioners (secondary) with a stopper pin attached and new O-rings.
b. Install camshaft brackets (No. 1). Refer to EM-89, "
INSTALLATION" .
2. Install rear timing chain case as follows:
a. Install new O-rings onto cylinder block.
b. Install new O-rings to cylinder head.
c. Apply liquid gasket with the tube presser [SST: WS39930000 ( —)] to rear timing chain case back side
as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
CAUTION:
For “A” in the figure, completely wipe out liquid gasket extended on a portion touching at
engine coolant.
PBIC0788E
SBIA0496E
