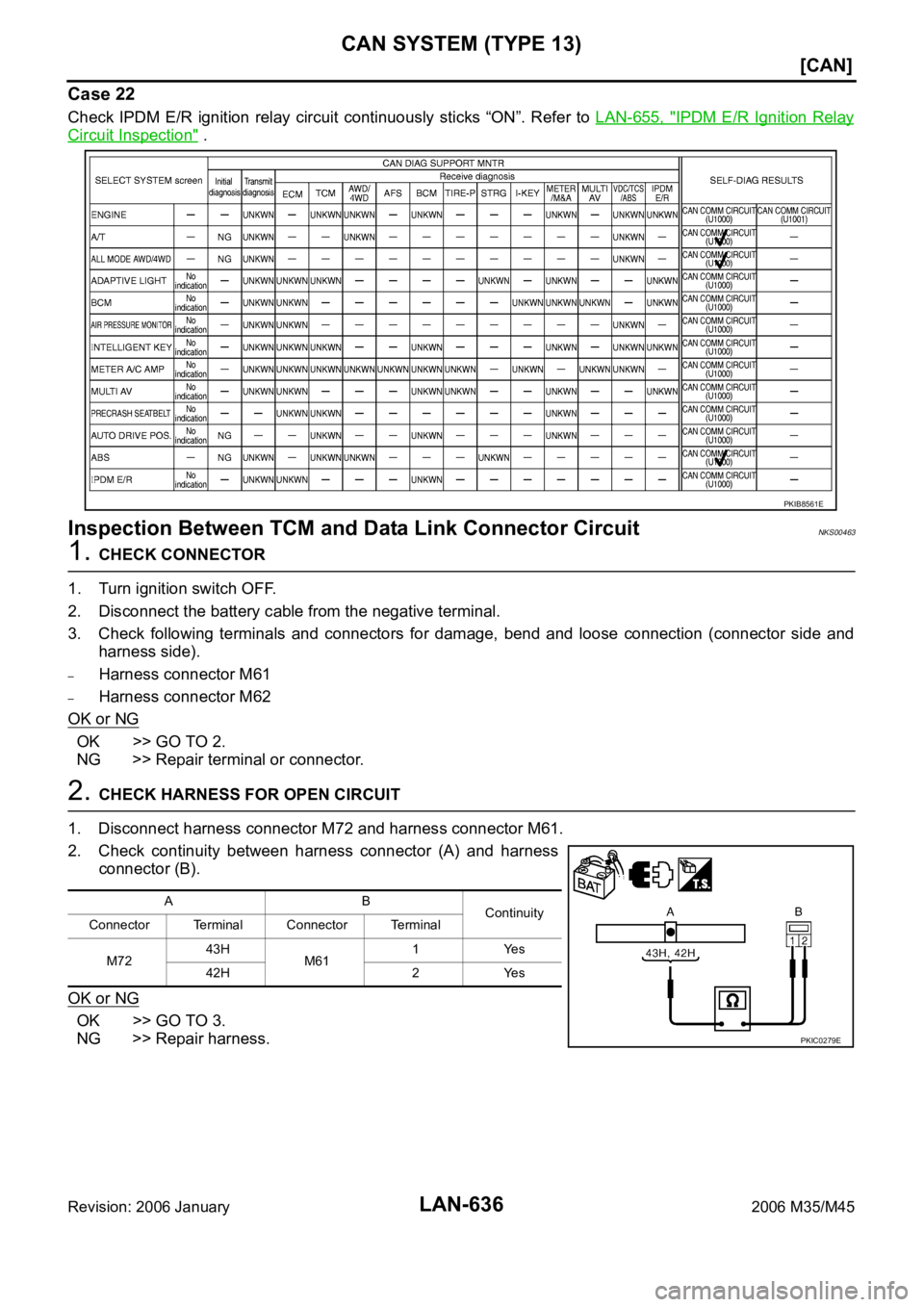

Page 4305 of 5621
LAN-636
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
Case 22
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-655, "IPDM E/R Ignition Relay
Circuit Inspection" .
Inspection Between TCM and Data Link Connector CircuitNKS00463
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector M61
–Harness connector M62
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector M72 and harness connector M61.
2. Check continuity between harness connector (A) and harness
connector (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
PKIB8561E
AB
Continuity
Connector Terminal Connector Terminal
M7243H
M61 1 Yes
42H 2 Yes
PKIC0279E
Page 4306 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13)
LAN-637
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector (A) and data link c INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13)
LAN-637
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector (A) and data link c](/manual-img/42/57023/w960_57023-4305.png)

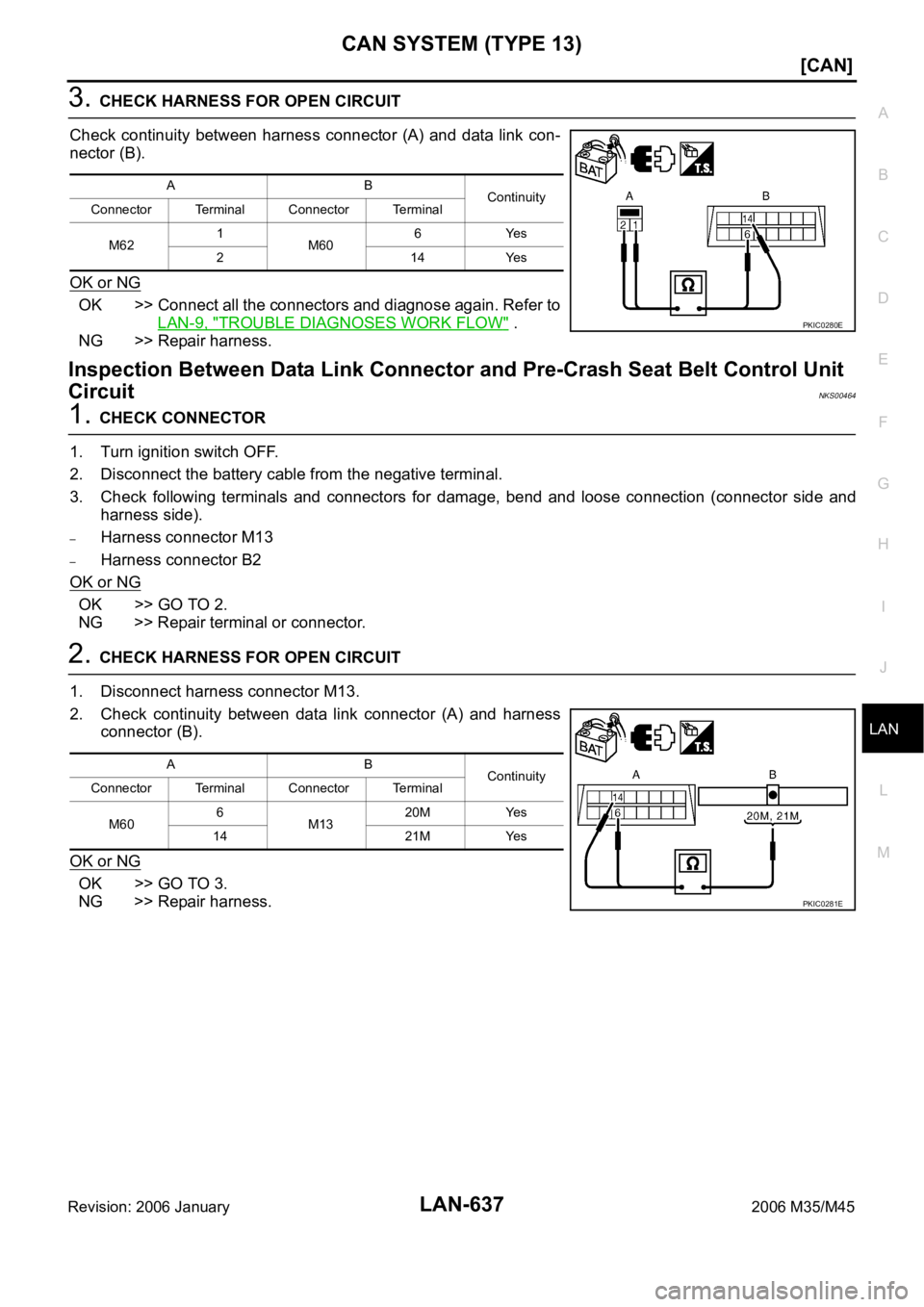

CAN SYSTEM (TYPE 13)
LAN-637
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
Check continuity between harness connector (A) and data link con-
nector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between Data Link Connector and Pre-Crash Seat Belt Control Unit
Circuit
NKS00464
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector M13
–Harness connector B2
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector M13.
2. Check continuity between data link connector (A) and harness
connector (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
AB
Continuity
Connector Terminal Connector Terminal
M621
M606 Yes
214Yes
PKIC0280E
AB
Continuity
Connector Terminal Connector Terminal
M606
M1320M Yes
14 21M Yes
PKIC0281E
Page 4307 of 5621
![INFINITI M35 2006 Factory Service Manual LAN-638
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect pre-crash seat belt control unit connector.
2. Check continuity between harness c INFINITI M35 2006 Factory Service Manual LAN-638
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect pre-crash seat belt control unit connector.
2. Check continuity between harness c](/manual-img/42/57023/w960_57023-4306.png)

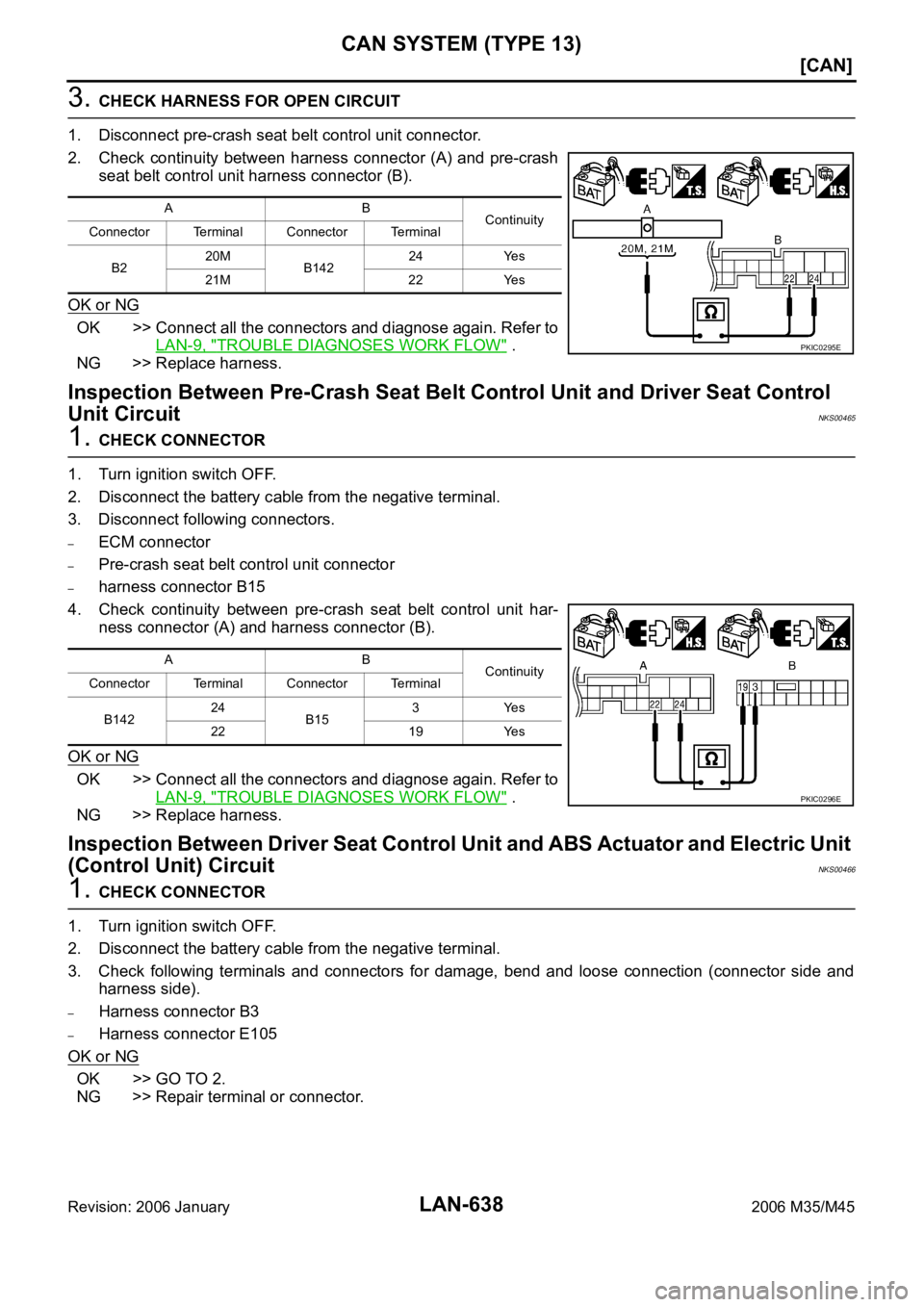

LAN-638
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect pre-crash seat belt control unit connector.
2. Check continuity between harness connector (A) and pre-crash
seat belt control unit harness connector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Replace harness.
Inspection Between Pre-Crash Seat Belt Control Unit and Driver Seat Control
Unit Circuit
NKS00465
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect following connectors.
–ECM connector
–Pre-crash seat belt control unit connector
–harness connector B15
4. Check continuity between pre-crash seat belt control unit har-
ness connector (A) and harness connector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Replace harness.
Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit
(Control Unit) Circuit
NKS00466
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector B3
–Harness connector E105
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
AB
Continuity
Connector Terminal Connector Terminal
B220M
B14224 Yes
21M 22 Yes
PKIC0295E
AB
Continuity
Connector Terminal Connector Terminal
B14224
B15 3 Yes
22 19 Yes
PKIC0296E
Page 4308 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13)
LAN-639
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector B15 and harness connector B3.
2. Chec INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13)
LAN-639
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector B15 and harness connector B3.
2. Chec](/manual-img/42/57023/w960_57023-4307.png)

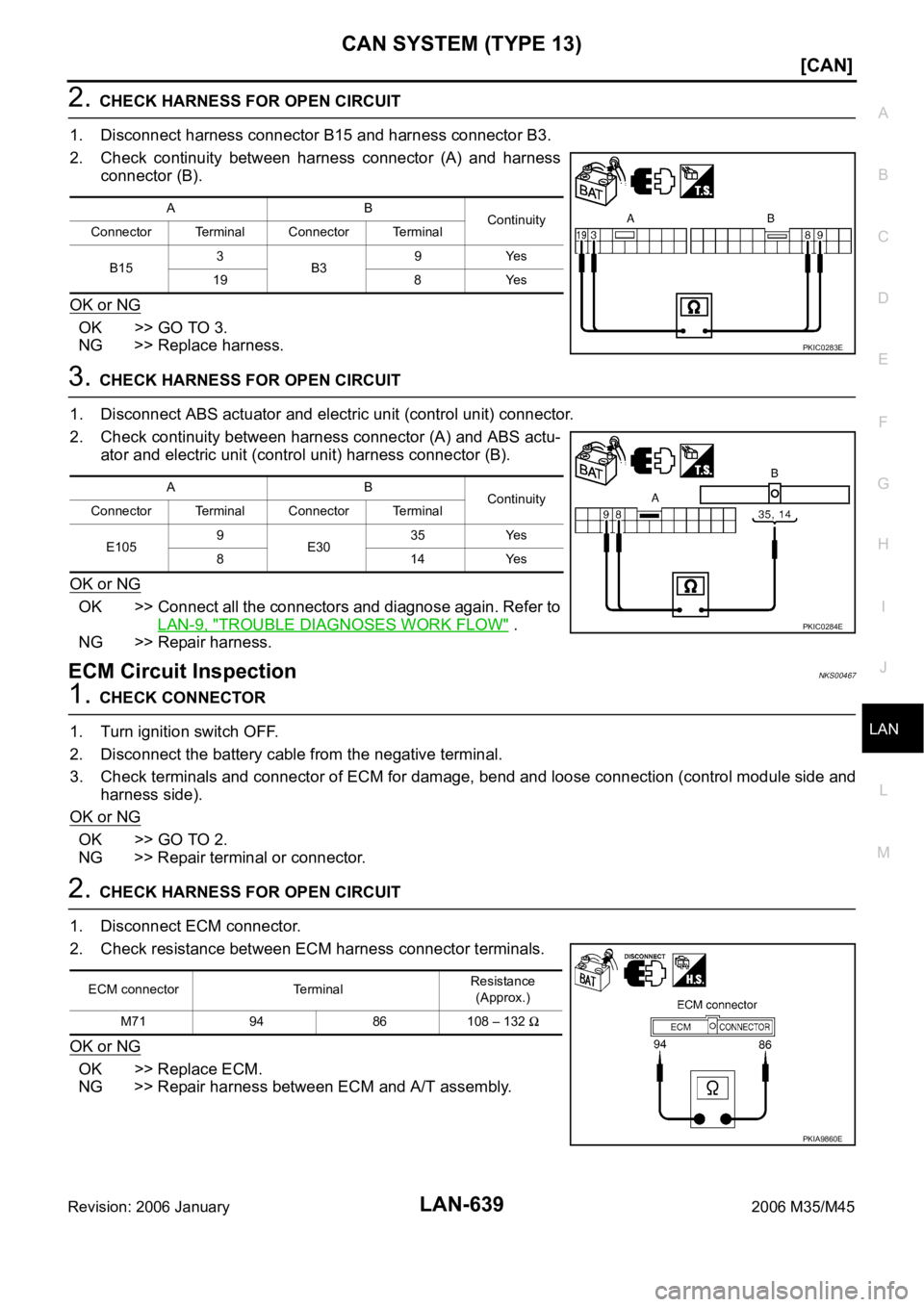

CAN SYSTEM (TYPE 13)
LAN-639
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect harness connector B15 and harness connector B3.
2. Check continuity between harness connector (A) and harness
connector (B).
OK or NG
OK >> GO TO 3.
NG >> Replace harness.
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between harness connector (A) and ABS actu-
ator and electric unit (control unit) harness connector (B).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-9, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
ECM Circuit InspectionNKS00467
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of ECM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector terminals.
OK or NG
OK >> Replace ECM.
NG >> Repair harness between ECM and A/T assembly.
AB
Continuity
Connector Terminal Connector Terminal
B153
B3 9Yes
19 8 Yes
PKIC0283E
AB
Continuity
Connector Terminal Connector Terminal
E1059
E30 35 Yes
814Yes
PKIC0284E
ECM connector TerminalResistance
(Approx.)
M71 94 86 108 – 132
PKIA9860E
Page 4309 of 5621
![INFINITI M35 2006 Factory Service Manual LAN-640
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
TCM Circuit InspectionNKS00468
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative t INFINITI M35 2006 Factory Service Manual LAN-640
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
TCM Circuit InspectionNKS00468
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative t](/manual-img/42/57023/w960_57023-4308.png)

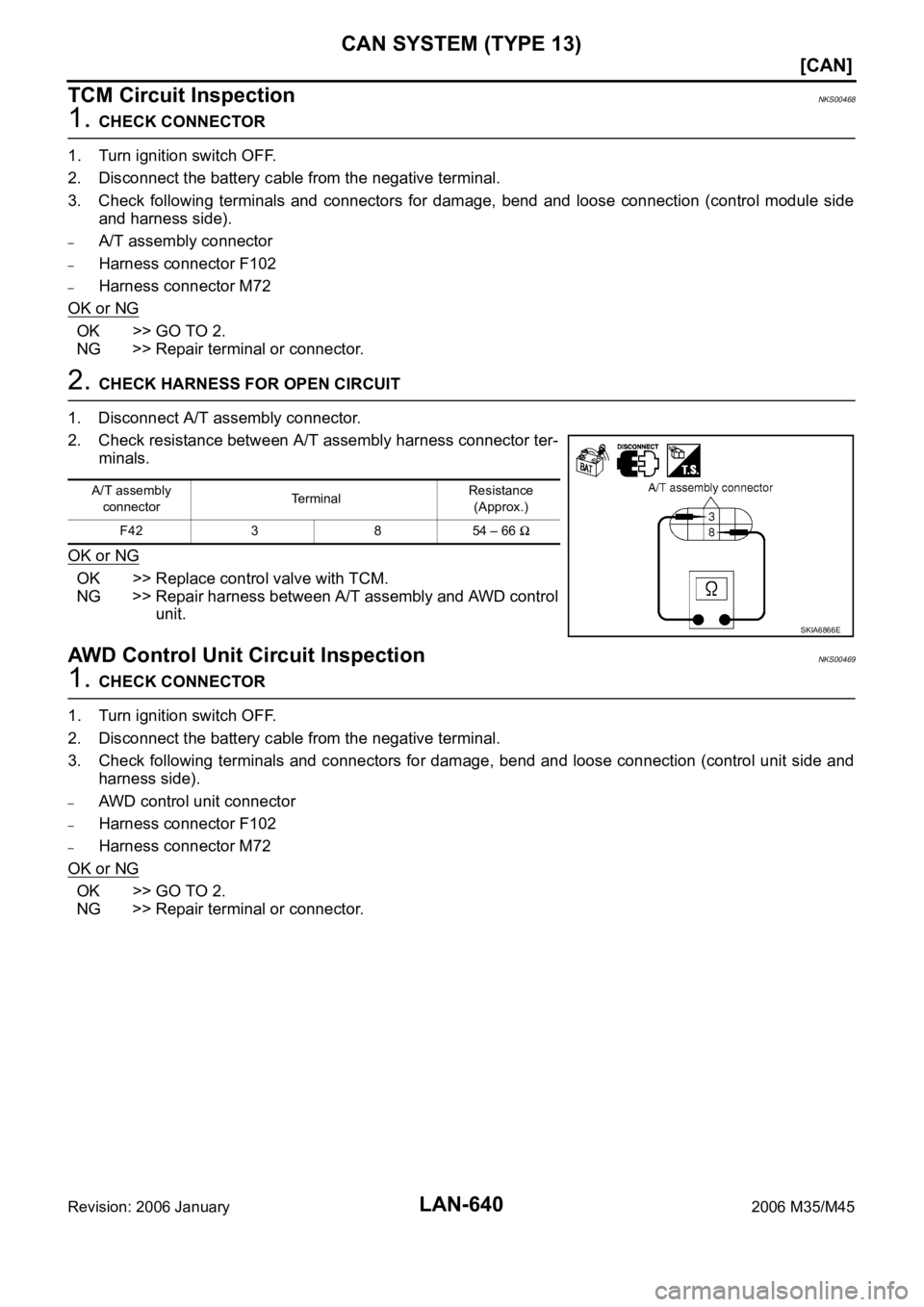

LAN-640
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
TCM Circuit InspectionNKS00468
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–A/T assembly connector
–Harness connector F102
–Harness connector M72
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector ter-
minals.
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and AWD control
unit.
AWD Control Unit Circuit InspectionNKS00469
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and
harness side).
–AWD control unit connector
–Harness connector F102
–Harness connector M72
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
A/T assembly
connectorTerminalResistance
(Approx.)
F42 3 8 54 – 66
SKIA6866E
Page 4310 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13)
LAN-641
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect AWD control unit connector.
2. Check resistance between INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13)
LAN-641
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect AWD control unit connector.
2. Check resistance between](/manual-img/42/57023/w960_57023-4309.png)

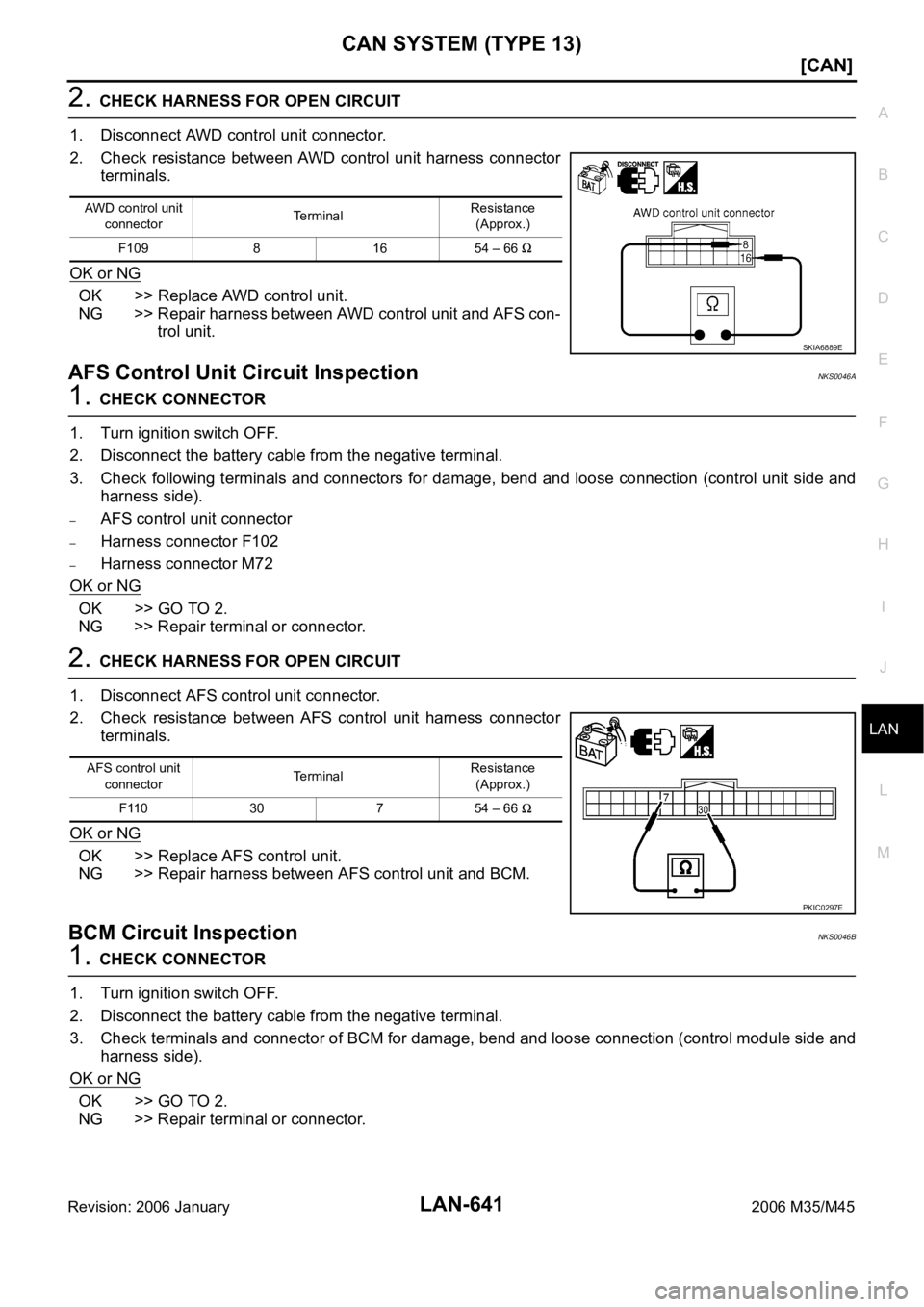

CAN SYSTEM (TYPE 13)
LAN-641
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect AWD control unit connector.
2. Check resistance between AWD control unit harness connector
terminals.
OK or NG
OK >> Replace AWD control unit.
NG >> Repair harness between AWD control unit and AFS con-
trol unit.
AFS Control Unit Circuit InspectionNKS0046A
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control unit side and
harness side).
–AFS control unit connector
–Harness connector F102
–Harness connector M72
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect AFS control unit connector.
2. Check resistance between AFS control unit harness connector
terminals.
OK or NG
OK >> Replace AFS control unit.
NG >> Repair harness between AFS control unit and BCM.
BCM Circuit InspectionNKS0046B
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of BCM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
AWD control unit
connectorTerminalResistance
(Approx.)
F109 8 16 54 – 66
SKIA6889E
AFS control unit
connectorTerminalResistance
(Approx.)
F110 30 7 54 – 66
PKIC0297E
Page 4311 of 5621

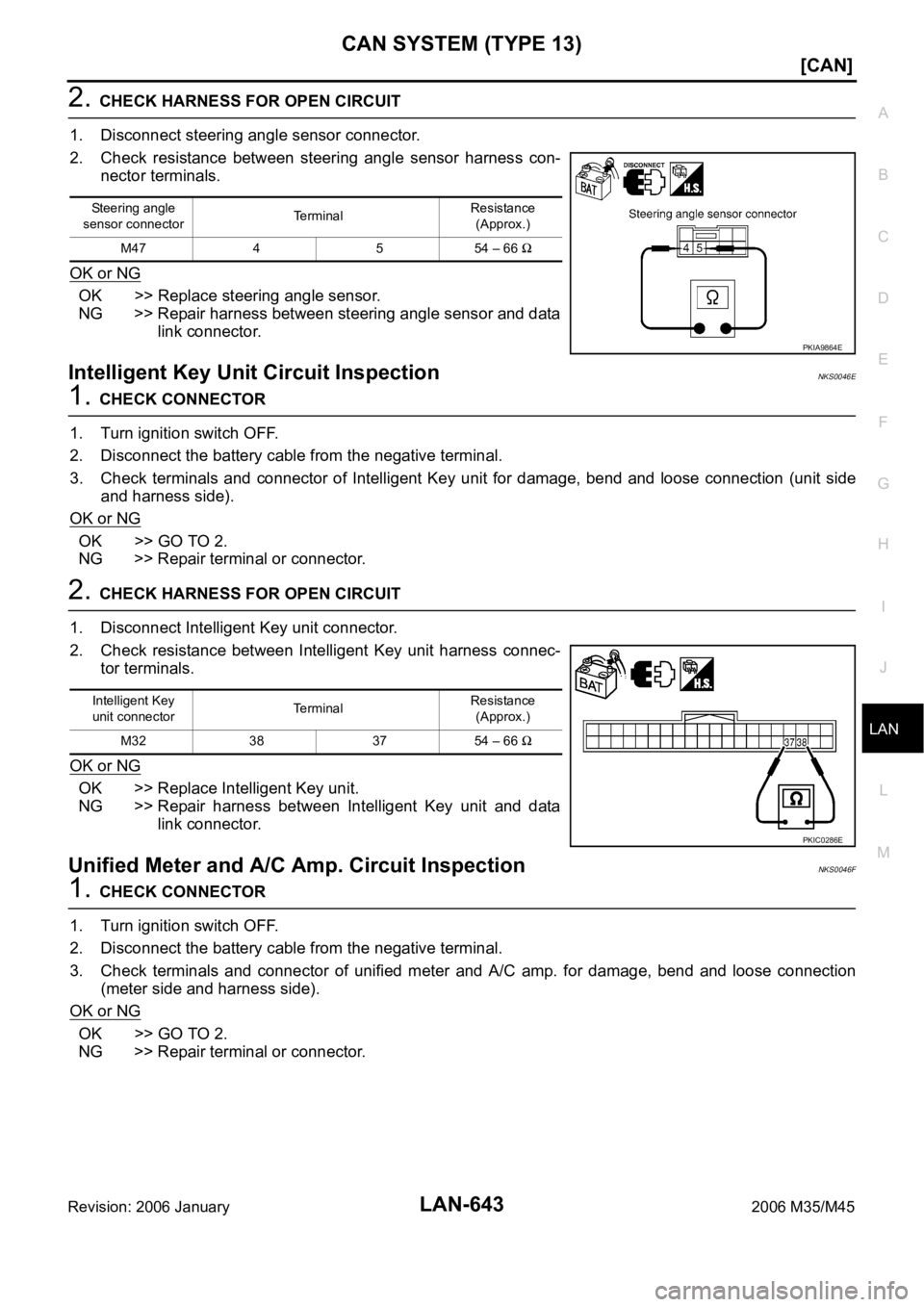

![INFINITI M35 2006 Factory Service Manual LAN-642
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45

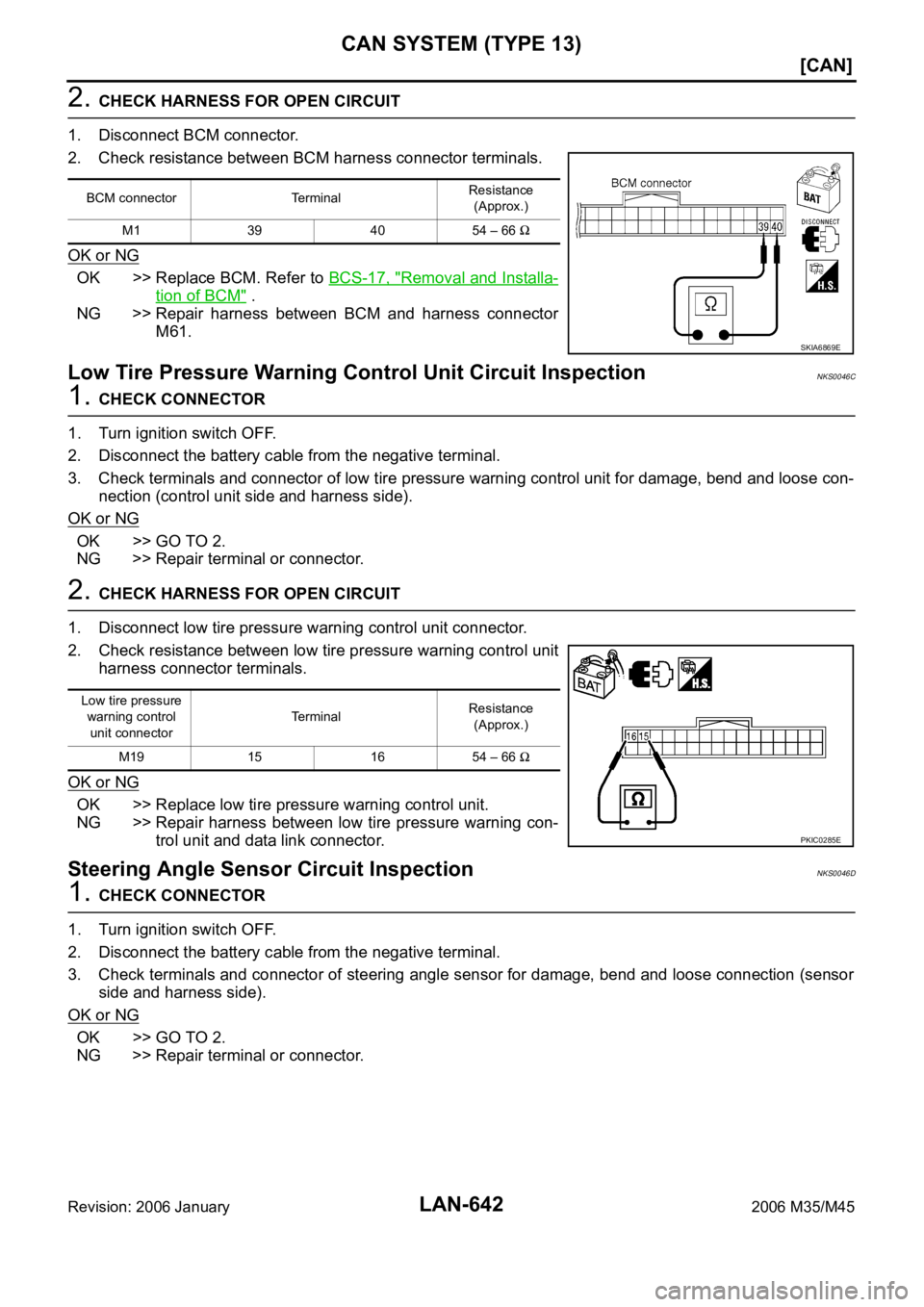

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector terminals.
OK or INFINITI M35 2006 Factory Service Manual LAN-642
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector terminals.
OK or](/manual-img/42/57023/w960_57023-4310.png)
LAN-642
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector terminals.
OK or NG
OK >> Replace BCM. Refer to BCS-17, "Removal and Installa-
tion of BCM" .
NG >> Repair harness between BCM and harness connector
M61.
Low Tire Pressure Warning Control Unit Circuit InspectionNKS0046C
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of low tire pressure warning control unit for damage, bend and loose con-
nection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect low tire pressure warning control unit connector.
2. Check resistance between low tire pressure warning control unit
harness connector terminals.
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair harness between low tire pressure warning con-
trol unit and data link connector.
Steering Angle Sensor Circuit InspectionNKS0046D
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
BCM connector TerminalResistance
(Approx.)
M1 39 40 54 – 66
SKIA6869E
Low tire pressure
warning control
unit connectorTerminalResistance
(Approx.)
M19 15 16 54 – 66
PKIC0285E
Page 4312 of 5621
![INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13)
LAN-643
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13)
LAN-643
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance](/manual-img/42/57023/w960_57023-4311.png)
CAN SYSTEM (TYPE 13)
LAN-643
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector terminals.
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector.
Intelligent Key Unit Circuit InspectionNKS0046E
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of Intelligent Key unit for damage, bend and loose connection (unit side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect Intelligent Key unit connector.
2. Check resistance between Intelligent Key unit harness connec-
tor terminals.
OK or NG
OK >> Replace Intelligent Key unit.
NG >> Repair harness between Intelligent Key unit and data
link connector.
Unified Meter and A/C Amp. Circuit InspectionNKS0046F
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of unified meter and A/C amp. for damage, bend and loose connection
(meter side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Steering angle
sensor connectorTerminalResistance
(Approx.)
M47 4 5 54 – 66
PKIA9864E
Intelligent Key
unit connectorTerminalResistance
(Approx.)
M32 38 37 54 – 66
PKIC0286E
