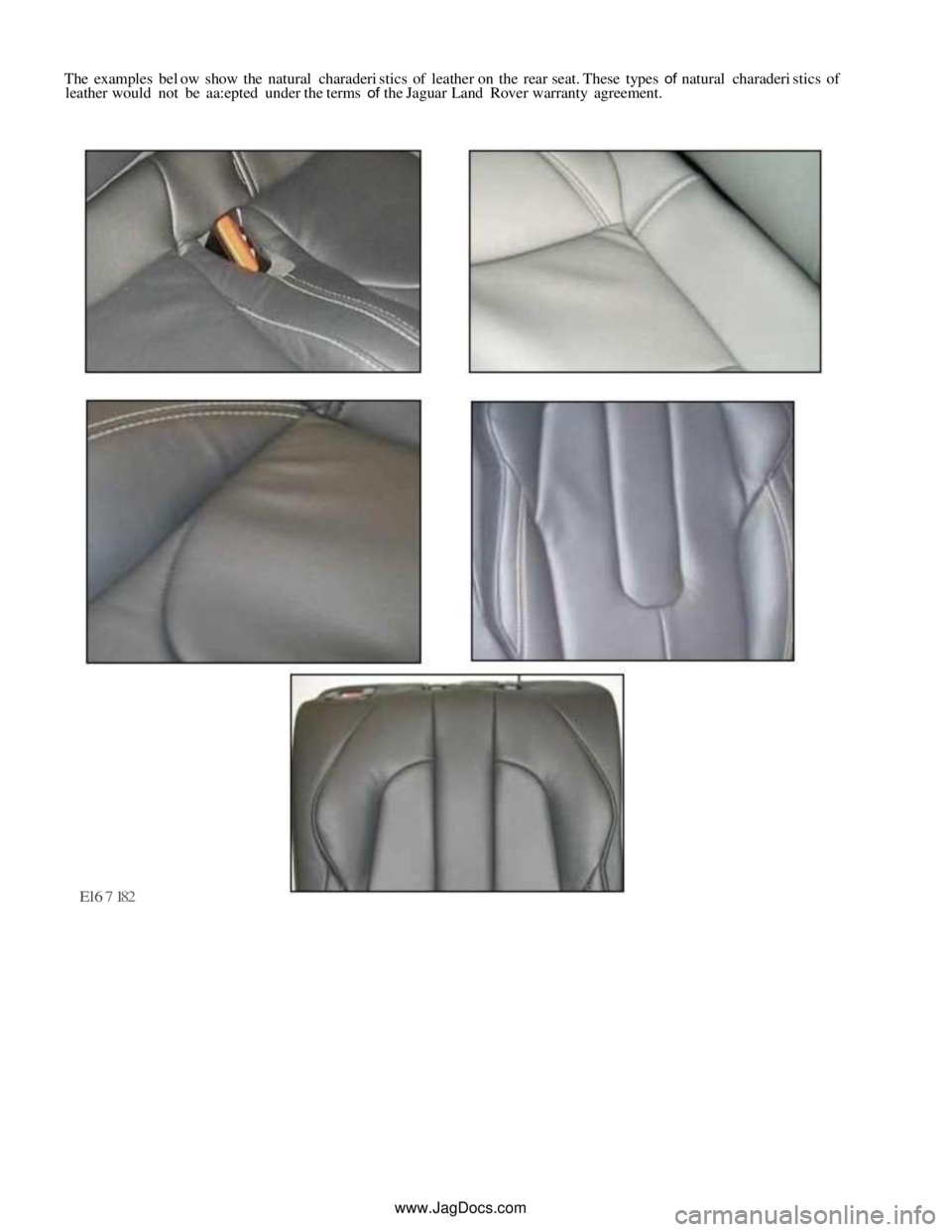

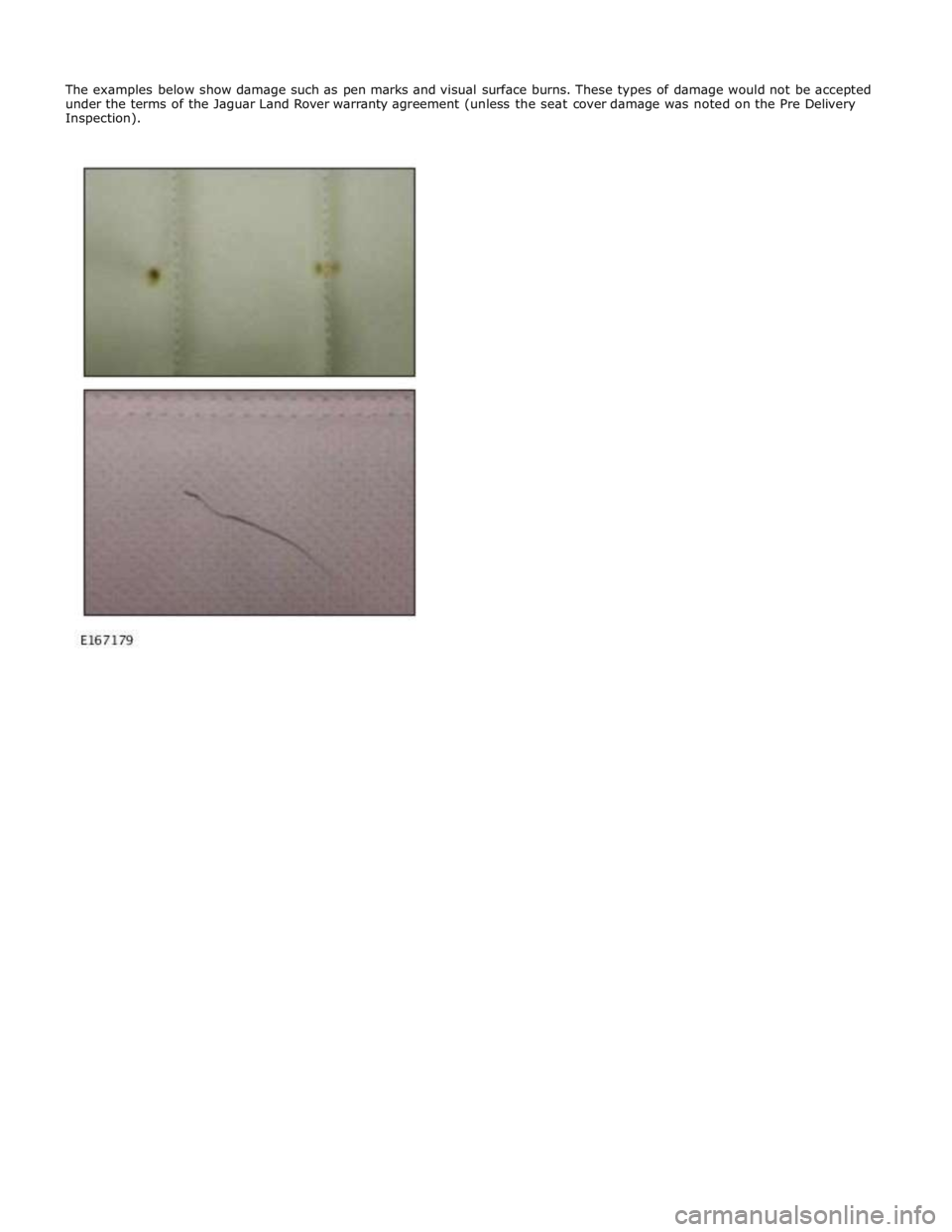

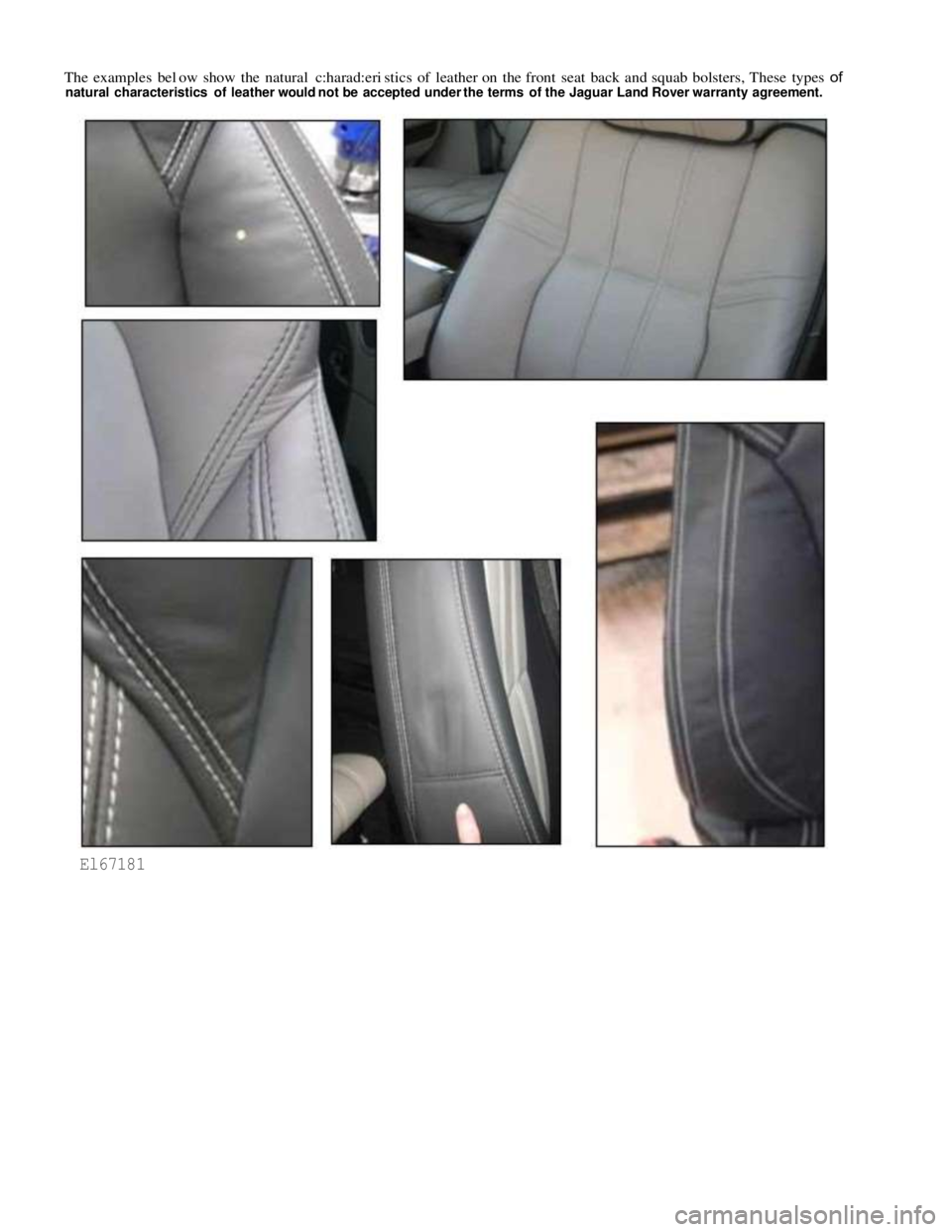

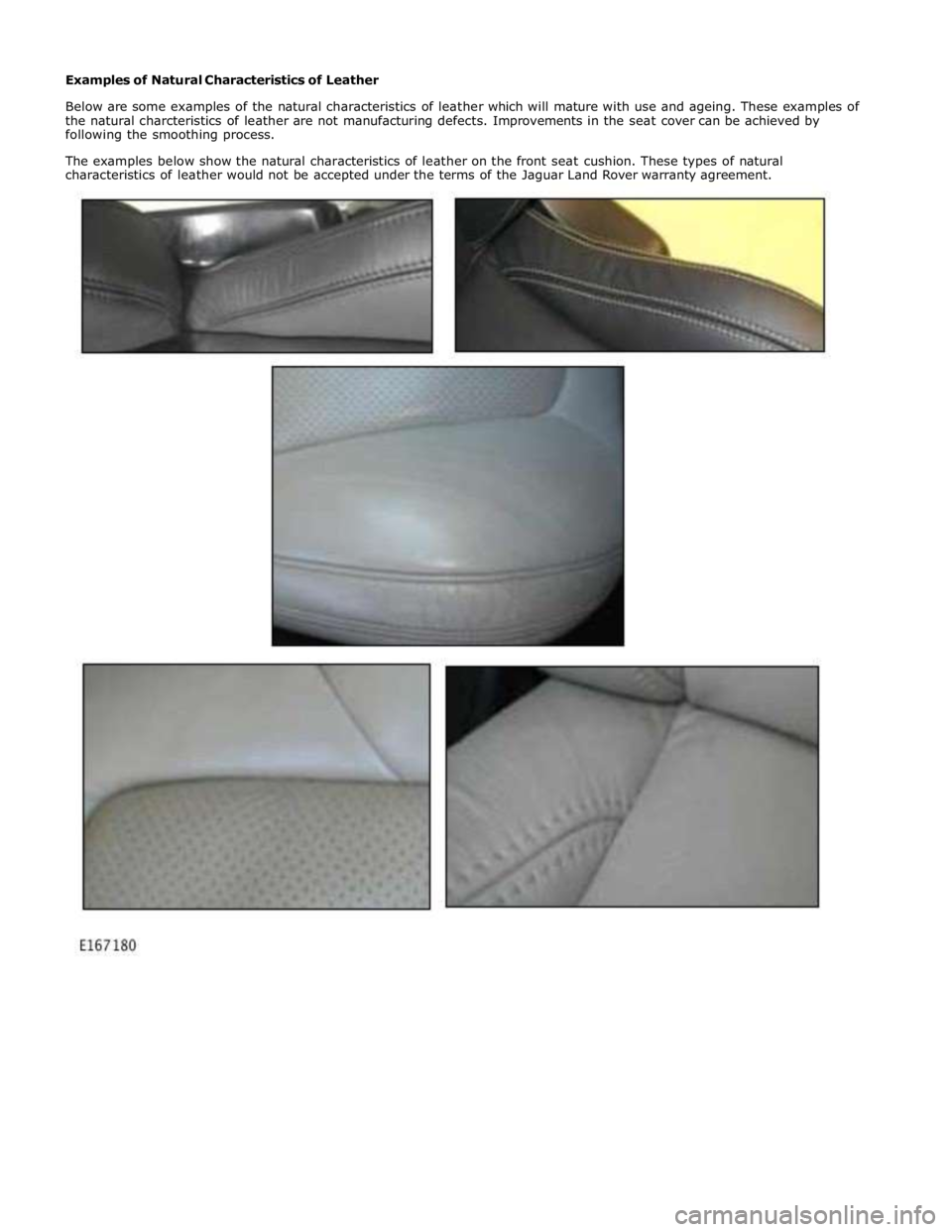

JAGUAR XFR 2010 1.G Workshop Manual The examples bel ow show the natural charaderi stics of leather on the rear seat. These types of natural charaderi stics of leather would not be aa:epted under the terms of the Jaguar Land Rover warra

Page 2325 of 3039

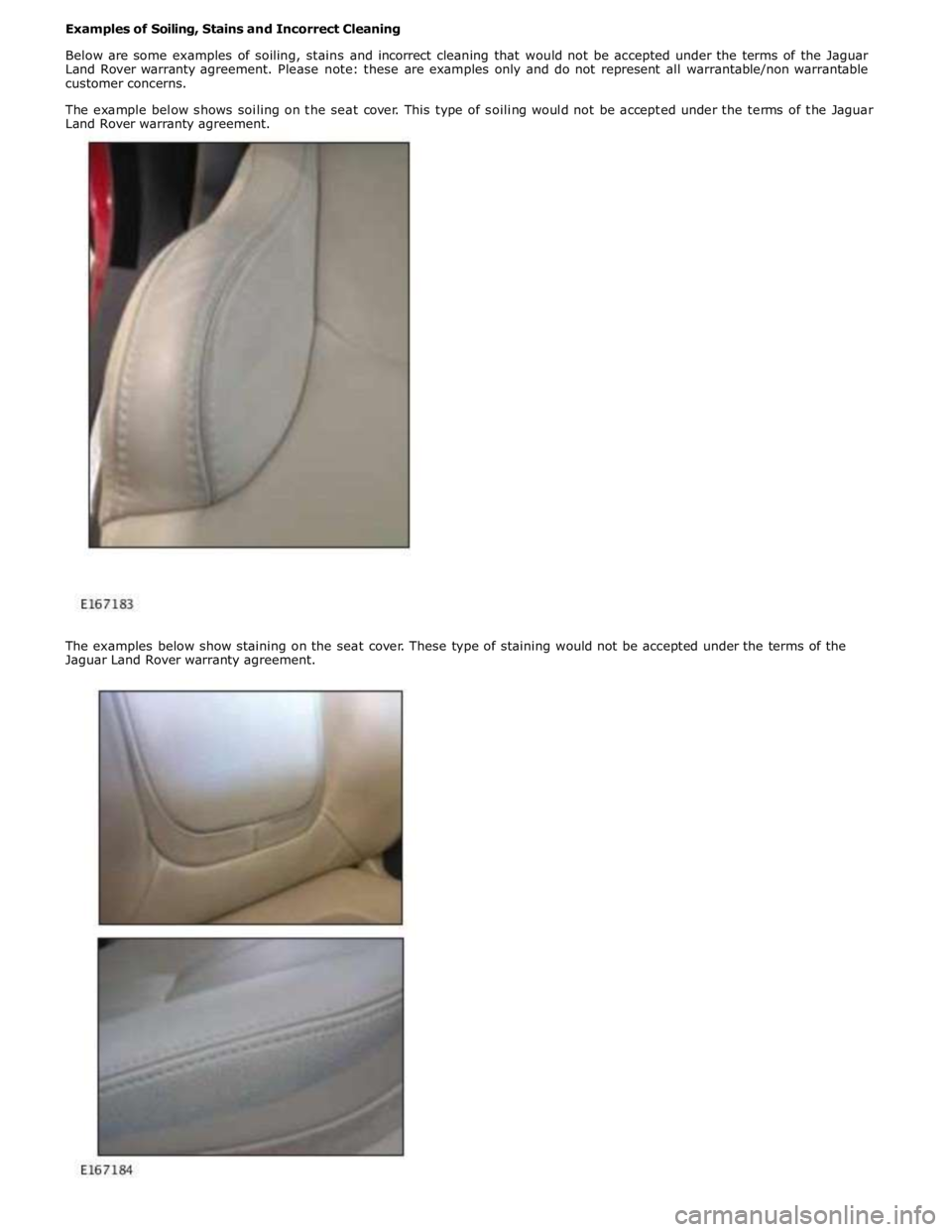

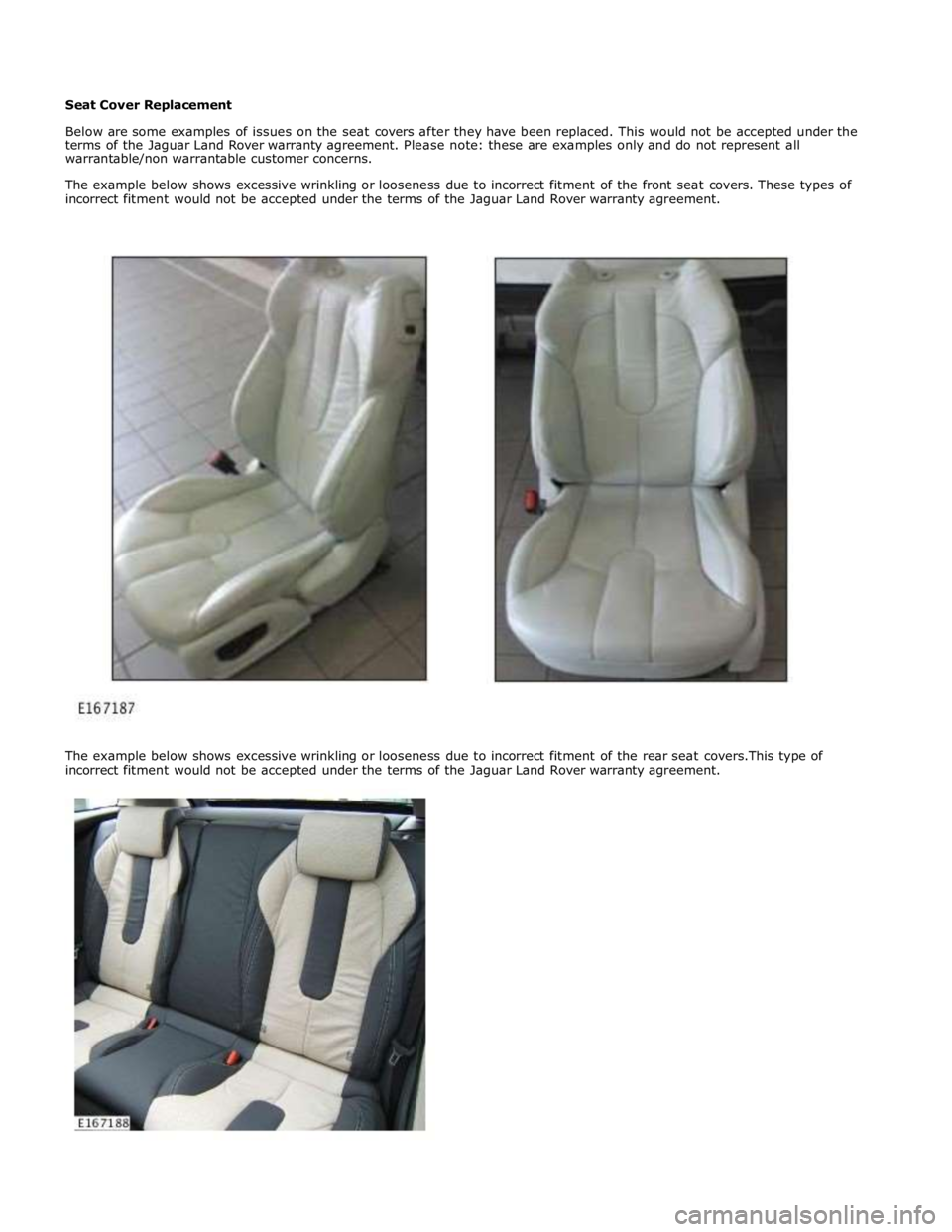

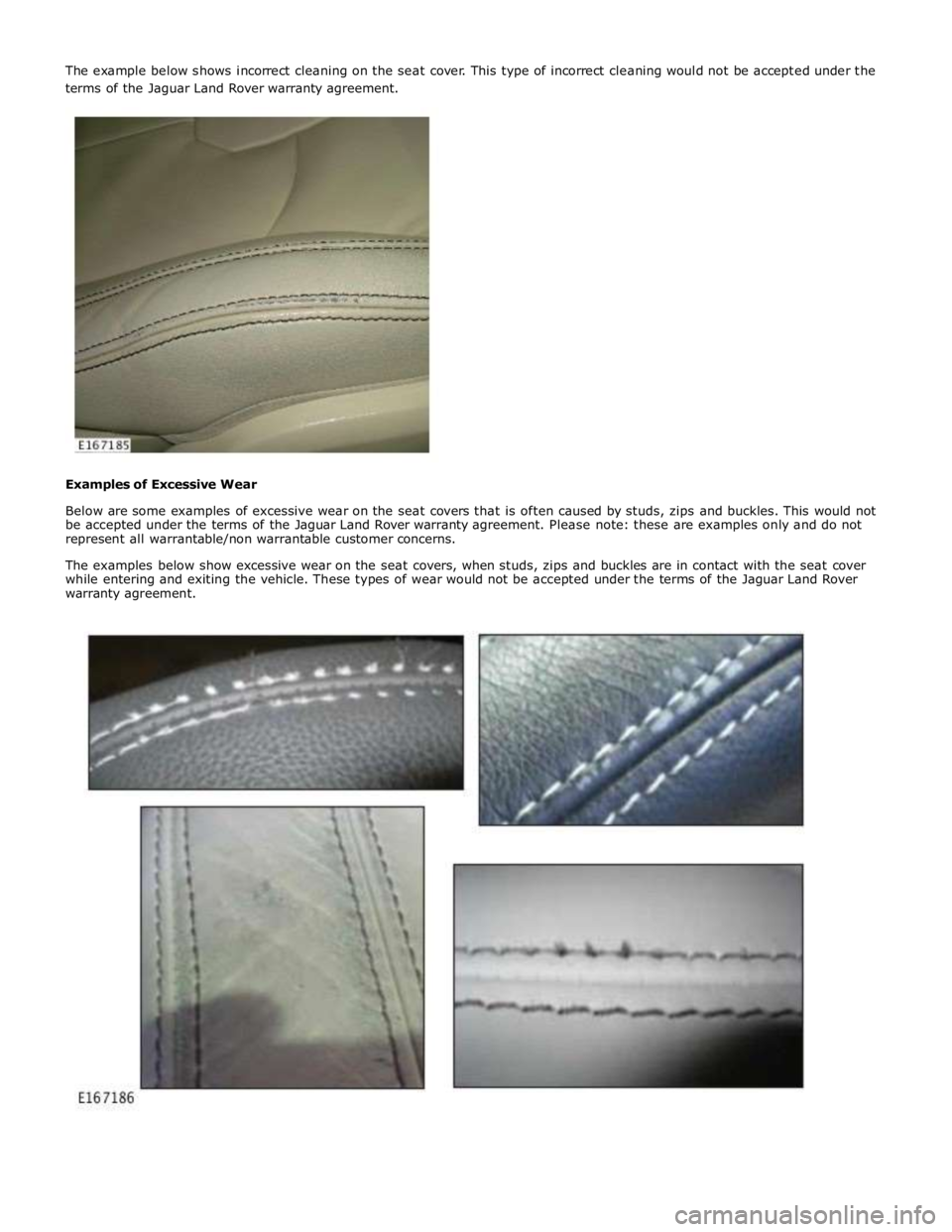

JAGUAR XFR 2010 1.G Workshop Manual Examples of Soiling, Stains and Incorrect Cleaning

Below are some examples of soiling, stains and incorrect cleaning that would not be accepted under the terms of the Jaguar
Land Rover warranty ag

Page 2326 of 3039

Page 2327 of 3039

Page 2328 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Seating - Seats
Diagnosis and Testing

Principle of Operation Published: 18-Apr-2013

For a detailed description of the seats and seat operation, refer to the relevant Description and Operation

Seating - Seats
Diagnosis and Testing

Principle of Operation Published: 18-Apr-2013

For a detailed description of the seats and seat operation, refer to the relevant Description and Operation section in the
workshop manual. REFER to: (501-10 Seating)

Seats (Description and Operation), Seats (Description and Operation), Seats (Description and Operation).
Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not
guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle.

NOTE: Prior to carrying out any diagnosis, ensure the vehicle battery is in a good serviceable condition, refer to the
battery care manual.
1. Verify the customer concern.
2. Visually inspect for obvious signs of damage and system integrity.

Visual Inspection
Mechanical Electrical
Security, condition and correct installation of seat components and fixings
Fuses
Harnesses for damage/corrosion
Electrical connectors
Damaged/corroded pins
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to
the next step.

4. If the cause is not visually evident, verify the concern and refer to the Symptom Chart, alternatively, check for
Diagnostic Trouble Codes (DTCs) and refer to the DTC Index.

5. Check DDW for open campaigns. Refer to the corresponding bulletins and SSM's which may be valid for the specific
customer complaint and carry out the recommendations as needed.

Symptom Chart

Symptom Possible Cause Action No seat movement from switch pack
(including no memory recall)
Seat module has
gone into sleep
mode
Seat switch pack
LIN, power or
ground circuit -
open circuit
Seat switch pack
LIN circuit - short
to power, ground Set ignition ON. Re-check seat function from switch pack.
Check for DTC B1A9887 and refer to DTC Index. Check for
DTC B1A9888 and refer to DTC Index No seat movement or lumbar movement
from switch pack (including no memory
recall)
NOTE: Seat module
does not control the seat
lumbar function

Seat switch pack
power or ground
supply circuits -
open circuit Refer to the electrical circuit diagrams and check seat
switch pack power and ground supply circuits for open
circuit Seat movement and lumbar movement
from switch pack is ok, however, no recall
from memory switch pack
Seat switch pack to
memory switch
pack circuits -
short, open circuit
NOTE: Memory switch pack is separate switch
hardwired to seat adjust switch

Refer to the electrical circuit diagrams and check seat
switch pack to memory switch pack circuits for short,
