Page 2449 of 3039
Published: 11-May-2011
Instrument Panel and Console - Instrument Panel - Component Location
Description and Operation

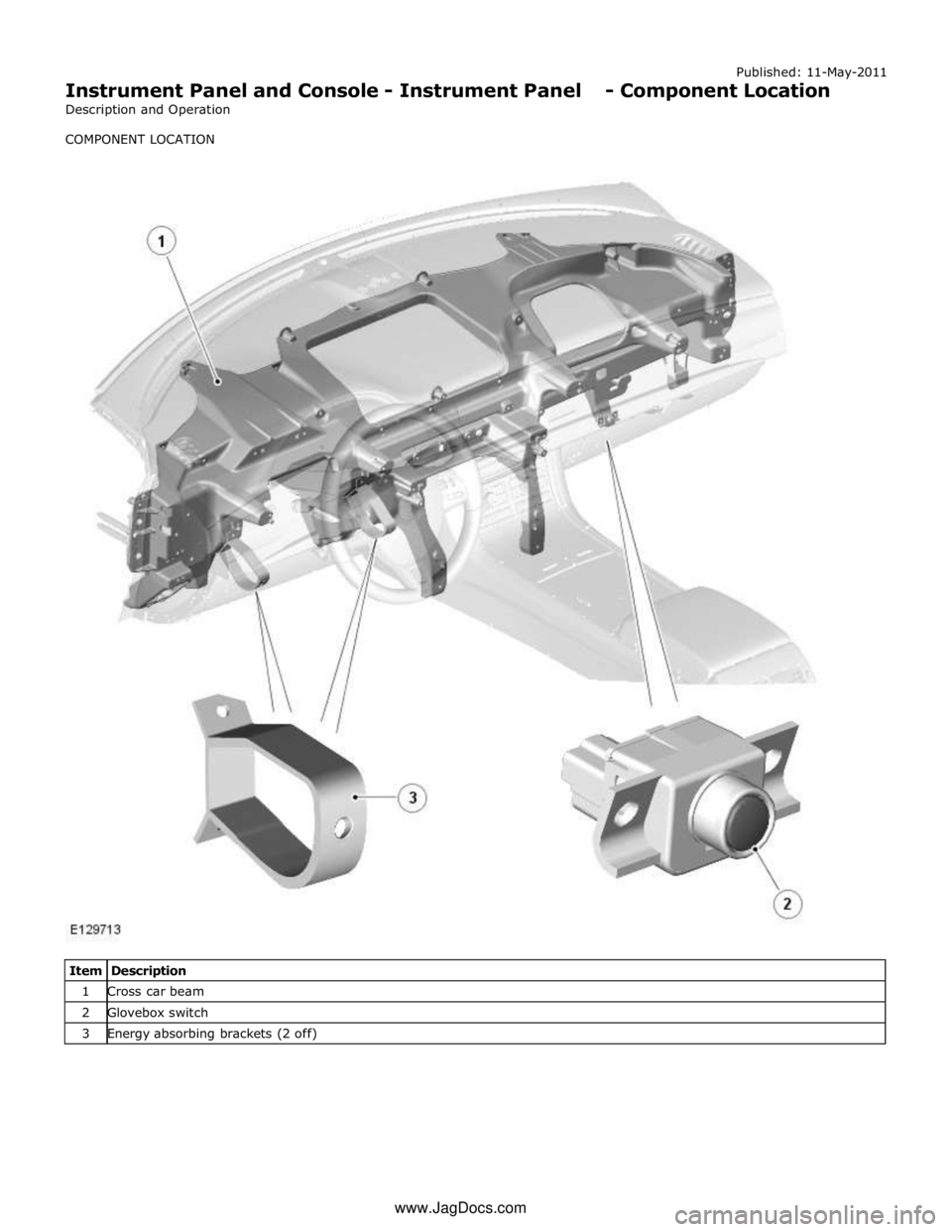

COMPONENT LOCATION
Item Description 1 Cross car beam 2 Glovebox switch 3 Energy absorbing brackets (2 off) www.JagDocs.com
Page 2450 of 3039
Safety Belt System (501-20A Safety Belt System, Description and Operation), Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) (501-20B Supplemental Restraint System, Description and Operation),
Pedestrian Protection System (501-20C Pedestrian Protection System, Description and Operation).
Page 2451 of 3039
a power supply to operate the glovebox latch to unlock the glovebox.
The glove box opening is inhibited by the CJB if the anti-theft alarm system is armed and if valet mode is selected using the Touch Screen Display (TSD). The CJB detects the voltage signal from the switch but will not operate the glovebox latch if other condition exists.
GLOVEBOX SWITCH DESCRIPTION Component Description
The conventional glove box switch is located behind the instrument panel veneer. The round button of the switch is visible
through an aperture in the veneer.
Two screws hold the switch in position behind the veneer. The veneer panel has two bosses which the screws are threaded
into.
Page 2452 of 3039
Instrument Panel and Console - Floor Console
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Refer to: Floor Console Cup Holder (501-12 Instrument Panel and Console, Removal and Installation).
3. CAUTIONS:
Protect the surrounding trim to avoid damage.
Cover fiber optic cable connectors to minimize dust
ingress and avoid bending the cables in a radius of less
than 30 mm.

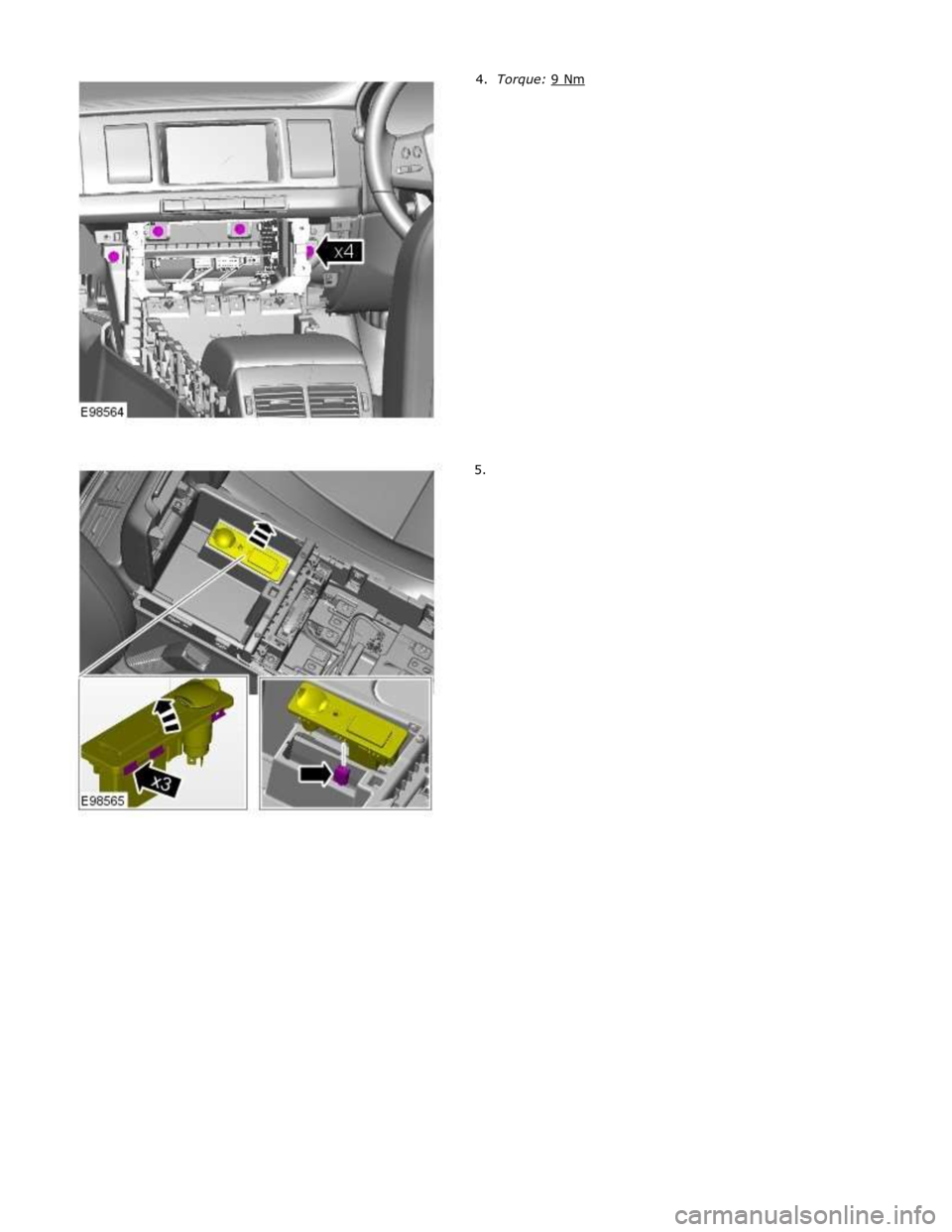

Page 2453 of 3039

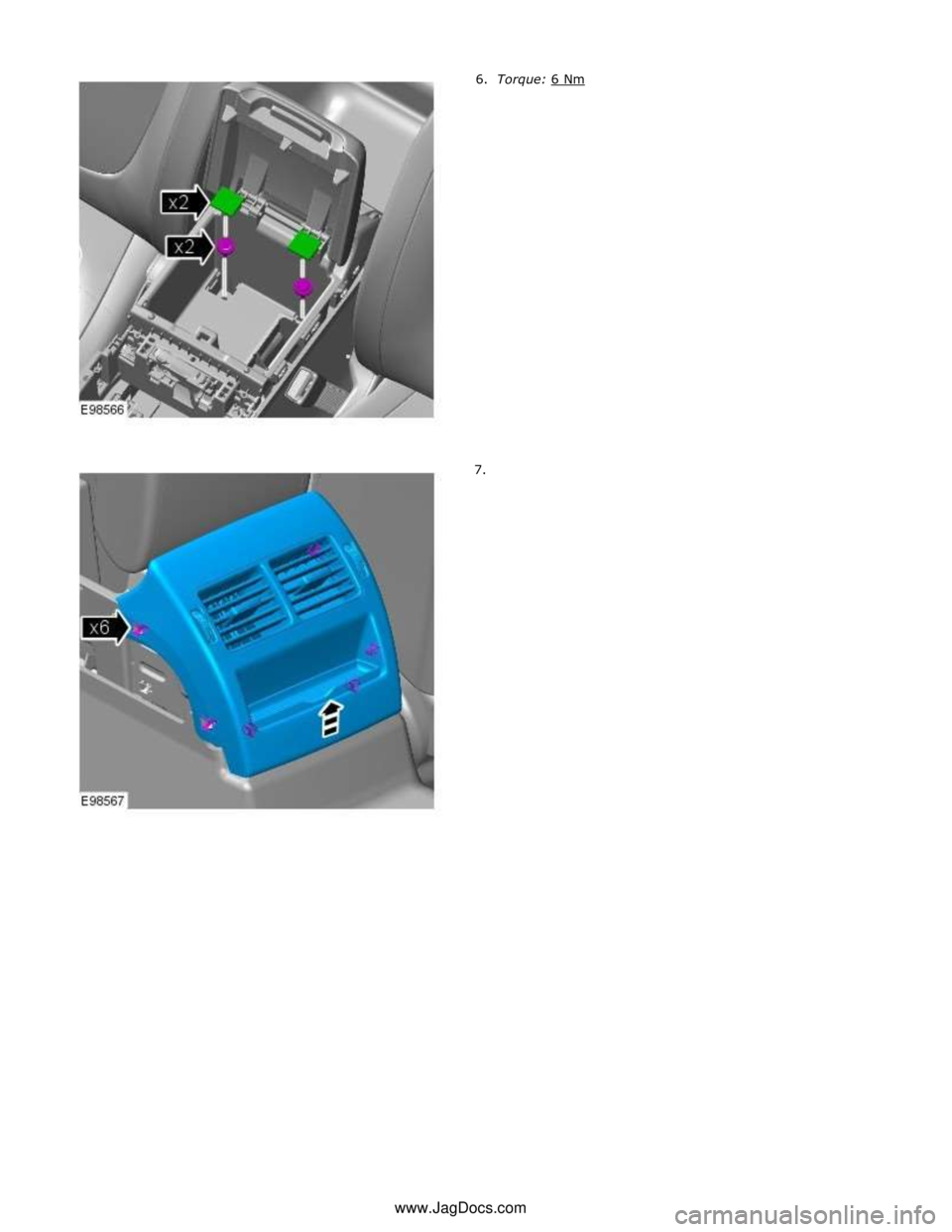

Page 2454 of 3039

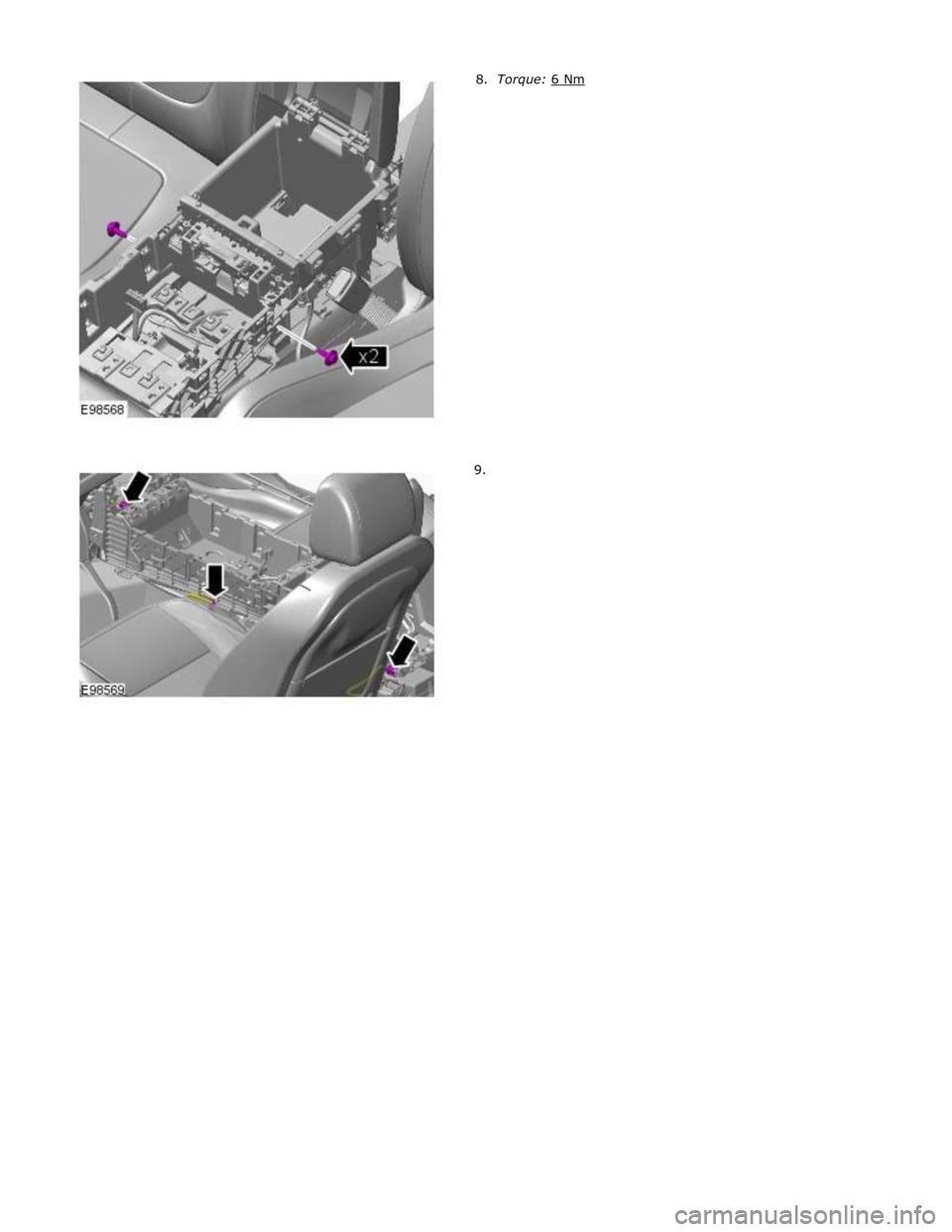

Page 2455 of 3039

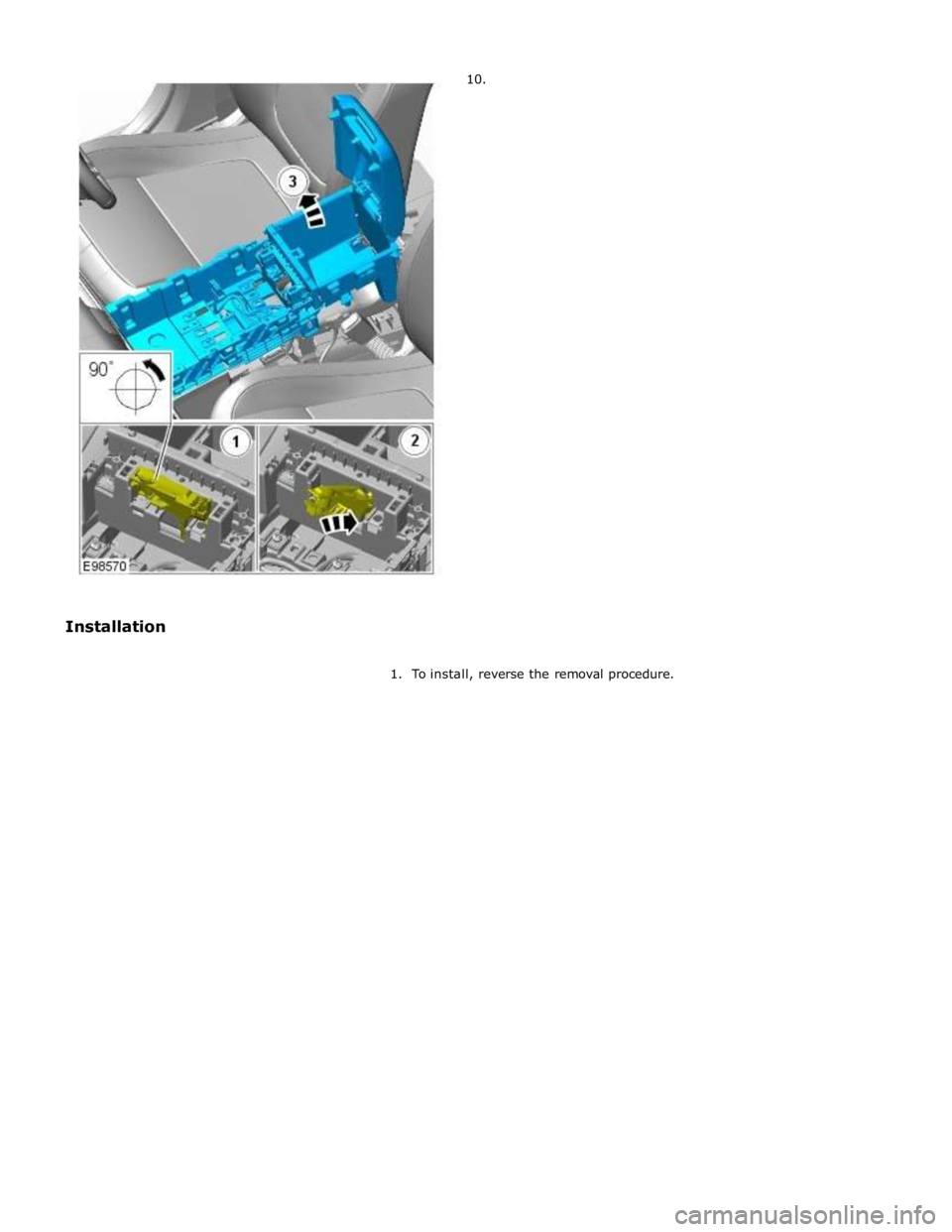

Page 2456 of 3039
