Page 2577 of 3039

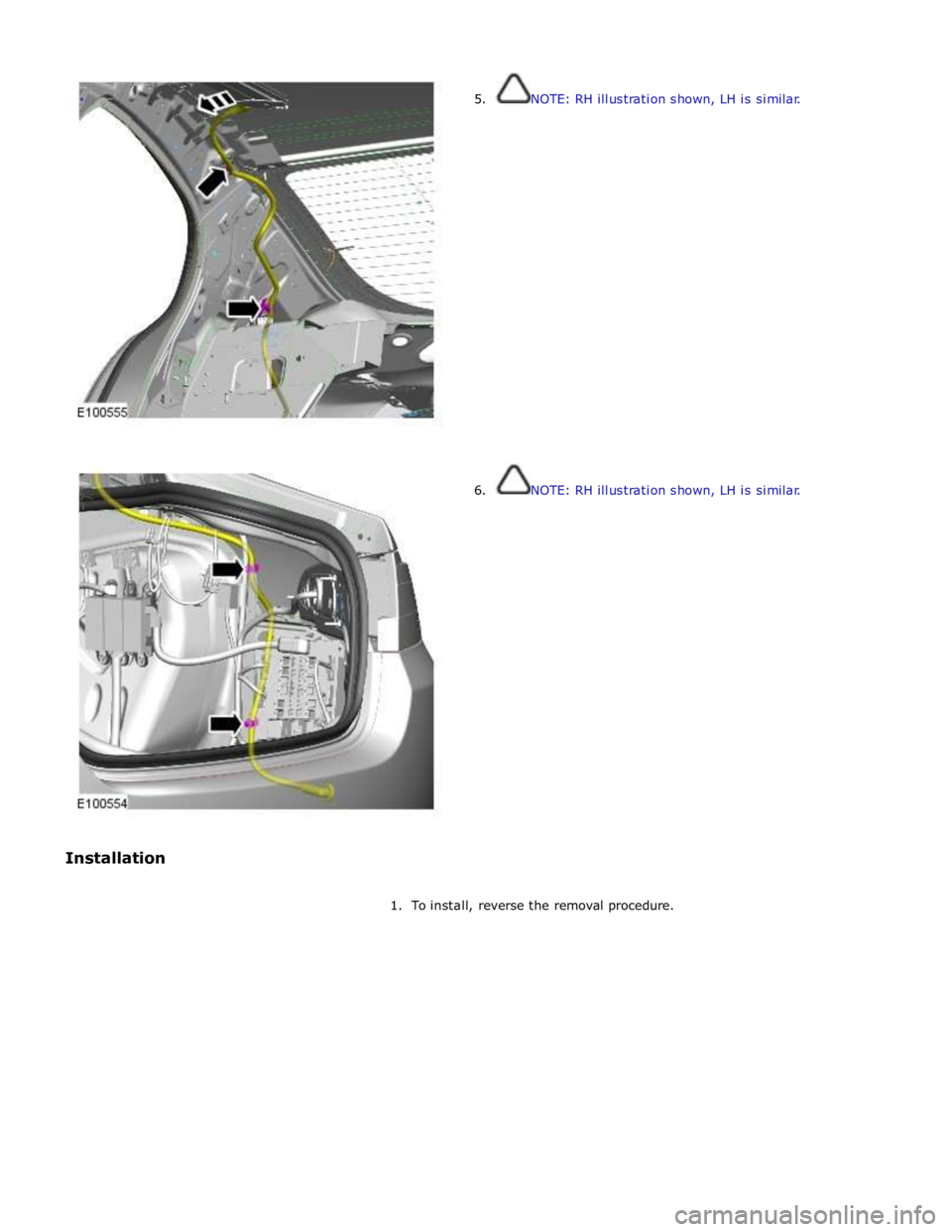

JAGUAR XFR 2010 1.G Workshop Manual

Page 2578 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Removal and Installation). Installation 2. NOTE: Make sure that this component is installed to the noted removal position. 1. To install, reverse the removal procedure.

Page 2579 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Radiator splash shield outer retaining bolts 3 - 26 Radiator splash shield inner retaining bolts 7 - 62 Radiator splash shield inner retaining screws 2 - 18 Front bumper cover retaining bolts 2 - 18 R

Page 2580 of 3039

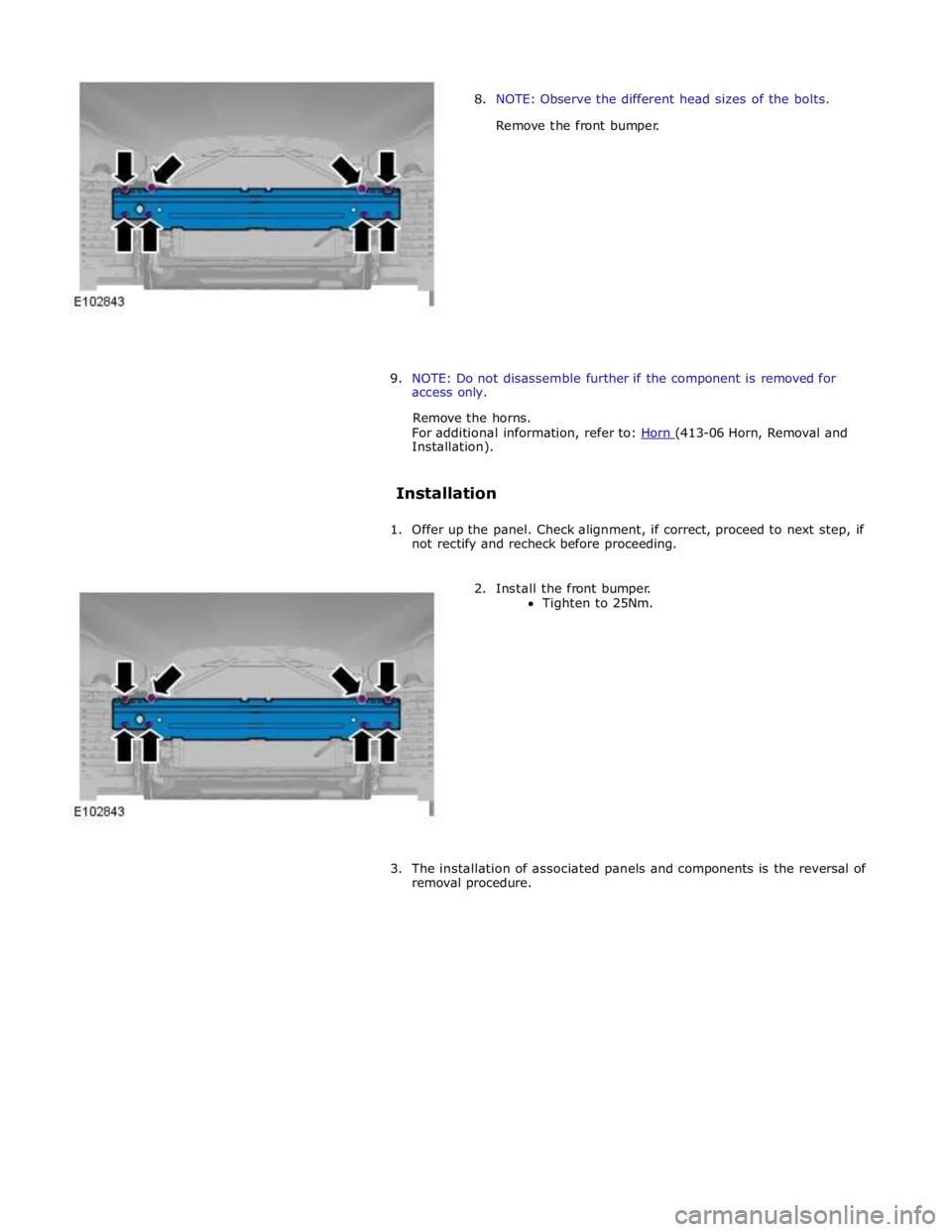

JAGUAR XFR 2010 1.G Workshop Manual Bumpers - Front Bumper Removal and Installation Published: 11-May-2011 Removal 1. The front bumper is serviced as a separate bolt-on panel. 2. The front bumper is

Page 2581 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation). Installation 1. Offer up the panel. Check alignment, if correct, proceed to next step, if not rectify and recheck before proceeding. 2. Install the front bumper. Tighten to 2

Page 2582 of 3039

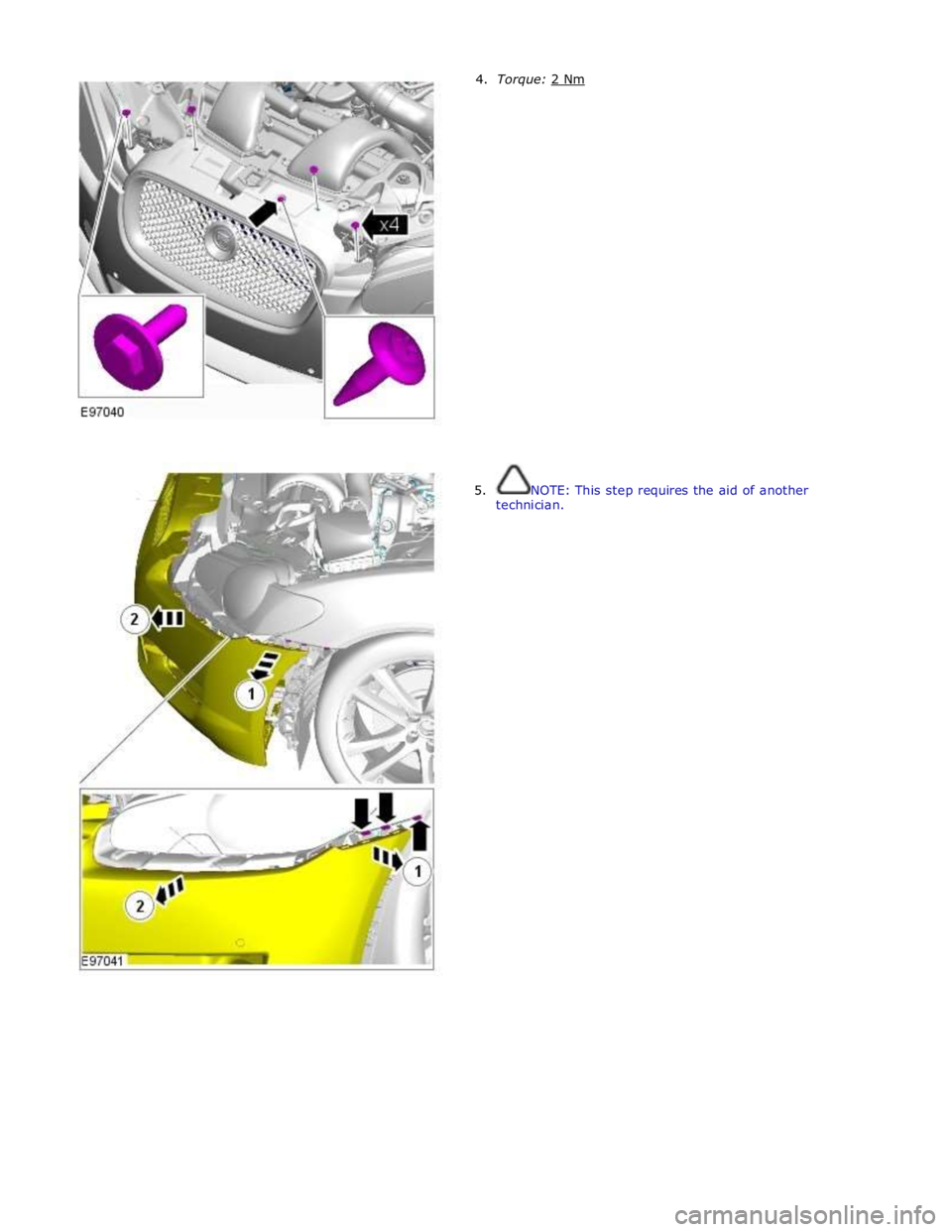

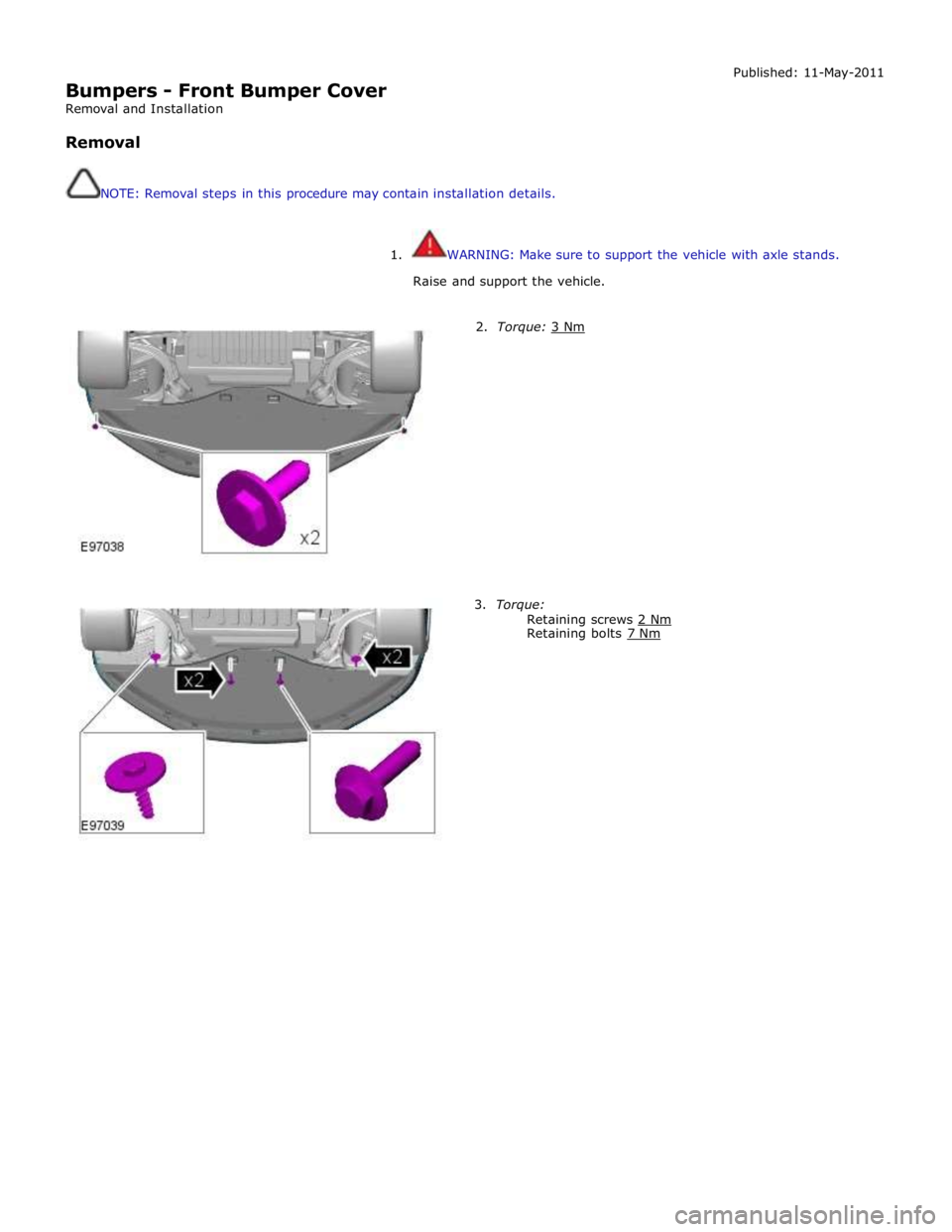

JAGUAR XFR 2010 1.G Workshop Manual Bumpers - Front Bumper Cover Removal and Installation Removal NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011 1. WARNING: Make sure to su

Page 2583 of 3039

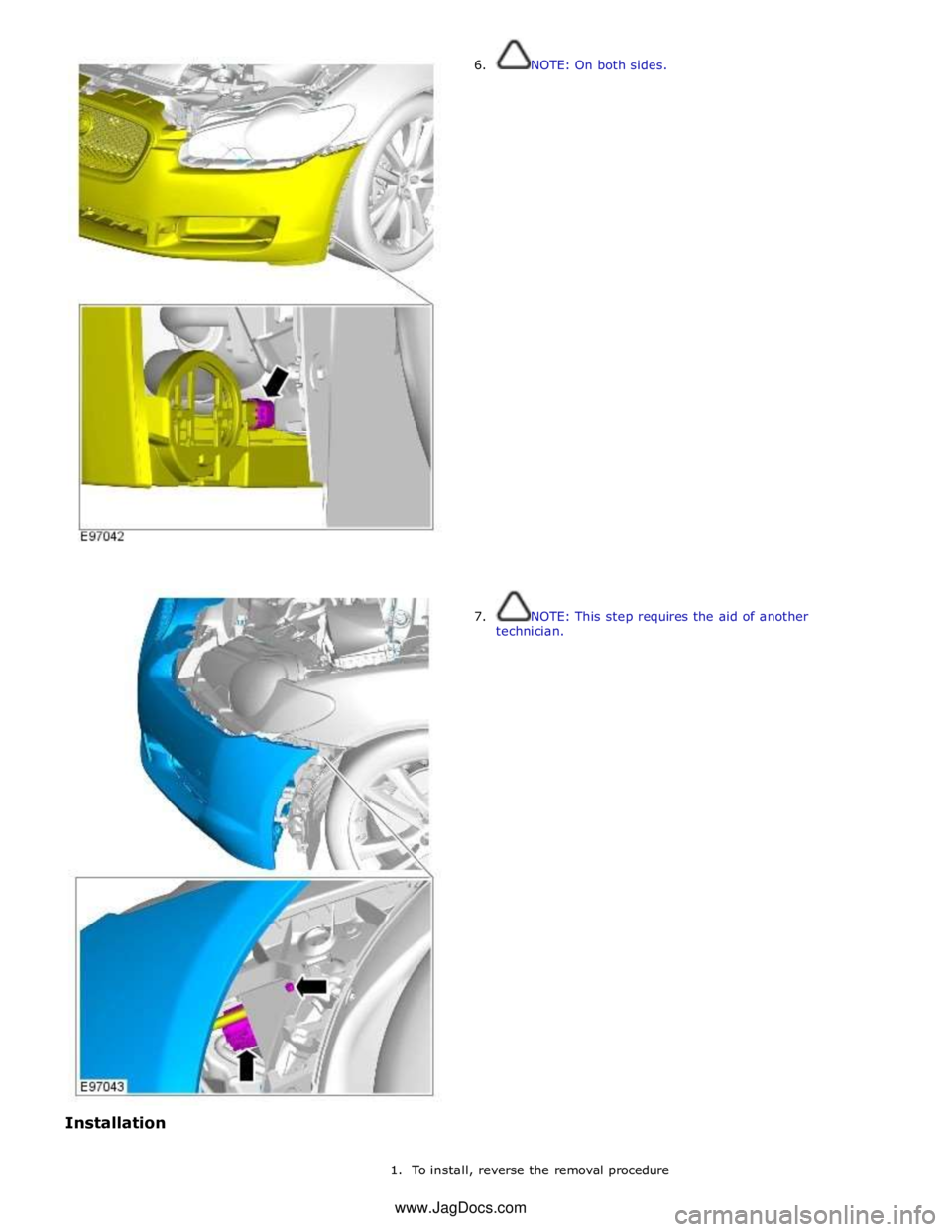

JAGUAR XFR 2010 1.G Workshop Manual 5. NOTE: This step requires the aid of another technician.

Page 2584 of 3039

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com
