Page 1857 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Symptom Possible Cause Action Frozen tracking lines
LIN data gateway fault
GO to Pinpoint Test D. Pinpoint Tests

PINPOINT TEST A : PERMANENT BLANK SCREEN TESTS TEST
CONDITIONS DETAILS/RESULT

Symptom Possible Cause Action Frozen tracking lines
LIN data gateway fault
GO to Pinpoint Test D. Pinpoint Tests

PINPOINT TEST A : PERMANENT BLANK SCREEN TESTS TEST
CONDITIONS DETAILS/RESULTS/ACTIONS A1: PERMANENT BLANK SCREEN TEST 1
NOTE: A blank screen is the default display when the rear view camera is not transmitting an image. 1 Refer to the electrical circuit diagrams and check the power and ground connections to the rear view camera Are the power and ground circuits within specification? Yes
GO to A2. No
Repair power or ground circuit as necessary A2: PERMANENT BLANK SCREEN TEST 2
CAUTION: Do not probe the coaxial cable connectors as they are prone to damage.
NOTE: A DC resistance measurement is not a reliable test method as the system operates at low voltage and high
frequency. 1 Check the integrity of the rear view camera coaxial cable connectors (at rear view camera, the touch screen and in-line connectors) 2 Check the coaxial cable for excessive bending, clamping and insulation damage Is the rear view camera coaxial cable disconnected or damaged? Yes
Reconnect or install a new coaxial cable as necessary
No
Install a new rear view camera
PINPOINT TEST B : BLUE SCREEN TESTS TEST
CONDITIONS DETAILS/RESULTS/ACTIONS B1: BLUE SCREEN TEST 1
NOTE: A blue screen is the default display when the video in signal is absent. 1 Select reverse gear and observe the touch screen Is the touch screen blue?
Yes
Check the integrity of the rear view camera coaxial cable connectors (at rear view camera, the touch
screen and in-line connectors), and retest
No
GO to Pinpoint Test A.
PINPOINT TEST C : ABSENT TRACKING LINES TESTS TEST
CONDITIONS DETAILS/RESULTS/ACTIONS C1: ABSENT TRACKING LINES TEST 1 1 Refer to the electrical circuit diagrams and check the rear view camera LIN bus circuit for short circuit to ground, short circuit to power, open circuit, high resistance Is a LIN bus circuit fault present? Yes
Repair the LIN bus circuit as necessary
No
Install a new rear view camera
PINPOINT TEST D : FROZEN TRACKING LINES TESTS TEST CONDITIONS DETAILS/RESULTS/ACTIONS D1: FROZEN TRACKING LINES TEST 1 www.JagDocs.com

Page 1858 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

NOTE: The vehicle may take 30 seconds (or 100m) to learn the steering centre position after starting the engine. This is
normal. 1 Start the engine 2 Wait at least 30 seconds 3 Select reverse

Page 1859 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Parking Aid - Front Inner Parking Aid Sensor
Removal and Installation

Removal Published: 06-Mar-2013

1. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
2.
I

Page 1860 of 3039

Page 1861 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Parking Aid - Front Outer Parking Aid Sensor
Removal and Installation

Removal Published: 06-Mar-2013

1. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
2.

Page 1862 of 3039

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com

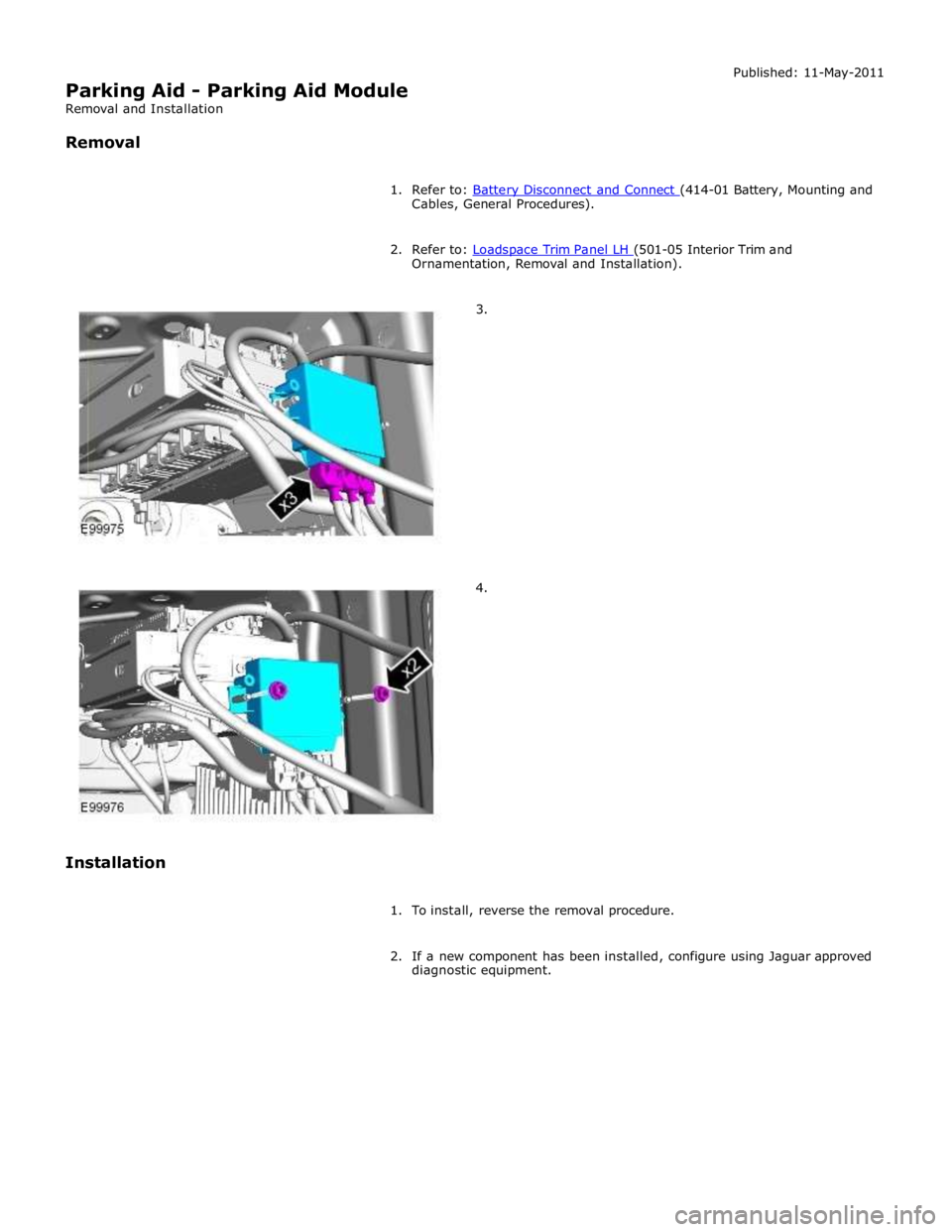

Page 1863 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Ornamentation, Removal and Installation).
2.
Installation

1. To install, reverse the removal procedure.

Page 1864 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Cables, General Procedures).

2. Refer to: Loadspace Trim Panel LH (501-05 Interior Trim and Ornamentation, Removal and Installation).
3.
4.
Installation

1. To install, reverse
