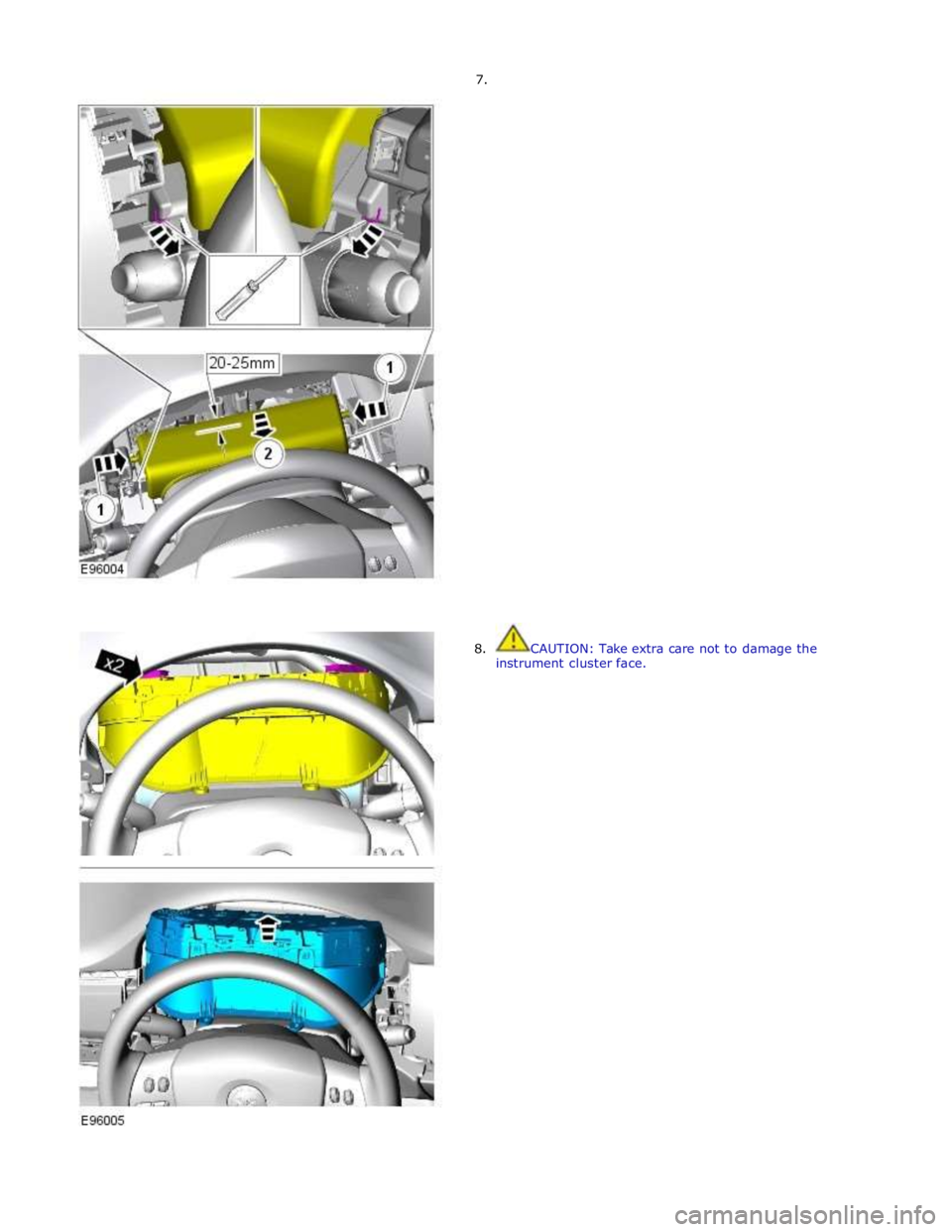

Page 1809 of 3039
Page 1810 of 3039
Installation
1. To install, reverse the removal procedure.
2. Configure the instrument cluster and ignition keys using the diagnostic
tool.
Page 1811 of 3039
Instrument Cluster - Instrument Cluster Lens
Removal and Installation
Removal Published: 04-Sep-2013
1. Fully extend the steering column for access.
2. Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
3. Refer to: Instrument Cluster (413-01 Instrument Cluster, Removal and Installation).
4. CAUTION: To prevent static damage to the circuits,
place the instrument cluster inside the electro static
discharge bag and use the gloves provided during this
procedure.

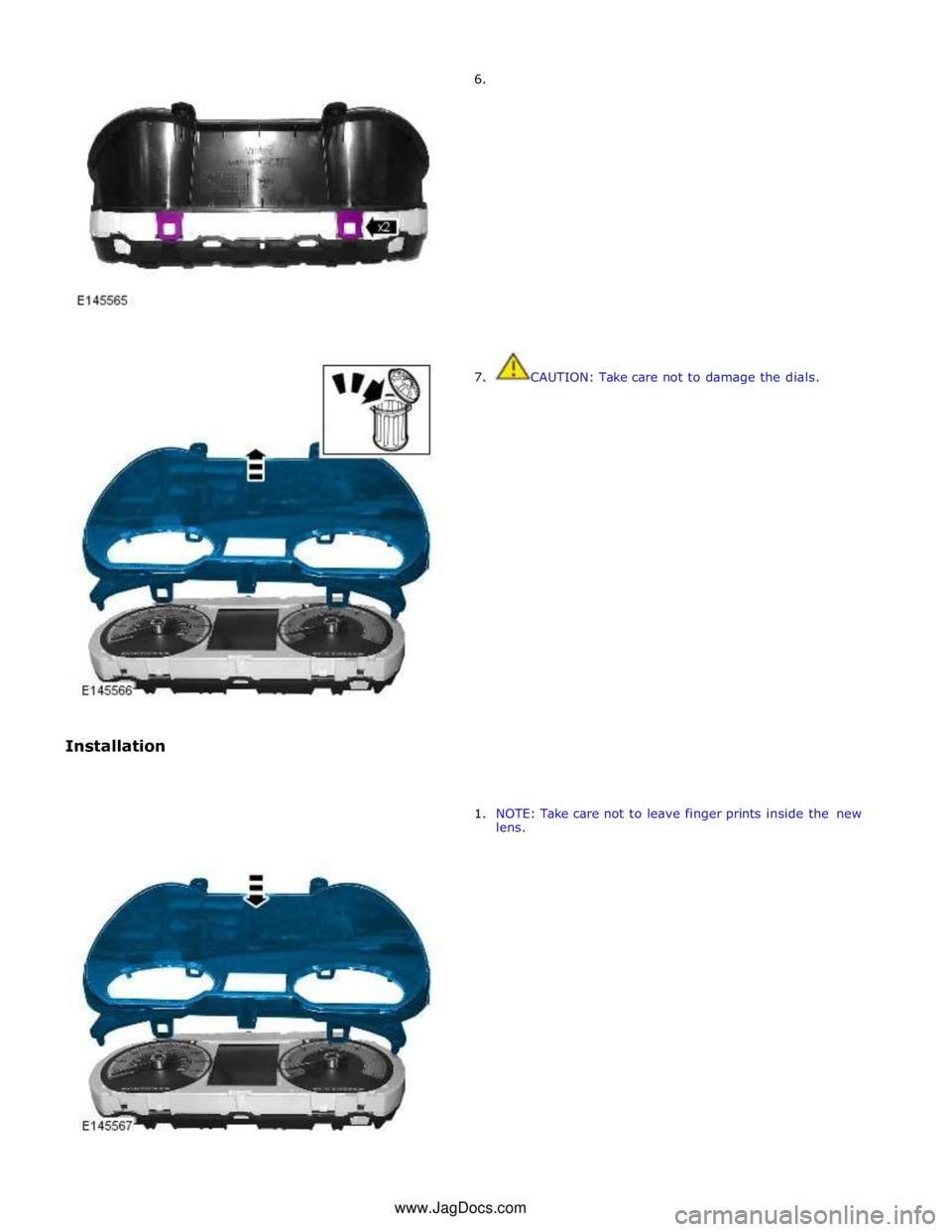

5.
Page 1812 of 3039
Page 1813 of 3039
Installation).
3. Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
Page 1814 of 3039
Vehicle horn retaining bolt 25 18 -
Page 1815 of 3039

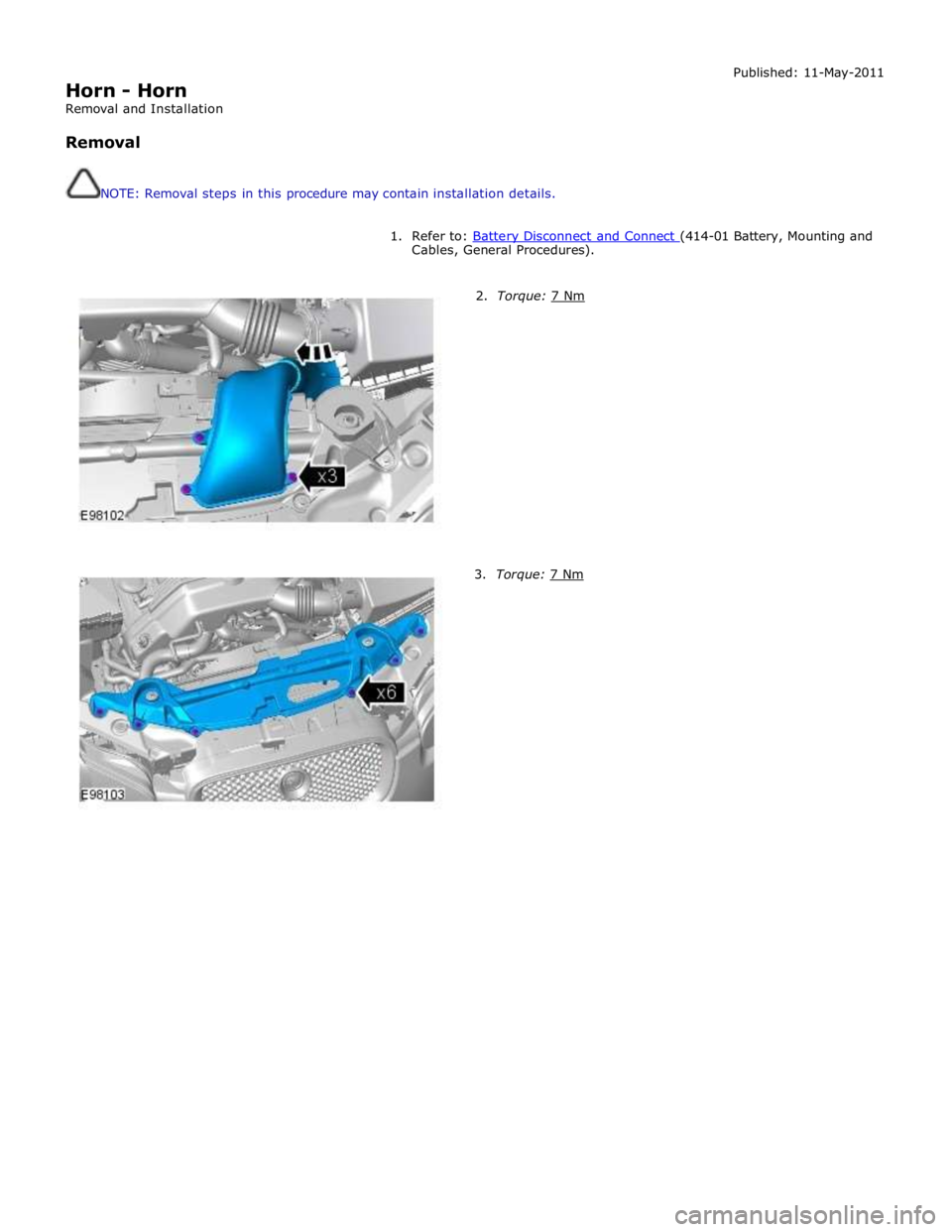

Horn - Horn
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

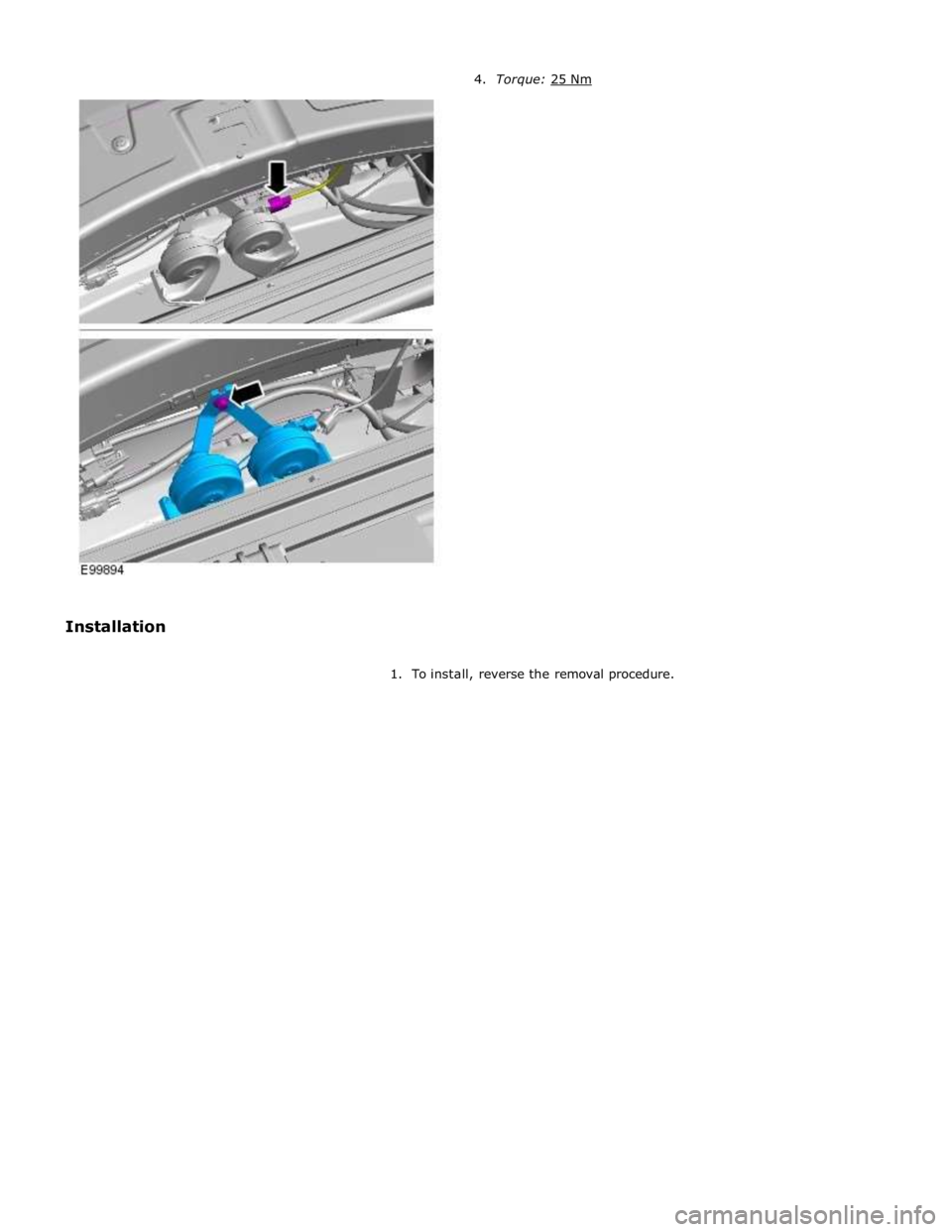

2. Torque: 7 Nm 3. Torque: 7 Nm
Page 1816 of 3039
1. To install, reverse the removal procedure.
