Page 2481 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2482 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Instrument Panel and Console - Overhead Console Removal and Installation Removal NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011 1. CAUTI

Page 2483 of 3039

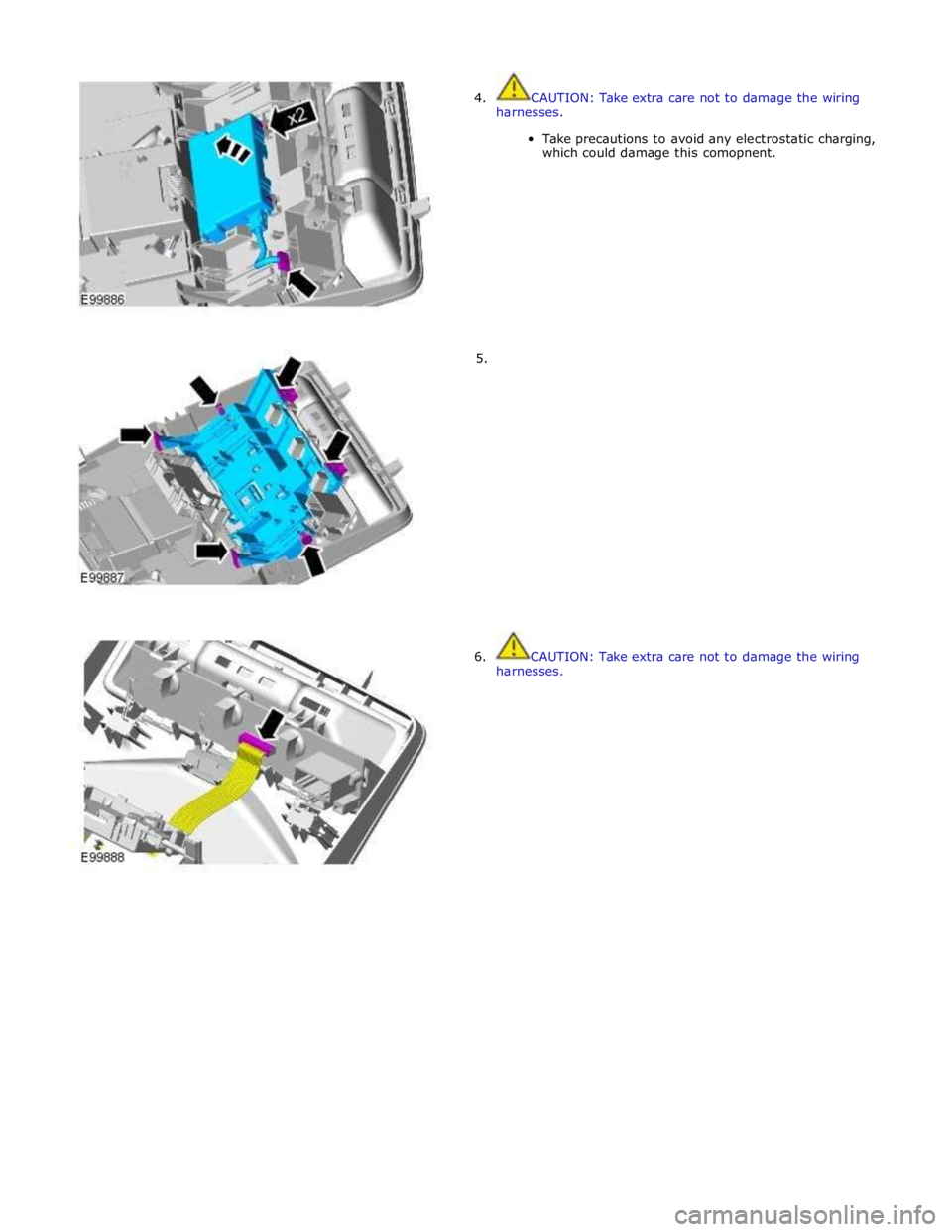

JAGUAR XFR 2010 1.G Workshop Manual 4. CAUTION: Take extra care not to damage the wiring harnesses. Take precautions to avoid any electrostatic charging, which could damage this comopnent. 5. 6.

Page 2484 of 3039

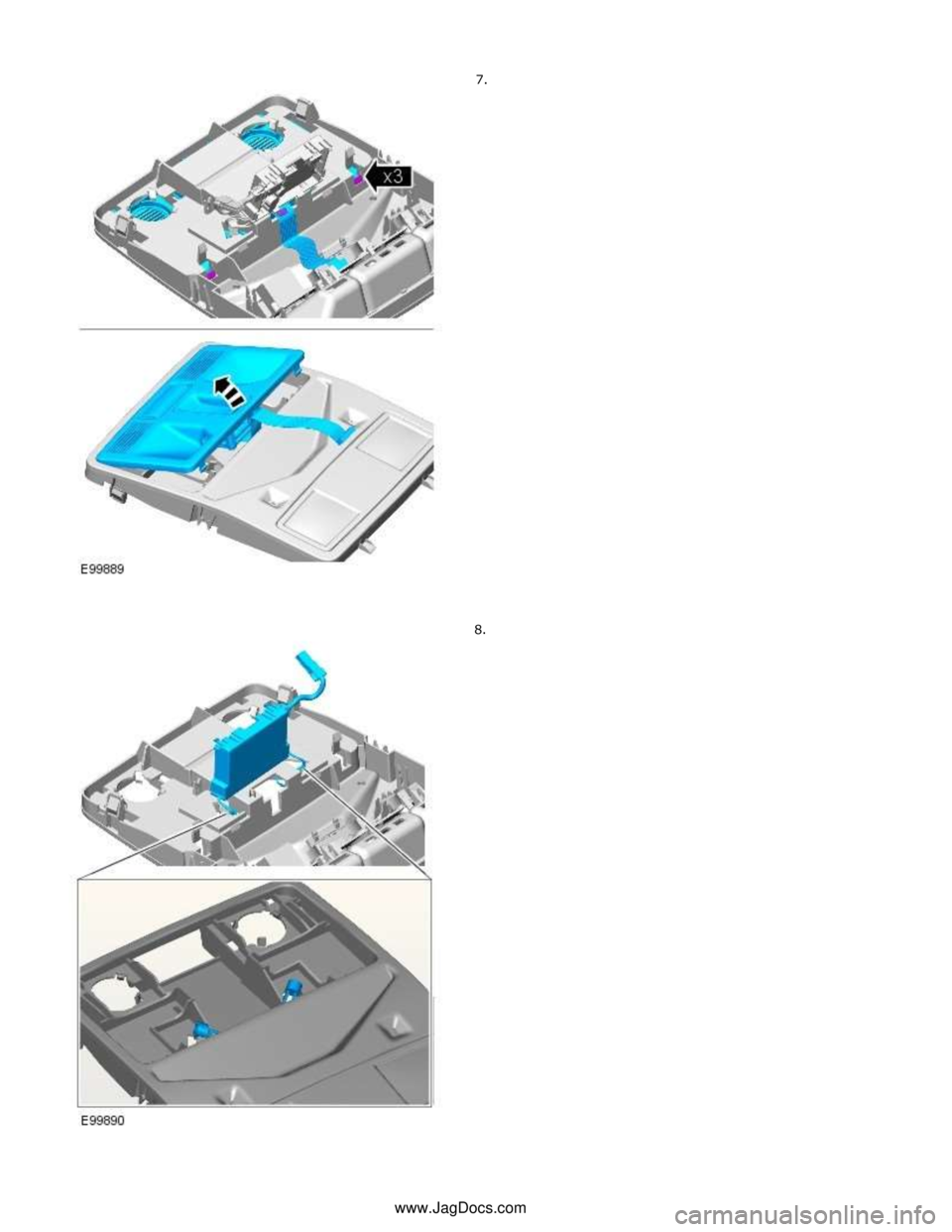

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com

Page 2485 of 3039

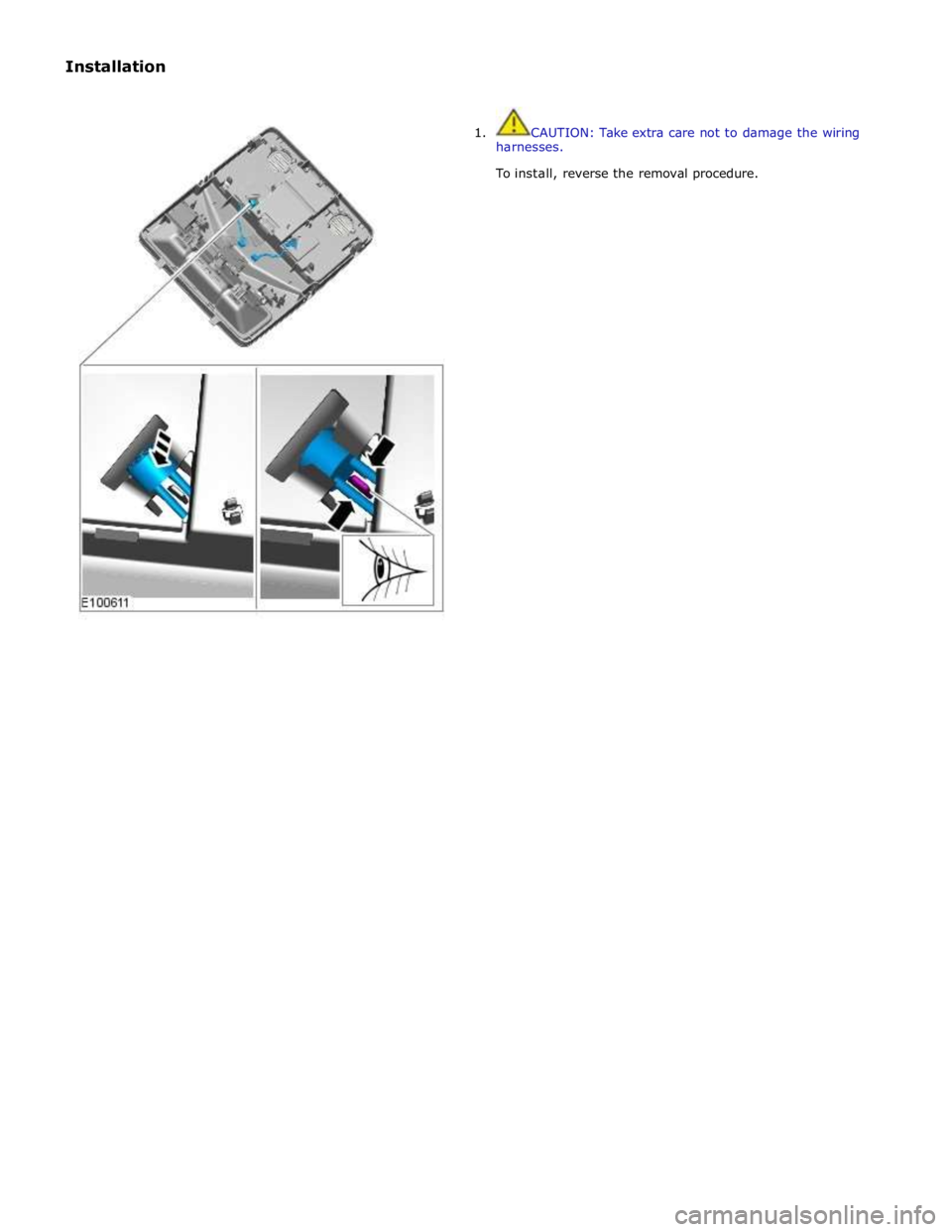

JAGUAR XFR 2010 1.G Workshop Manual Installation 1. CAUTION: Take extra care not to damage the wiring harnesses. To install, reverse the removal procedure.

Page 2486 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Front and rear door latch retaining screw 7 - 62 Front and Rear exterior door handle / Door lock captive retaining screw 4 - 36 Front and Rear Exterior Door handle seperate retaining screw 3 - 28 Fron

Page 2487 of 3039

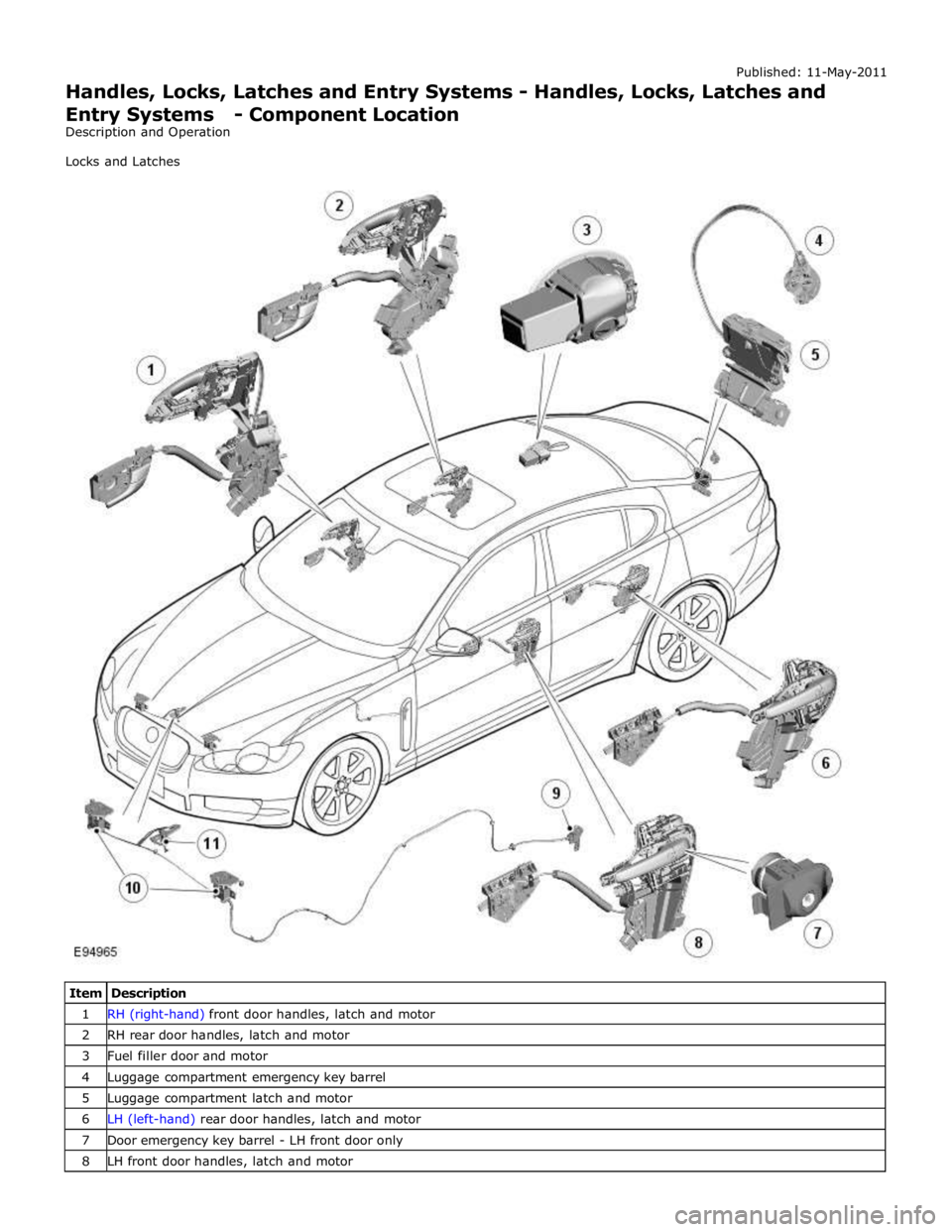

JAGUAR XFR 2010 1.G Workshop Manual 1 RH (right-hand) front door handles, latch and motor 2 RH rear door handles, latch and motor 3 Fuel filler door and motor 4 Luggage compartment emergency key barrel 5 Luggage compartment latch and mo

Page 2488 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 10 Engine-compartment-lid striker 11 Engine-compartment-lid safety hook and guide Central Locking and Keyless Vehicle Locking Item Description 1 CJB (central junction box) 2 Keyless vehicle, RH
