Page 1601 of 3039

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com

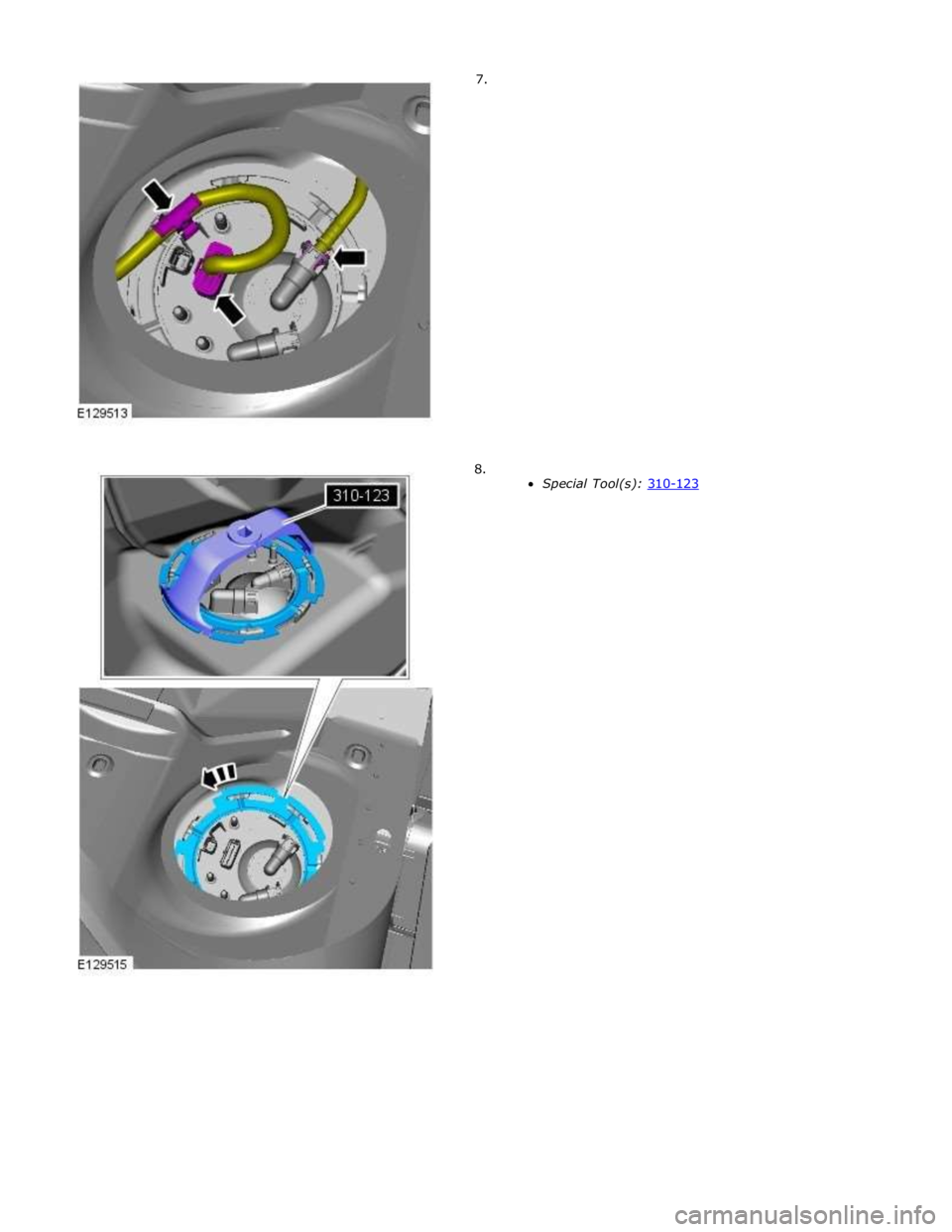

Page 1602 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 1603 of 3039

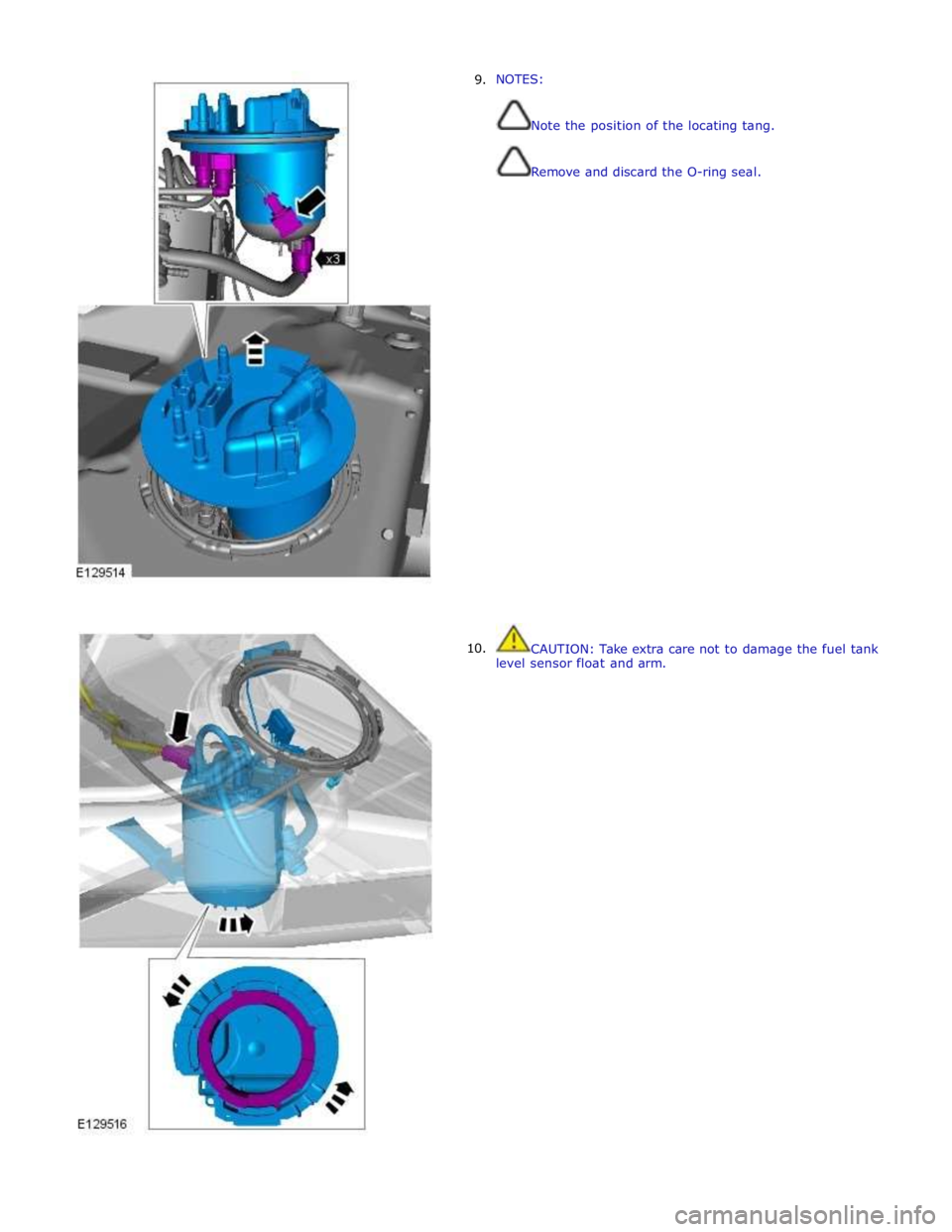

JAGUAR XFR 2010 1.G Workshop Manual 9. 10. NOTES: Note the position of the locating tang. Remove and discard the O-ring seal. CAUTION: Take extra care not t

Page 1604 of 3039

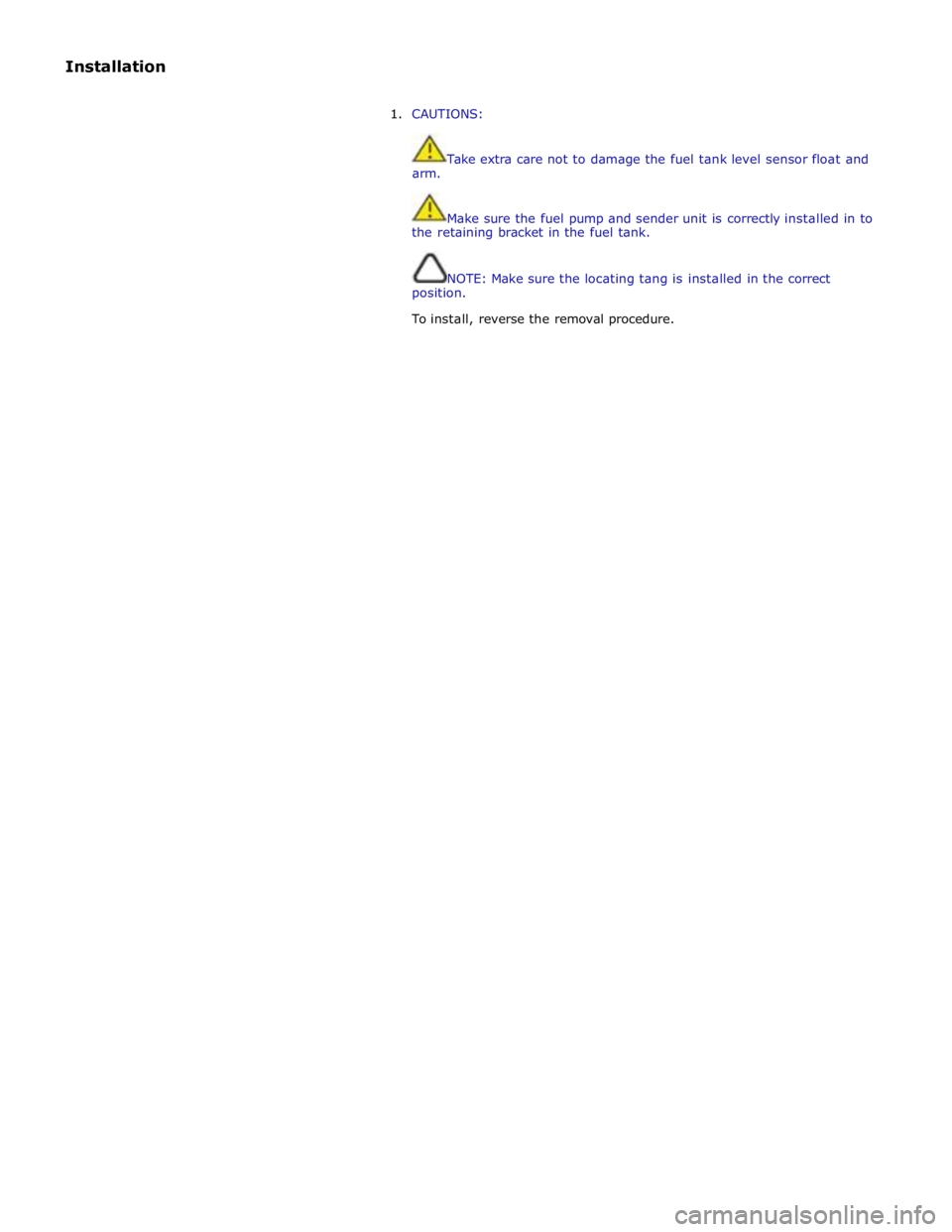

JAGUAR XFR 2010 1.G Workshop Manual Installation 1. CAUTIONS: arm. Take extra care not to damage the fuel tank level sensor float and Make sure the fuel pump and sender unit is correctly installed in to the retaining bracke

Page 1605 of 3039

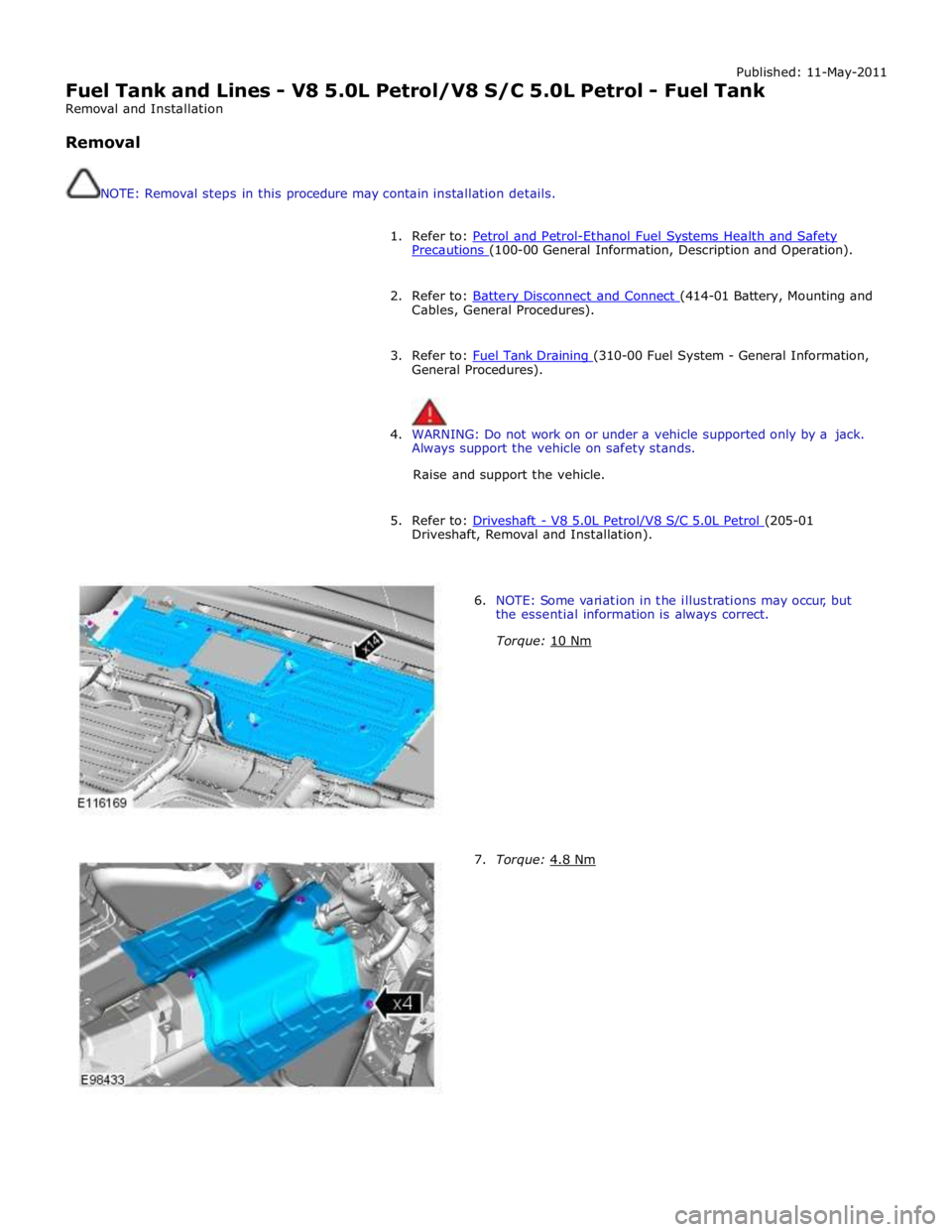

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Fuel Tank and Lines - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Fuel Tank Removal and Installation Removal NOTE: Removal steps in this procedure may contain installation det

Page 1606 of 3039

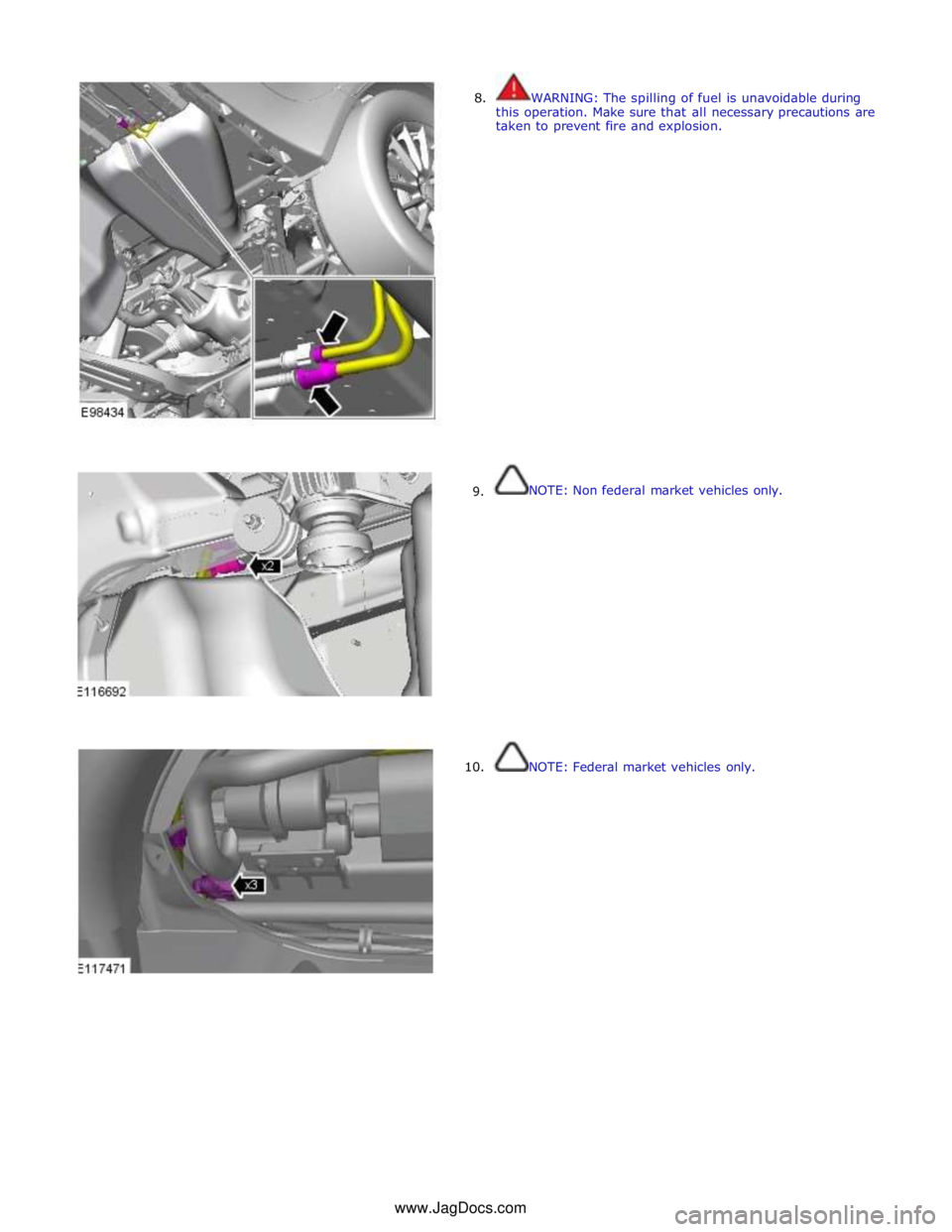

JAGUAR XFR 2010 1.G Workshop Manual 8. 9. 10. WARNING: The spilling of fuel is unavoidable during this operation. Make sure that all necessary precautions are taken to prevent

Page 1607 of 3039

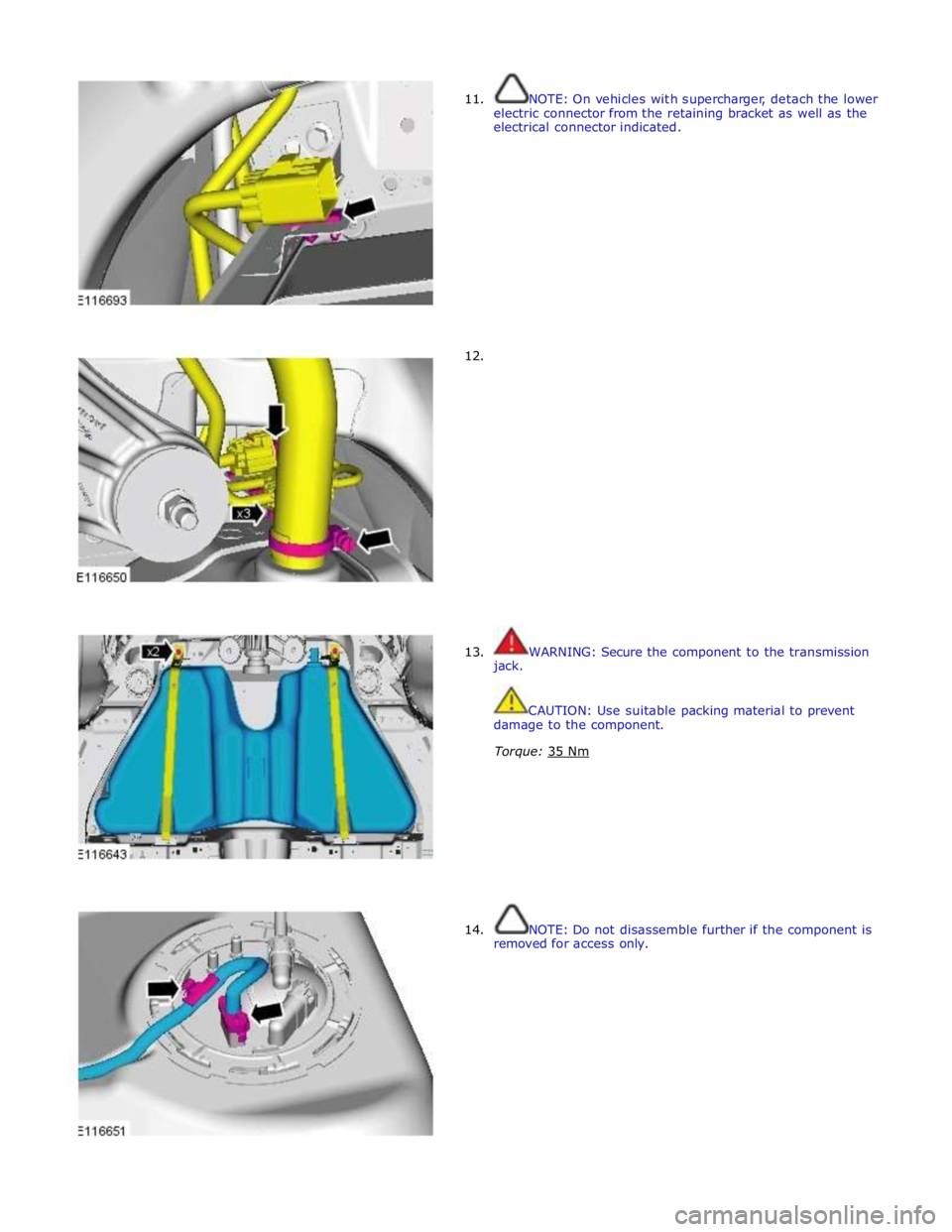

JAGUAR XFR 2010 1.G Workshop Manual 11. 12. NOTE: On vehicles with supercharger, detach the lower electric connector from the retaining bracket as well as the electrical connector indicated.

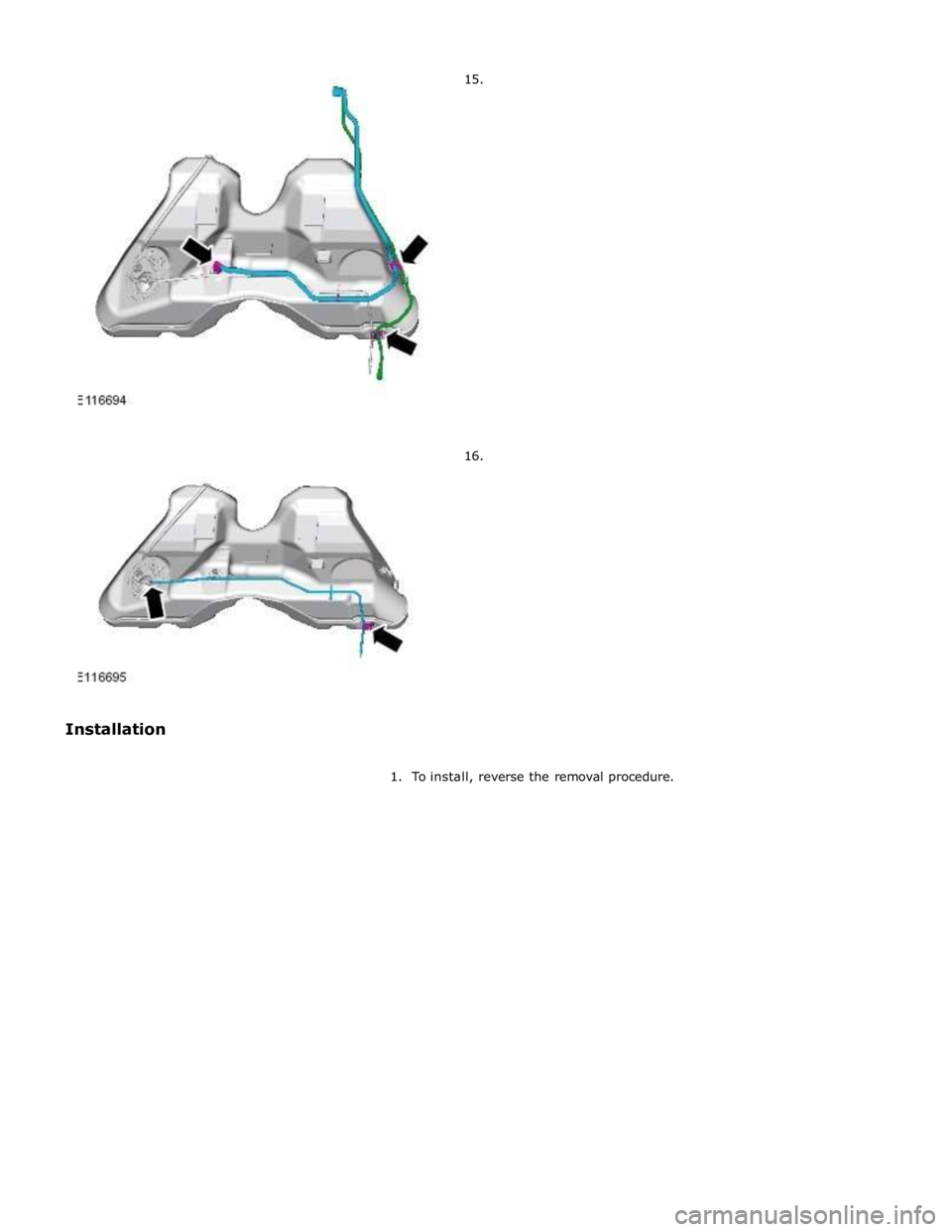

Page 1608 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
