Page 2809 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Front End Sheet Metal Repairs - Front Side Member Section Removal and Installation Removal Published: 11-May-2011 1. NOTE: The front side member section is manufactured from High Strength

Page 2810 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

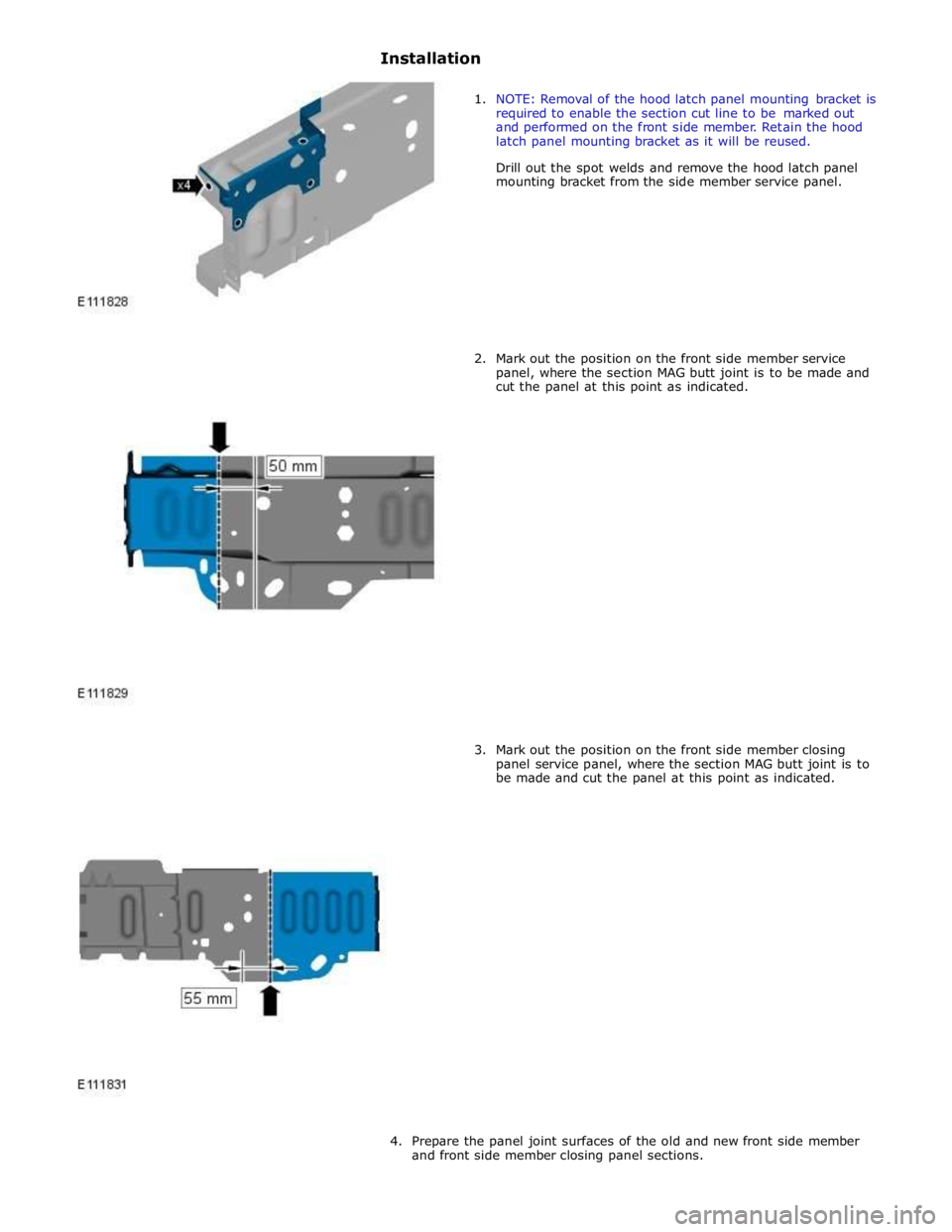

Page 2811 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 10. 11. CAUTION: Care should be taken not to cut through into the front side member. Mark out the position where the front side member closing pan

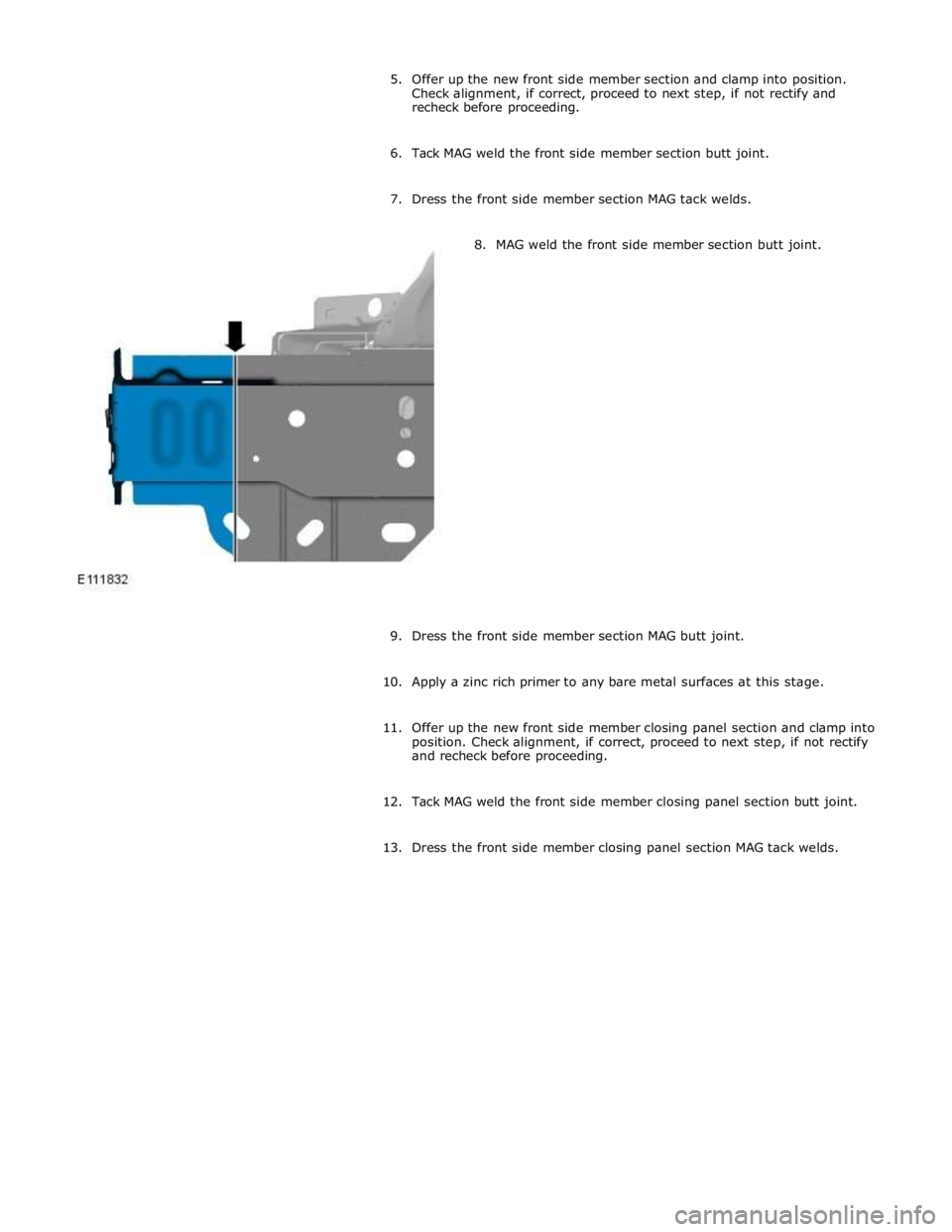

Page 2812 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2813 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

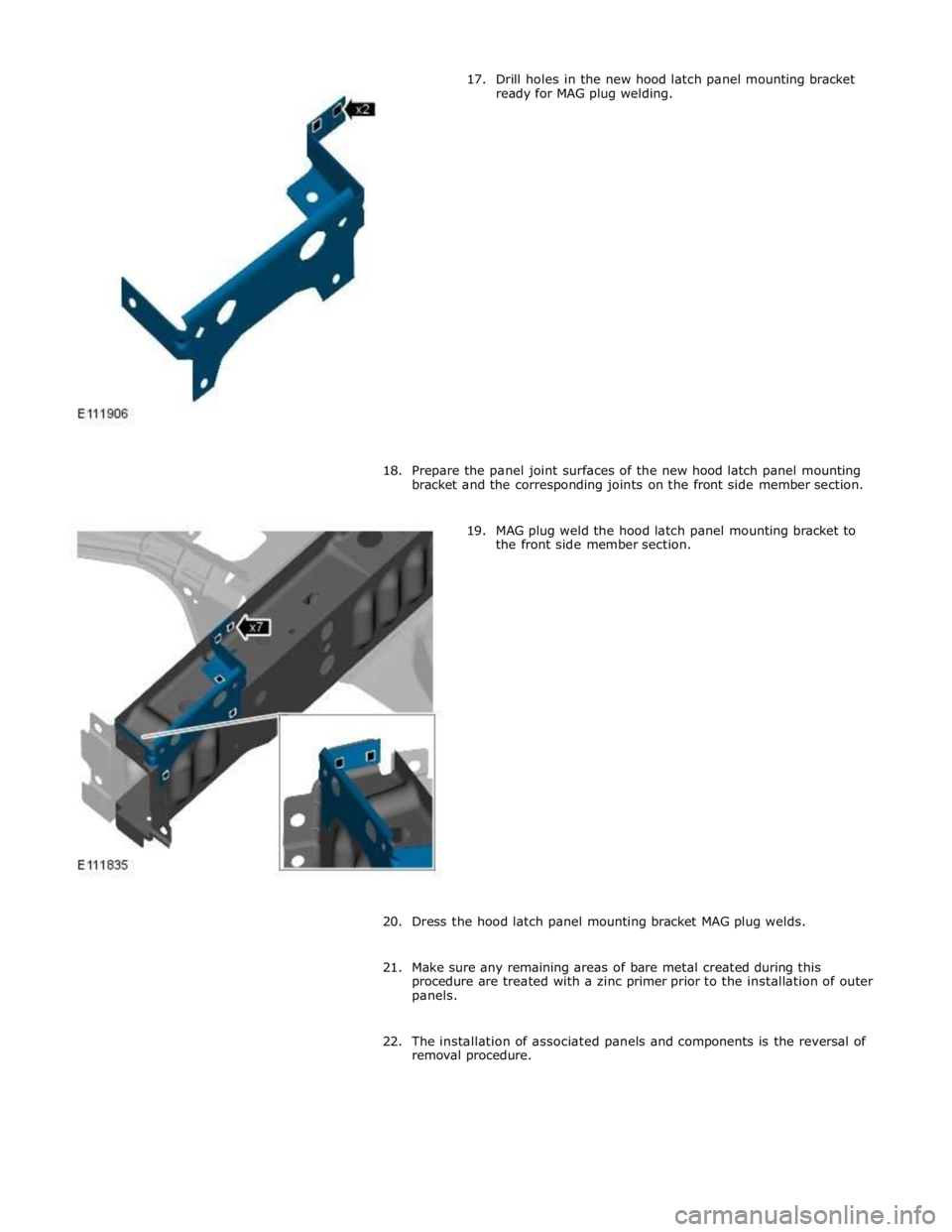

Page 2814 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 14. 15. MAG weld the front side member closing panel section butt joint. NOTE: Spot welds must be installed 5mm away from the originals and

Page 2815 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2816 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Front End Sheet Metal Repairs - Front Wheelhouse Section Removal and Installation Removal Published: 11-May-2011 1. NOTES: The left hand service panel is illustrated. The front whee
