2010 JAGUAR XFR Workshop Manual

automatic transmission tyre pressure brake pads ignition refuelling air conditioning

Load previous 8 pages

Page 2049 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

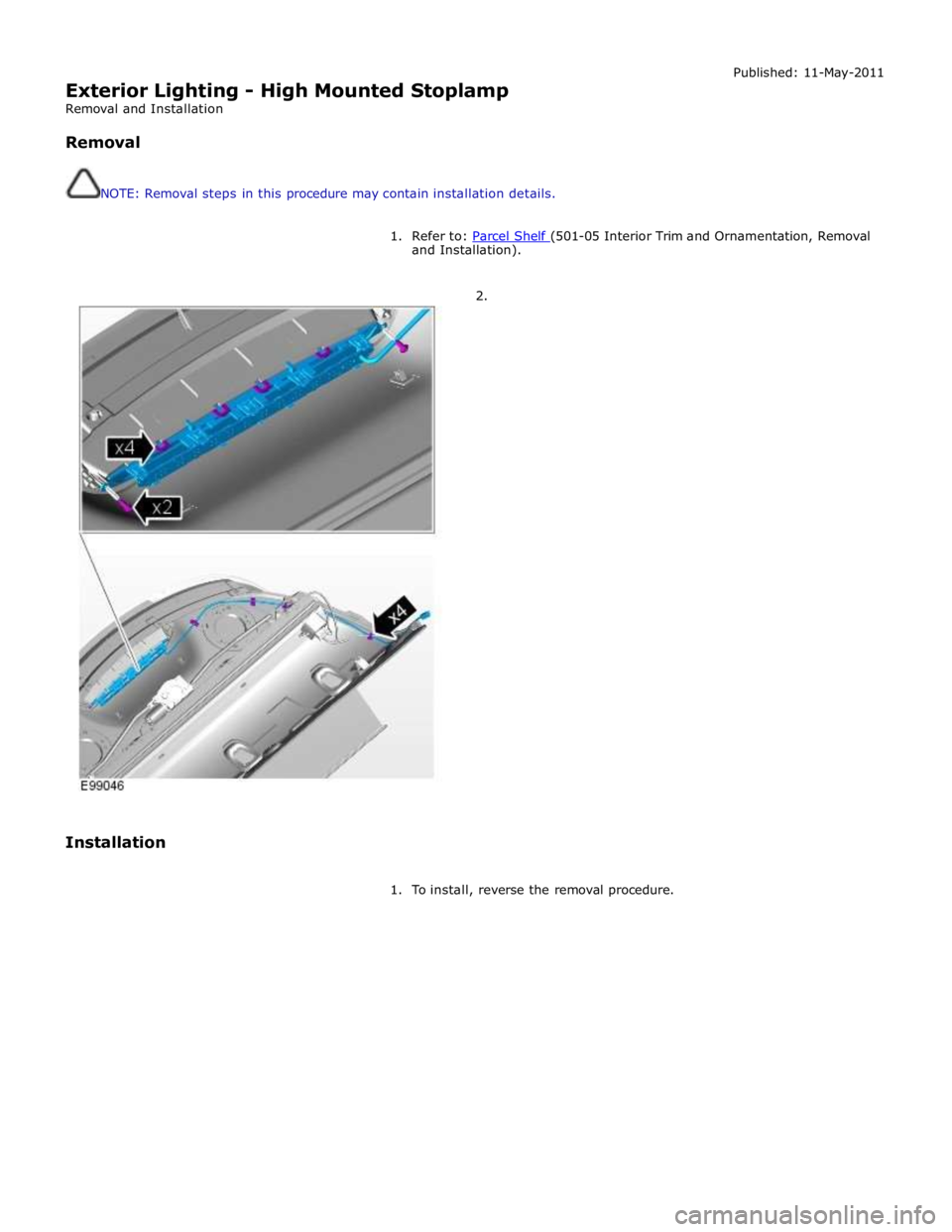

Exterior Lighting - High Mounted Stoplamp
Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Pa

Page 2050 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Exterior Lighting - Rear Fog Lamp
Removal and Installation

General Equipment Published: 11-May-2011

Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Page 2051 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Exterior Lighting - Rear Lamp Assembly
Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Refer to: Loadsp

Page 2052 of 3039

Page 2053 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Exterior Lighting - Side Turn Signal Lamp
Removal and Installation

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustratio

Page 2054 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 1 Glovebox lamp 2 Door casing LED (light emitting diode) illumination 3 Approach lamp 4 Vanity mirror illumination 5 Overhead console 6 Vanity mirror illumination 7 Rear overhead console 8 Luggage com

Page 2055 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Interior Lighting - Interior Lighting - Overview
Description and Operation

OVERVIEW Published: 11-May-2011

Interior lighting is provided to enable the safe entry and departure from the vehicl

Interior Lighting - Interior Lighting - Overview
Description and Operation

OVERVIEW Published: 11-May-2011

Interior lighting is provided to enable the safe entry and departure from the vehicle for the driver and passengers in low
ambient light conditions, without any manual switching of the lights.

NOTE: The term interior lamps also includes the door mirror approach lamps.

The interior lamps are controlled by the CJB (central junction box) and the RJB (rear junction box) and have 2 modes of
operation: manual and automatic. The front interior lamps in the front overhead console are operated using the 'JaguarSense'
system. The system uses capacitive proximity sensor technology for the switch operation which is integral with the overhead
console. The rear overhead console interior lamps have conventional switches.

In the manual mode the interior lamps can be switched on and off with the JaguarSense system. Positioning your hand
adjacent to each lamp in the front overhead console will switch interior lamps on or off and completely disable the interior
lamp system. In the automatic mode the interior lamp functionality is controlled by the CJB and the RJB and reacts to the vehicle being locked or unlocked and opening the vehicle doors.

In manual mode the interior lamps can be operated by placing your finger(s) close to, or touch, the surface of the appropriate
lamp. The courtesy light and map reading lamps can be operated manually by the 'JaguarSense' system. When in automatic
mode, the courtesy lamp functionality is also controlled by the CJB and the RJB and reacts to the vehicle being locked or unlocked and opening the vehicle doors. To deactivate or activate automatic illumination, touch the front courtesy lamp for
approximately 2 seconds

The driver's and passenger door approach lamps are controlled by the driver's door module and the passenger door module
respectively and operate with the automatic mode. The door modules receive a power supply from the RJB and receive information to illuminate the approach lamps on the medium speed CAN (controller area network) bus from the RJB and the CJB. www.JagDocs.com

Page 2056 of 3039

JAGUAR XFR 2010 1.G Workshop Manual A = Hardwired; N = Medium speed CAN Bus 1 Battery 2 BJB (battery junction box) - Megafuse 3 BJB - Megafuse 4 RJB (rear junction box) 5 Drivers door mirror approach lamp 6 Drivers door module
