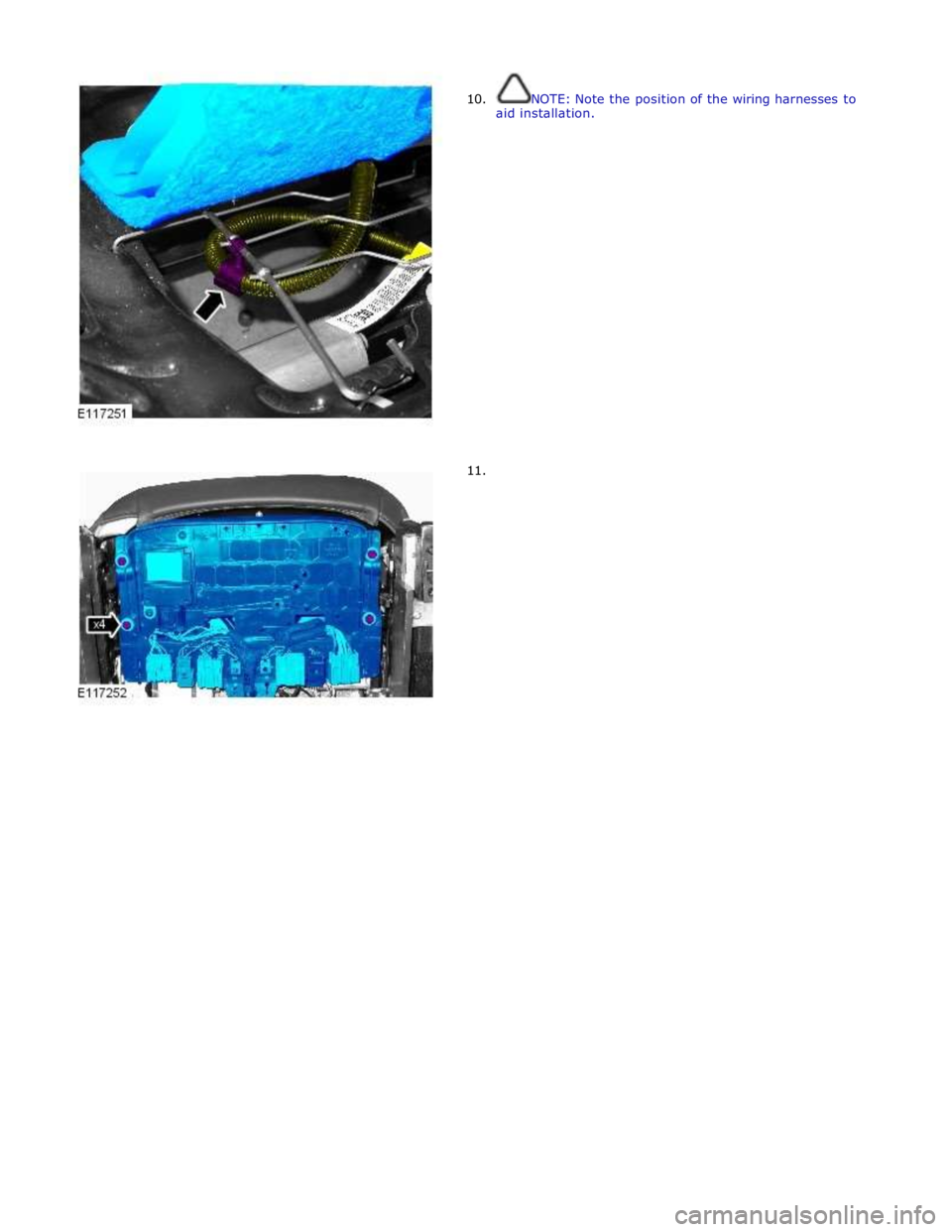

Page 2641 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 10. 11. NOTE: Note the position of the wiring harnesses to aid installation.

Page 2642 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 12. 13. CAUTION: Take extra care not to damage the clips.

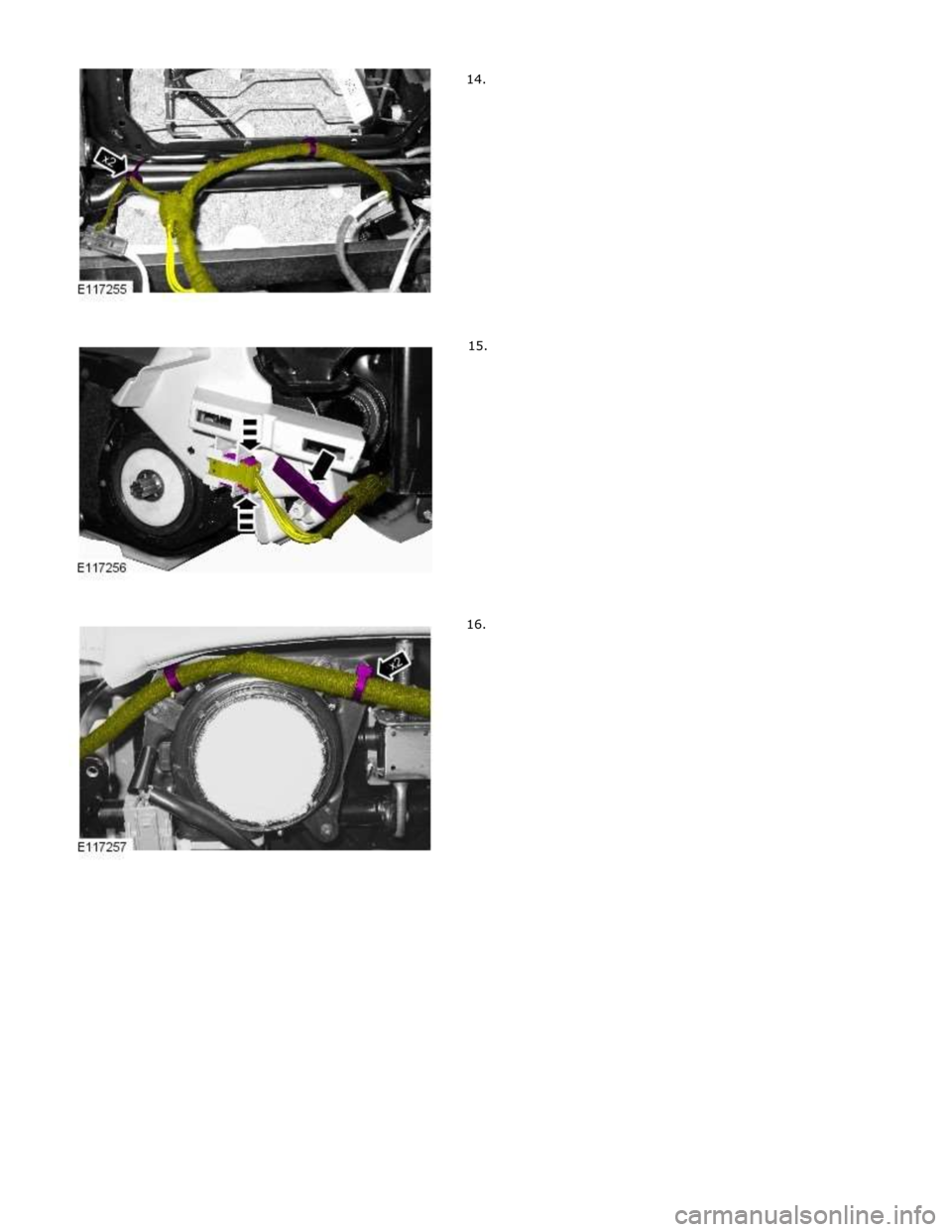

Page 2643 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2644 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 17. 18. 19. WARNING: Do not probe supplemental restraint system (SRS) electrical connectors.

Page 2645 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 20. 1. CAUTION: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failu

Page 2646 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 2. NOTES: Make sure that new hog rings are installed. Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

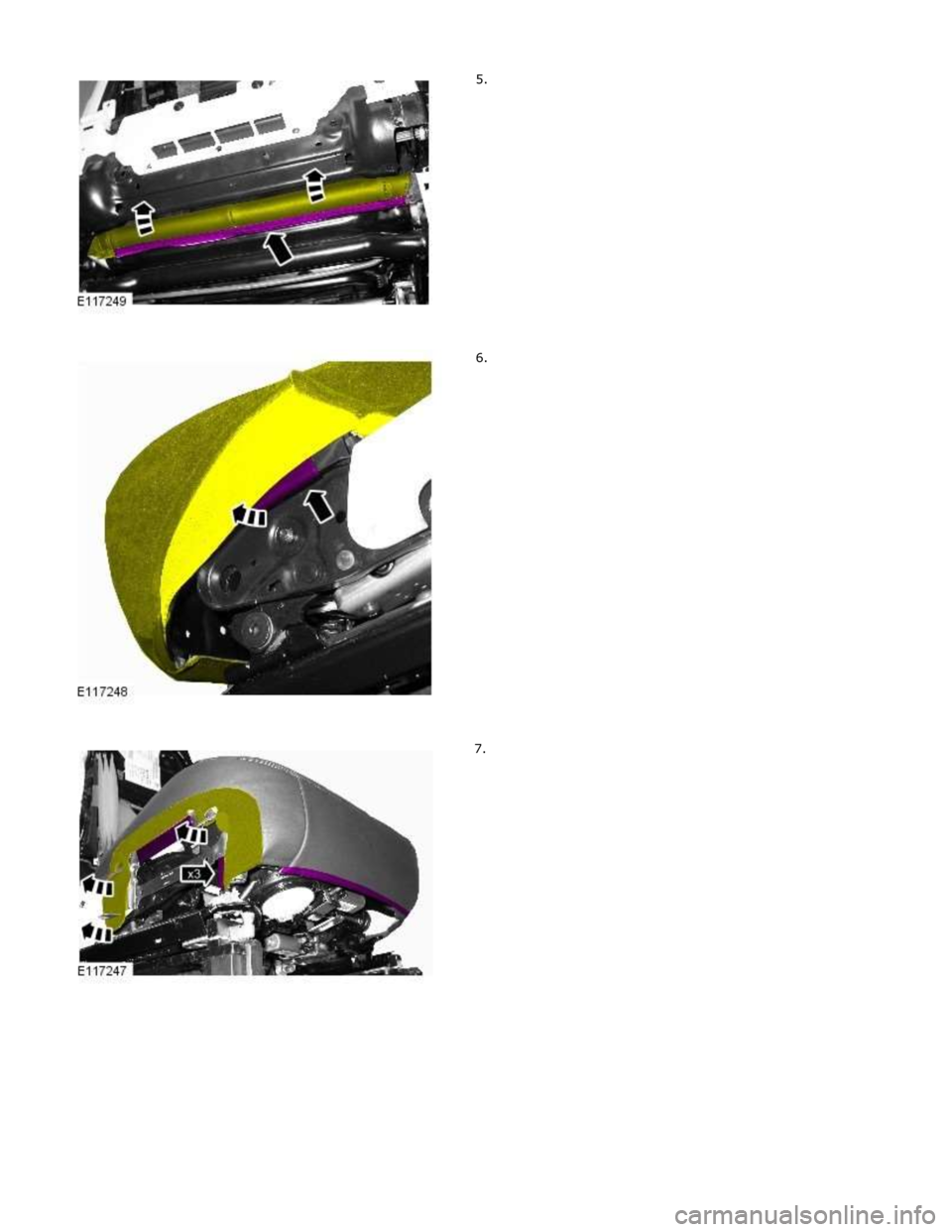

Page 2647 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2648 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 8. NOTE: Make sure that the harness is routed to the position noted on removal. 9.
