JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011
Roof Sheet Metal Repairs - Roof Panel Vehicles Without: Sliding Roof Opening
Panel
Removal and Installation

Removal

1. NOTE: The roof panel is manufactured from mild

Page 2836 of 3039

JAGUAR XFR 2010 1.G Workshop Manual (414-01 Battery, Mounting and Cables, General Procedures).

6. Disconnect the generator electrical connectors.

7. Remove the windshield glass.
For additional information, refer to: Windshield Gl

(414-01 Battery, Mounting and Cables, General Procedures).

6. Disconnect the generator electrical connectors.

7. Remove the windshield glass.
For additional information, refer to: Windshield Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

8. Remove the rear window glass.
For additional information, refer to: Rear Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

9. Remove the headliner.
For additional information, refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).

10. Remove the driver and passenger side front scuff plate trim panels.
For additional information, refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

11. Remove the driver and passenger side rear scuff plate trim panels.
For additional information, refer to: Rear Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

12. Remove the driver and passenger side air curtain modules.
For additional information, refer to: Side Air Curtain Module (501-20B Supplemental Restraint System, Removal and Installation).

13. Remove the rear seat backrest.

14. Remove the driver and passenger side rear safety belt retractors.
For additional information, refer to: Rear Safety Belt Retractor (501-20A Safety Belt System, Removal and Installation).

15. Remove the rear center safety belt retractor.
For additional information, refer to: Rear Center Safety Belt Retractor (501-20A Safety Belt System, Removal and Installation).

16. Remove the driver and passenger side RF filters.

17. Remove the diversity antenna module.

18. Remove the antenna.
For additional information, refer to: Navigation System Antenna (419-07 Navigation System, Removal and Installation).

19. Release and position the roof wiring harnesses to one side

20. Remove the driver and passenger side roof mouldings.

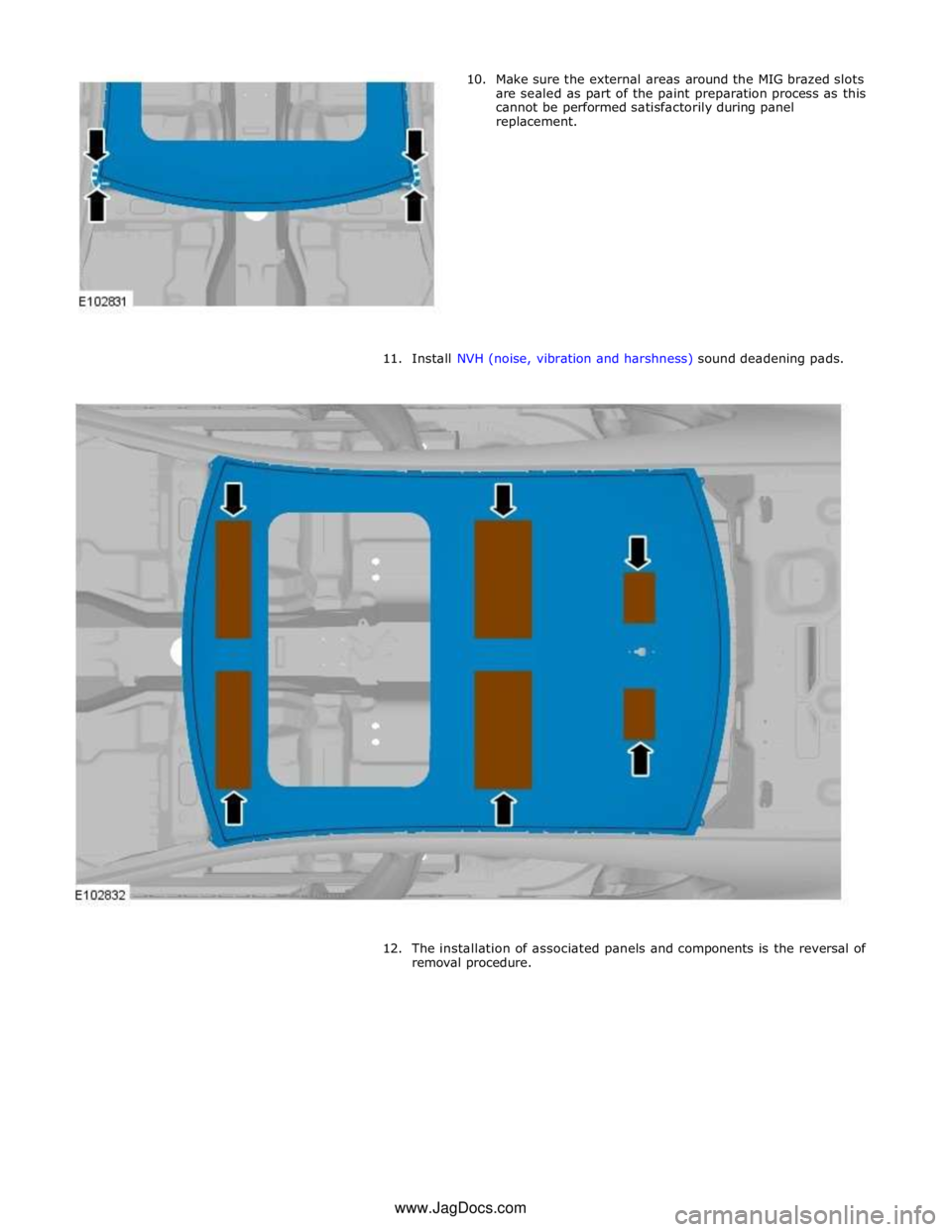

21. Drill out the spot welds.
