Page 2041 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Exterior Lighting - Headlamp Assembly Removal and Installation Removal NOTE: RH illustration shown, LH is similar. 1. 2. Published: 11-May-2011 NOTE: T

Page 2042 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

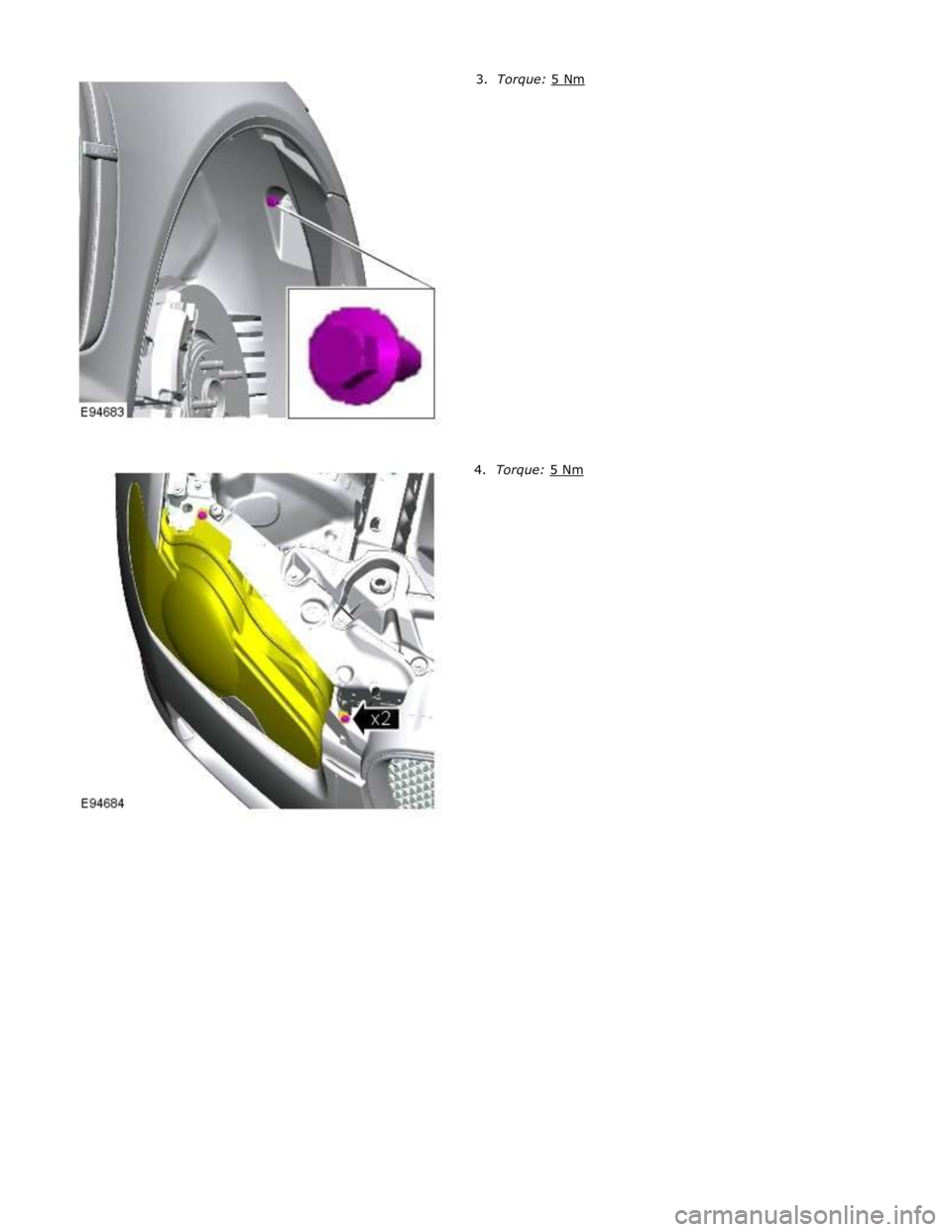

Page 2043 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2044 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 4. Torque: 5 Nm

Page 2045 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Exterior Lighting - Headlamp Leveling Front Sensor Removal and Installation Removal Published: 11-May-2011 1. WARNING: Do not work on or under a vehicle supported only by a jack. Always sup

Page 2046 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 1. NOTE: Align to the position noted on removal. Install the bracket. Tighten to 5 Nm. 2. Install the height sensor link. 3. Install the headlamp leveling se

Page 2047 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Exterior Lighting - Headlamp Leveling Rear Sensor Removal and Installation Removal Published: 11-May-2011 1. WARNING: Do not work on or under a vehicle supported only by a jack. Always supp

Page 2048 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 2. Install the headlamp leveling sensor. Tighten to 25 Nm Connect the electrical connector. Install the height sensor link.
