Page 881 of 3039

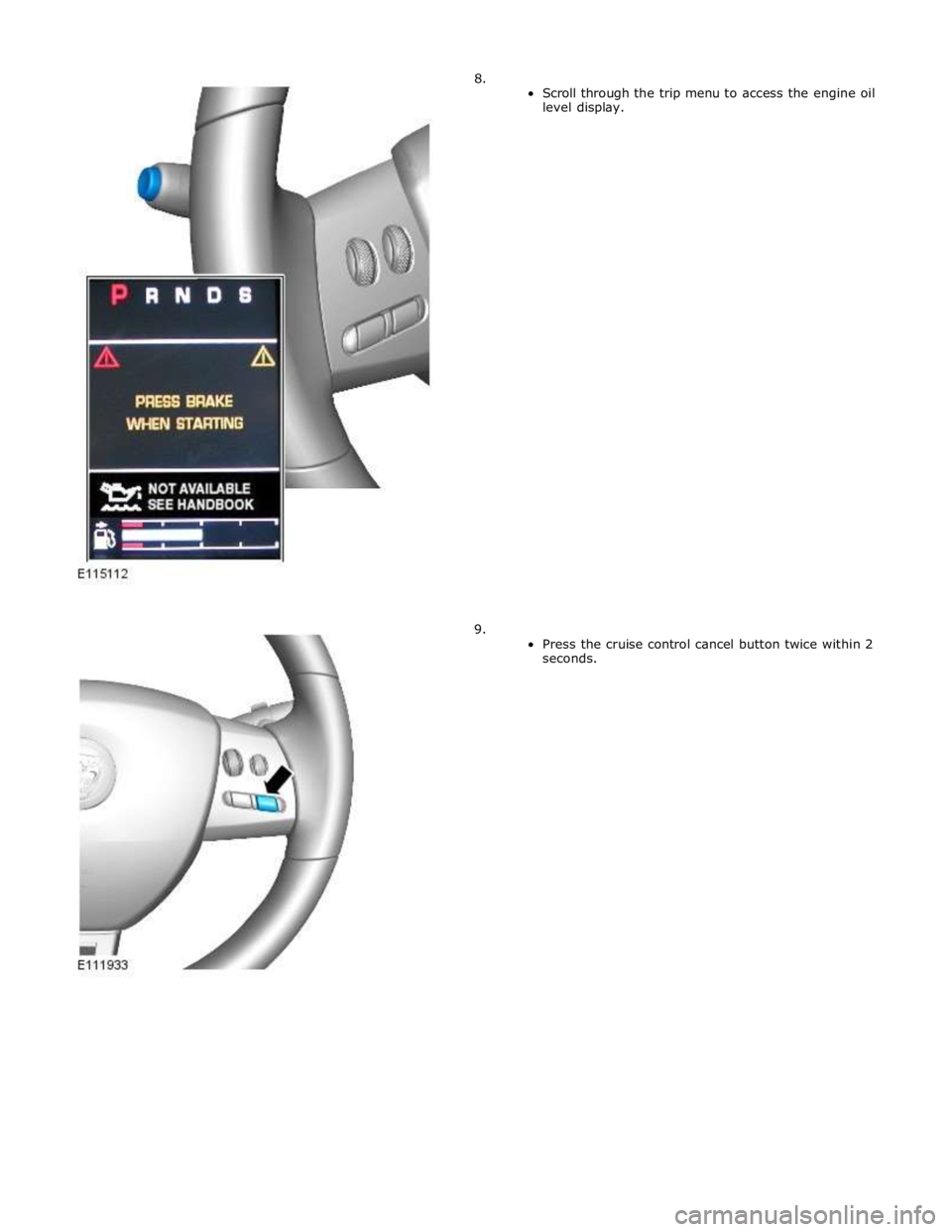

JAGUAR XFR 2010 1.G Workshop Manual Specifications). Clean any residual engine oil from the oil filler cap area. 4. 5. CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oi

Page 882 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 883 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 10. The message center display will revert to the normal display in the trip computer. Scroll through the trip menu to access the engine oil level display. Check that the oil level display shows

Page 884 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Interior Trim and Ornamentation, Removal and Installation).

Page 885 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Engine - V8 S/C 5.0L Petrol - Fuel Pump Camshaft Timing Check General Procedures Special Tool(s) 303-1447 Timing Tool JLR-303-1621 Alignment Tool, Fuel Pump Camshaft Timing Check Publ

Page 886 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 6. CAUTIONS: Only rotate the crankshaft clockwise. Make sure that the crankshaft is fully locked. Install the Special Tool(s): 303-1447 7. Using a suitable marker, mar

Page 887 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 10. Remove the Special Tool(s): 303-1447 11. If required, carefully adjust the crankshaft position to allow correct in

Page 888 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 13. 14. 15. 16. Remove the Special Tool(s): JLR-303-1621 NOTE: Install a new seal. Torque: 12 Nm
