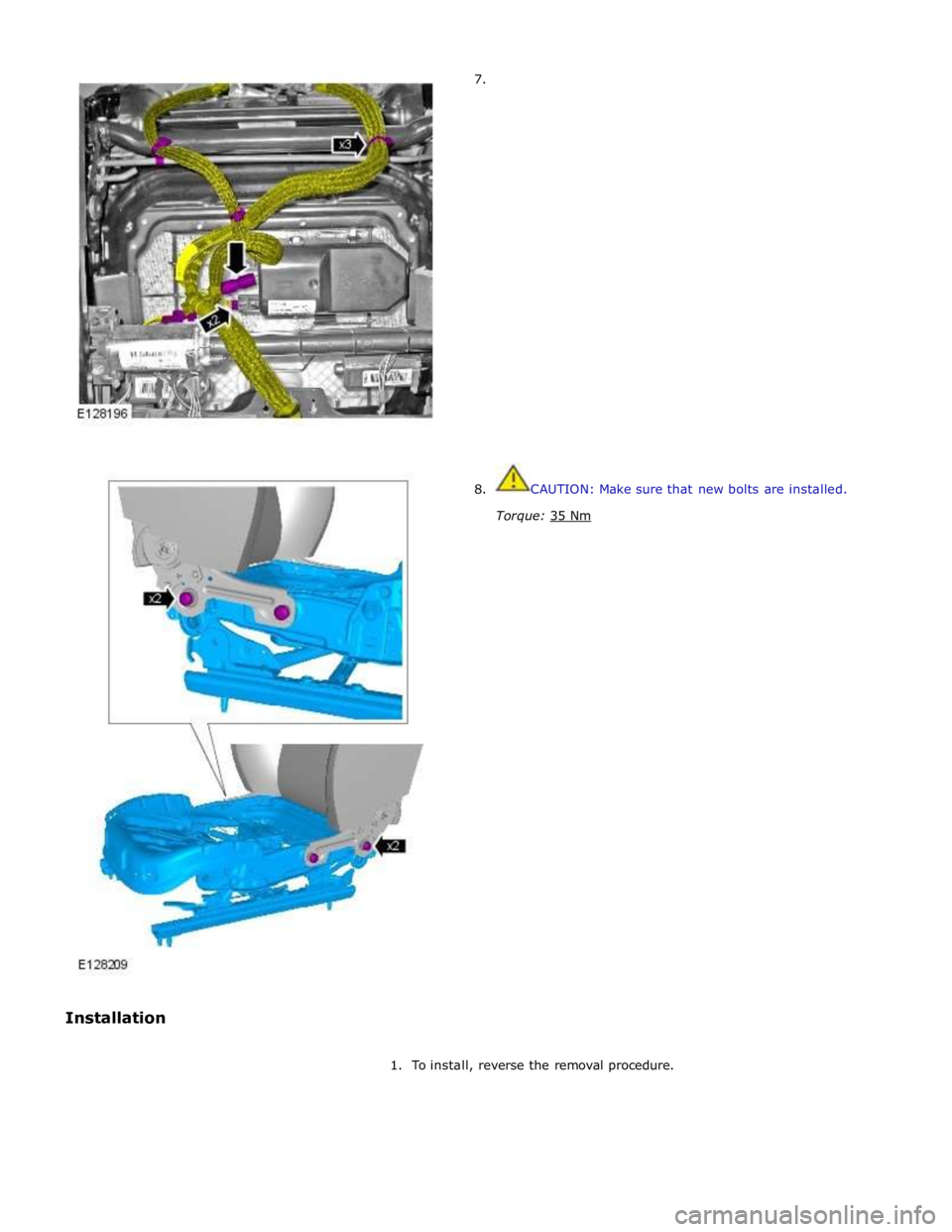

JAGUAR XFR 2010 1.G Workshop Manual

Page 2378 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 1. To install, reverse the removal procedure.

Page 2379 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Removal and Installation). 2. Release both the rear seat back rest catches. 3. Fold down the rear seat backrest. www.JagDocs.com

Page 2380 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 4. Remove the rear seat head restraint(s). Lower both rear seats. 5. NOTES: The procedure must be carried out on both sides of the seat. Le

Page 2381 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 6. CAUTION: Make sure no damage is caused to the vehicle trim when removing the rear seat. With assistance, remove the rear seat backrest. Both rear seat backrests need to be in an upright posit

Page 2382 of 3039

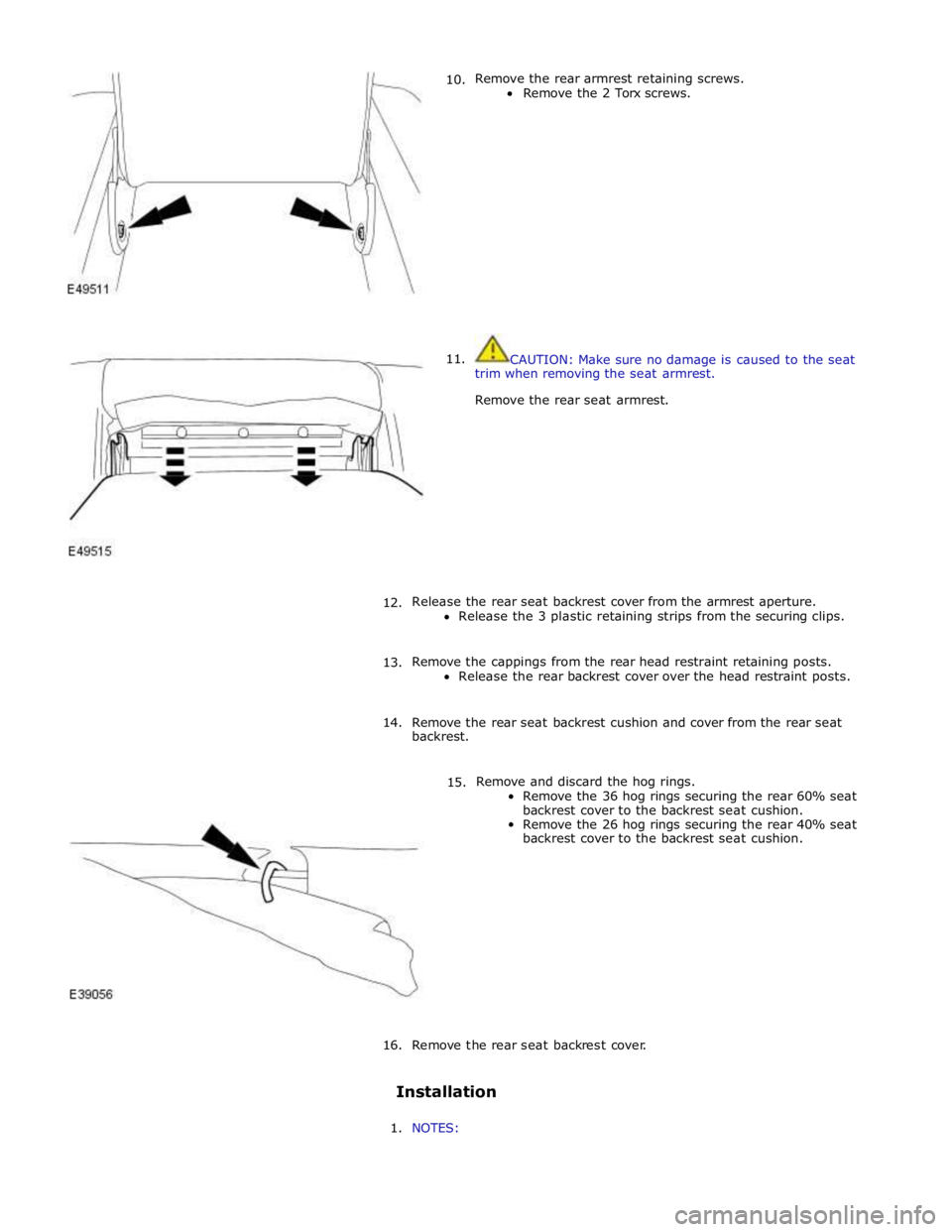

JAGUAR XFR 2010 1.G Workshop Manual 10. 11. Remove the rear armrest retaining screws. Remove the 2 Torx screws. CAUTION: Make sure no damage is caused to the seat trim when removing the seat arm

Page 2383 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Make sure that new hog rings are installed. Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated. To install, reverse

Page 2384 of 3039

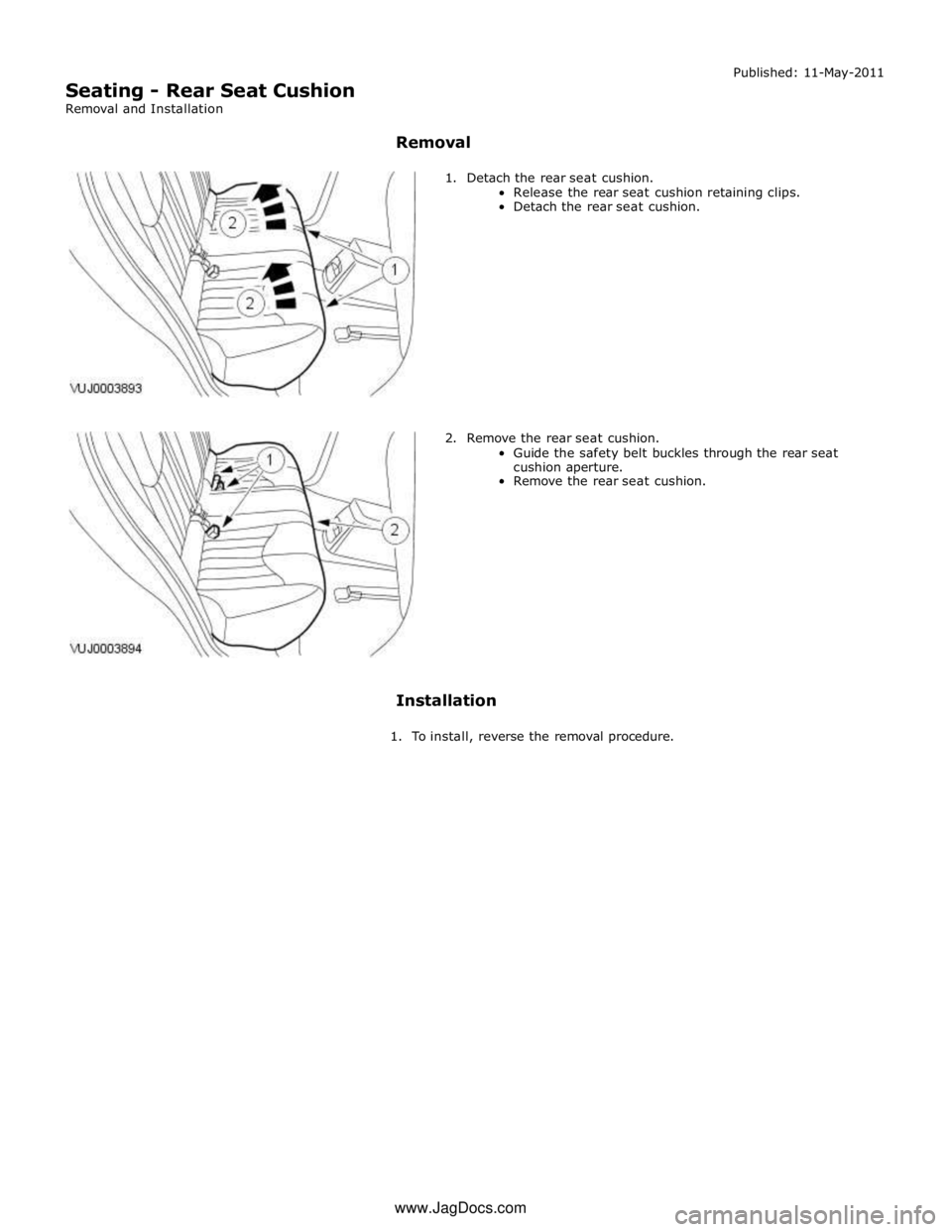

JAGUAR XFR 2010 1.G Workshop Manual www.JagDocs.com
