Page 2697 of 3039
Boron Boron steel MS3+Z Mild steel with zinc 5754NG+ALPT+ALS 5000 Series aluminium alloy MS4+Z Mild steel with zinc 5182+ALL 5000 Series aluminium alloy BH180+Z Bake hardened steel - 180 MPa with zinc 6111 T4+ALL 6000 Series aluminium alloy BH220+Z Bake hardened steel - 220 MPa with zinc
Page 2698 of 3039

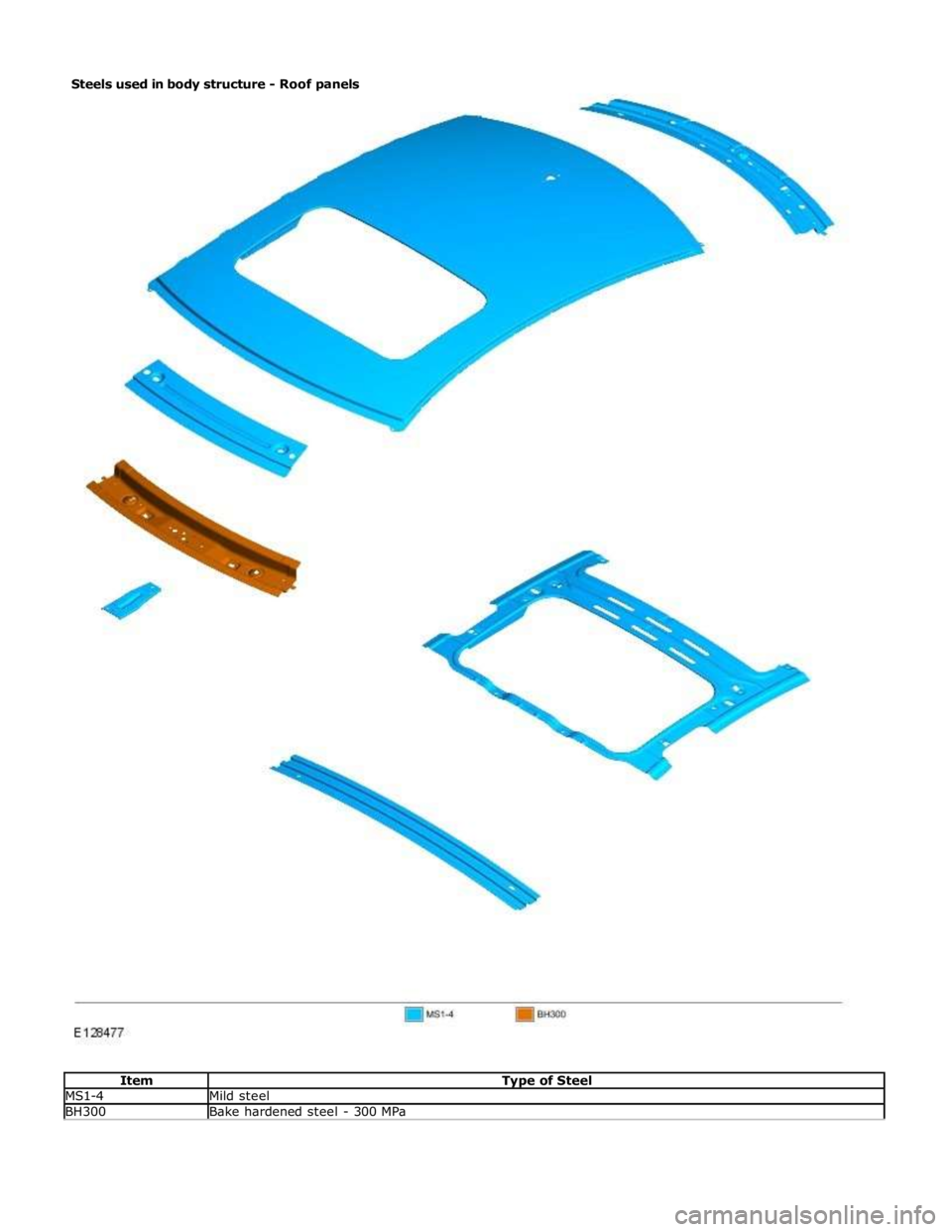

Steels used in body structure - Roof panels
Item Type of Steel MS1-4 Mild steel BH300 Bake hardened steel - 300 MPa
Page 2699 of 3039

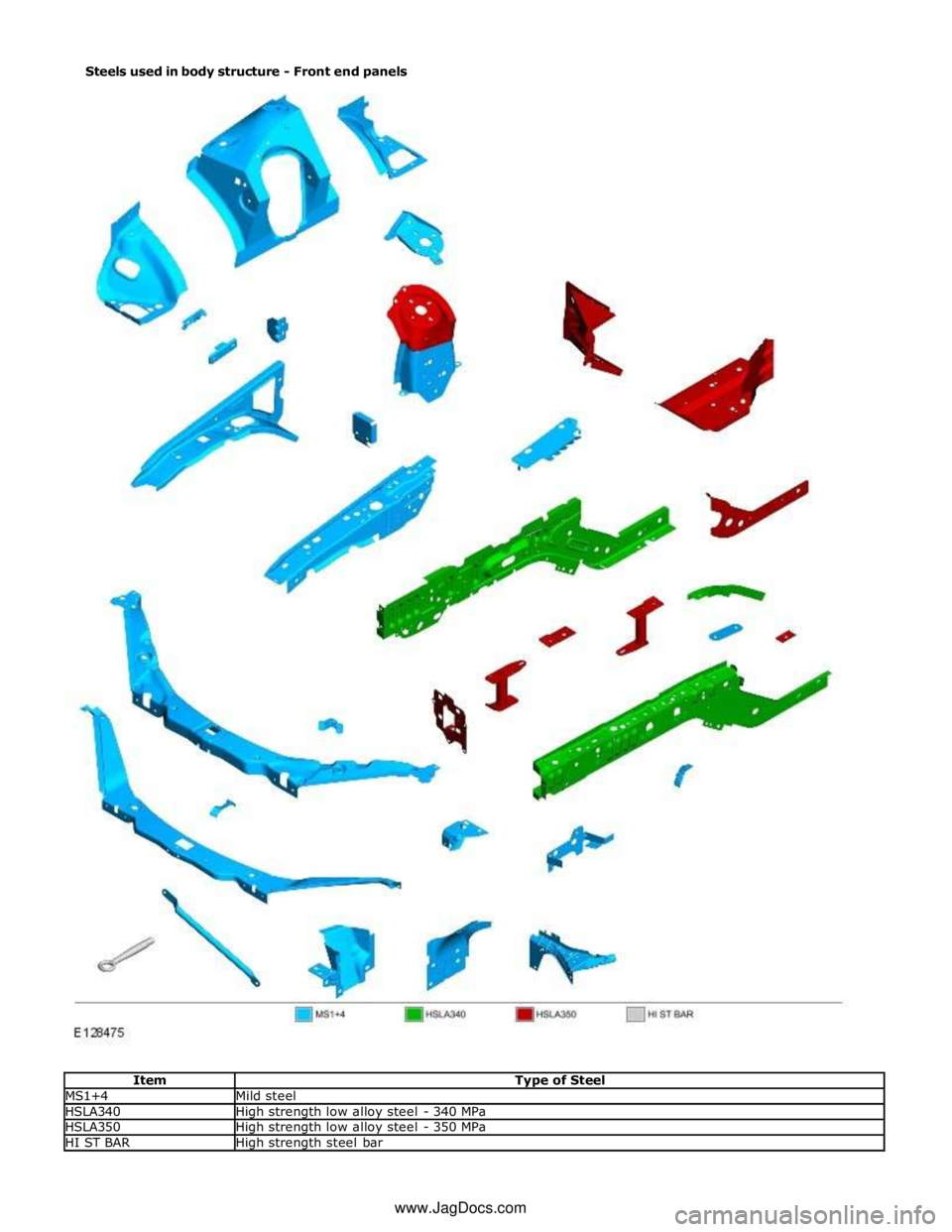

Steels used in body structure - Front end panels
Item Type of Steel MS1+4 Mild steel HSLA340 High strength low alloy steel - 340 MPa HSLA350 High strength low alloy steel - 350 MPa HI ST BAR High strength steel bar www.JagDocs.com
Page 2700 of 3039

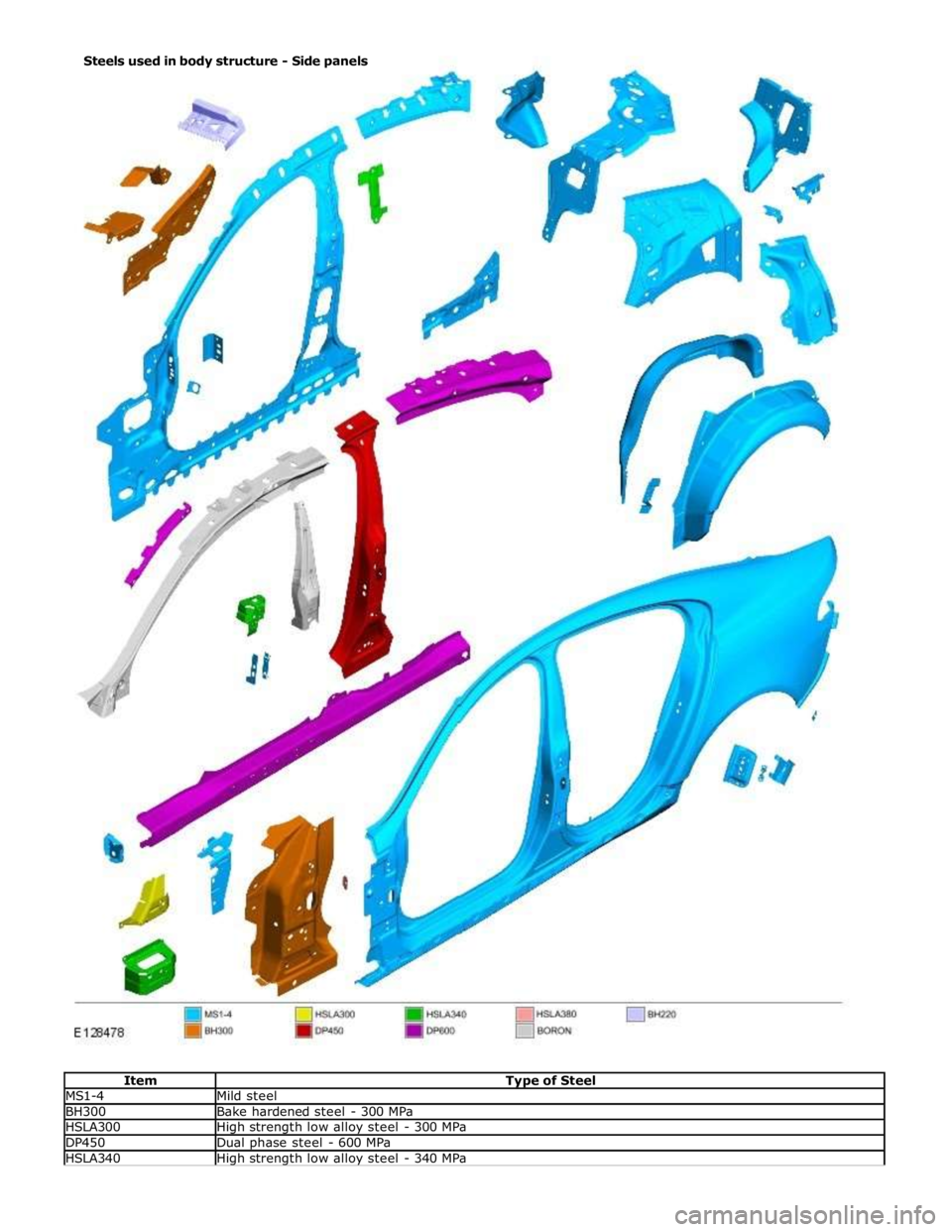

Steels used in body structure - Side panels
Item Type of Steel MS1-4 Mild steel BH300 Bake hardened steel - 300 MPa HSLA300 High strength low alloy steel - 300 MPa DP450 Dual phase steel - 600 MPa HSLA340 High strength low alloy steel - 340 MPa
Page 2701 of 3039

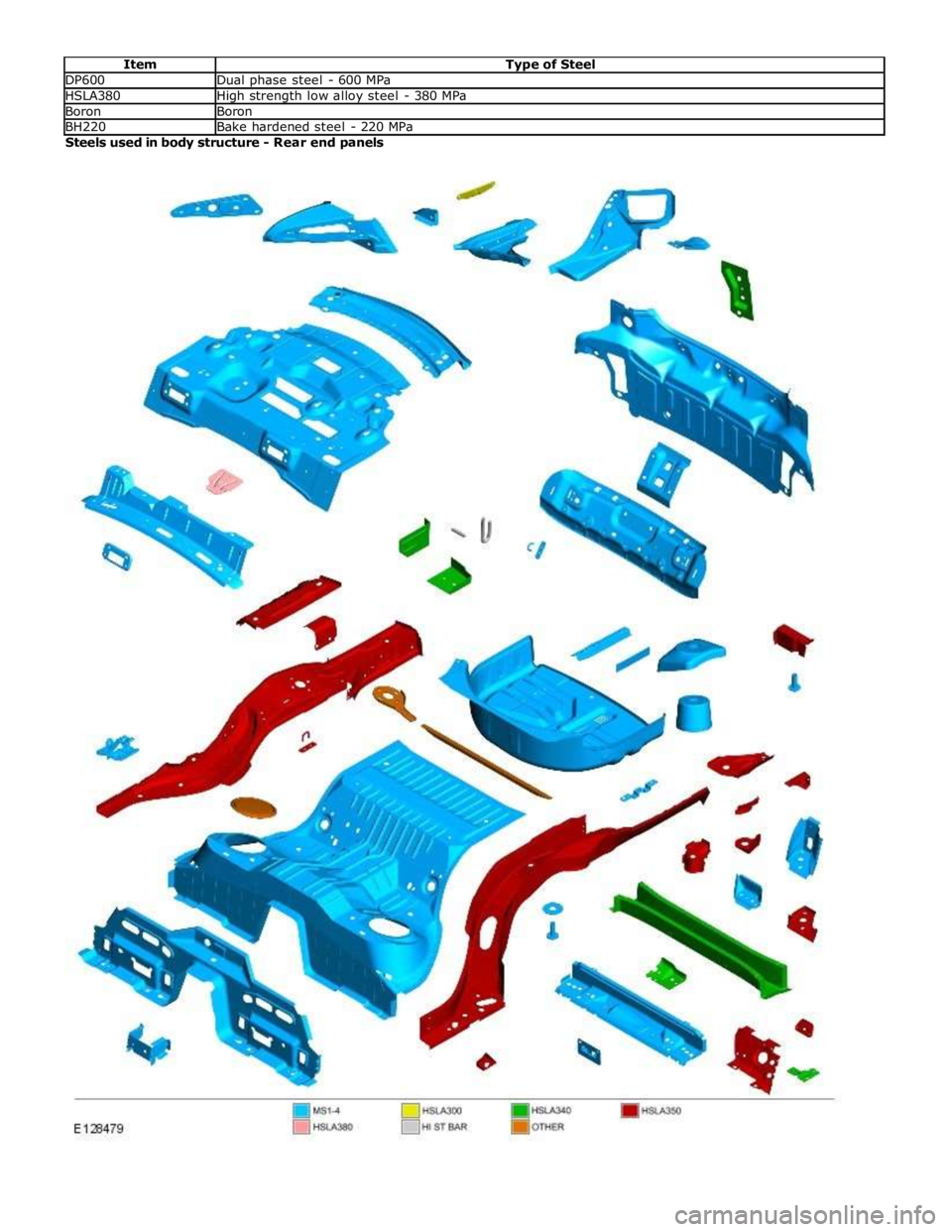

DP600 Dual phase steel - 600 MPa HSLA380 High strength low alloy steel - 380 MPa Boron Boron BH220 Bake hardened steel - 220 MPa Steels used in body structure - Rear end panels
Page 2702 of 3039
MS1-4 Mild steel HSLA380 High strength low alloy steel - 380 MPa HSLA300 High strength low alloy steel - 300 MPa HI ST BAR High strength steel bar HSLA340 High strength low alloy steel - 340 MPa Other Other HSLA350 High strength low alloy steel - 350 MPa
Page 2703 of 3039

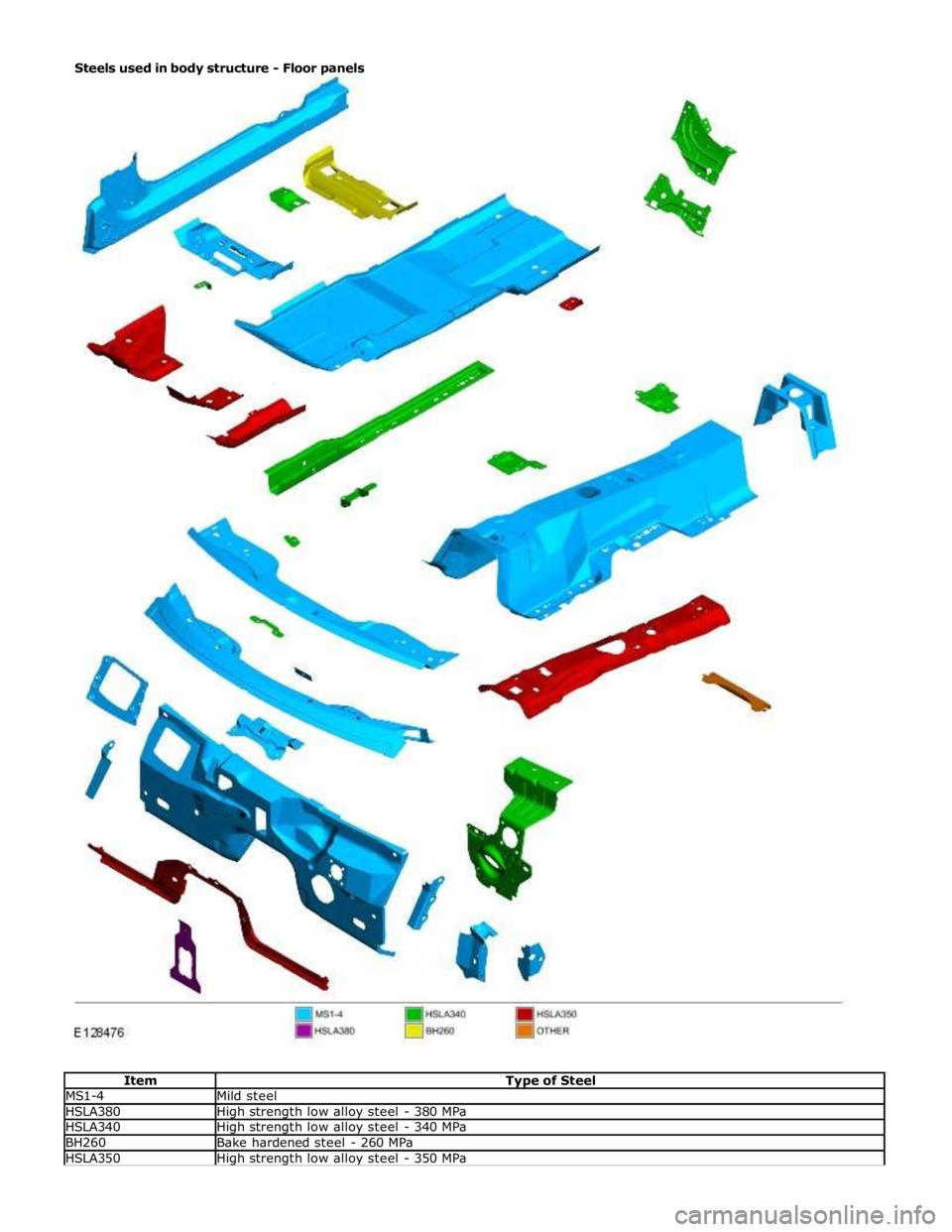

Steels used in body structure - Floor panels
Item Type of Steel MS1-4 Mild steel HSLA380 High strength low alloy steel - 380 MPa HSLA340 High strength low alloy steel - 340 MPa BH260 Bake hardened steel - 260 MPa HSLA350 High strength low alloy steel - 350 MPa
Page 2704 of 3039

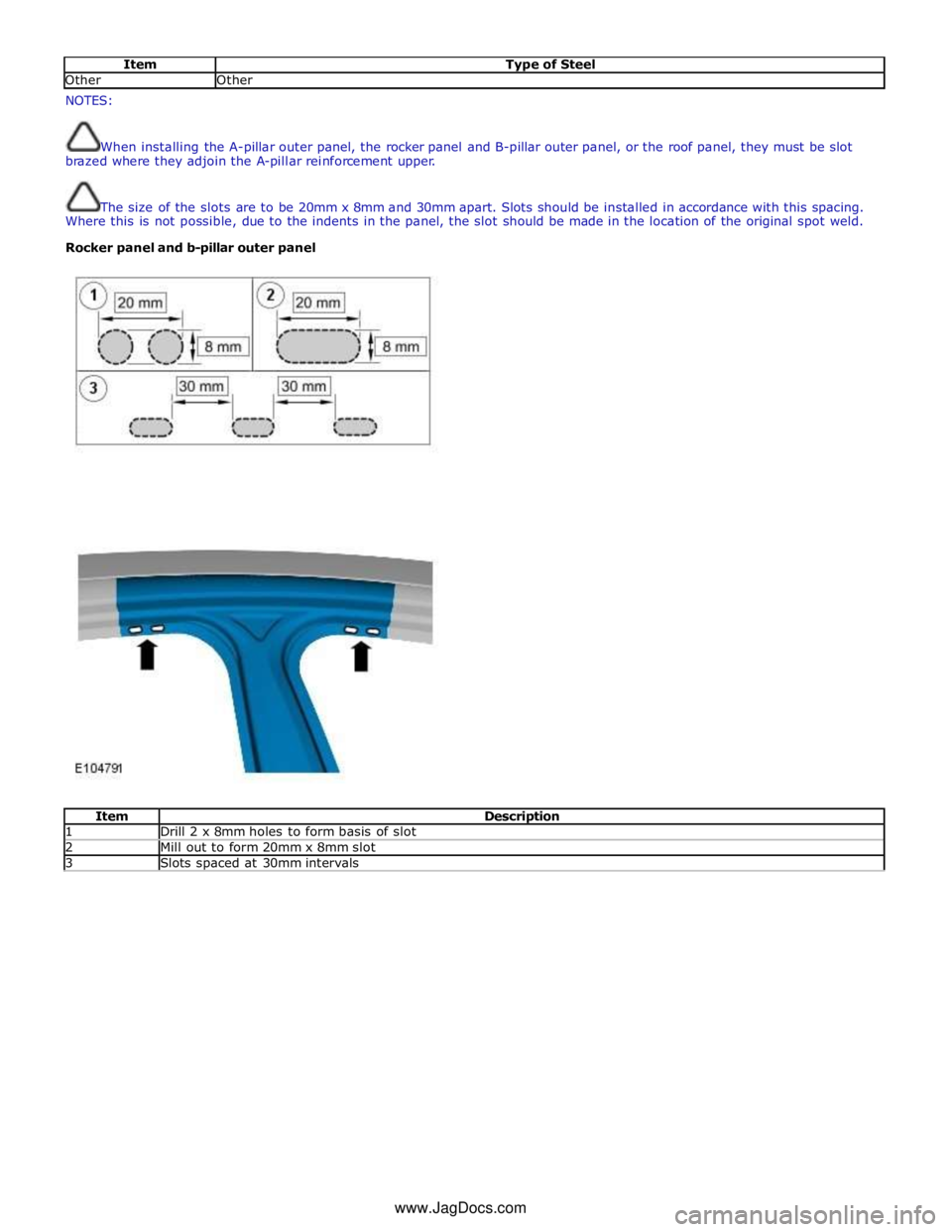

Item Type of Steel Other Other NOTES:
When installing the A-pillar outer panel, the rocker panel and B-pillar outer panel, or the roof panel, they must be slot
brazed where they adjoin the A-pillar reinforcement upper.
The size of the slots are to be 20mm x 8mm and 30mm apart. Slots should be installed in accordance with this spacing.
Where this is not possible, due to the indents in the panel, the slot should be made in the location of the original spot weld.
Rocker panel and b-pillar outer panel
Item Description 1 Drill 2 x 8mm holes to form basis of slot 2 Mill out to form 20mm x 8mm slot 3 Slots spaced at 30mm intervals www.JagDocs.com
