JAGUAR XFR 2010 1.G Workshop Manual

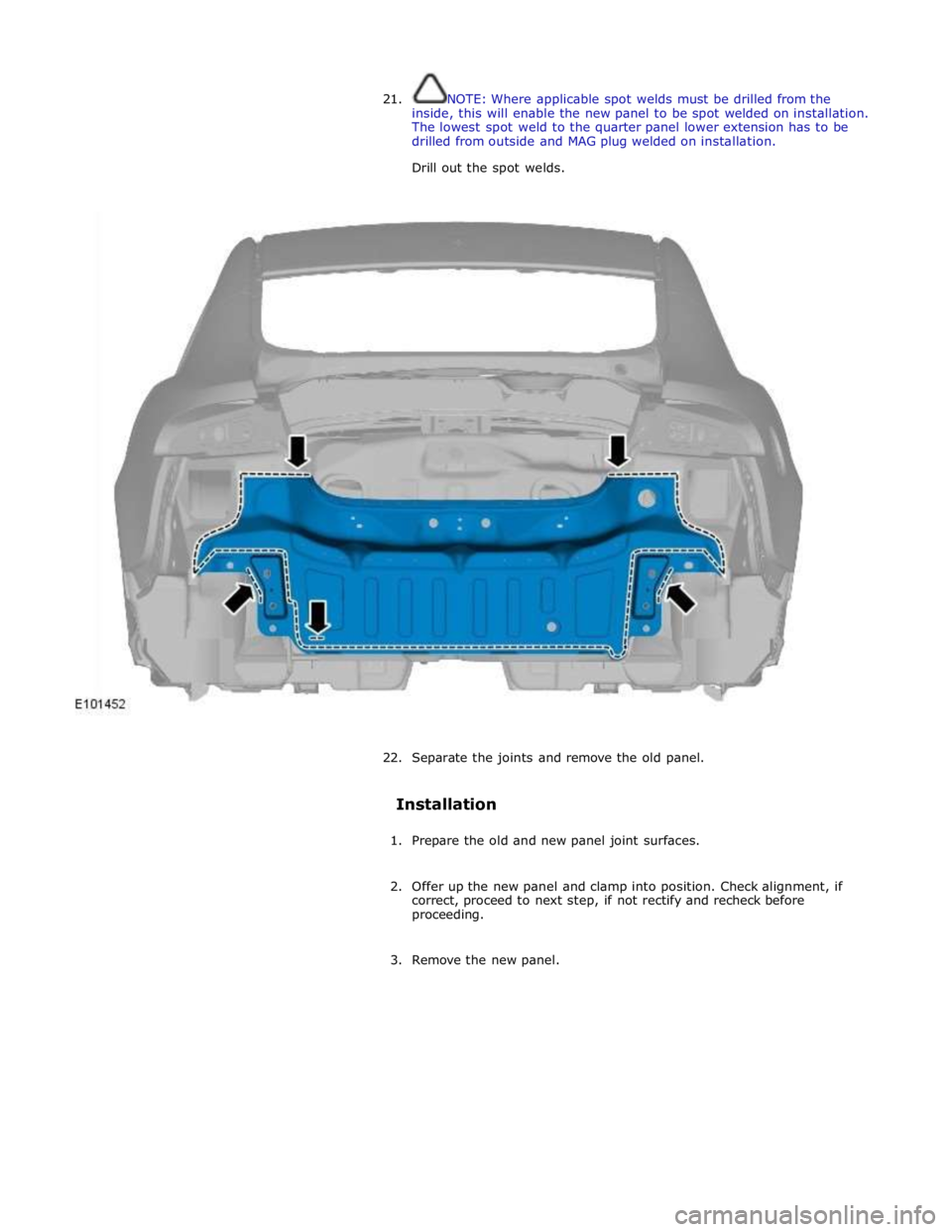

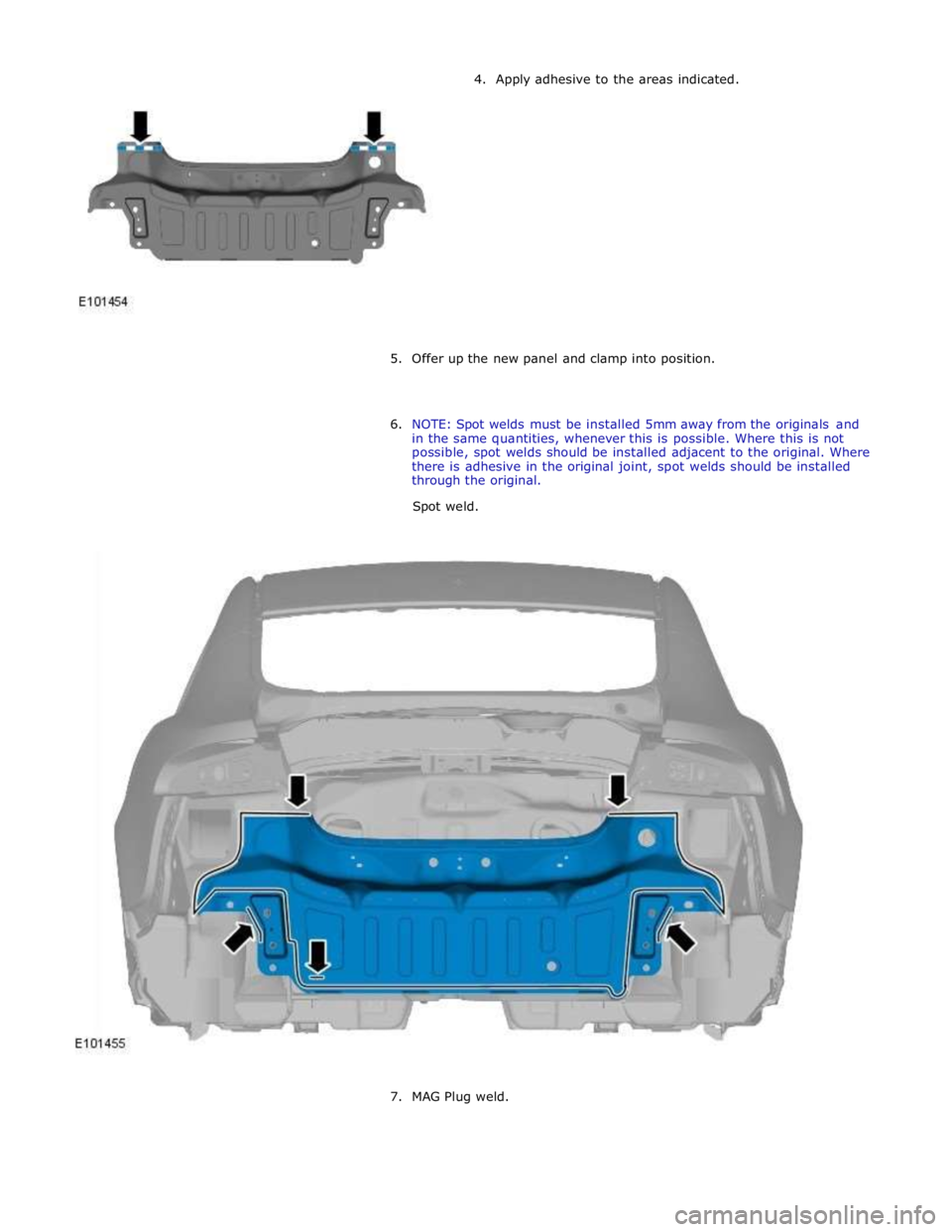

21. NOTE: Where applicable spot welds must be drilled from the
inside, this will enable the new panel to be spot welded on installation.
The lowest spot weld to the quarter panel lower extension h

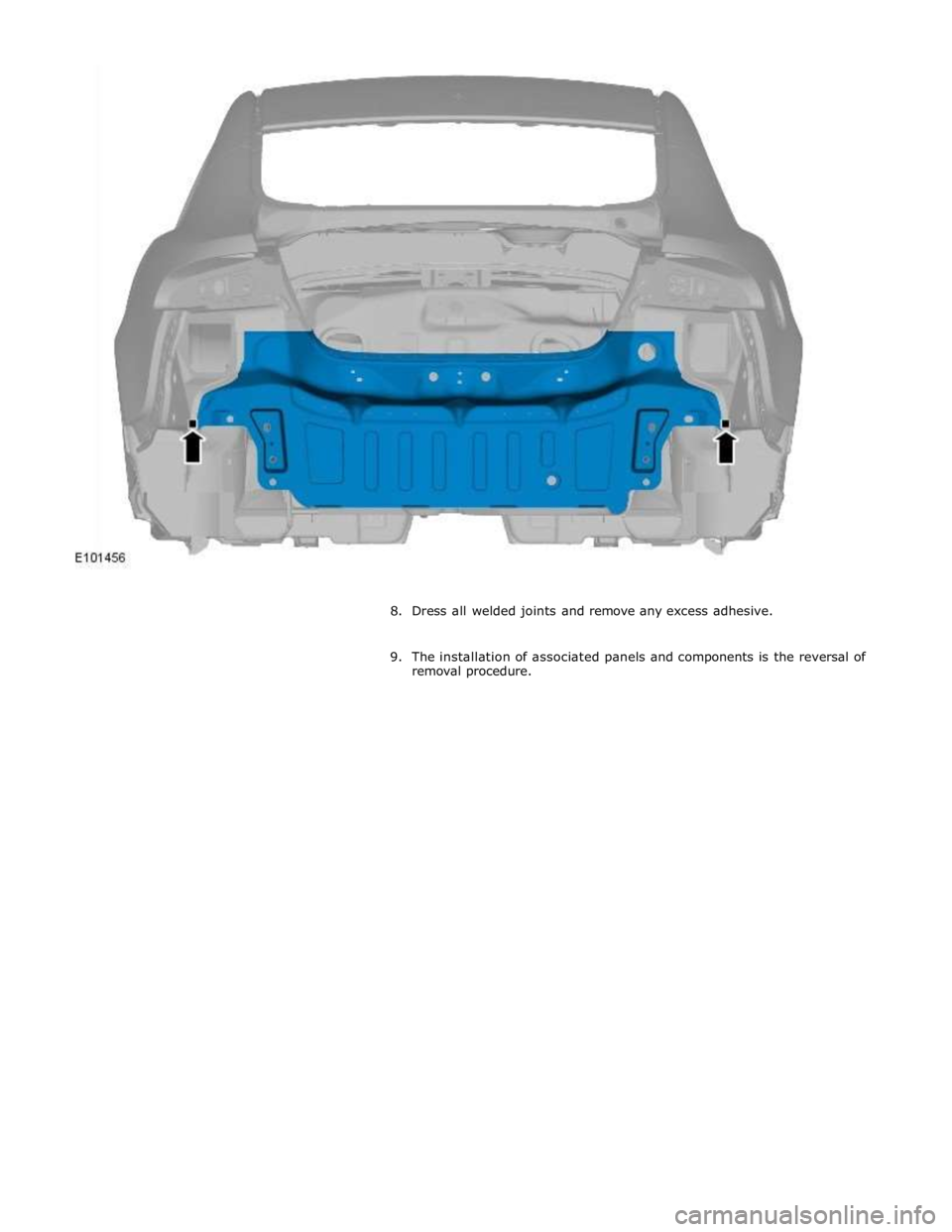

Page 2946 of 3039

Page 2947 of 3039

Page 2948 of 3039

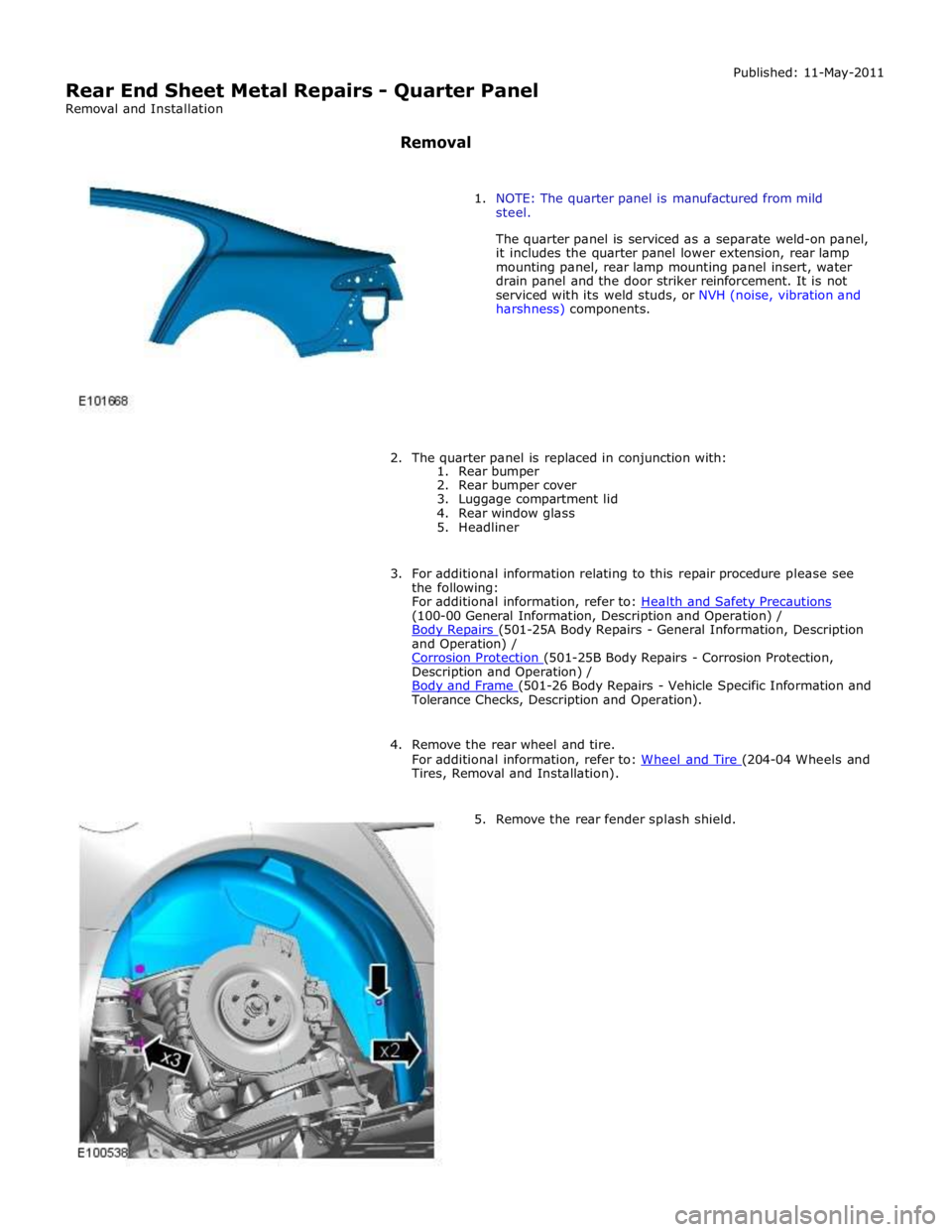

JAGUAR XFR 2010 1.G Workshop Manual (100-00 General Information, Description and Operation) /
Body Repairs (501-25A Body Repairs - General Information, Description and Operation) /
Corrosion Protection (501-25B Body Repairs - Corrosio

Page 2949 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Removal and Installation).

7. Remove the battery.
For additional information, refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

8. Disconnect the generator elec

Removal and Installation).

7. Remove the battery.
For additional information, refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

8. Disconnect the generator electrical connectors.

9. If the left-hand rear quarter panel is to be repaired, remove the
loadspace left-hand trim panel.
For additional information, refer to: Loadspace Trim Panel LH (501-05 Interior Trim and Ornamentation, Removal and Installation).

10. If the right-hand rear quarter panel is to be repaired, remove the
auxiliary junction box (AJB).
For additional information, refer to: Auxiliary Junction Box (AJB) (418-00 Module Communications Network, Removal and Installation).

11. Remove any electrical components in the local area of repair to prevent
damage.

12. Remove the rear muffler.
For additional information, refer to: Rear Muffler (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation) /
Rear Muffler (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation) /
Rear Muffler (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

13. Remove the exhaust muffler and tailpipe heatshield.

14. Remove the rear scuff plate trim panel.
For additional information, refer to: Rear Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

15. Remove the loadspace trim panel.
For additional information, refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

16. Remove the forced air extraction grille.

17. Release and lay aside the back panel and loadspace wiring harness.

18. Remove the luggage compartment lid weatherstrip.

19. Remove the rear bumper cover side retainer.

20. Remove the roof moulding.

21. Remove the headliner.
For additional information, refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).

22. Remove the side air curtain module.
www.JagDocs.com

Page 2950 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Supplemental Restraint System, Removal and Installation).

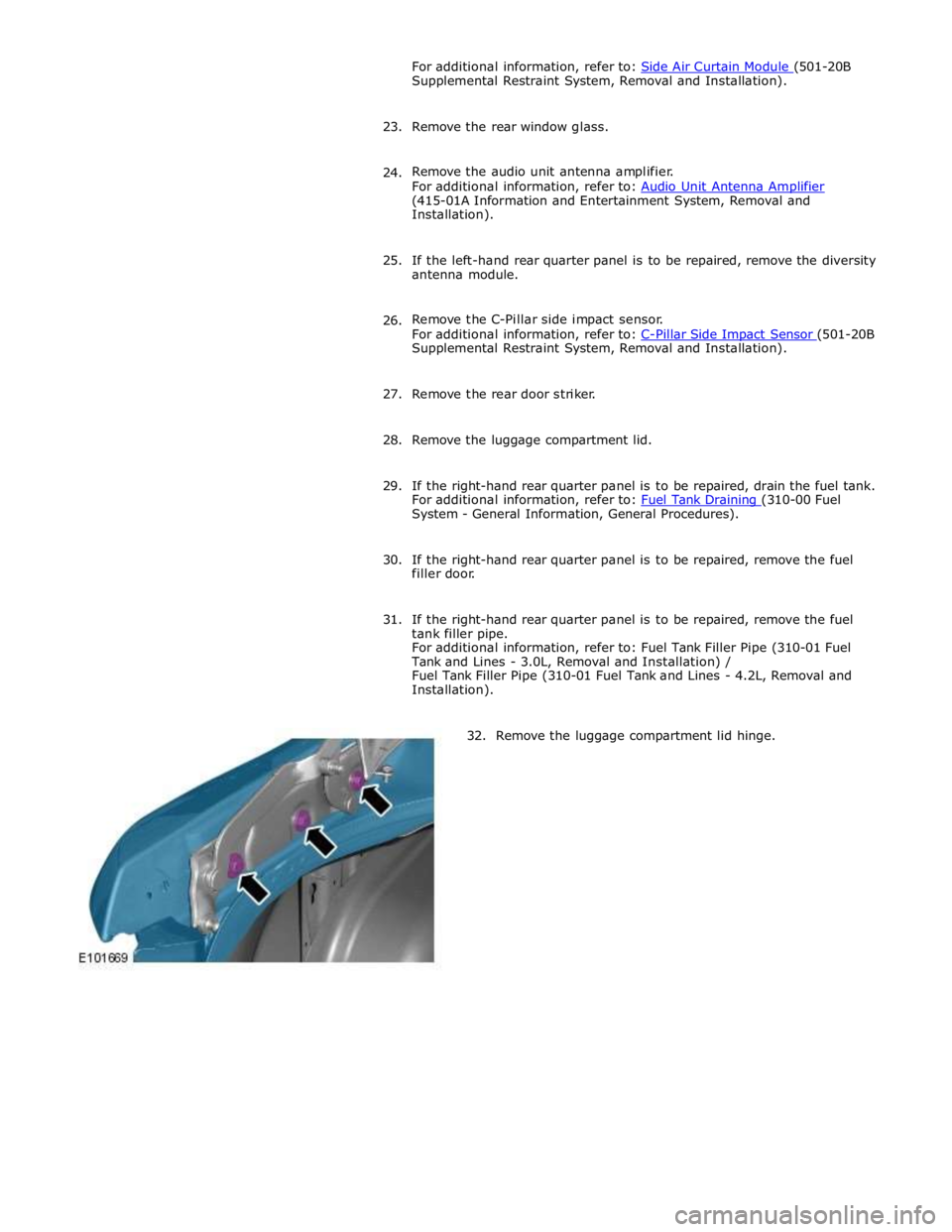

23. Remove the rear window glass.

24. Remove the audio unit antenna amplifier.
For additional information, refer to: Audio Unit Antenna

Page 2951 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
33.

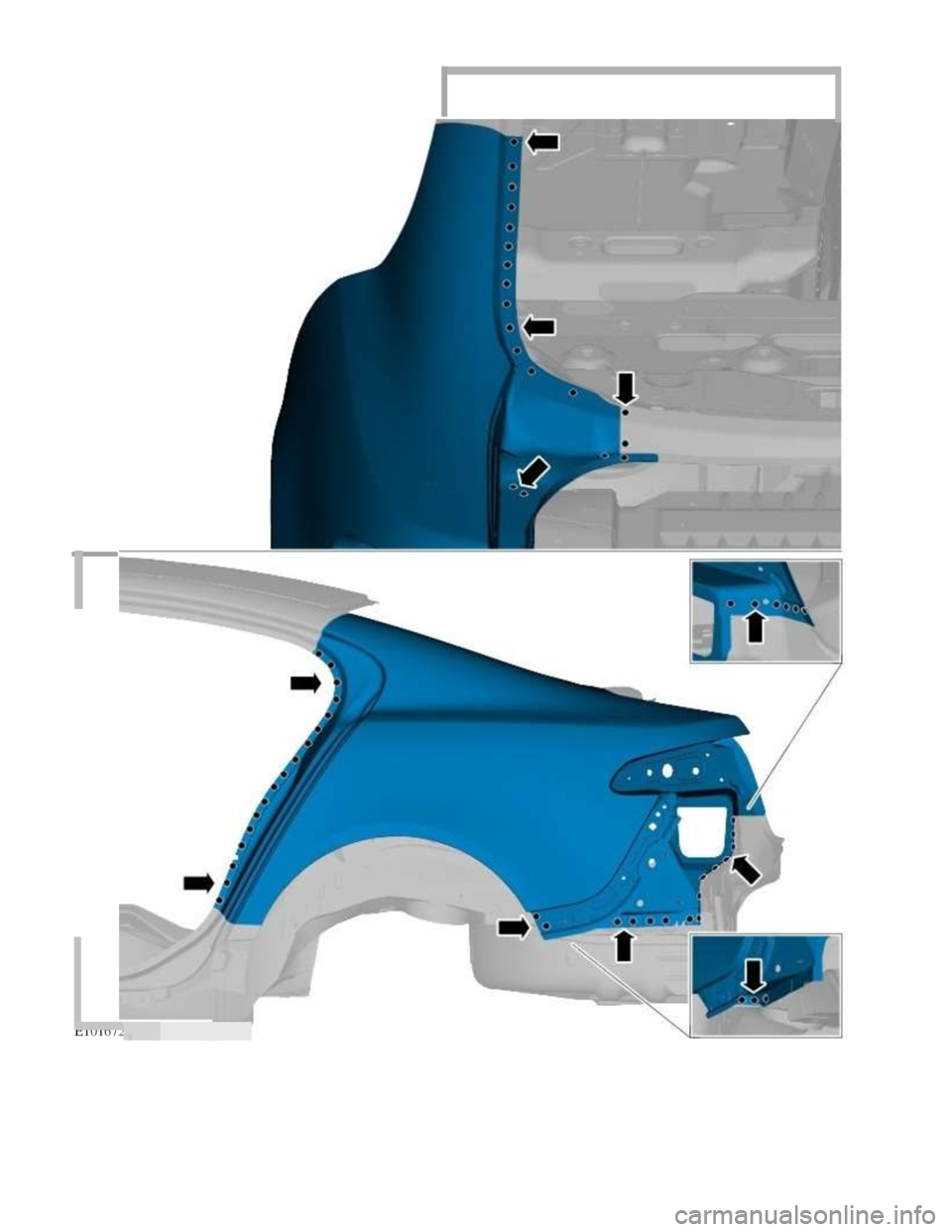

34. NOTE: The upper butt joint must be performed below
the 4 metal thickness parts of the door and rear window
apertures, (to enable spot welding back).

C

Page 2952 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

E101672 L- -
