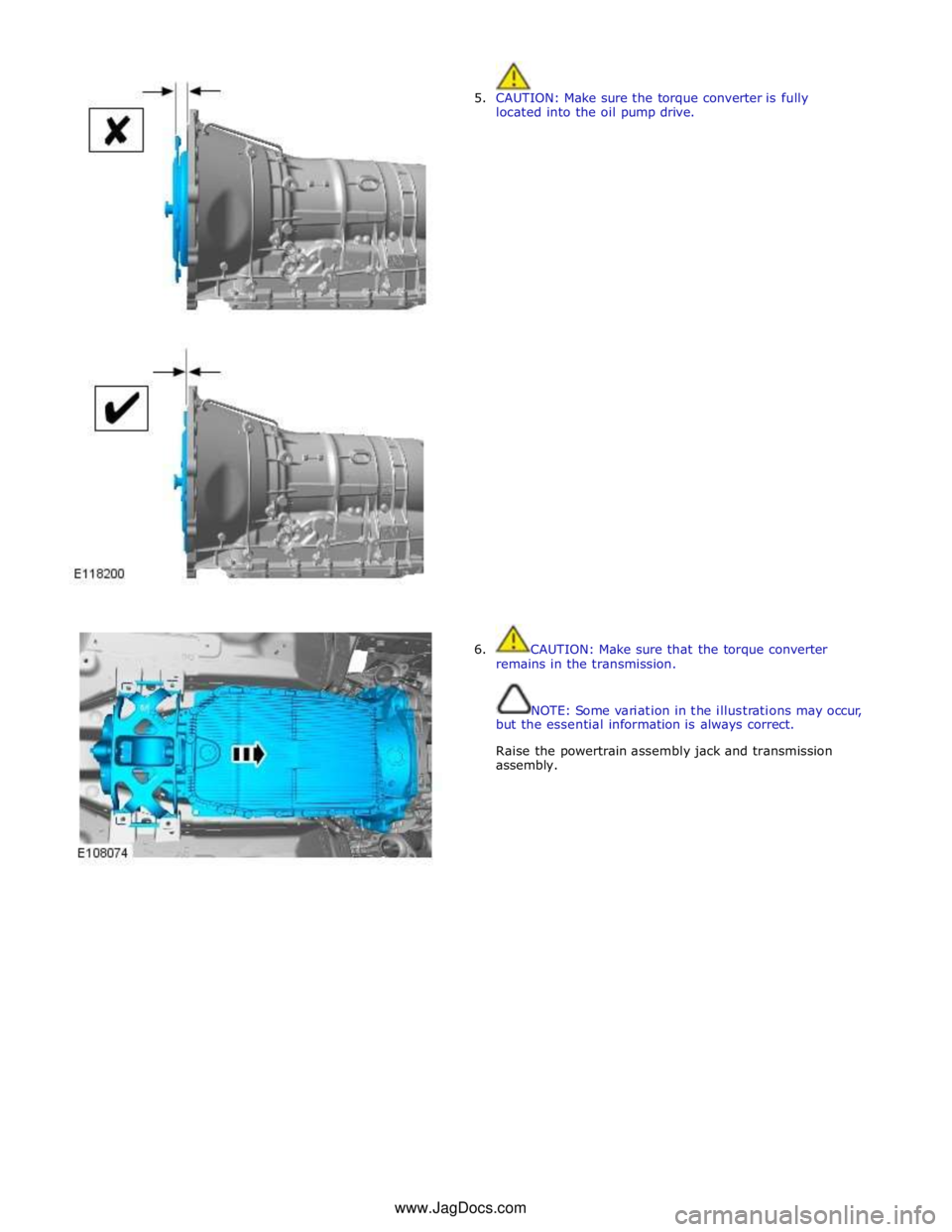

Page 1497 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 5. CAUTION: Make sure the torque converter is fully located into the oil pump drive. 6. CAUTION: Make sure that the torque conver

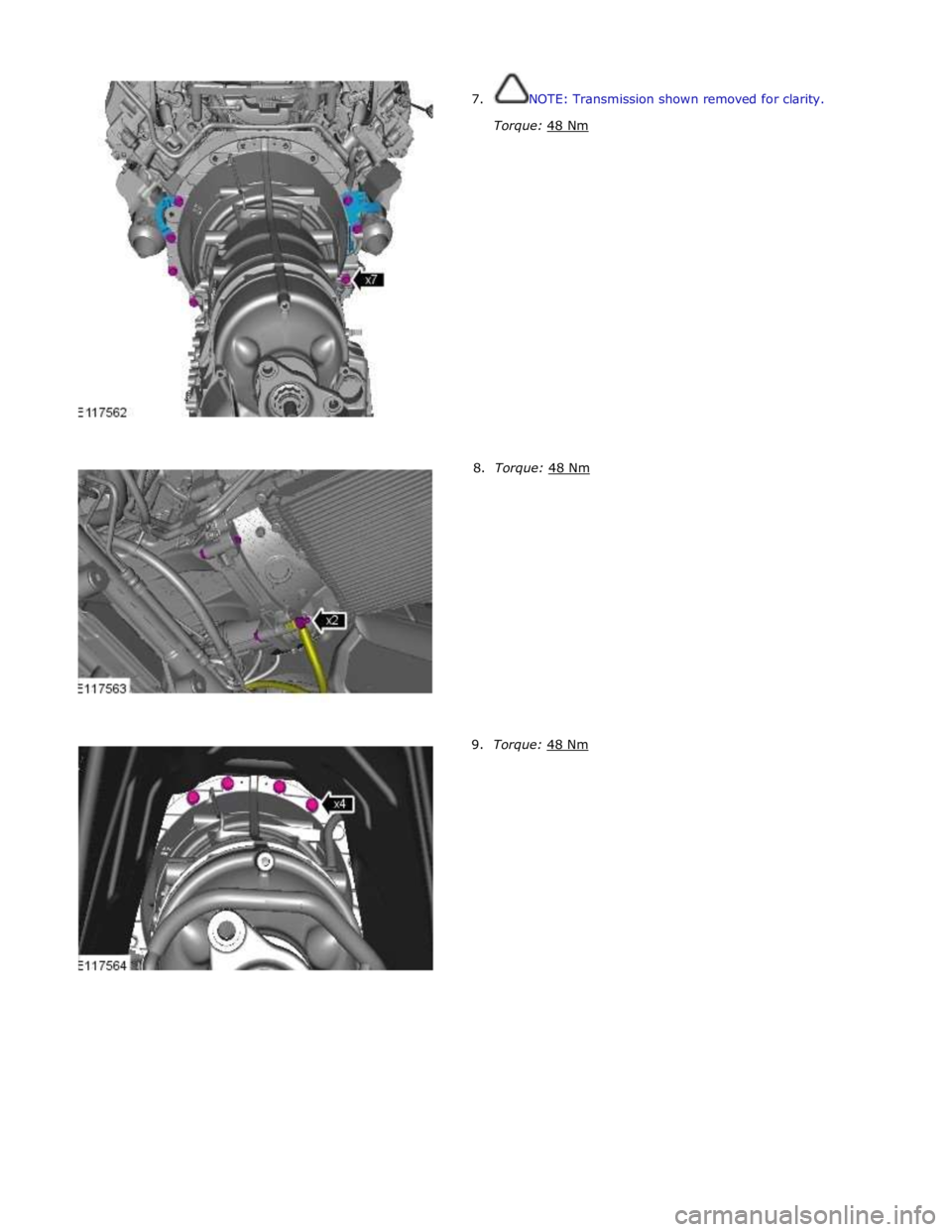

Page 1498 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 7. NOTE: Transmission shown removed for clarity. Torque: 48 Nm 8. Torque: 48 Nm 9. Torque: 48 Nm

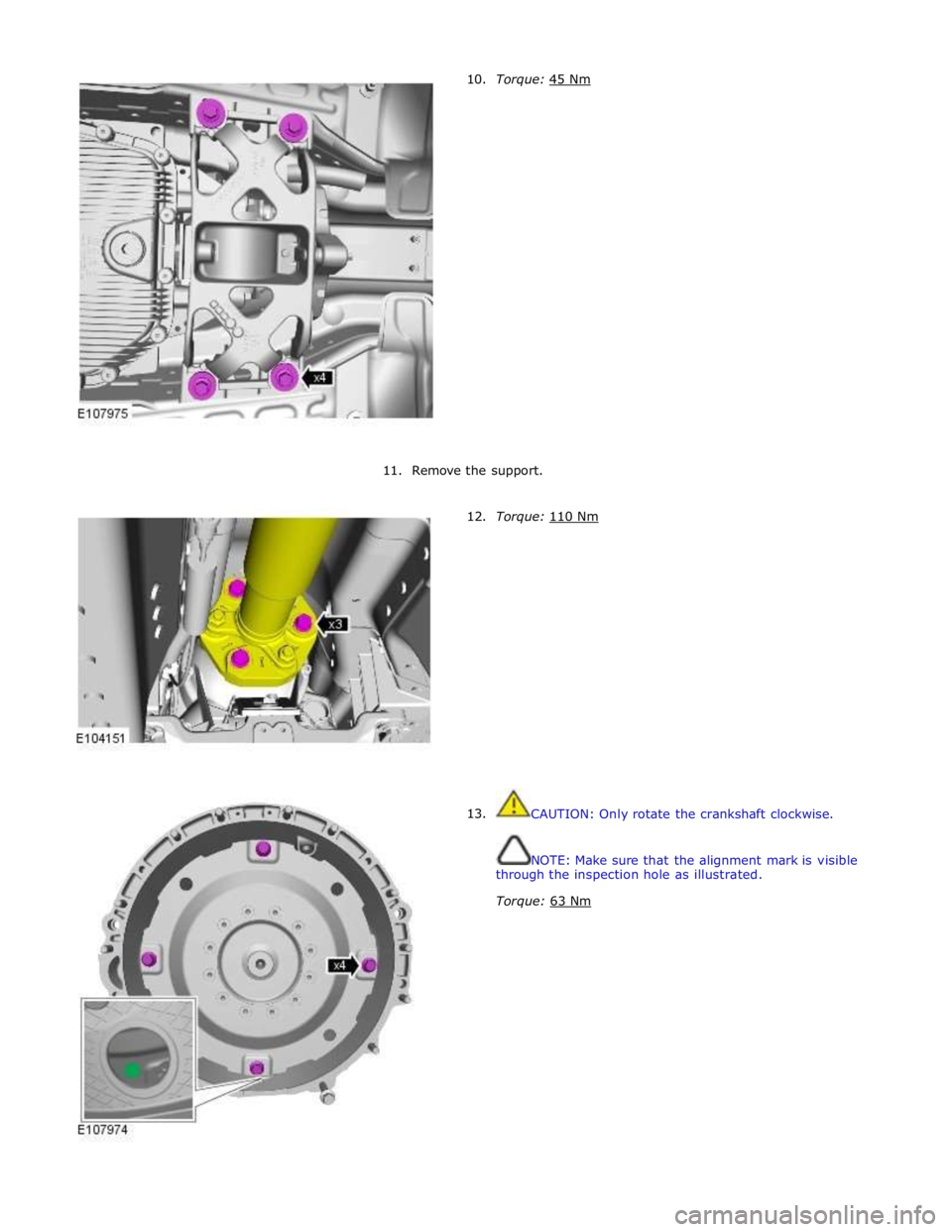

Page 1499 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 10. Torque: 45 Nm 11. Remove the support. 12. 13. Torque: 110 Nm CAUTION: Only rotate the crankshaft clockwise.

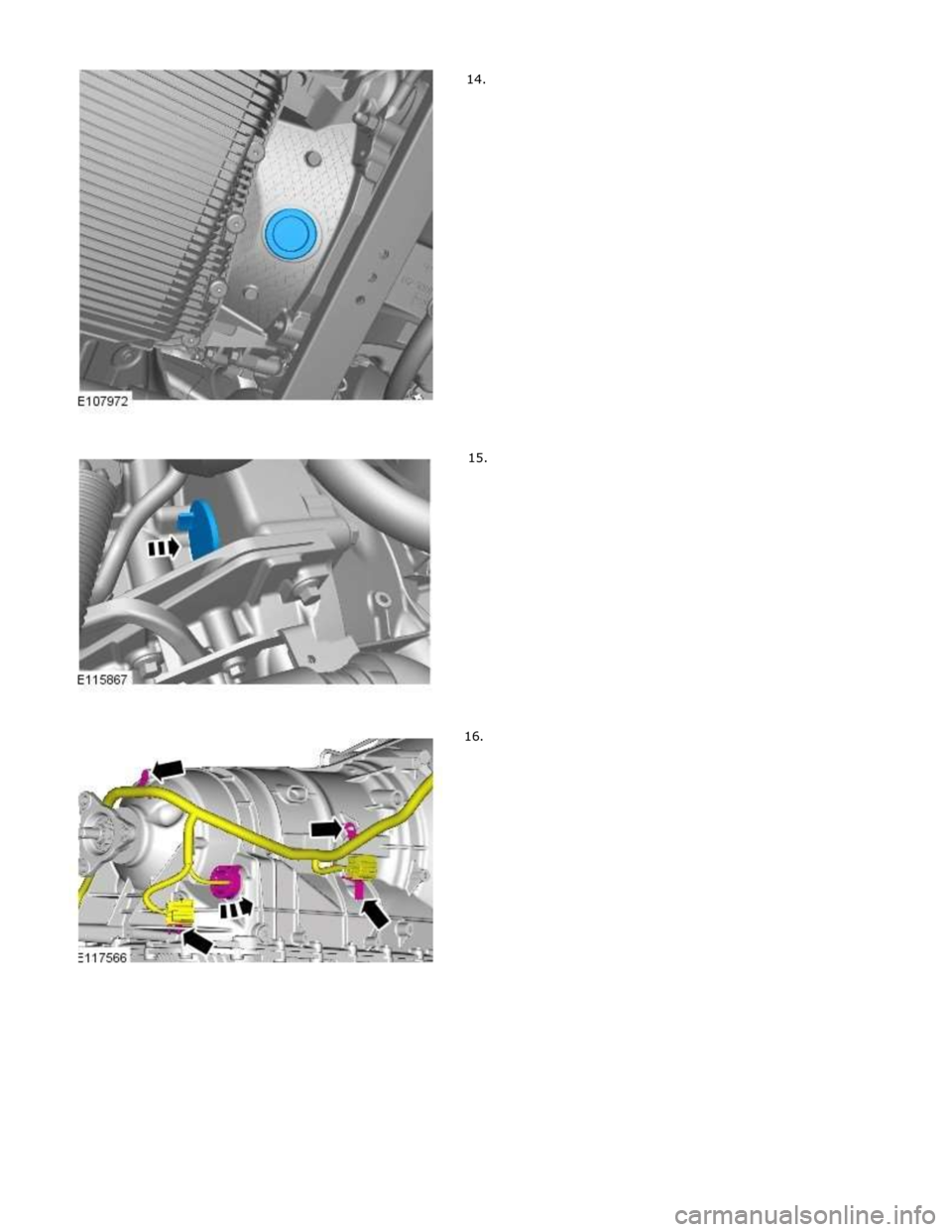

Page 1500 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

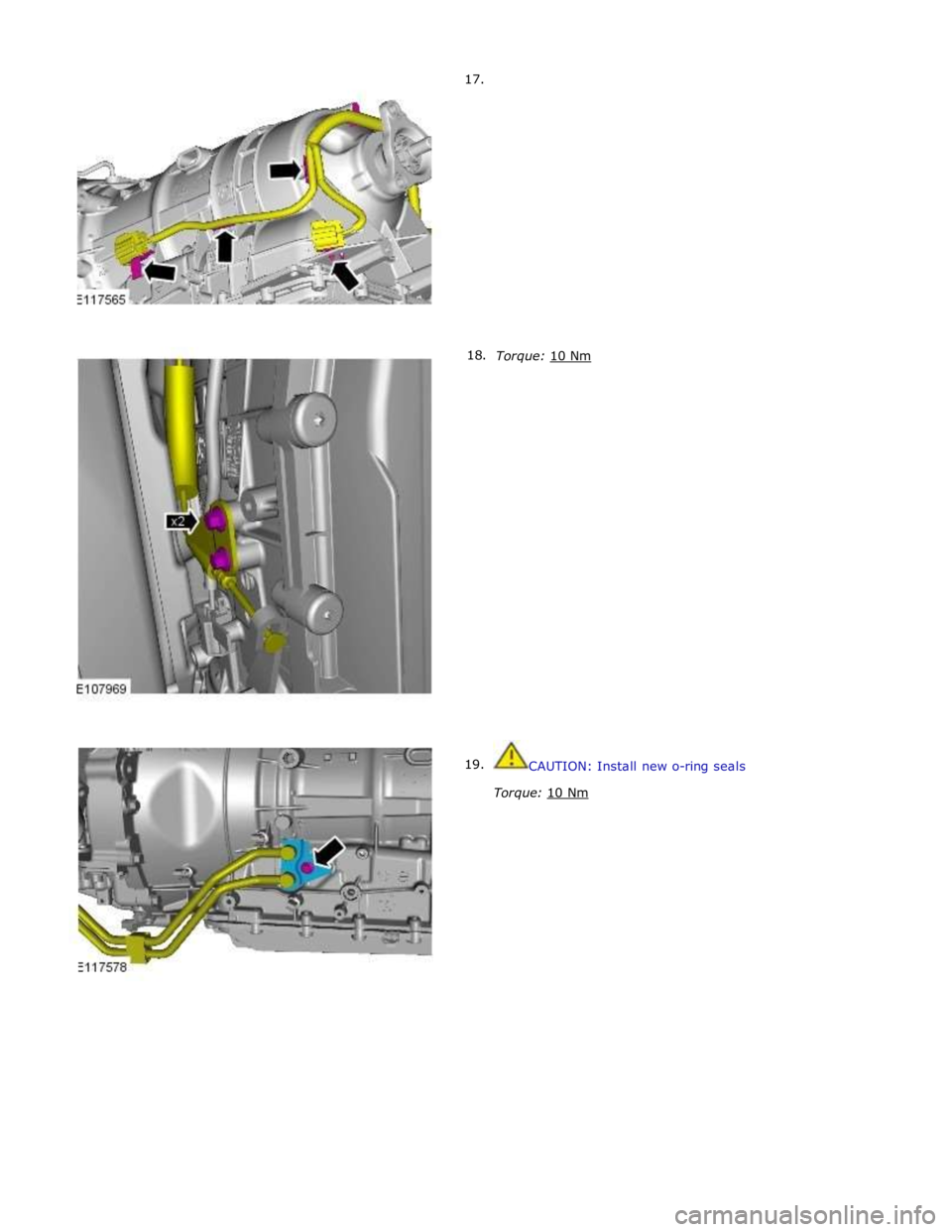

Page 1501 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 17. 18. 19. Torque: 10 Nm CAUTION: Install new o-ring seals Torque: 10 Nm

Page 1502 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 20. 21. 22. Refer to: Catalytic Converter LH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation). 23. Refer to: Catalytic Co

Page 1503 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 28. CAUTION: Observe the engine temperature warning light. If the warning light is displayed, switch off immediately and allow to cool. Failure to follow this instruction may cause damage to the v

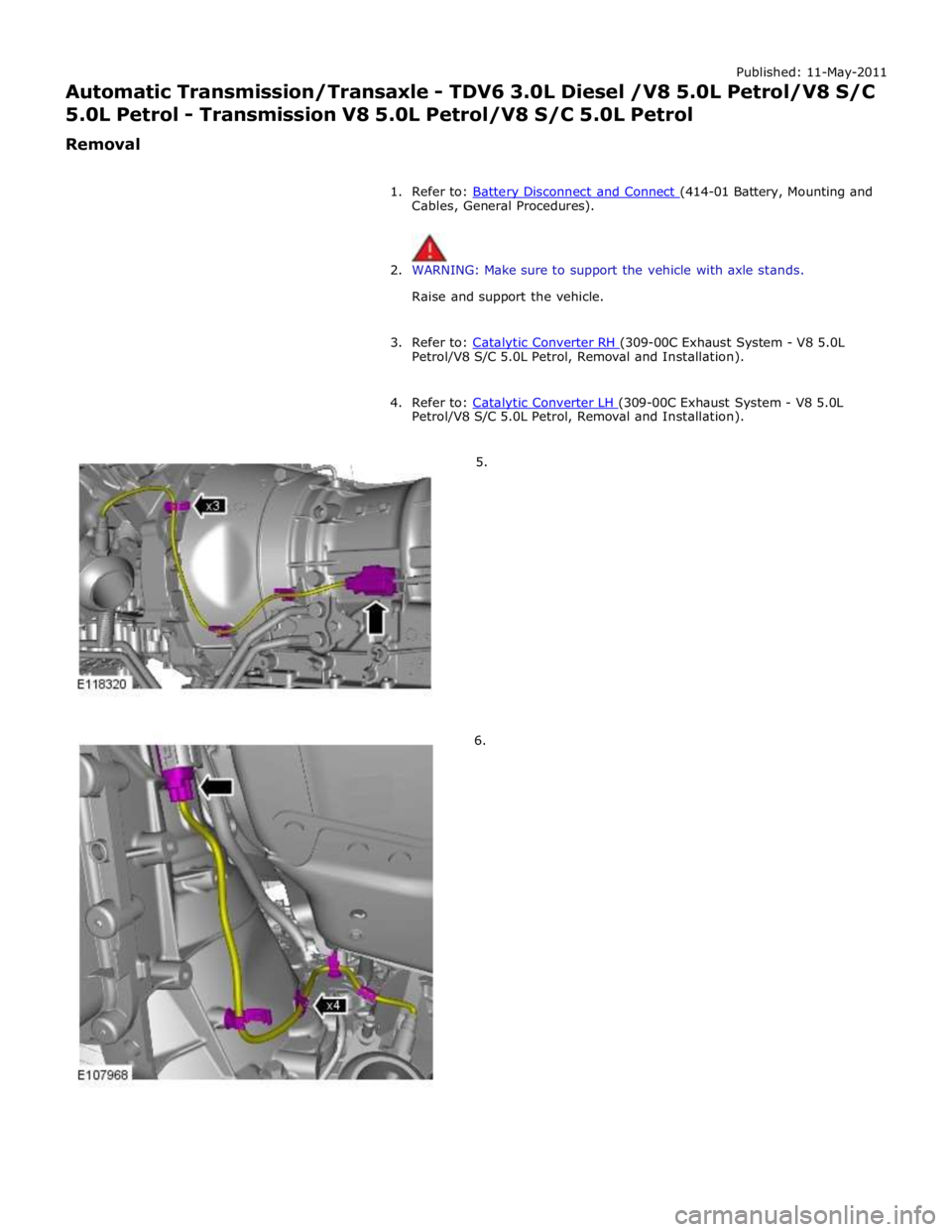

Page 1504 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Transmission V8 5.0L Petrol/V8 S/C 5.0L Petrol Removal 1. Refer to: Battery Disconn
