JAGUAR XFR 2010 1.G Workshop Manual

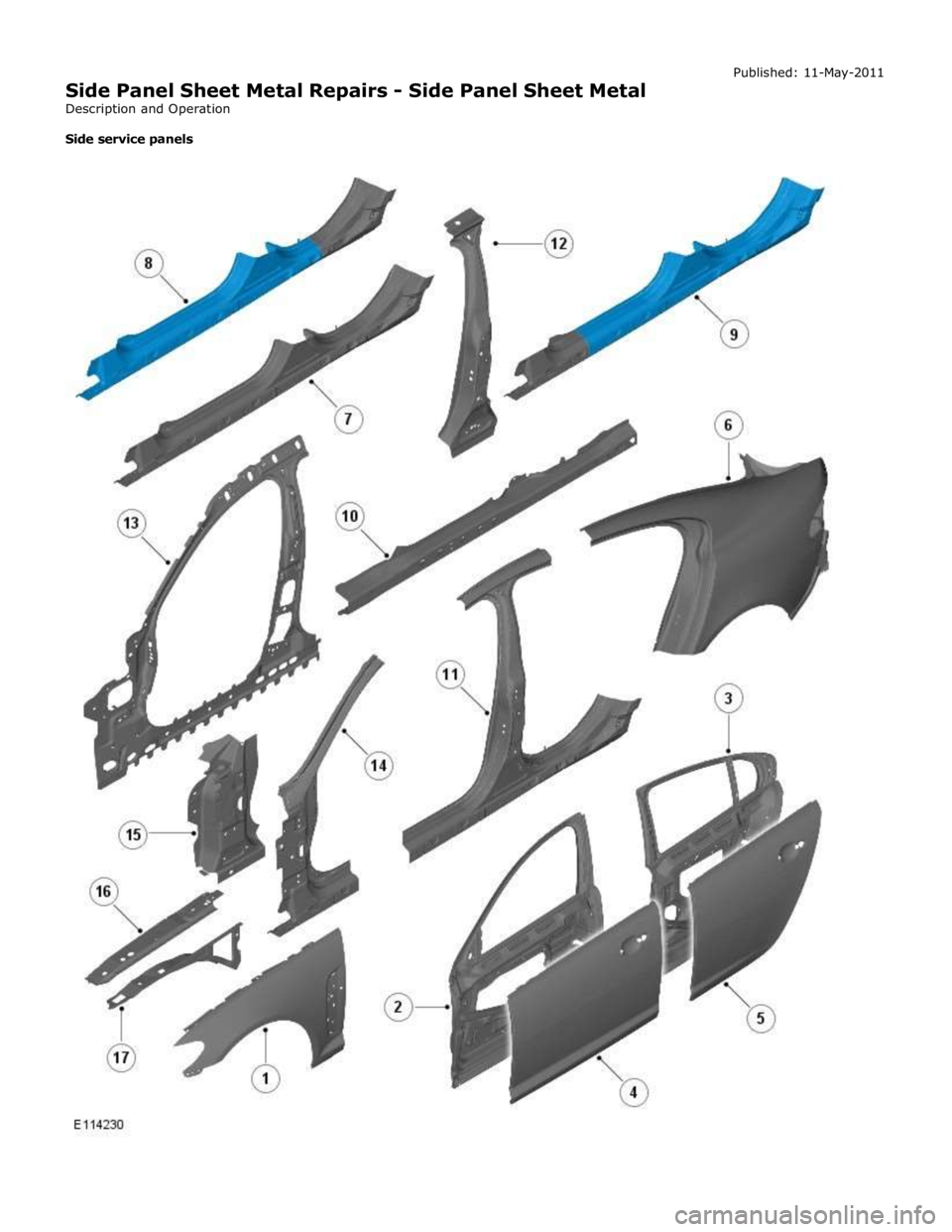

NOTE: The illustration may indicate either hand of the service panel, the opposite hand will be similar.

Item Description 1 Front fender 2 Front door 3 Rear door 4 Front door skin panel 5 Rear do

NOTE: The illustration may indicate either hand of the service panel, the opposite hand will be similar.

Item Description 1 Front fender 2 Front door 3 Rear door 4 Front door skin panel 5 Rear door skin panel 6 Quarter panel 7 Rocker panel 8 Rocker panel front section (cut from rocker panel) 9 Rocker panel rear section (cut from rocker panel) 10 Rocker panel inner reinforcement 11 Rocker panel and b-pillar outer panel 12 B-pillar reinforcement 13 B-pillar inner panel 14 A-pillar outer panel 15 A-pillar reinforcement 16 Fender apron panel 17 Fender apron panel closing panel Time schedules, side panels

The following information shows the total time taken to install single panels and complete assemblies. This time includes
removal of Mechanical, Electrical and Trim, (MET), items, plus paint times based on Metallic Clear Over Base Paint, (blends to
adjacent panels are not included).

The times shown were generated by Thatcham, (the Motor Insurance Repair Research Centre), and are to be used as a guide
only.

Single panel times
Panel Description Hours Front fender L/H 8.9 Front fender R/H 9.1 Front door 8.8 Rear door 8.7 Front door skin panel 11.1 Rear door skin panel 10.8 Quarter panel L/H 23.2 Quarter panel R/H 24.2 Rocker panel L/H 19.6 Rocker panel R/H 19.9 Rocker panel front section L/H 18.5 Rocker panel front section R/H 18.8 Rocker panel rear section L/H 16.7 Rocker panel rear section R/H 16.8 Windshield glass remove and install 2.2 Rear window glass remove and install 1.7 Headliner remove and install 3.3 Instrument panel console remove and install 5.3 Combination panel replacement times

The following panel combination times show the total time to remove/install body panels, MET items and paint times based on
Metallic Clear Over Base Paint process, (blends to adjacent panels are not included).

Combination panel times
Panel Description Hours Front fender Front door Total Time L/H 12.7
R/H 12.9 Combination panel times
Panel Description Hours Rear door Quarter panel Rear window glass remove and install Headliner remove and install Total Time L/H 29.0
R/H 30.00

Page 2844 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Front door Rear door Rocker panel and b-pillar outer panel B-pillar reinforcement B-pillar inner panel Headliner remove and install Total Time L/H 39.0
R/H 39.0 Combination panel times
Panel D

Page 2845 of 3039

JAGUAR XFR 2010 1.G Workshop Manual (100-00 General Information, Description and Operation) /
Body Repairs (501-25A Body Repairs - General Information, Description and Operation) /
Corrosion Protection (501-25B Body Repairs - Corrosio

Page 2846 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Ornamentation, Removal and Installation).

8. Remove the windshield glass.
For additional information, refer to: Windshield Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

Page 2847 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
21.

22. NOTE: If a new fender apron panel closing panel is to
be fitted the section will not be required.

Drill out the spot welds and cut a section from the f

Page 2848 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 23.
24. Using the new panel for reference and allowing for an
overlap, cut the old panel at the point indicated, where the
lower butt joint is to be made.
