Page 1489 of 3039

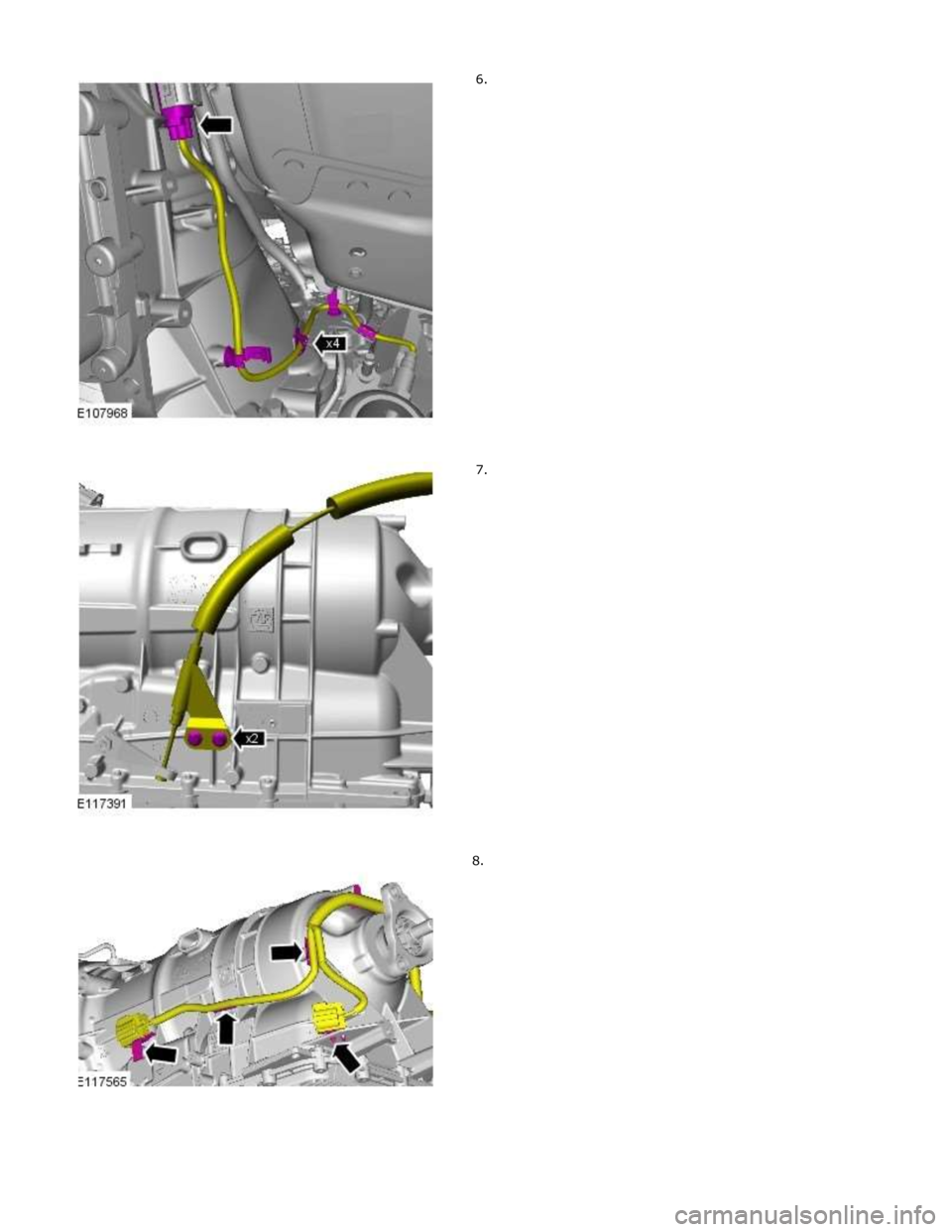

JAGUAR XFR 2010 1.G Workshop Manual

Page 1490 of 3039

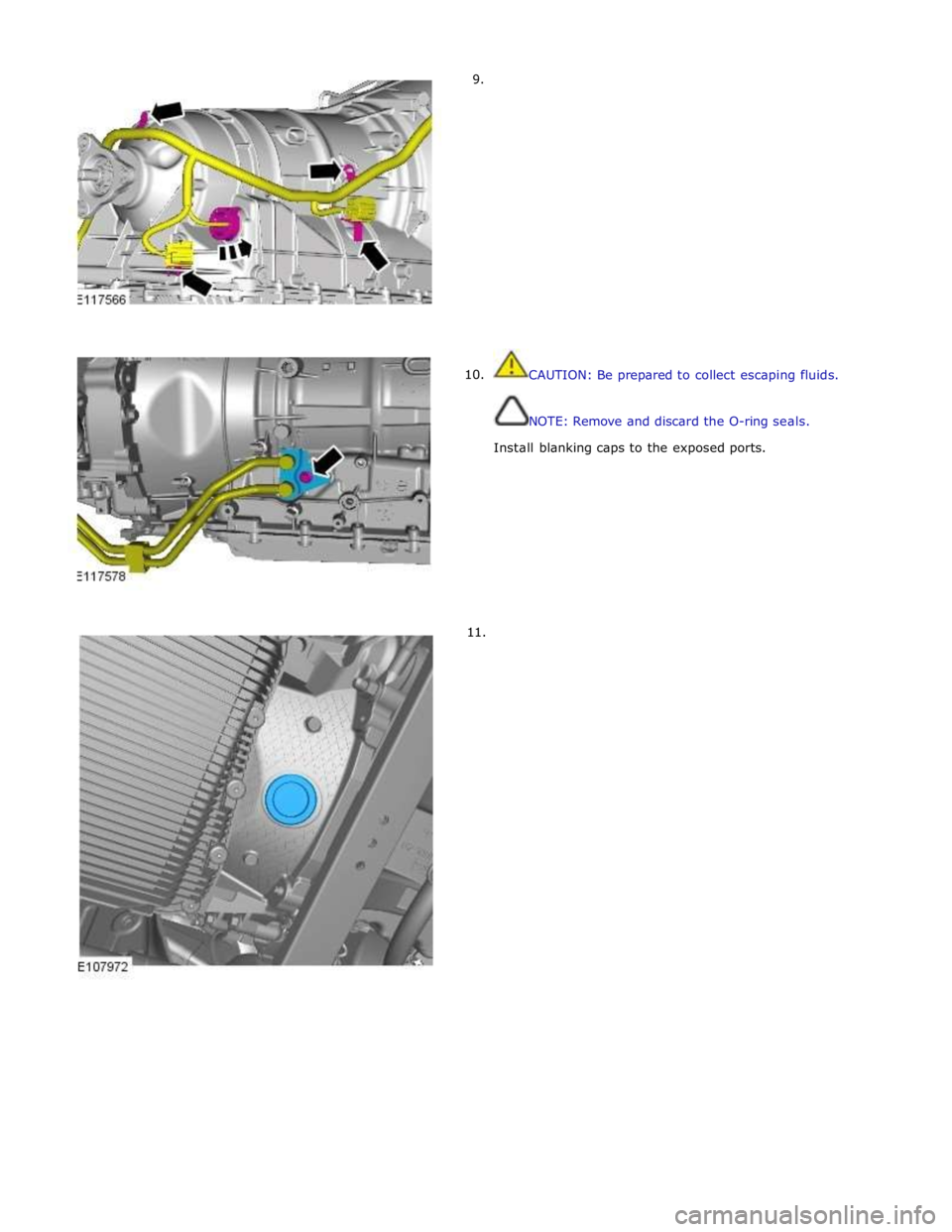

JAGUAR XFR 2010 1.G Workshop Manual 9. 10. 11. CAUTION: Be prepared to collect escaping fluids. NOTE: Remove and discard the O-ring seals. Install blanking caps to the expo

Page 1491 of 3039

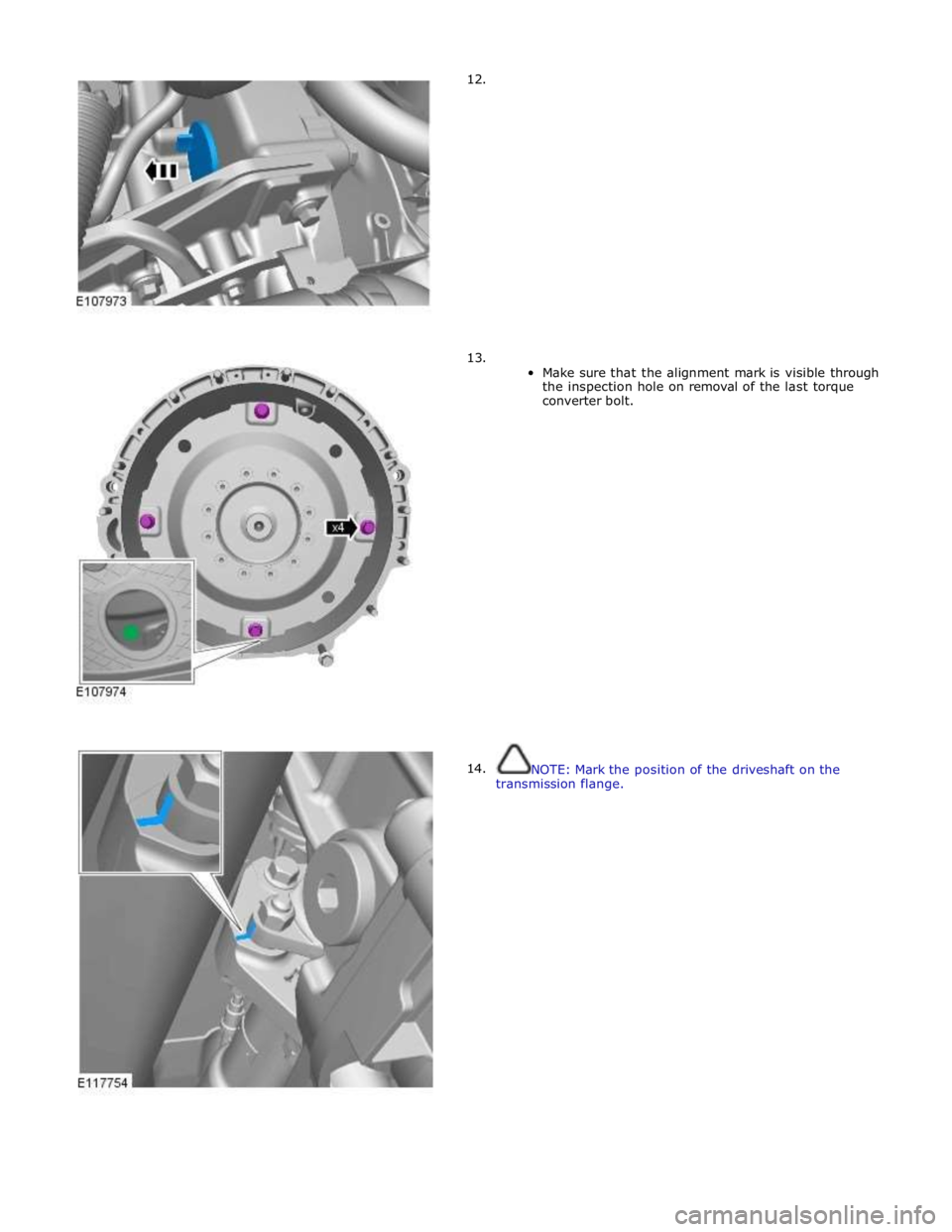

JAGUAR XFR 2010 1.G Workshop Manual 12. 13. 14. Make sure that the alignment mark is visible through the inspection hole on removal of the last torque converter bolt.

Page 1492 of 3039

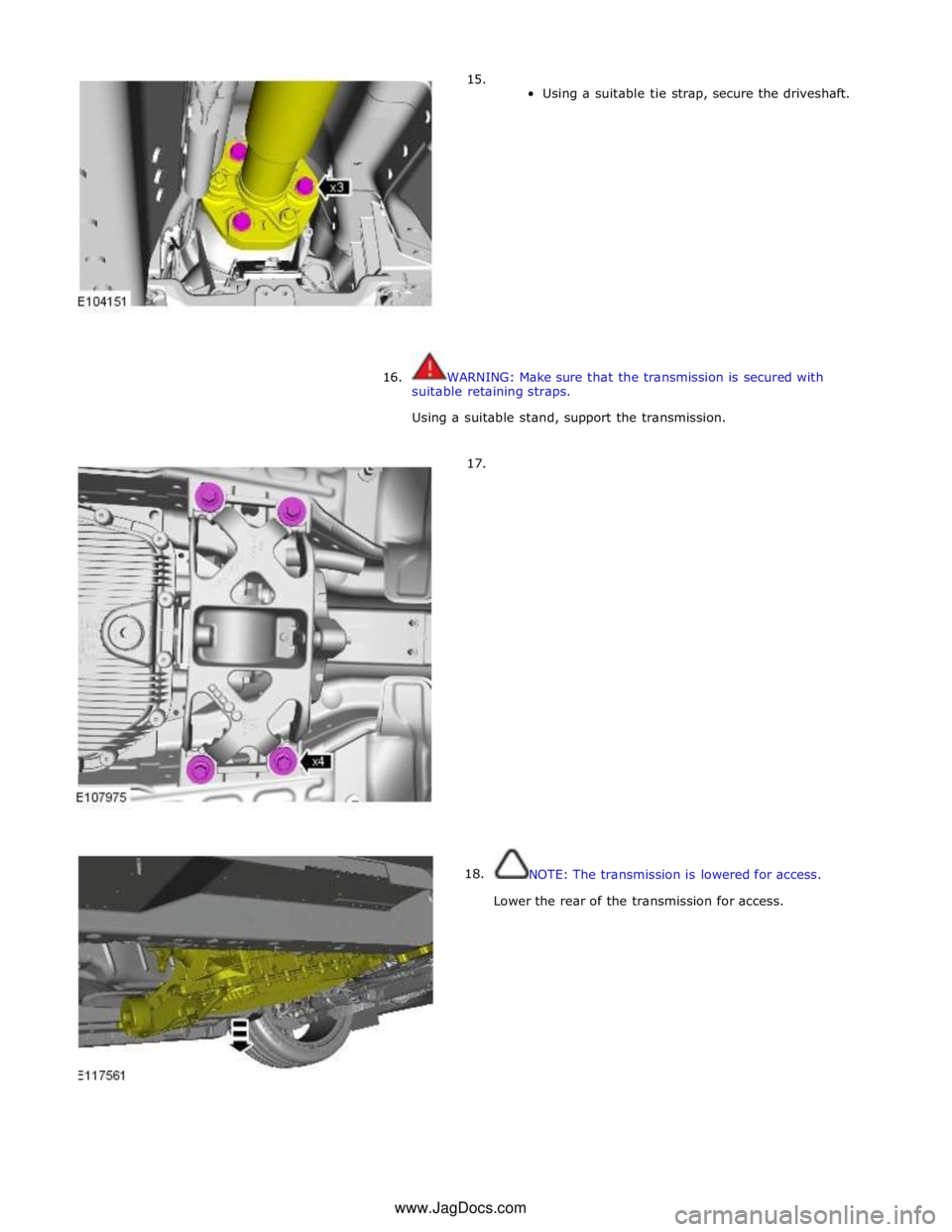

JAGUAR XFR 2010 1.G Workshop Manual 15. Using a suitable tie strap, secure the driveshaft. 16. WARNING: Make sure that the transmission is secured with suitable retaining straps. Using a suitable stand,

Page 1493 of 3039

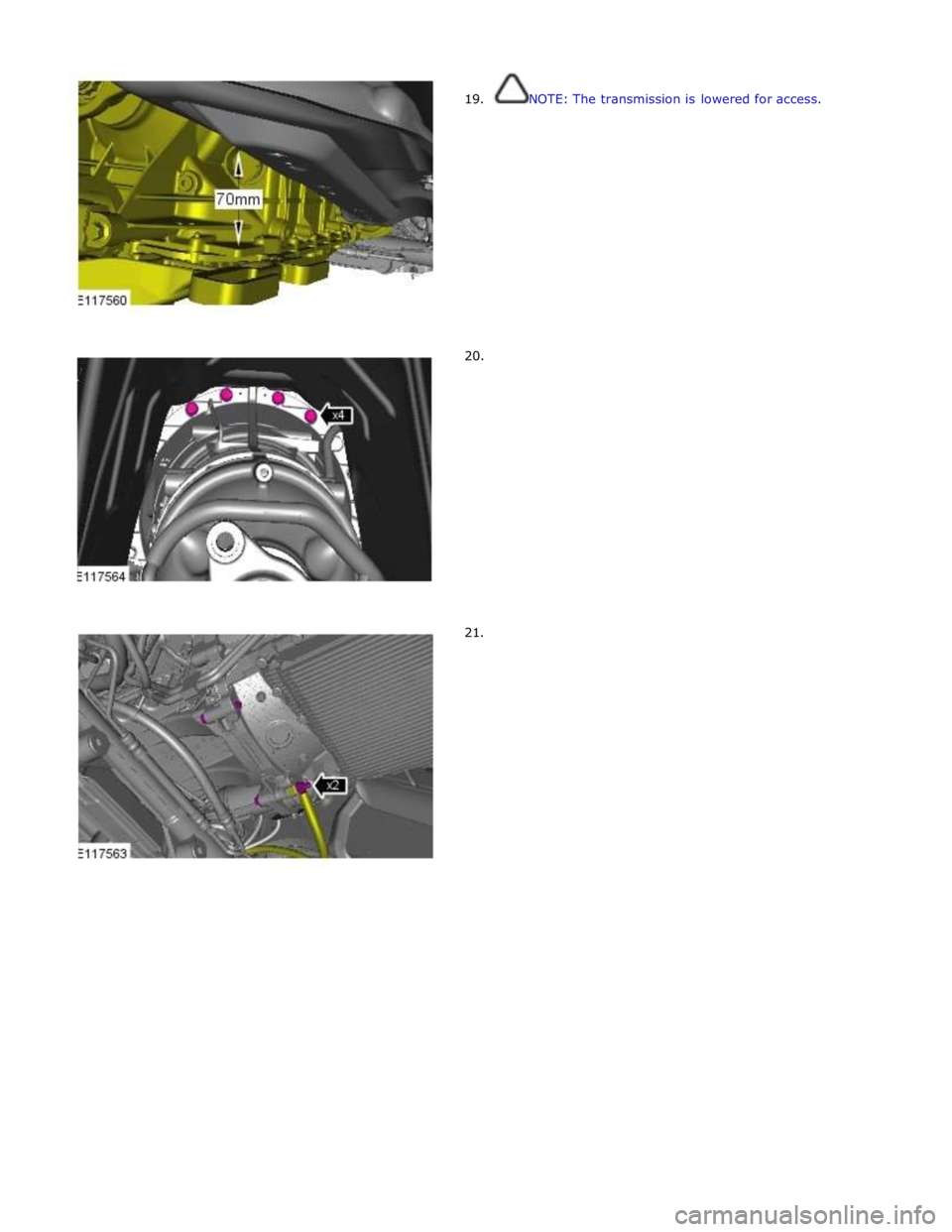

JAGUAR XFR 2010 1.G Workshop Manual 19. 20. 21. NOTE: The transmission is lowered for access.

Page 1494 of 3039

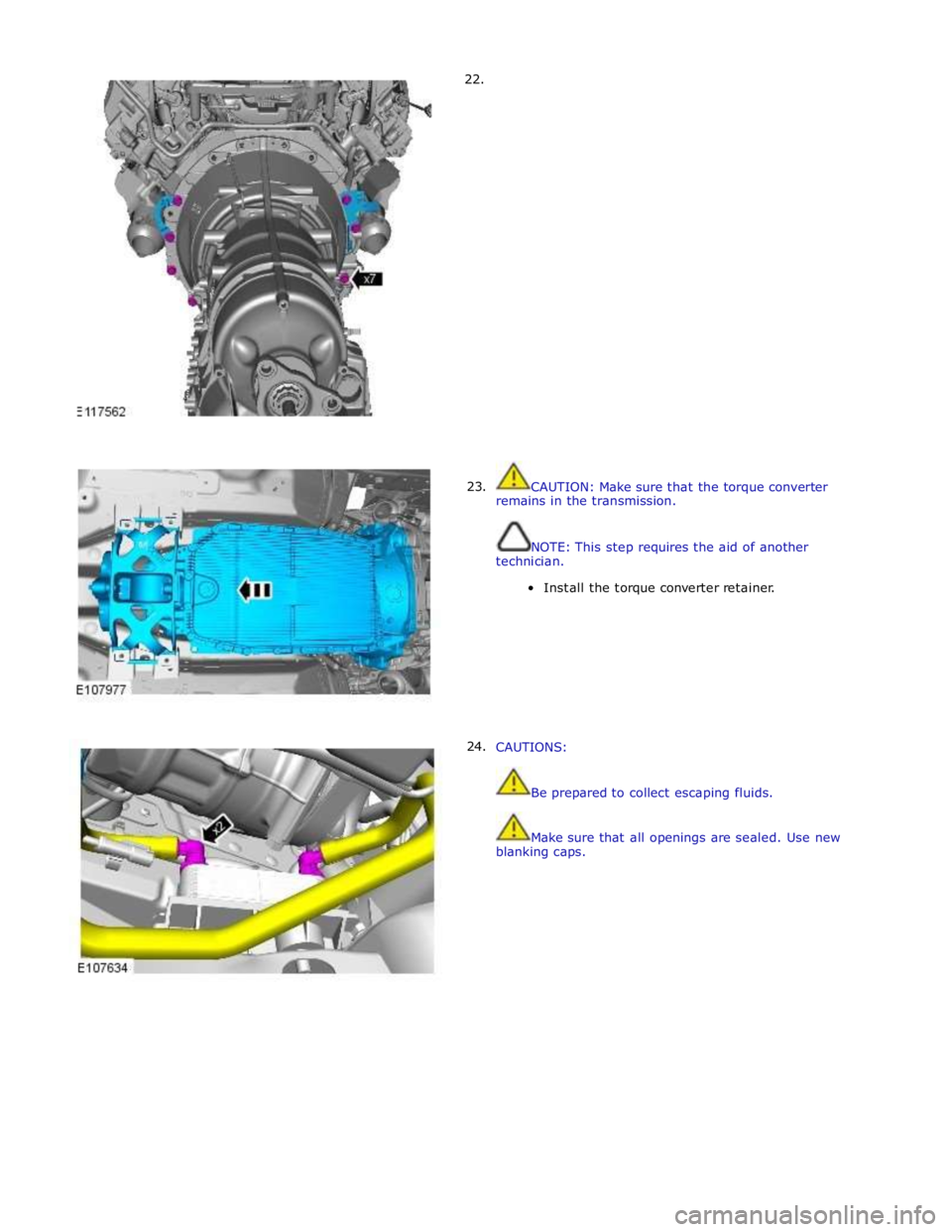

JAGUAR XFR 2010 1.G Workshop Manual 22. 23. 24. CAUTION: Make sure that the torque converter remains in the transmission. NOTE: This step requires the aid of anot

Page 1495 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 1496 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 1. Torque: 5 Nm 2. 3. Clamp the hoses to minimize coolant loss. 4. CAUTIONS:
