Page 3033 of 3039

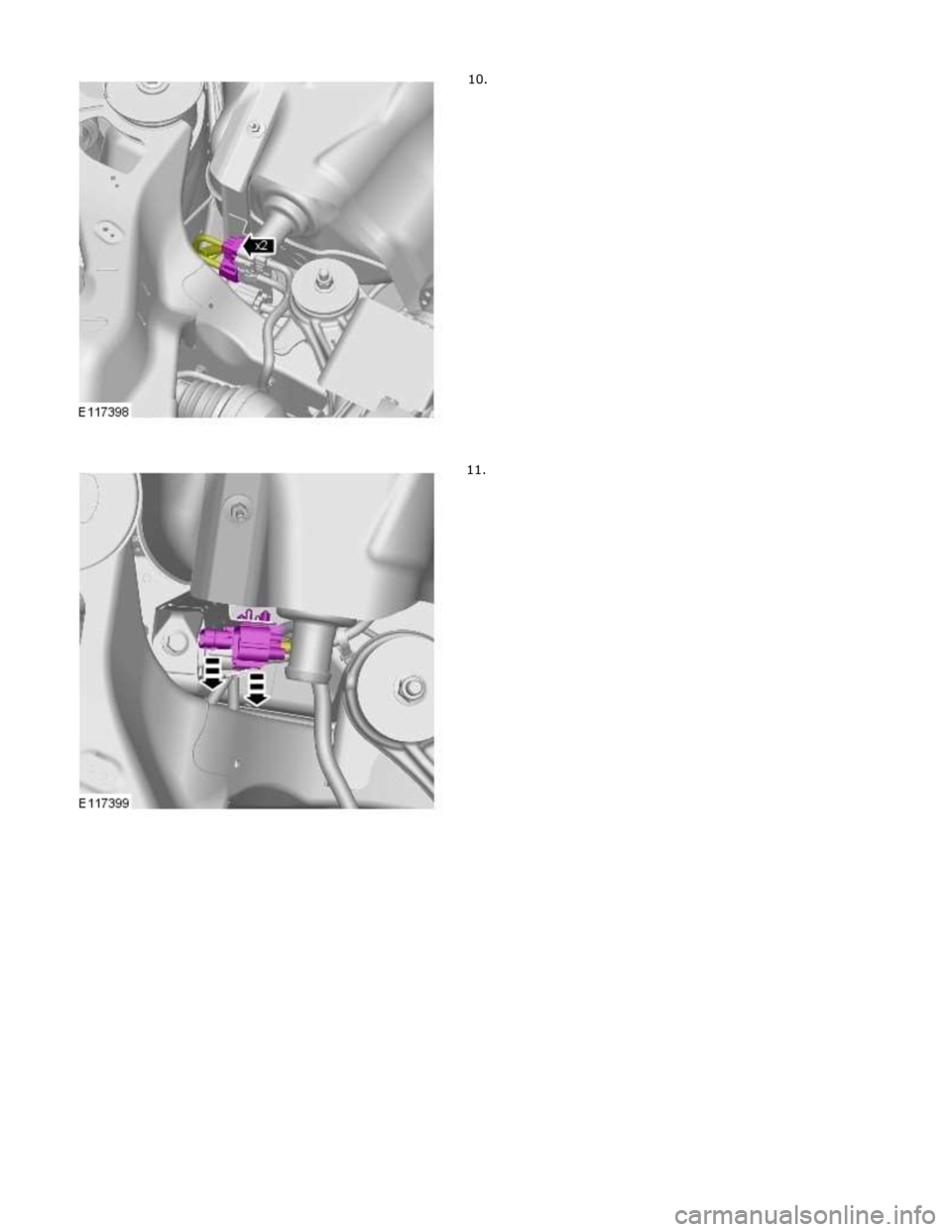

JAGUAR XFR 2010 1.G Workshop Manual 8. WARNING: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water. CAUTIONS: Make sure that a new sealing washer is installed. Be prepa

Page 3034 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 3035 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 12. 13. NOTE: Left-hand shown, right-hand similar. Torque: 47 Nm NOTE: Left-hand shown, right-hand

Page 3036 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 14. 15. WARNING: Install the M12 subframe bolts prior to removing axle support. NOTE: LH illustra

Page 3037 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 16. 17. CAUTION: Make sure that new bolts are installed. General Equipment: Powertrain Jack Torque: Stage 1:80 Nm Stage

Page 3038 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Reciever-bush 204-475 Replacer-bush 204-474 Remover bush 204-473 Remover support-bush 204-472 Removal Vehicles with 3.0L diesel engine 1. For additional information, refe

Page 3039 of 3039

JAGUAR XFR 2010 1.G Workshop Manual All vehicles 3. NOTE: Note the orientation of the bushing before removal. Installation All vehicles 1. NOTE: Make sure the bushing is correctly orientated.
