Page 2737 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Body Repairs - Vehicle Specific Information and Tolerance Checks - Body and Frame Description and Operation Front End Body Dimensions NOTES: All dimensions shown a

Page 2738 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Item From To Dimension A Headlamp RH inboard fixing hole Front fender LH forward fixing hole 510.5 B Transmission LH mounting, forward stud Engine RH mounting, forward fixing hole 987.2 C Transmissi

Page 2739 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Item From To Dimension A Front bumper RH top inboard fixing hole Front bumper LH top inboard fixing hole 770.9 www.JagDocs.com

Page 2740 of 3039

JAGUAR XFR 2010 1.G Workshop Manual A Instrument panel carrier RH top fixing hole Instrument panel carrier LH top fixing hole 1416 B Instrument panel carrier RH bottom fixing hole Instrument panel carrier LH bottom fixing hole 1416 Side

Page 2741 of 3039

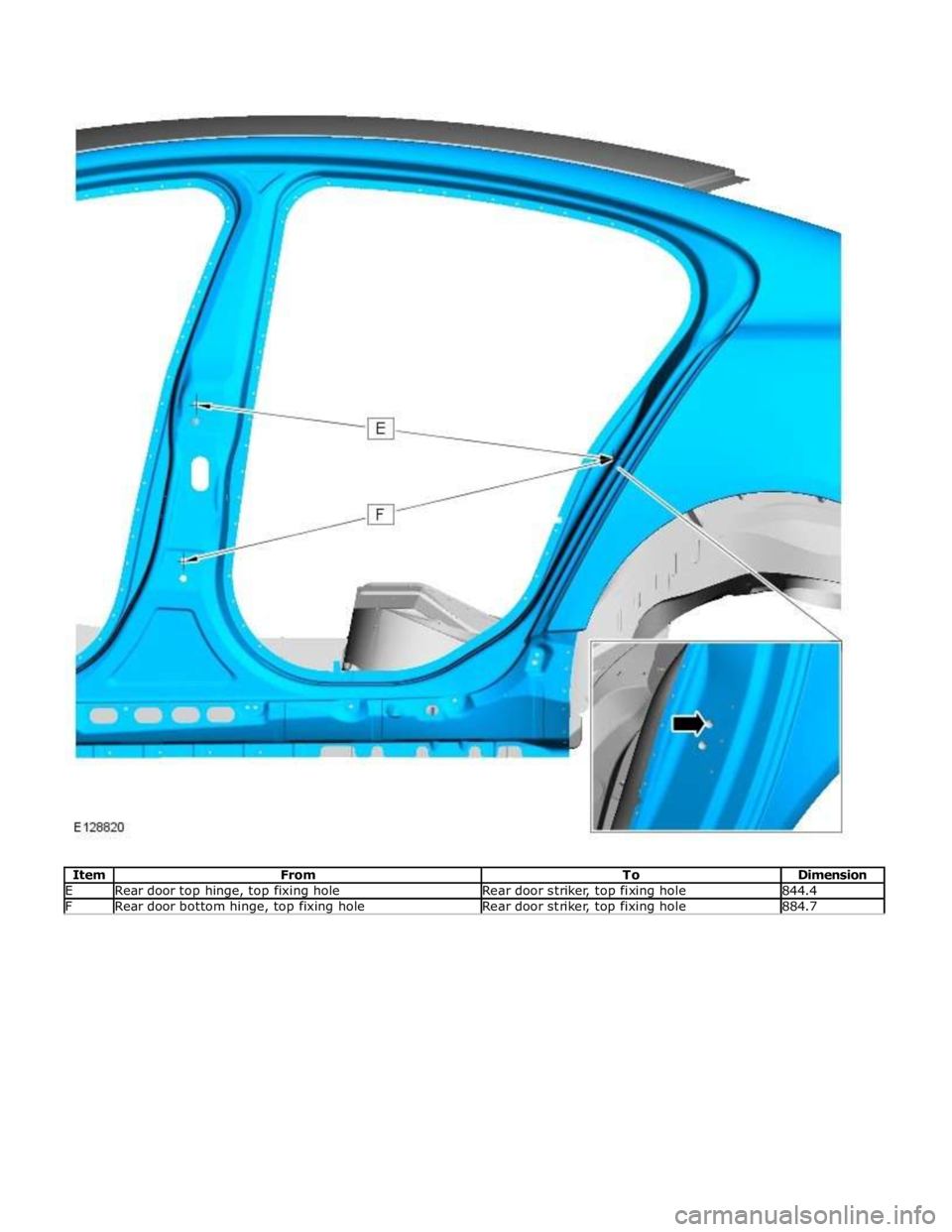

JAGUAR XFR 2010 1.G Workshop Manual E Rear door top hinge, top fixing hole Rear door striker, top fixing hole 844.4 F Rear door bottom hinge, top fixing hole Rear door striker, top fixing hole 884.7

Page 2742 of 3039

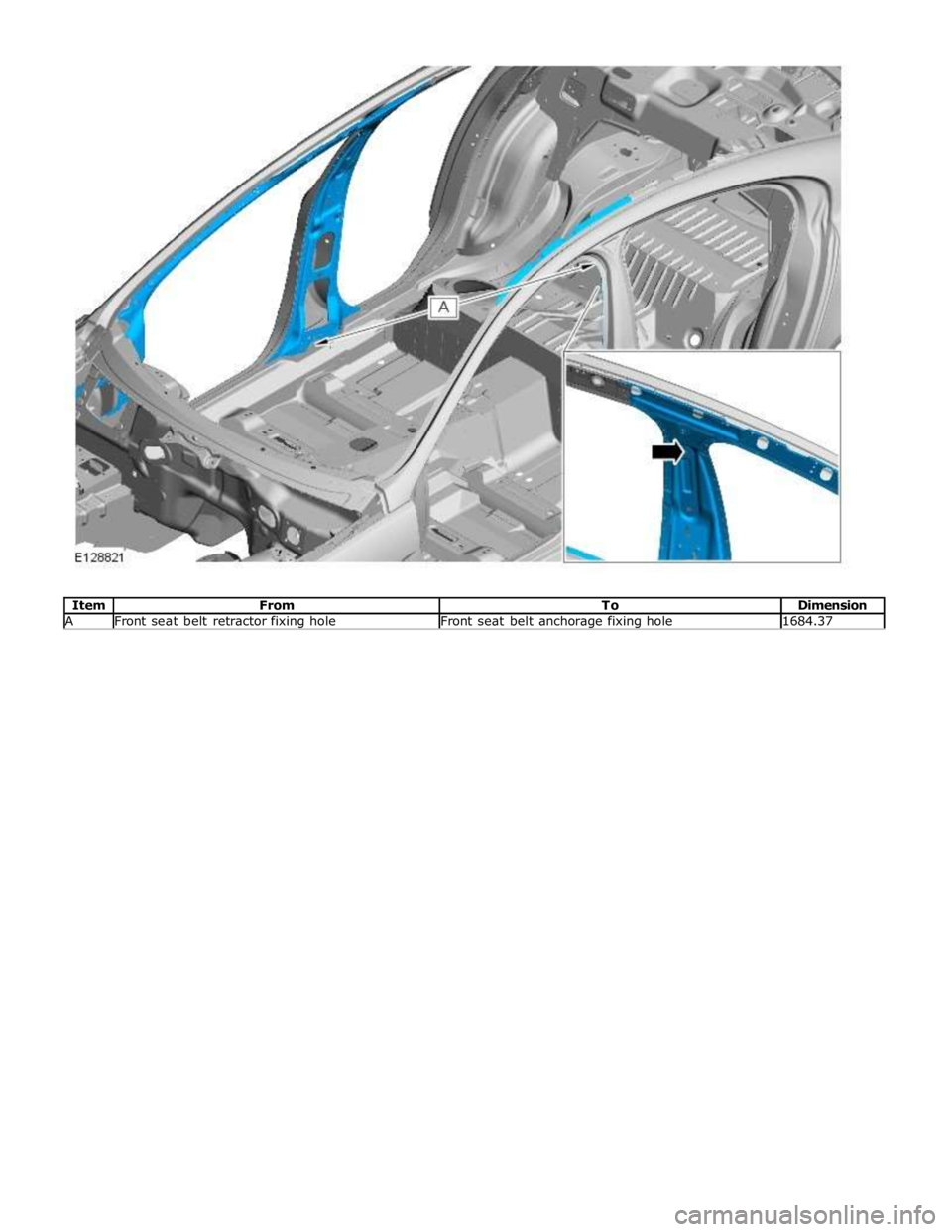

JAGUAR XFR 2010 1.G Workshop Manual A Front seat belt retractor fixing hole Front seat belt anchorage fixing hole 1684.37

Page 2743 of 3039

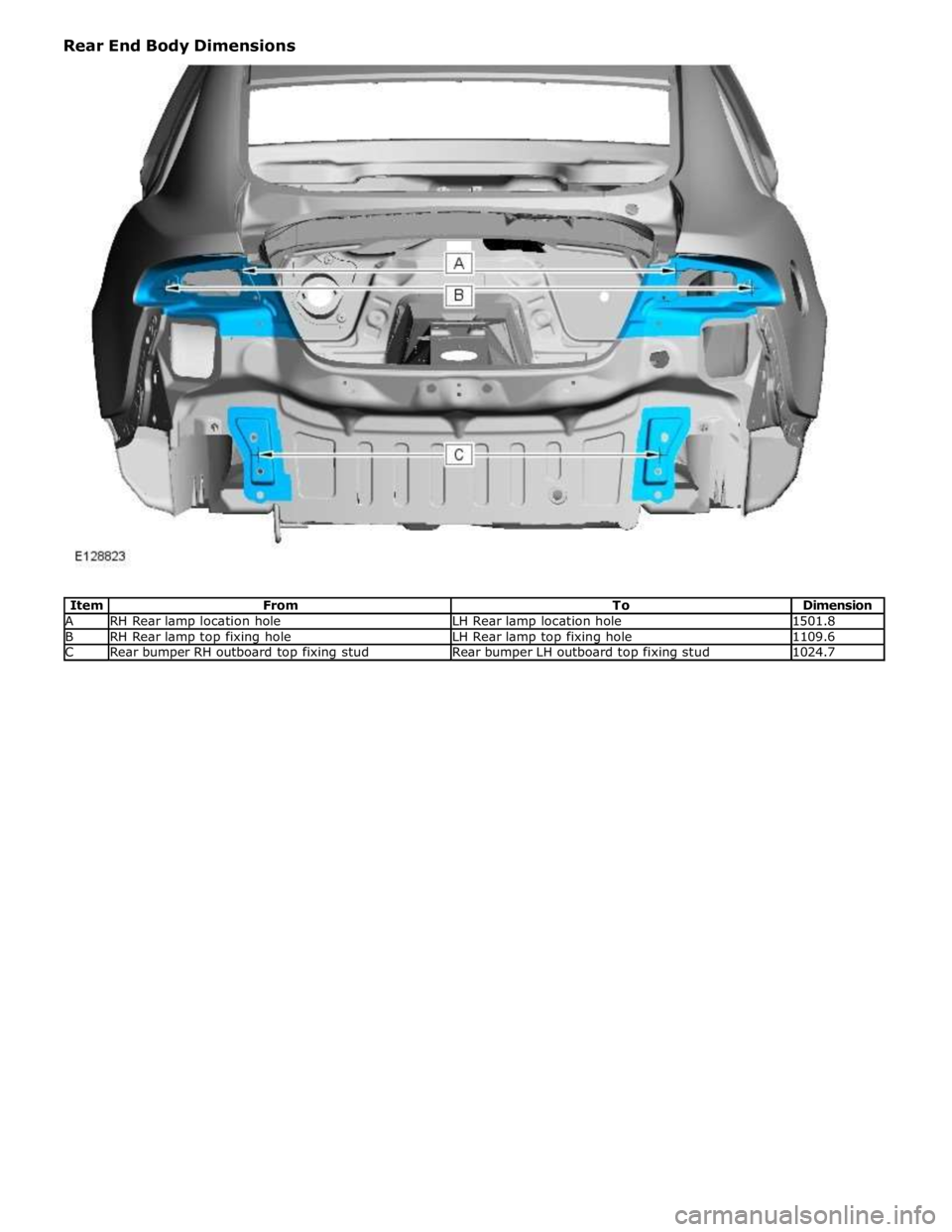

JAGUAR XFR 2010 1.G Workshop Manual A RH Rear lamp location hole LH Rear lamp location hole 1501.8 B RH Rear lamp top fixing hole LH Rear lamp top fixing hole 1109.6 C Rear bumper RH outboard top fixing stud Rear bumper LH outboard top

Page 2744 of 3039

JAGUAR XFR 2010 1.G Workshop Manual A Front subframe front fixing hole Front subframe rear fixing hole 510.5 B Front subframe RH rear fixing hole Front subframe LH rear fixing hole 821 C Front subframe RH front fixing hole Front subfram
