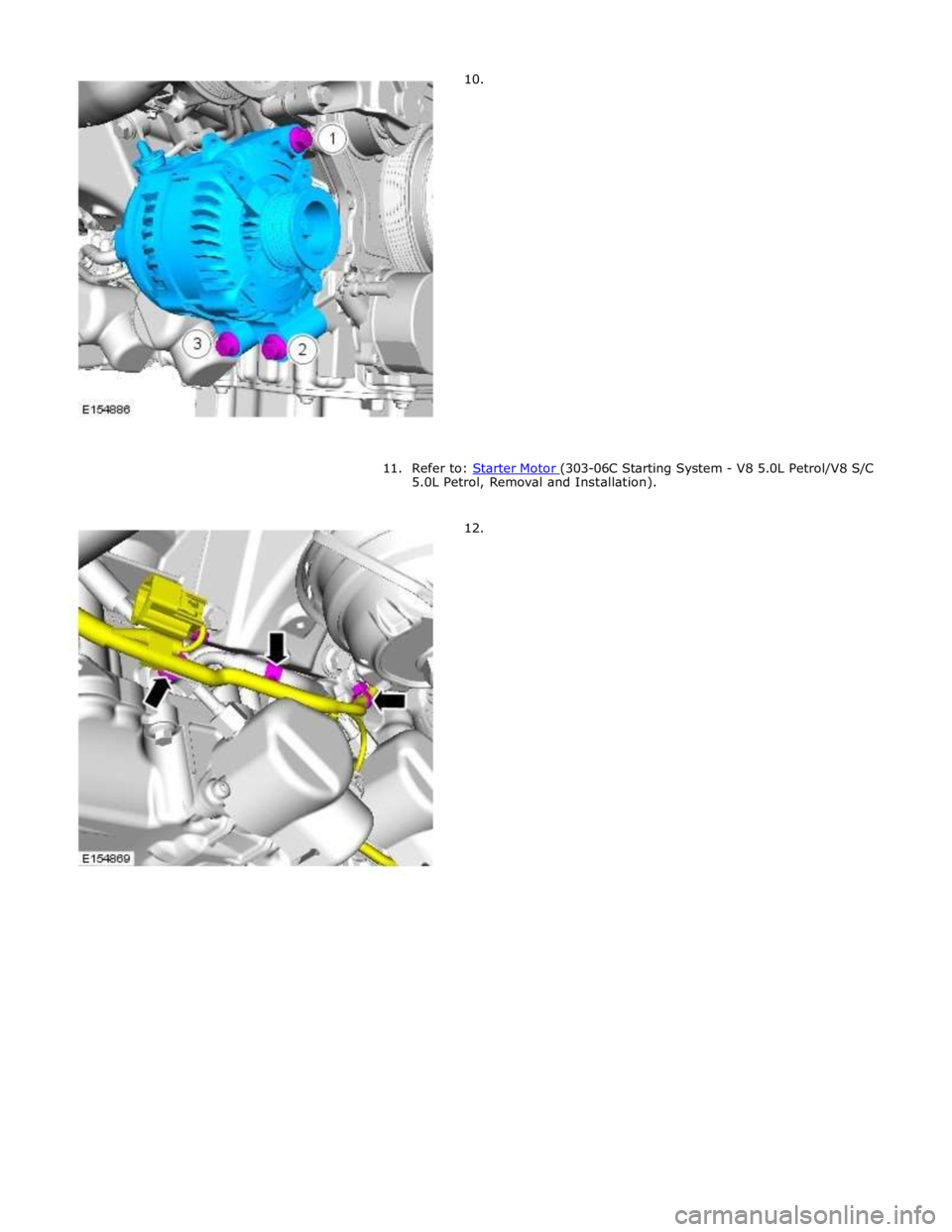

Page 1617 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 5.0L Petrol, Removal and Installation). 12.

Page 1618 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 15. 13. 14. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related compone

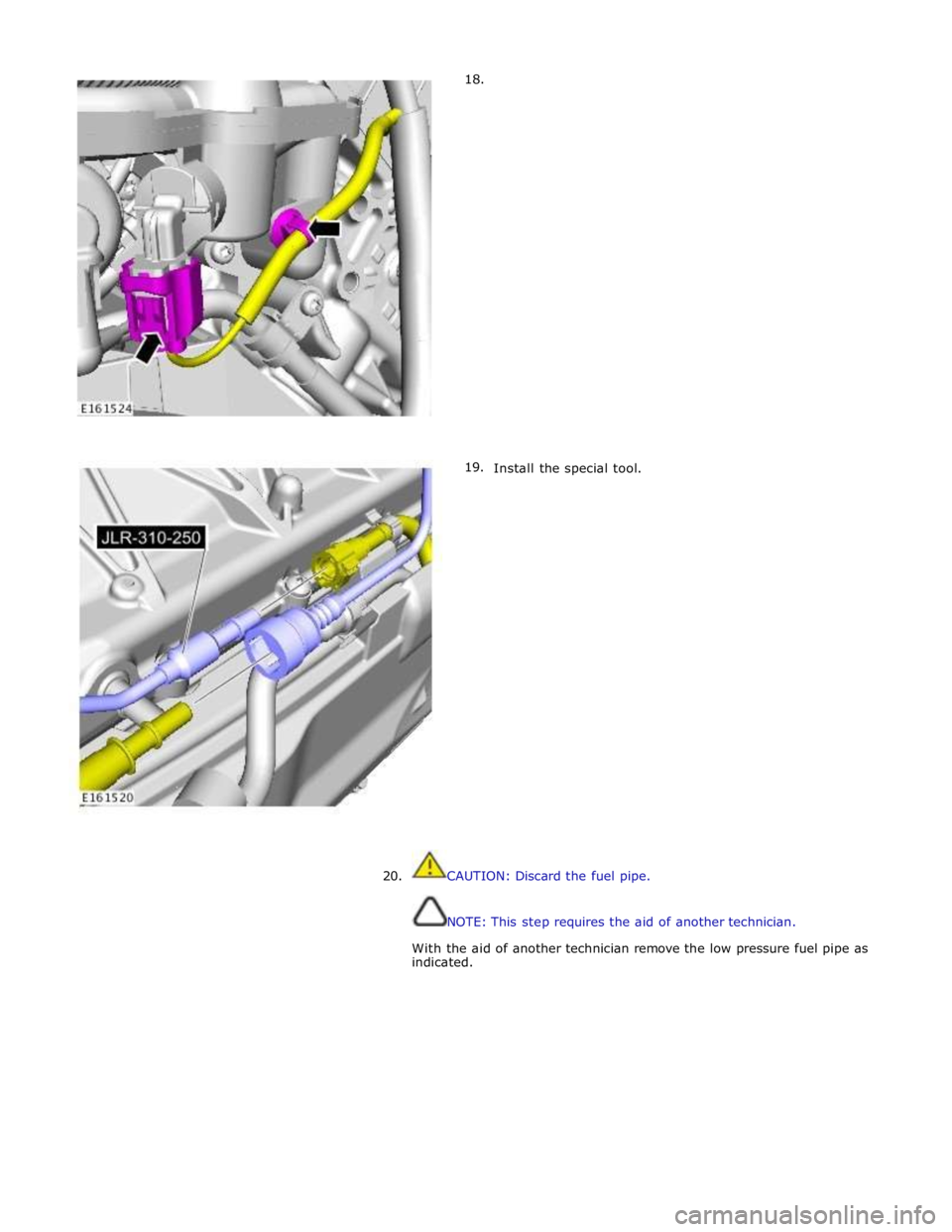

Page 1619 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 1620 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 18. 19. Install the special tool. 20. CAUTION: Discard the fuel pipe. NOTE: This step requires

Page 1621 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 1. Connect the new fuel pipe to end of the special tool as indicated. 2. CAUTIONS: Install a new fuel pipe. Care must be taken n

Page 1622 of 3039

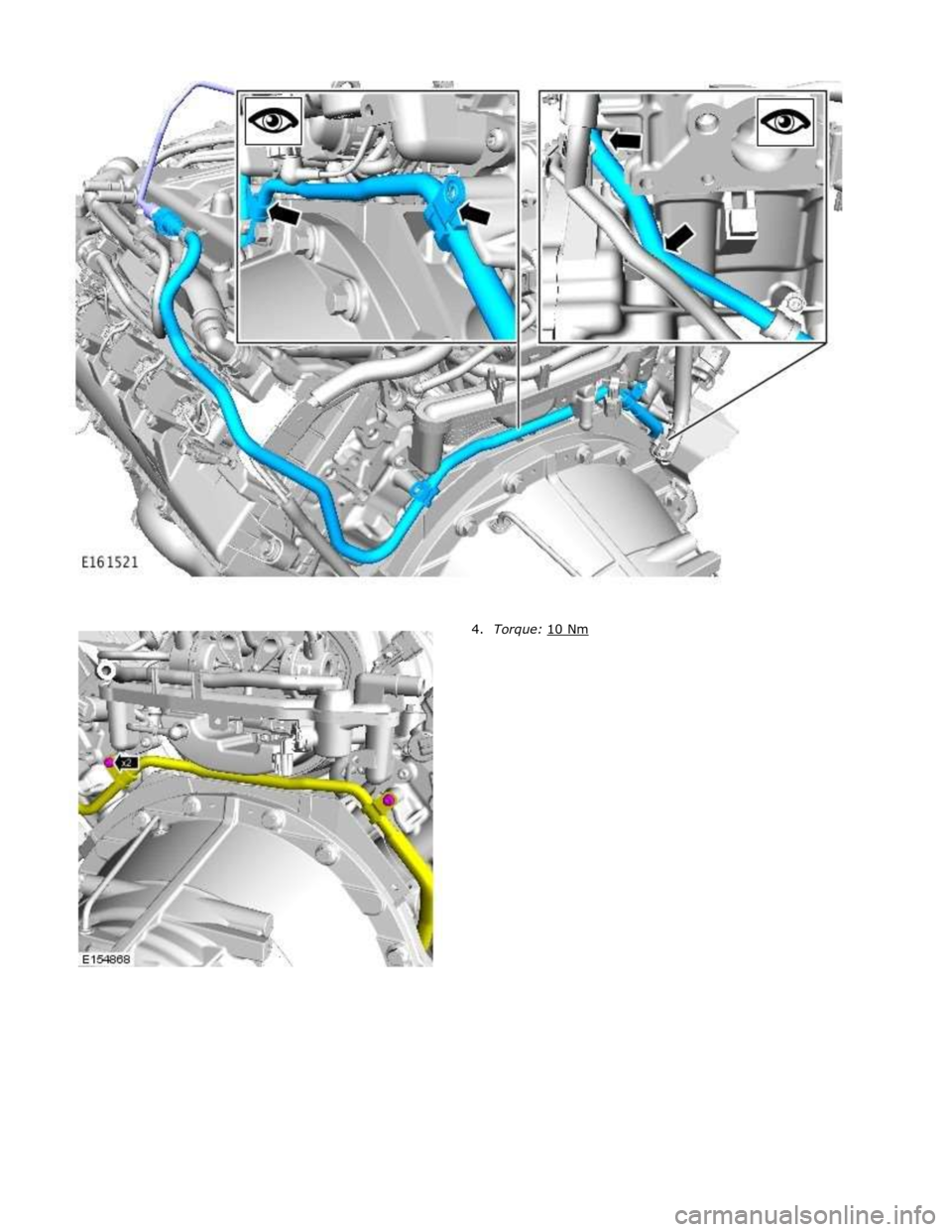

JAGUAR XFR 2010 1.G Workshop Manual NOTE: This step requires the aid of another technician. With the aid of another technician, install a new low pressure fuel pipe using the special tool as indicated. 3. Inspect the low

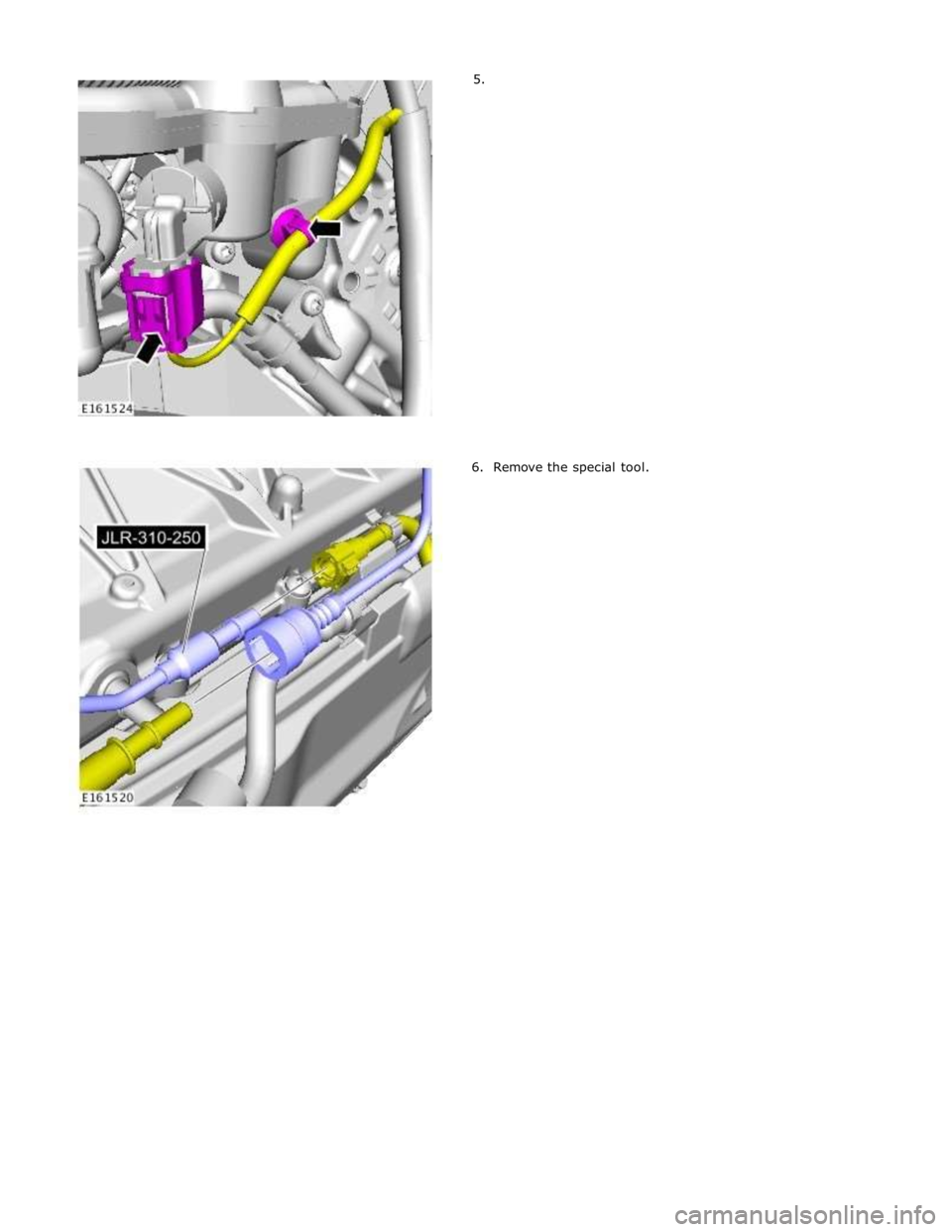

Page 1623 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 1624 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
