Seating - Front Seat Height Adjustment Motor
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Make the air bag supplemental restraint system (SRS) safe.
Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
2. Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
3. Remove the front seat.
Refer to: Front Seat (501-10 Seating, Removal and Installation).

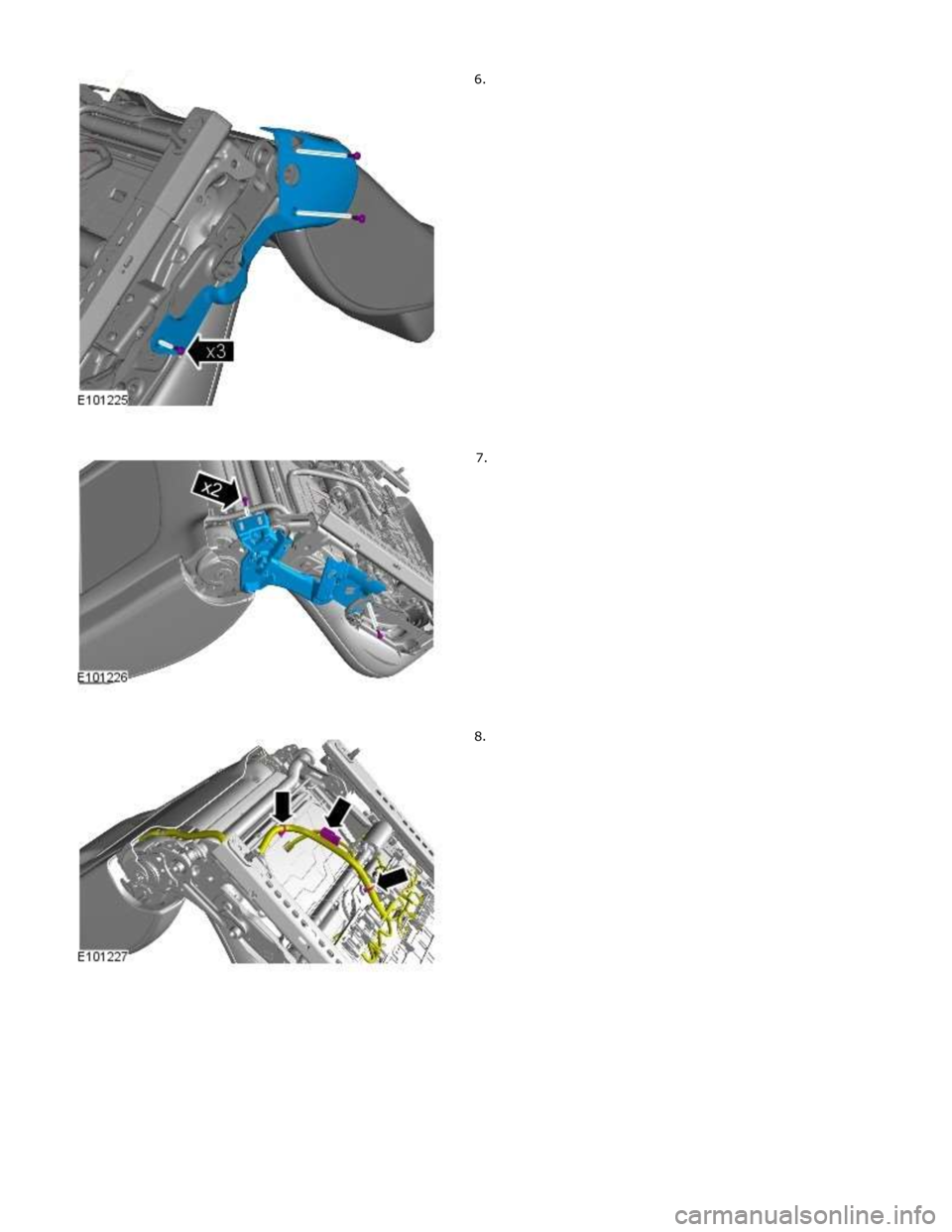

4.
5.
Page 2386 of 3039
Page 2387 of 3039

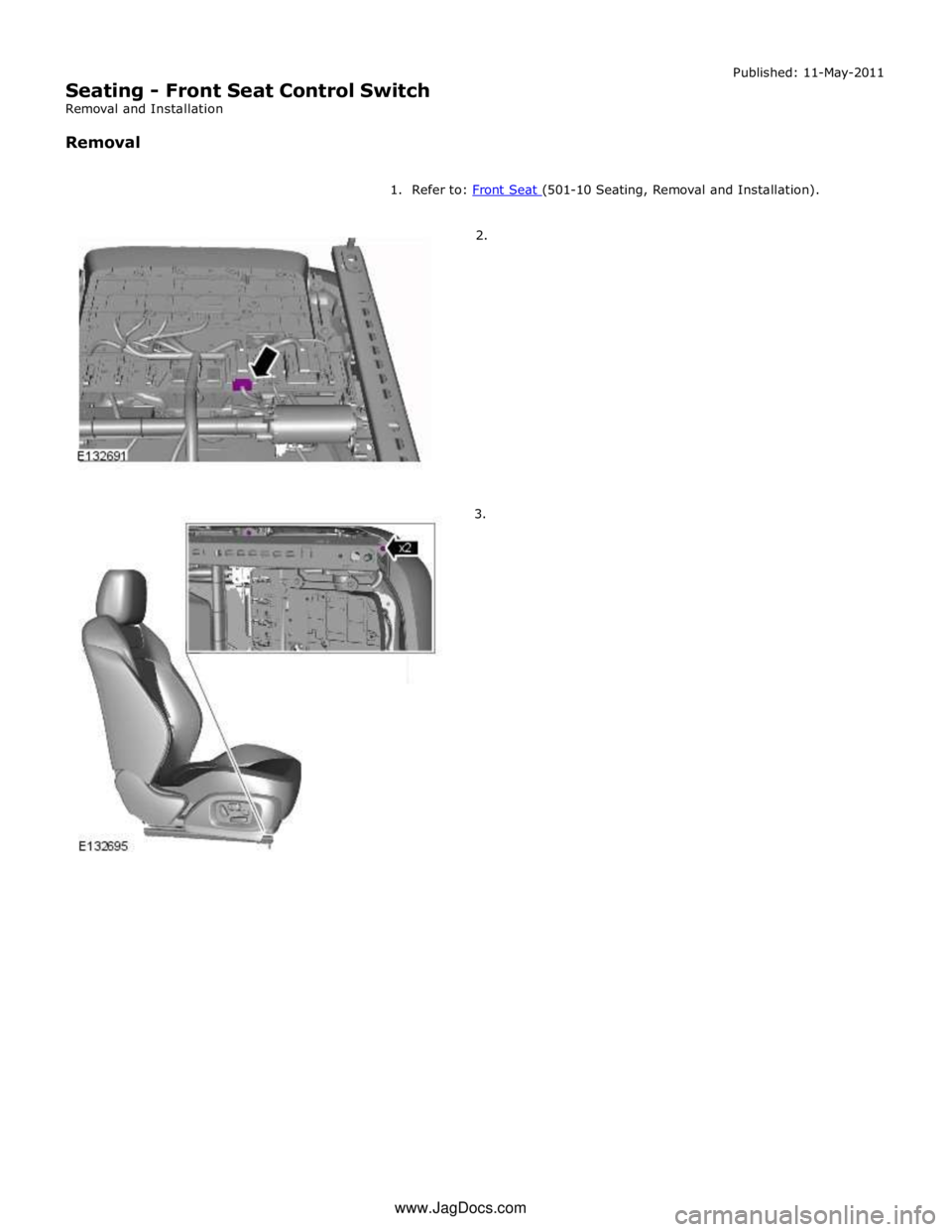

9.

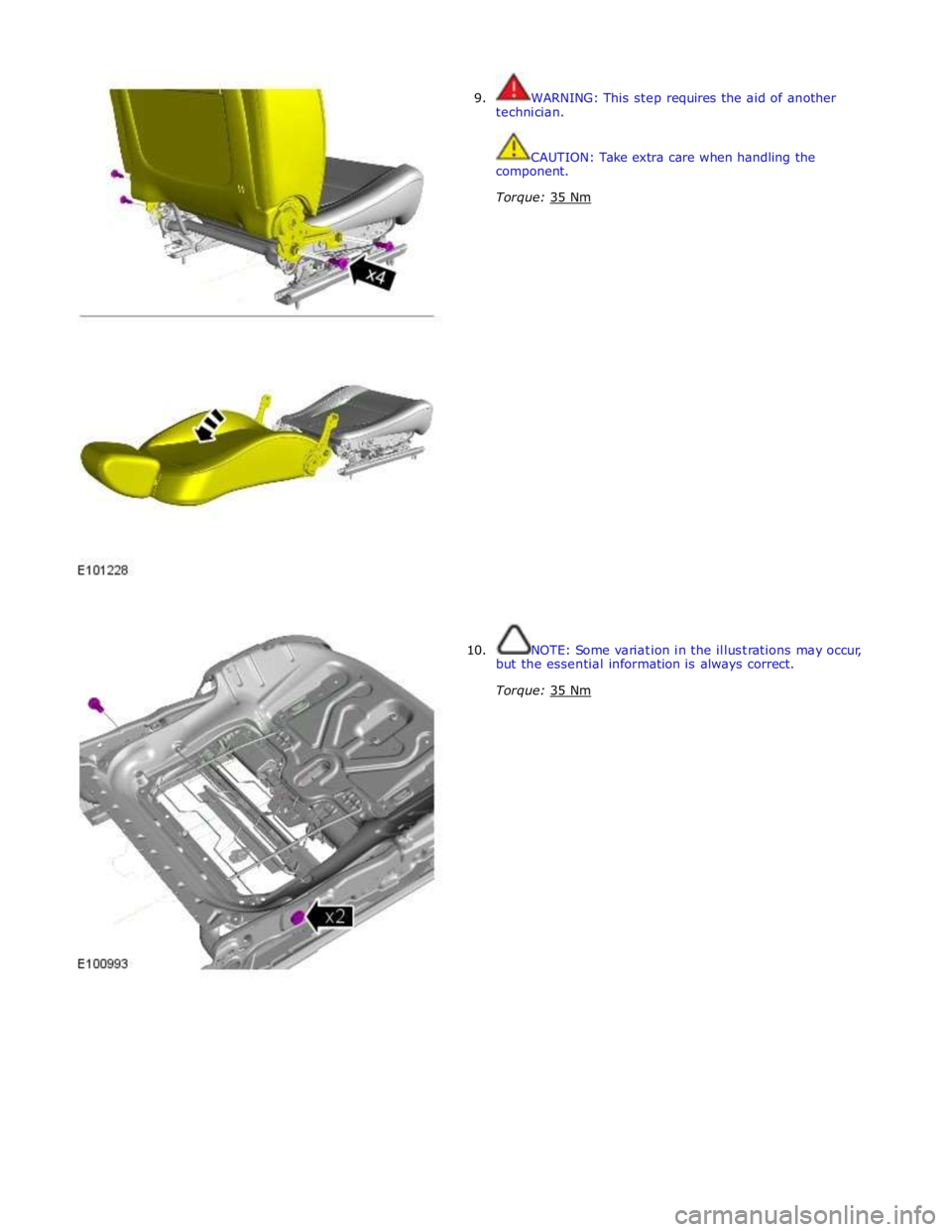

10. WARNING: This step requires the aid of another
technician.
CAUTION: Take extra care when handling the
component.
Torque: 35 Nm

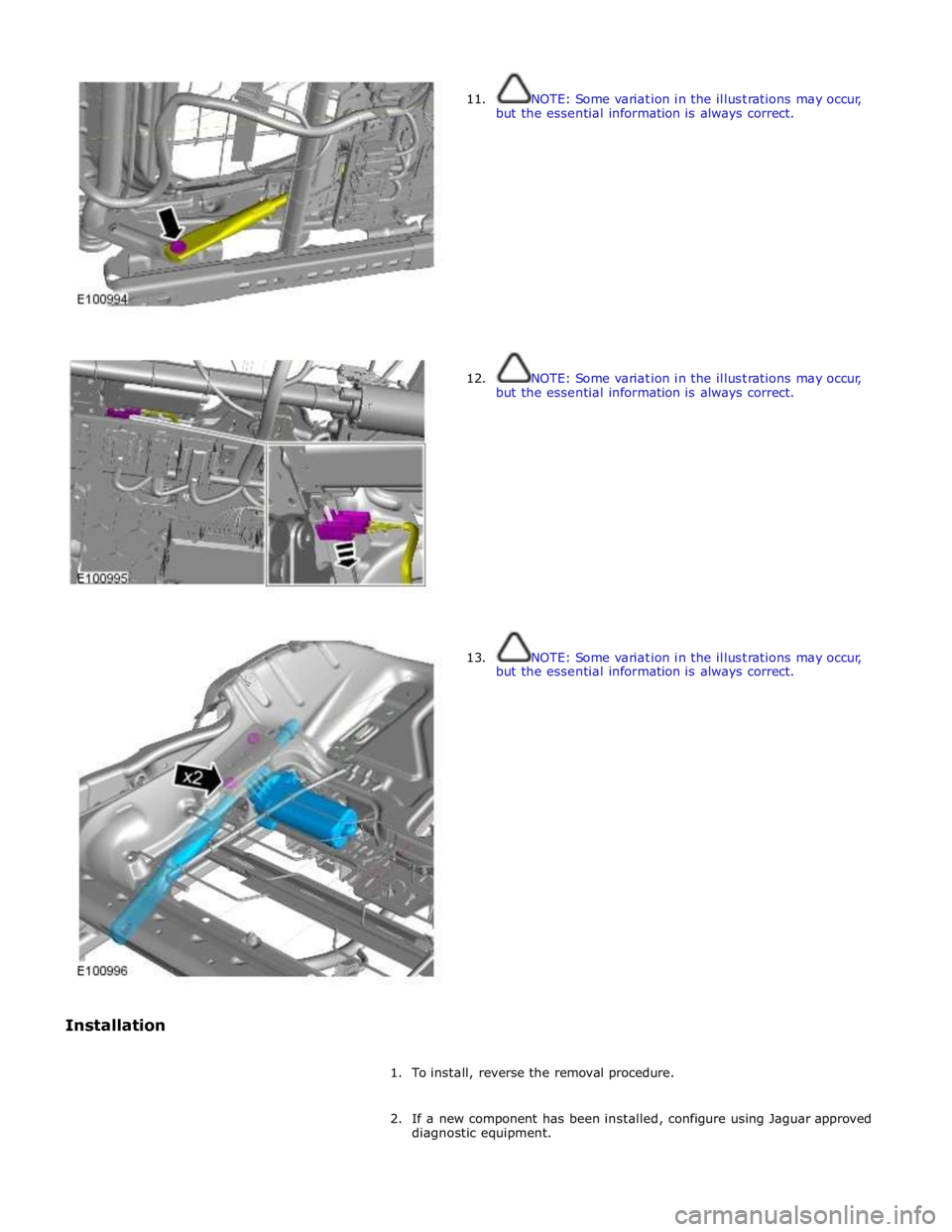

NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
Torque: 35 Nm
Page 2388 of 3039
Installation

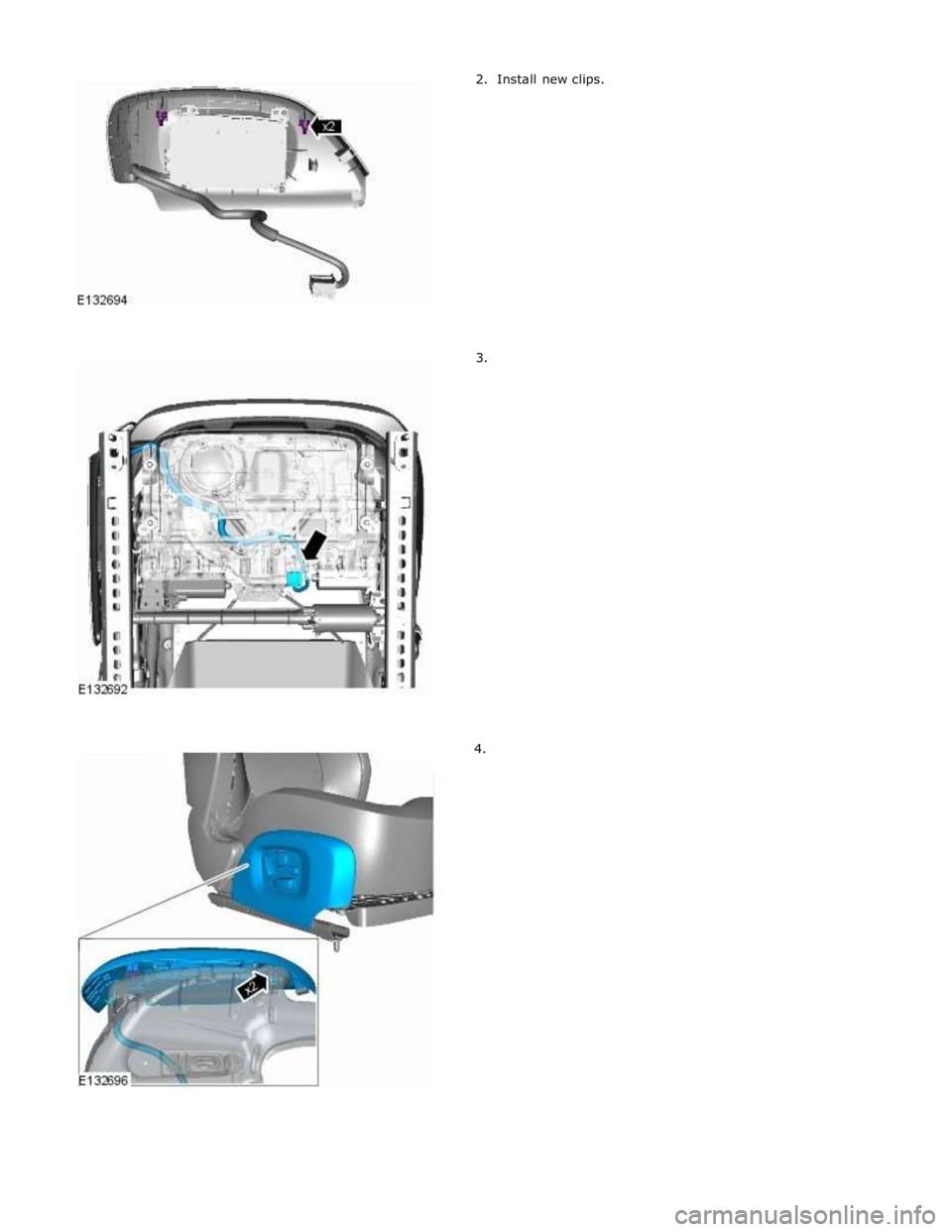

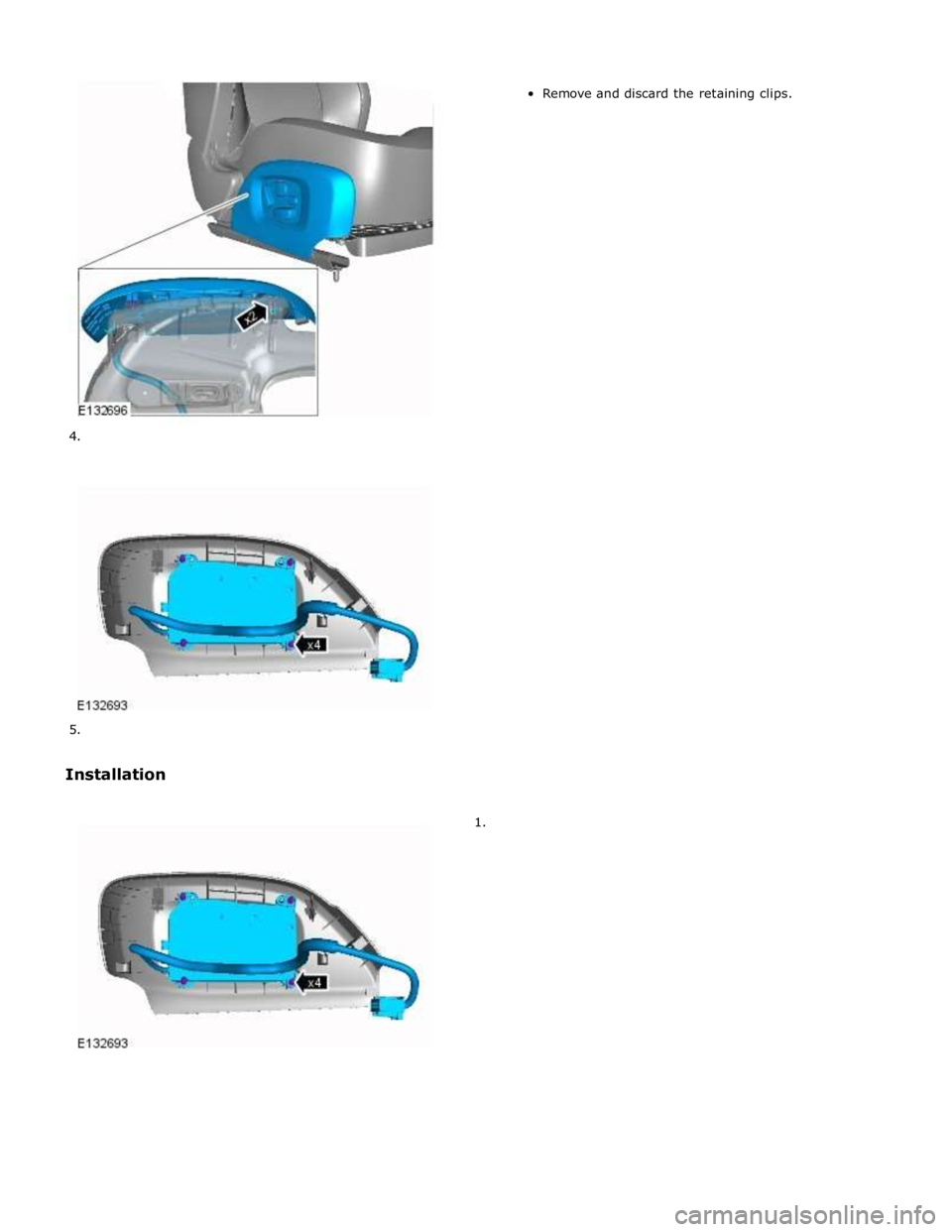

11.
12.
13.
NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.

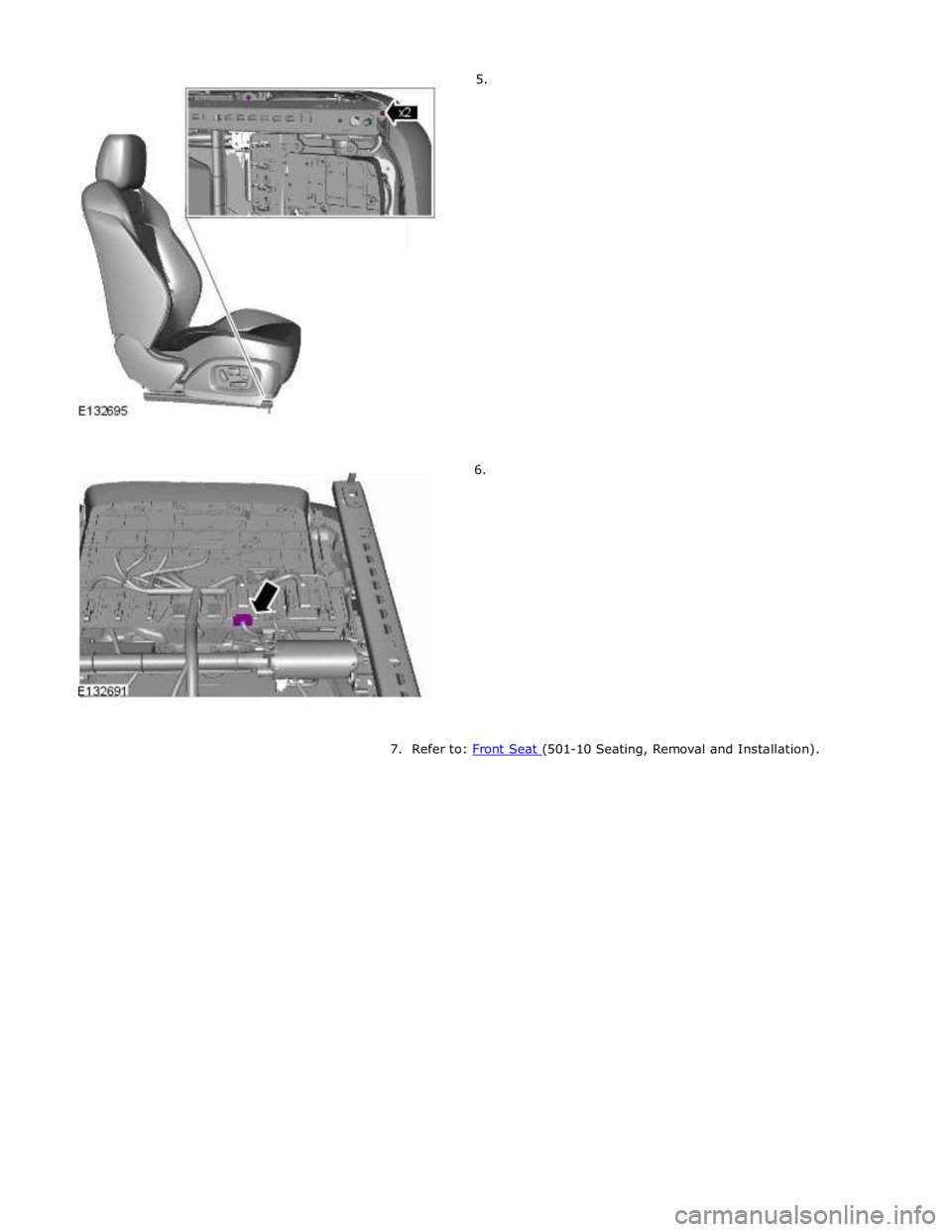

1. To install, reverse the removal procedure.
2. If a new component has been installed, configure using Jaguar approved
diagnostic equipment.
