Page 1073 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 6. 7. CAUTION: Take extra care when removing the component, prevent damage to the mating faces. 1. CAUTION: Make sure that the mating

Page 1074 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 2. CAUTION: Take extra care not to damage the mating faces. Torque: 12 Nm 3. Torque: 21 Nm 4. Torque: 12 Nm

Page 1075 of 3039

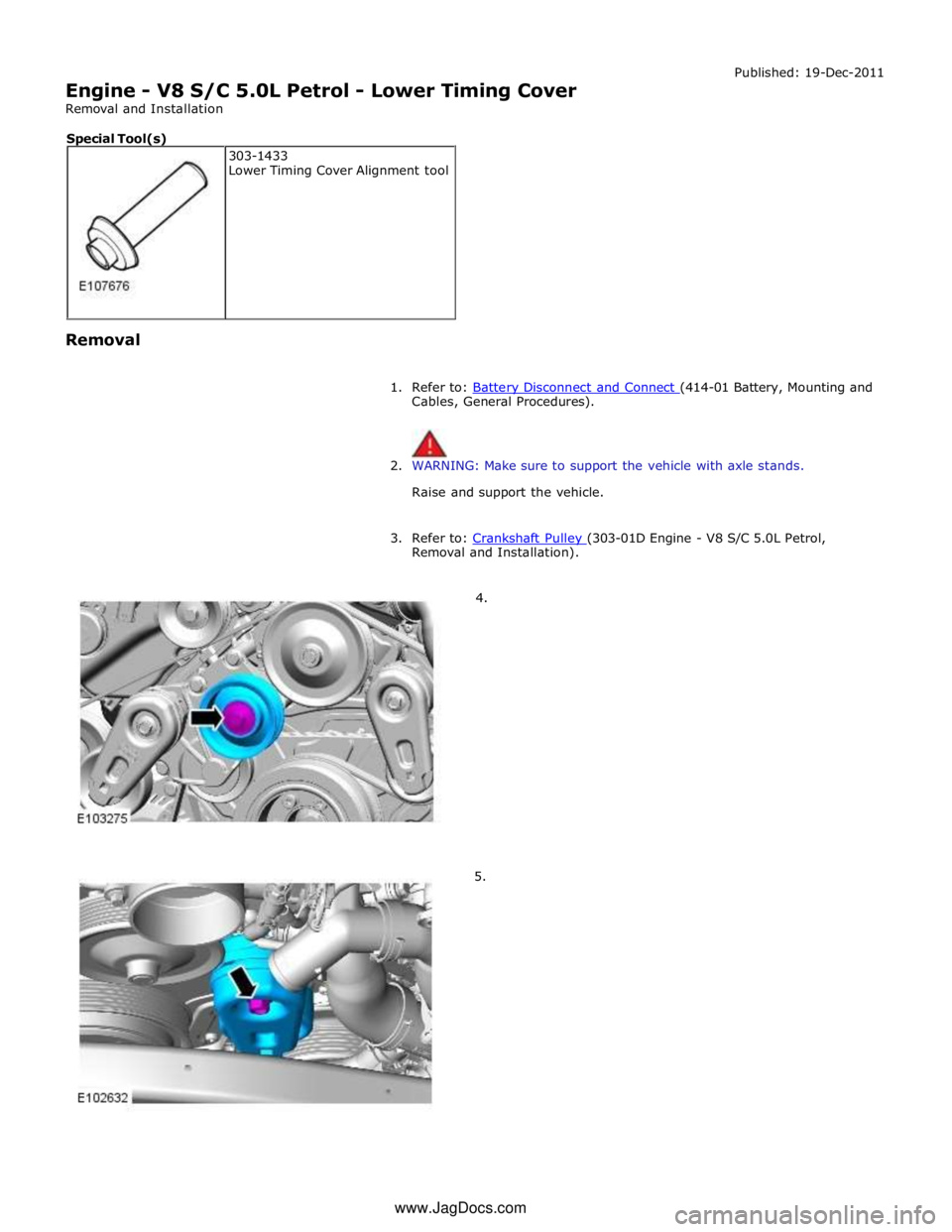

JAGUAR XFR 2010 1.G Workshop Manual 7. Refer to: Oil Pan Extension (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation). 8. Connect the battery ground cable. Refer to: Battery Disconnect and Connec

Page 1076 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Engine - V8 S/C 5.0L Petrol - Lower Timing Cover Removal and Installation Published: 19-Dec-2011 Removal 1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, Ge

Page 1077 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Power Brake Actuation, Removal and Installation). 8.

Page 1078 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation

Page 1079 of 3039

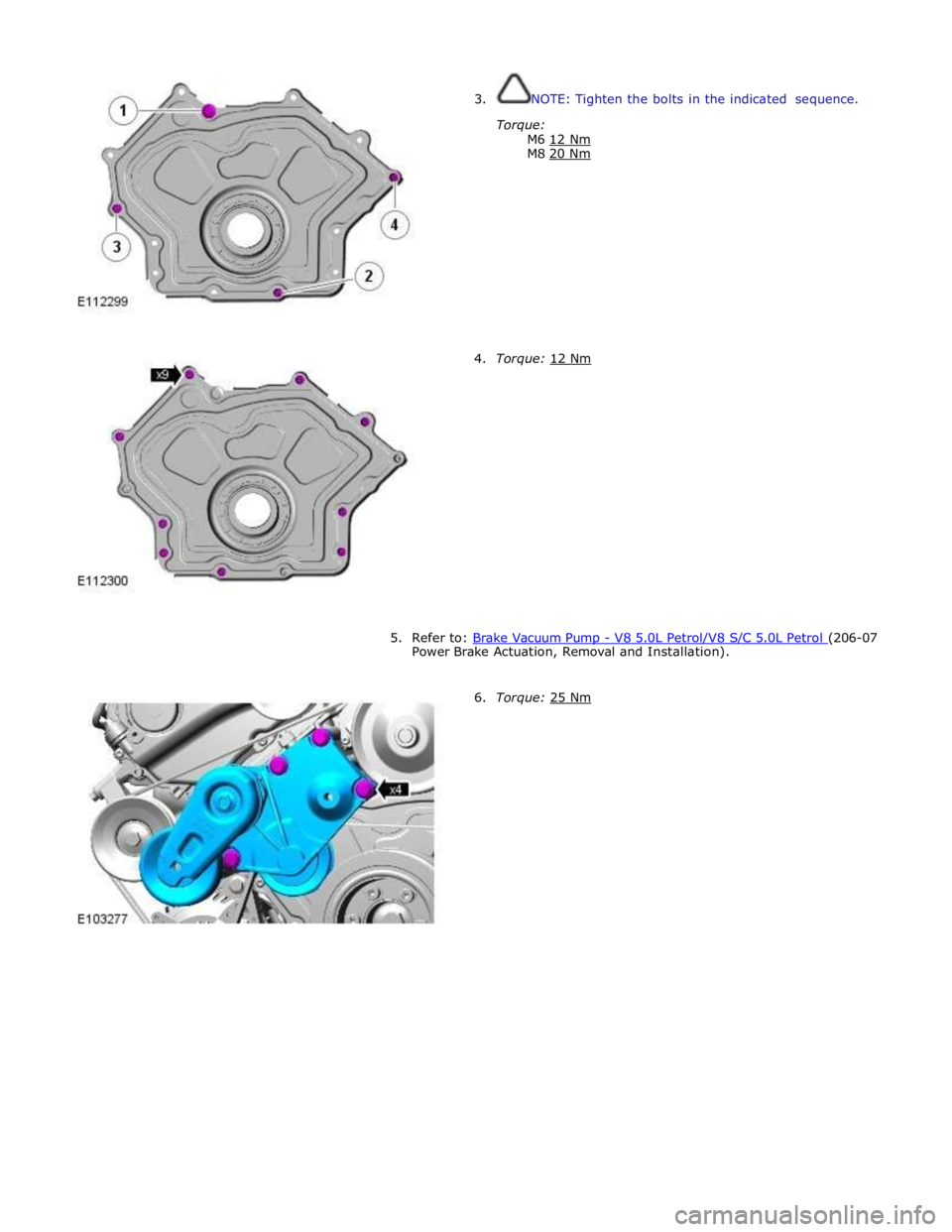

JAGUAR XFR 2010 1.G Workshop Manual 3. NOTE: Tighten the bolts in the indicated sequence. Torque: M6 12 Nm M8 20 Nm 4. Torque: 12 Nm 5. Refer to: Brake Vacuum Pump - V8 5.0L Petr

Page 1080 of 3039

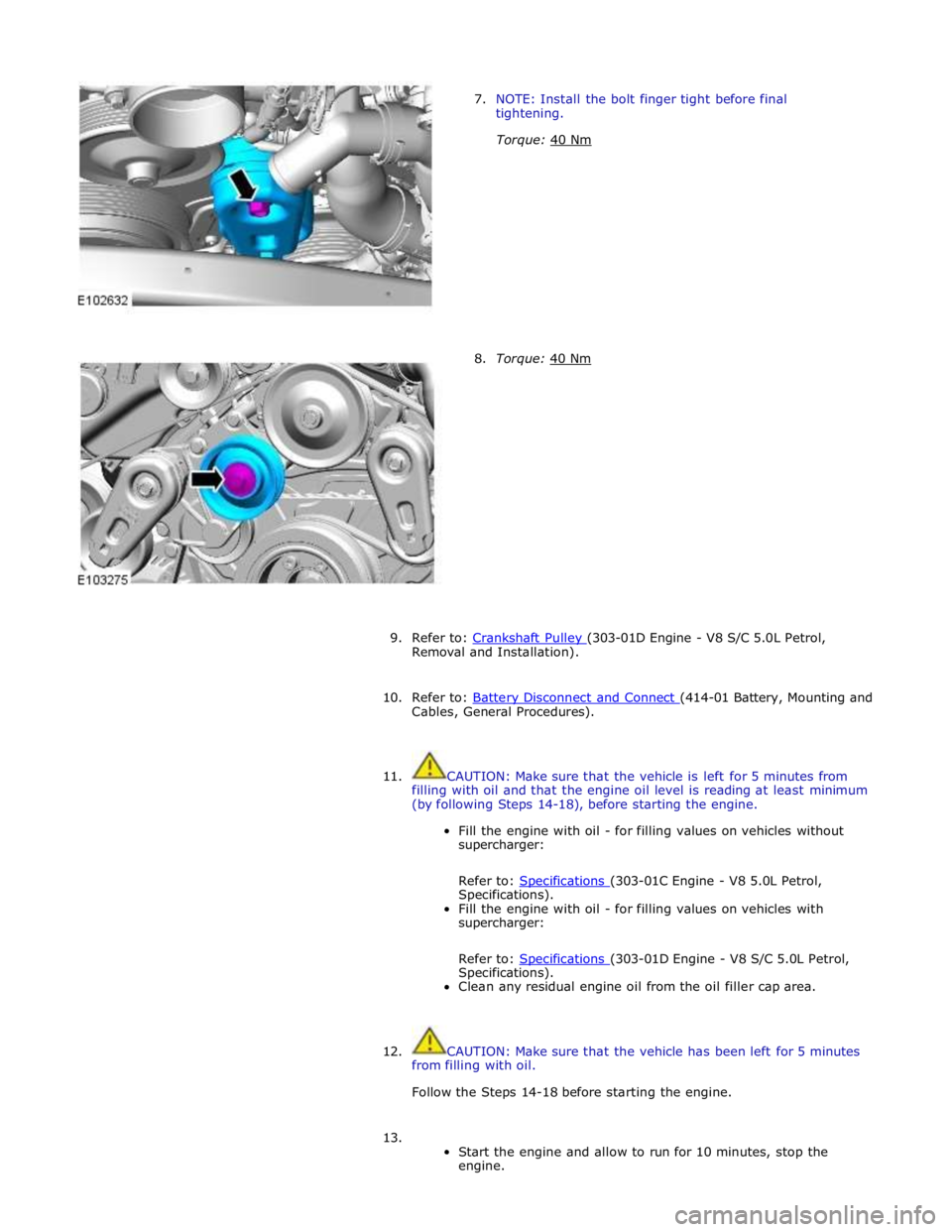

JAGUAR XFR 2010 1.G Workshop Manual 7. NOTE: Install the bolt finger tight before final tightening. Torque: 40 Nm 8. Torque: 40 Nm 9. Refer to: Crankshaft Pulley (303-01D Engine
