Page 2201 of 3039

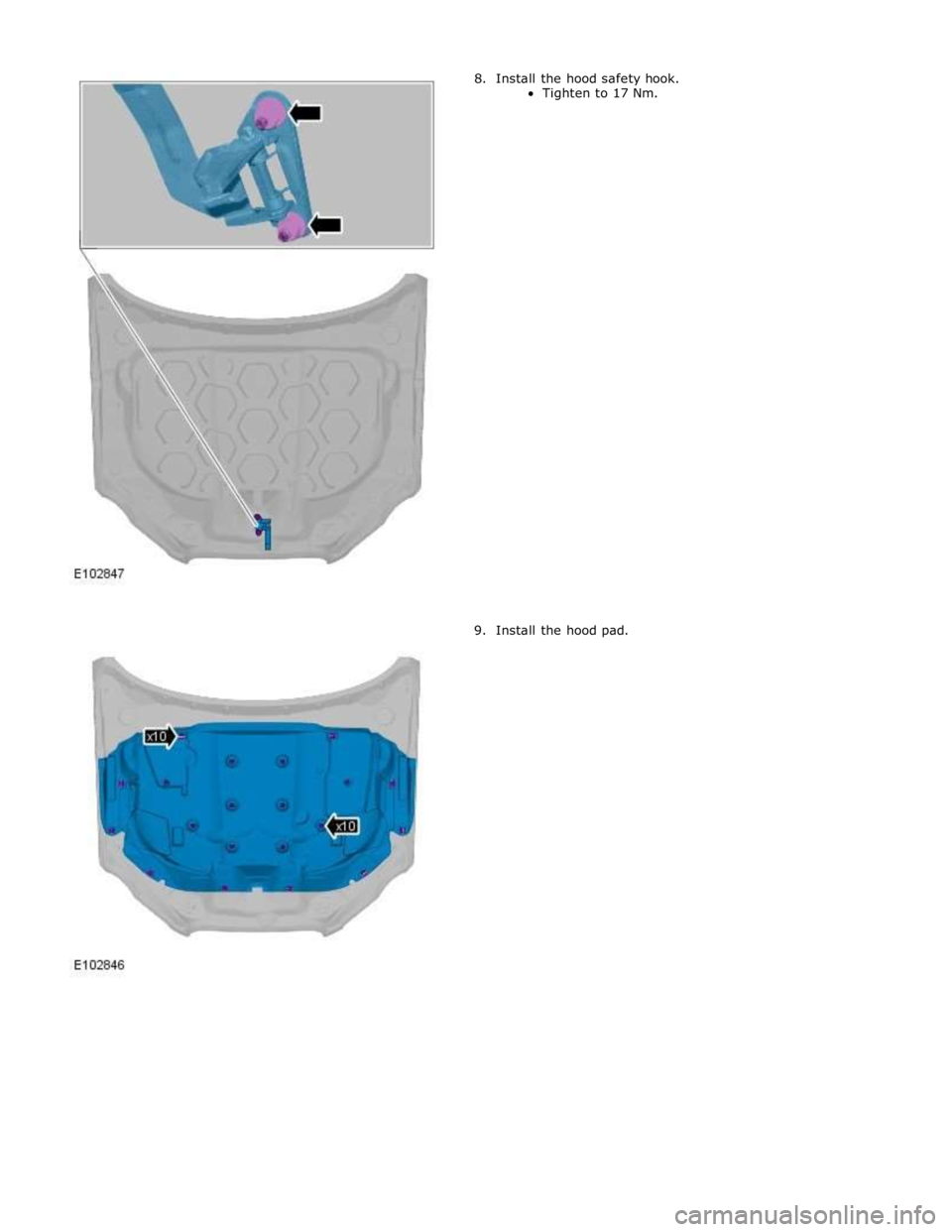

JAGUAR XFR 2010 1.G Workshop Manual

Page 2202 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Front End Body Panels - Radiator Splash Shield Removal and Installation Removal Published: 11-May-2011 1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the v

Page 2203 of 3039

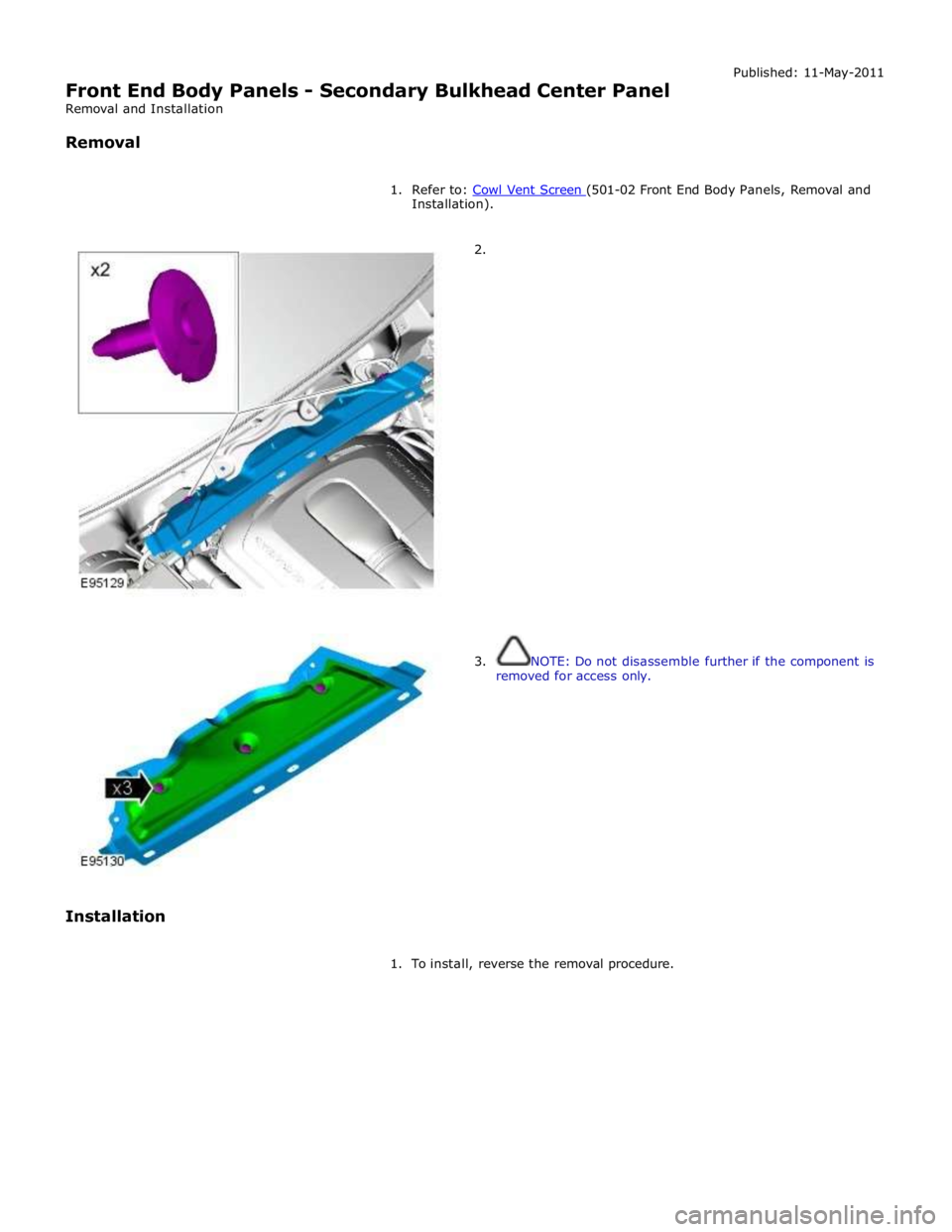

JAGUAR XFR 2010 1.G Workshop Manual Installation). Installation 2. 3. NOTE: Do not disassemble further if the component is removed for access only. 1. To instal

Page 2204 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Front End Body Panels - Secondary Bulkhead Panel LH TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol Removal and Installation Removal NOTE: Removal steps in this pr

Page 2205 of 3039

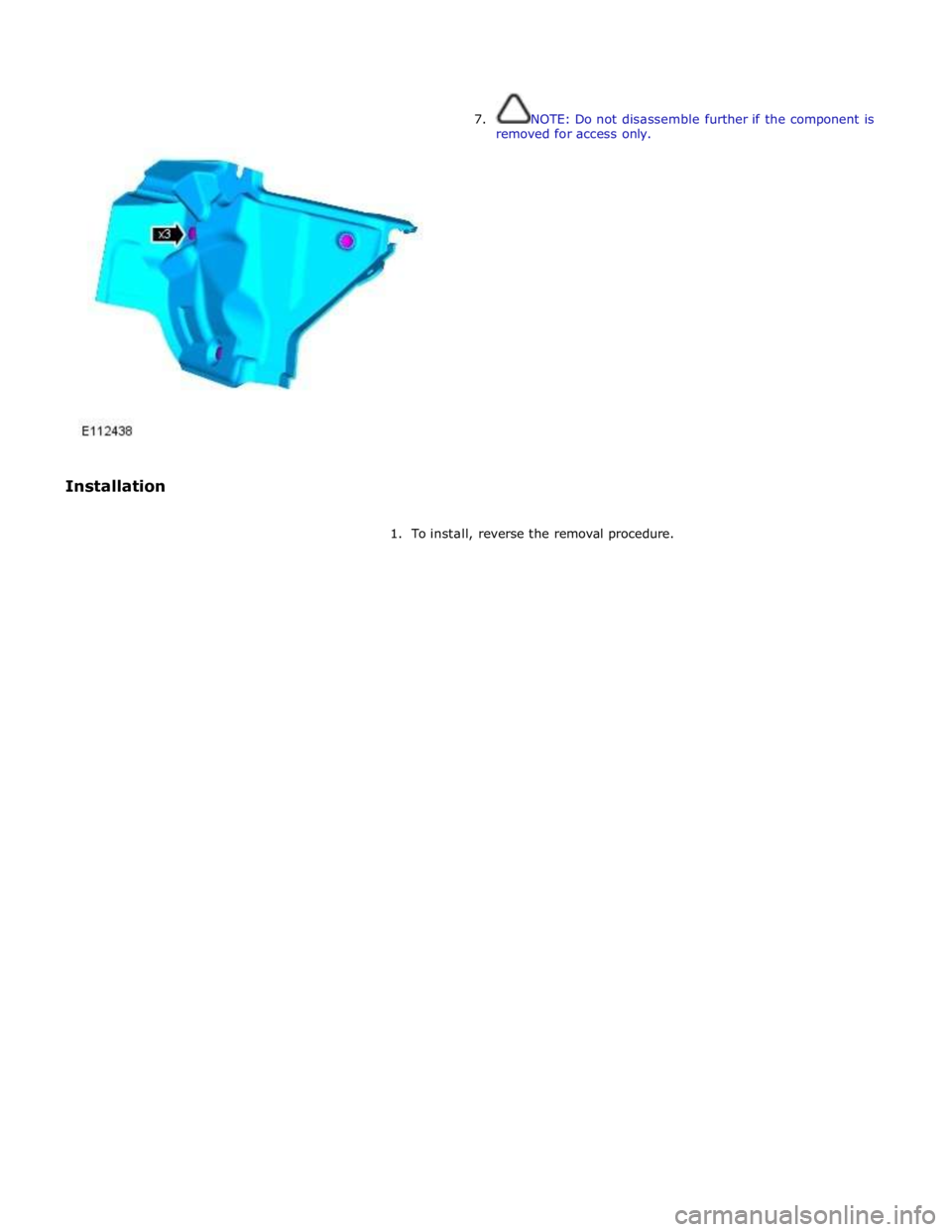

JAGUAR XFR 2010 1.G Workshop Manual Torque: 5 Nm www.JagDocs.com

Page 2206 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2207 of 3039

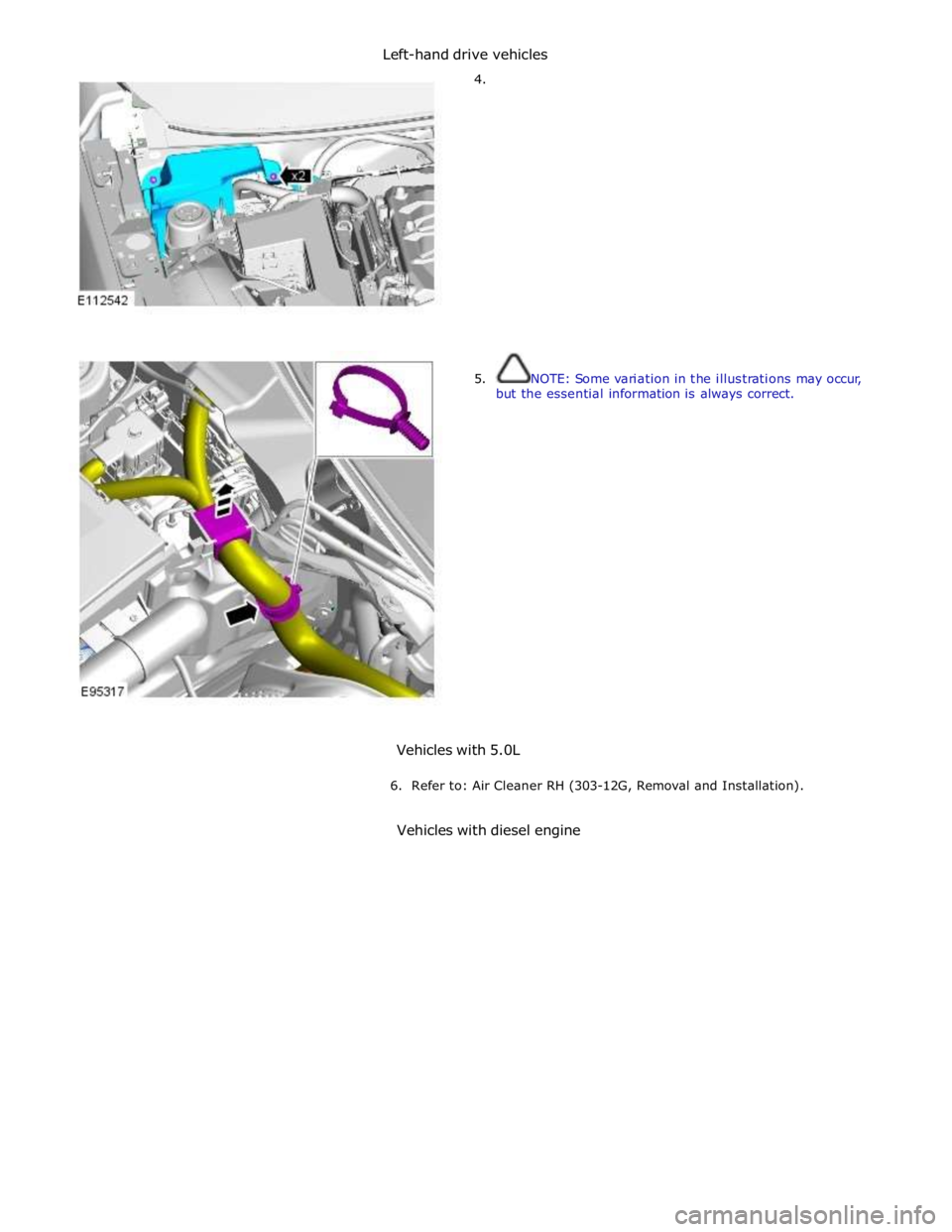

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Front End Body Panels - Secondary Bulkhead Panel RH TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol Removal and Installation Removal NOTE: Removal steps in this pr

Page 2208 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
