Page 2361 of 3039
Removal and Installation).
8. Remove the lumbar assembly.
For additional information, refer to: Lumbar Assembly (501-10 Seating, Removal and Installation).
9. Remove the front seat head restraint motor.
For additional information, refer to: Front Seat Head Restraint Motor (501-10 Seating, Removal and Installation).
Installation
1. To install, reverse the removal procedure.
TORQUE: 35 Nm
2. If a new component has been installed, configure using Jaguar approved
diagnostic equipment.
Page 2362 of 3039
Seating - Front Seat Backrest Cover
Removal and Installation
Removal Published: 11-May-2011
1. Make the air bag supplemental restraint system (SRS) safe.
For additional information, refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
2. Remove the front seat.
For additional information, refer to: Front Seat (501-10 Seating, Removal and Installation).
3. Remove the side air bag module.
For additional information, refer to: Side Air Bag Module (501-20B Supplemental Restraint System, Removal and Installation).
4. NOTE: If equipped.
Reposition the front seat backrest thermo-electric device.
5. NOTE: If equipped.
Release the front seat backrest thermo-electric device duct
6. NOTE: If equipped.
Remove the front seat backrest thermo-electric device
retaining screws.
Page 2363 of 3039
7. NOTE: If equipped.
Remove the front seat backrest thermo-electric device.
Disconnect the electrical connector.
8. Remove the front seat head restraint.
9. Remove the front seat head restraint motor.
For additional information, refer to: Front Seat Head Restraint Motor (501-10 Seating, Removal and Installation).
10. NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
Using a suitable tool, remove the front seat head restraint
guide sleeves.
Page 2364 of 3039
11. Remove the front seat backrest cushion and cover from the front seat
frame.
12.
13. Remove and discard the hog rings.
Remove the 22 hog rings.
Remove the front seat backrest cover.
Installation
1. NOTES:
Make sure that new hog rings are installed.
Use hog ring pliers to close the hog rings. Do not use any
other tool. The hog rings must be closed to overlap as
illustrated.
To install, reverse the removal procedure. www.JagDocs.com
Page 2365 of 3039
Seating - Front Seat Bolster
Removal and Installation
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct. Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Refer to: Front Seat Backrest Cover (501-10 Seating, Removal and Installation).
Installation
3.
4. WARNING: The procedure must be carried out on both
sides of the seat.
CAUTION: Make sure that the clips are correctly
located.
1. To install, reverse the removal procedure.
Page 2366 of 3039
Seating - Front Seat Bolster Pump
Removal and Installation
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct. Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Refer to: Front Seat Backrest Cover (501-10 Seating, Removal and Installation).
3.
Installation
1. To install, reverse the removal procedure.

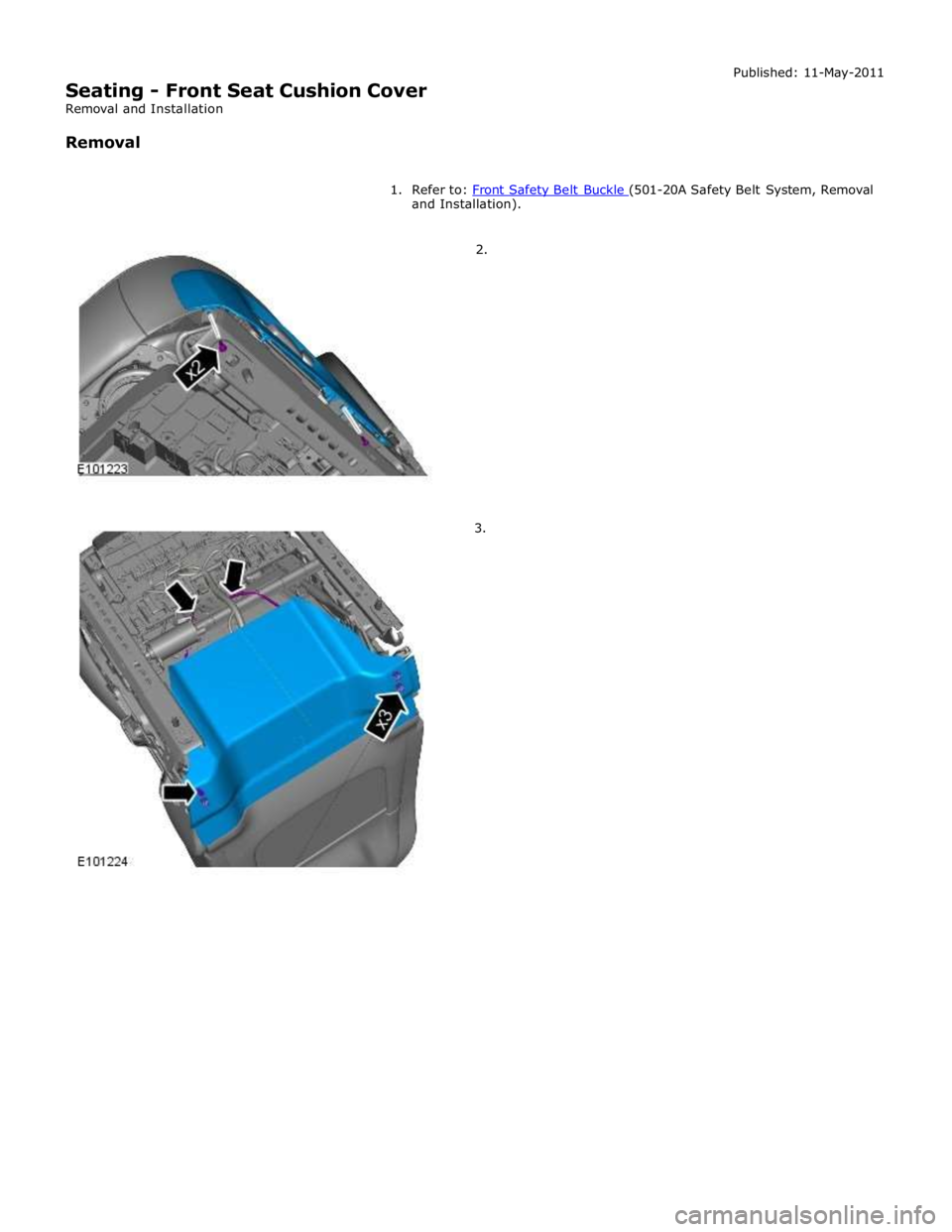

Page 2367 of 3039

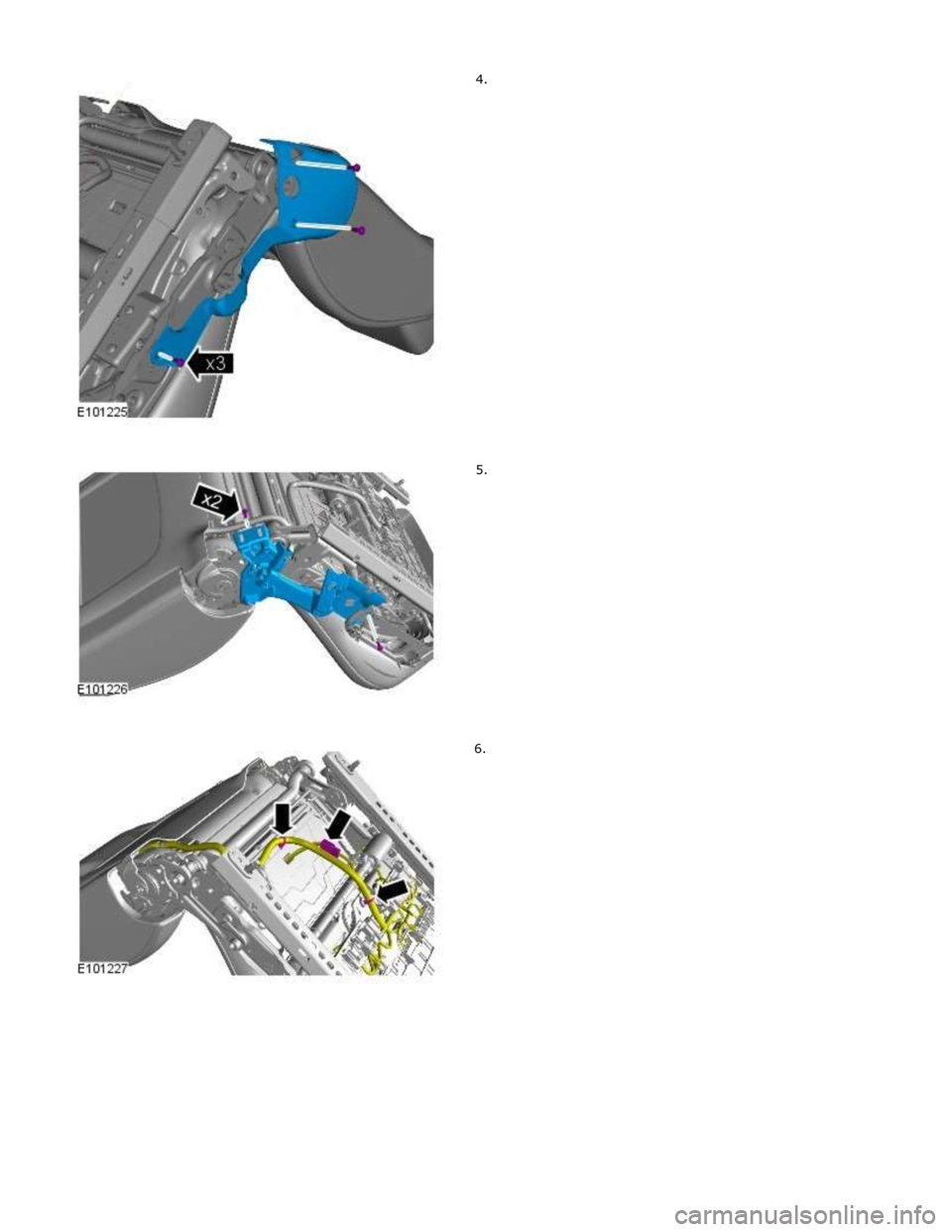

Page 2368 of 3039
