Page 2497 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Connect the door release cable correctly. If the cable is damaged, install a new door release cable. Test the system for normal operation A2: CHECK THE EXTERIOR DOOR HANDLE RELEASE CONNECTION TO

Page 2498 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Remove the door trim panel as necessary 3 Confirm the interior door release cable is correctly installed to the interior door handle Is the cable correctly installed? Yes GO to B2. No Connect t

Page 2499 of 3039

JAGUAR XFR 2010 1.G Workshop Manual NOTE: Test as a single component to ensure that the door latch is not replaced unnecessarily, when another component may be at fault 1 Remove the door trim panel as necessary 2 Disconnect h

Page 2500 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Is there momentary power (for approx 8 seconds) between terminals 5 and 7 left side and 5 and 7 right side when unlocking the vehicle via the key-fob or smart key? Yes The vehicle electrical sys

Page 2501 of 3039

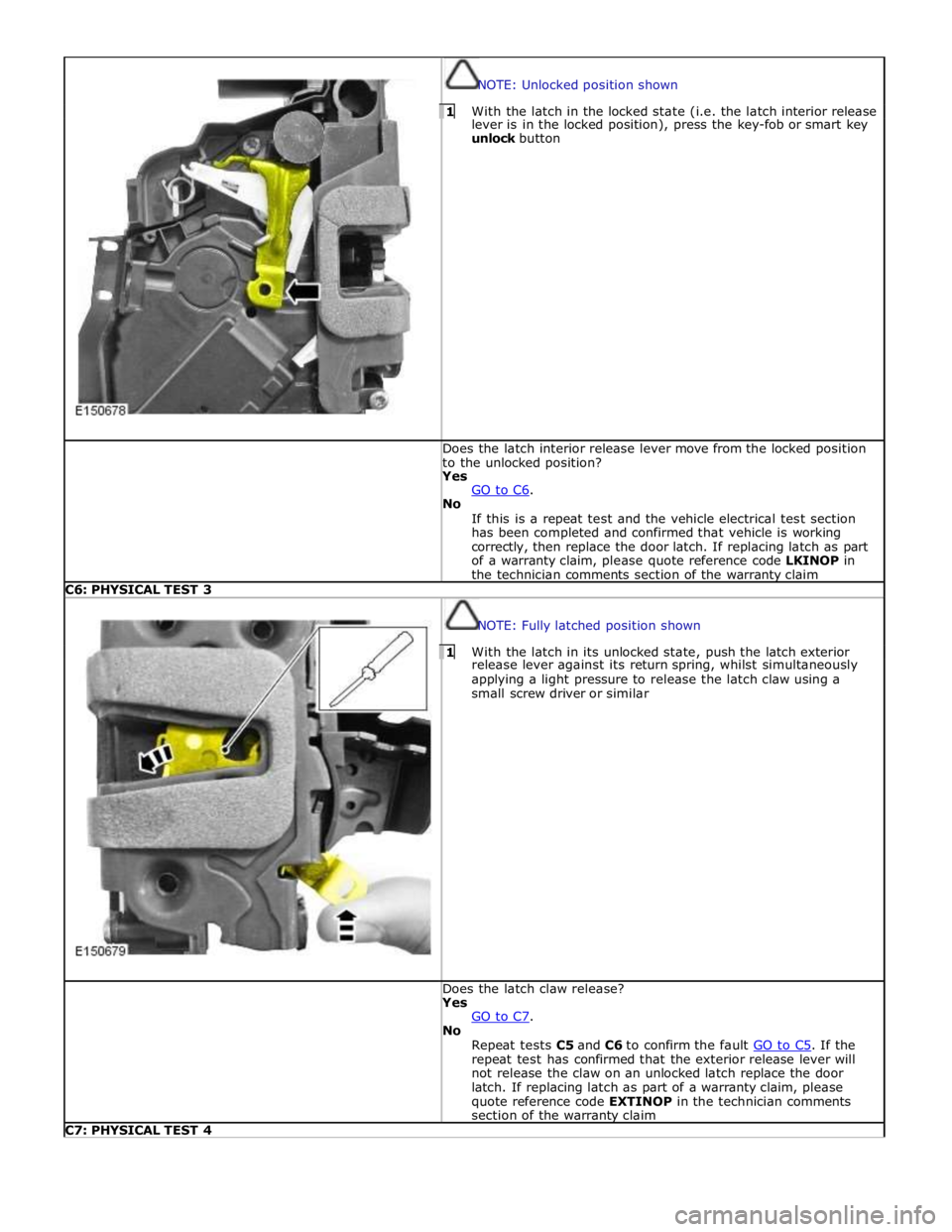

JAGUAR XFR 2010 1.G Workshop Manual NOTE: Unlocked position shown 6 Confirm that the latch interior release lever is in the unlocked position as shown NOTE: Locked position shown 7 Press the lock button on the key-fob or smart k

Page 2502 of 3039

JAGUAR XFR 2010 1.G Workshop Manual NOTE: Unlocked position shown 1 With the latch in the locked state (i.e. the latch interior release lever is in the locked position), press the key-fob or smart key unlock button Does the latch

Page 2503 of 3039

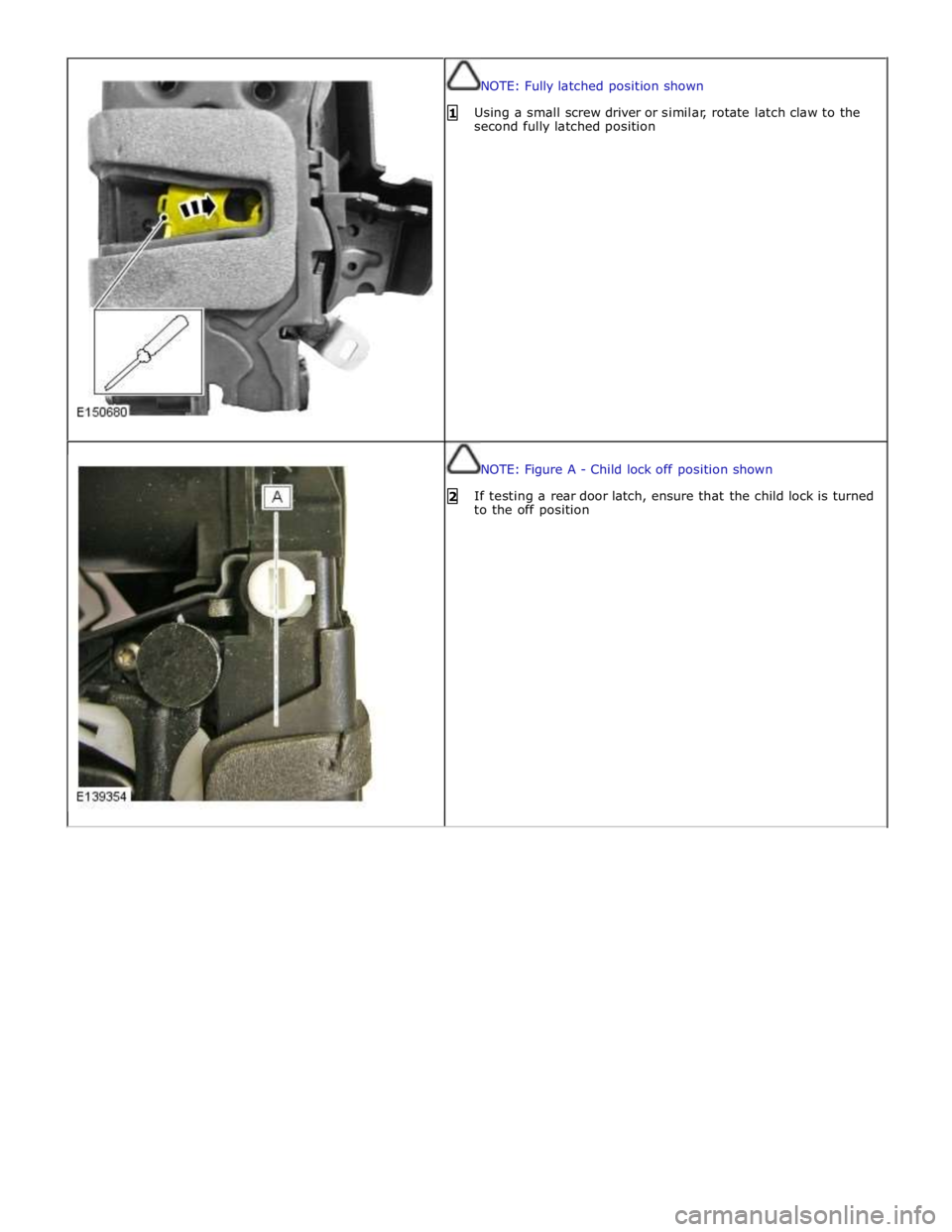

JAGUAR XFR 2010 1.G Workshop Manual NOTE: Fully latched position shown 1 Using a small screw driver or similar, rotate latch claw to the second fully latched position NOTE: Figure A - Child lock off position shown 2 If testing a

Page 2504 of 3039

JAGUAR XFR 2010 1.G Workshop Manual NOTE: Unlocked position shown 3 Confirm that the latch interior release lever is in the unlocked position as shown 4 Whilst the latch is still in its unlocked state, push the latch interior
