Page 1433 of 3039

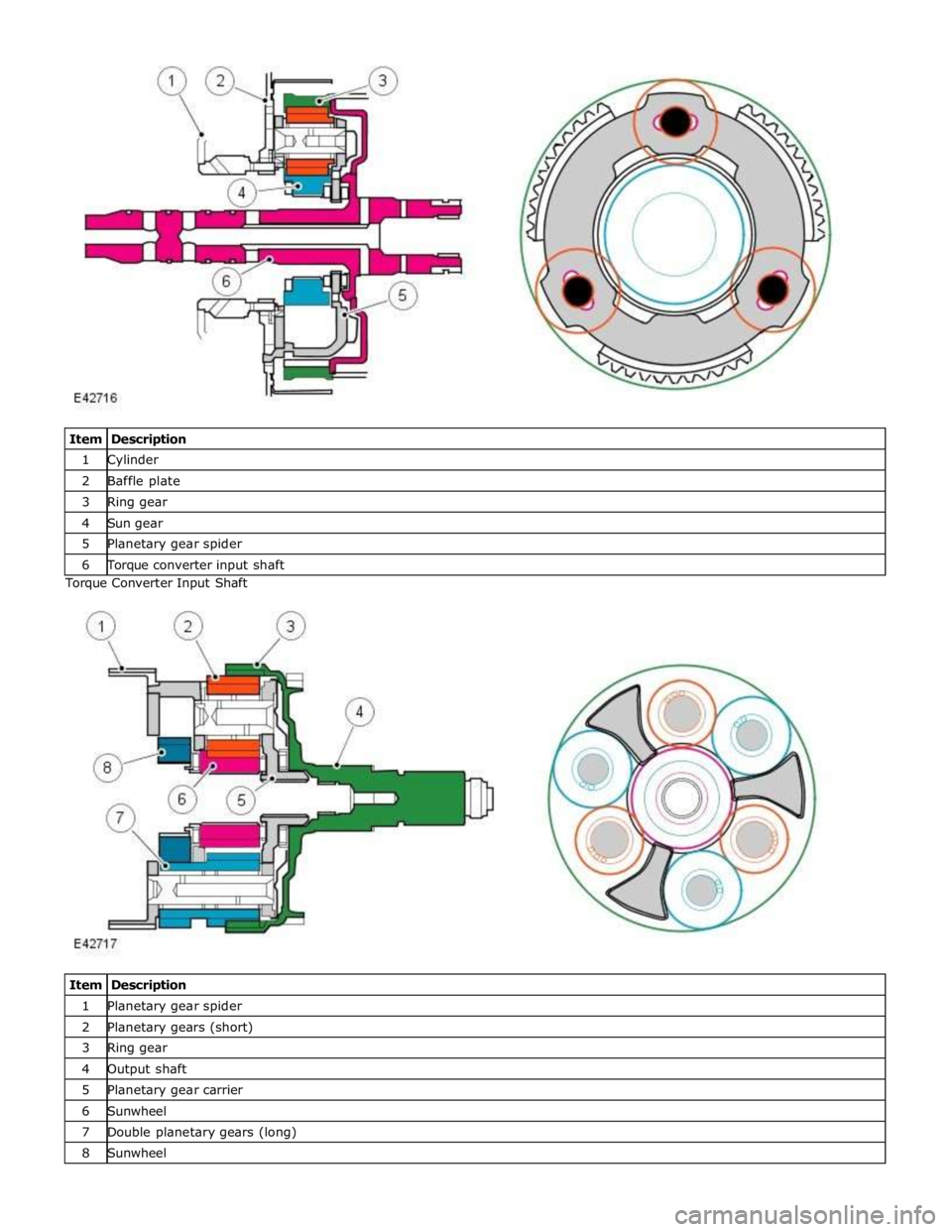

JAGUAR XFR 2010 1.G Workshop Manual 1 Cylinder 2 Baffle plate 3 Ring gear 4 Sun gear 5 Planetary gear spider 6 Torque converter input shaft Torque Converter Input Shaft

Item Description 1 Planetary gear spider 2 Planetary gears (

Page 1434 of 3039

JAGUAR XFR 2010 1.G Workshop Manual solenoid valve in the valve housing directs hydraulic pressure to the lock cylinder, which moves the piston within the cylinder
and releases the park lock pawl at the rear of the transmission by mean

Page 1435 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Published: 25-Aug-2011
Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Diagnostics
Diagnosis and Testing

Principle of Operation

For a detailed descript

Published: 25-Aug-2011
Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol - Diagnostics
Diagnosis and Testing

Principle of Operation

For a detailed description of the automatic transmission/transaxle, refer to the relevant Description and Operation section n
the workshop manual. REFER to: (307-01B Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L
Petrol)

Transmission Description (Description and Operation), Transmission Description (Description and Operation), Transmission Description (Description and Operation).
Fluid Level and Condition Check

CAUTION: The vehicle should not be driven if the fluid level is low as internal failure can result.

NOTE: The transmission fluid temperature must not be allowed to exceed 50°C (122°F) whilst checking level. Should the
temperature rise above this figure, abort the check and allow the transmission fluid to cool to below 30°C (86°F).

This vehicle is not equipped with a fluid level indicator. An incorrect level may affect the transmission operation and could
result in transmission damage. To correctly check and add fluid to the transmission.
REFER to: Transmission Fluid Level Check (307-01B Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).

High Fluid Level

A fluid level that is too high may cause the fluid to become aerated due to the churning action of the rotating internal parts.
This will cause erratic control pressure, foaming, loss of fluid from the vent tube and possible transmission damage. If an
overfill condition is identified, with the engine at idle ensure the fluid temperature is within the specified range and allow the
excess fluid to drain until a small thread of fluid runs from the filler/level plug hole.

Low Fluid Level

A low fluid level could result in poor transmission engagement, slipping, or damage. This could also indicate a leak in one of
the transmission seals or gaskets.
REFER to: Transmission Fluid Level Check (307-01B Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).

Adding Fluid

CAUTION: The use of any other type of transmission fluid other than that specified can result in transmission damage.

If fluid needs to be added, add fluid in 0.50 liter increments through the fill hole Opening. Do not overfill the fluid. For fluid
type, refer to the General Specification chart in this section.
REFER to: Specifications (307-01B Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol, Specifications).

Fluid Condition Check

1. Check the fluid level.
REFER to: Transmission Fluid Level Check (307-01B Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).
2. Observe the color and the odor of the fluid. The color under normal circumstances should be Honey.

3. Allow the fluid to drip onto a facial tissue and examine the stain.
4. If evidence of solid material is found, the transmission fluid pan should be removed for further inspection.

NOTE: In the event of a transmission unit replacement for internal failure, the oil cooler and pipes must also be replaced.

Inspection and Verification

1. Verify the customer concern.

2. Visually inspect for obvious signs of damage and system integrity.

Page 1436 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Visual Inspection

Mechanical Electrical Hydraulic
Damaged/stuck shift mechanism
Damaged automatic transmission casing
Blown fuse(s)
Damaged, loose or corroded connectors
Wiring harness
Flu

Visual Inspection

Mechanical Electrical Hydraulic
Damaged/stuck shift mechanism
Damaged automatic transmission casing
Blown fuse(s)
Damaged, loose or corroded connectors
Wiring harness
Fluid level too high/low
Poor condition of fluid
Fluid leak
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to
the next step.
4. If the cause is not visually evident check for diagnostic trouble codes (DTCs) and refer to the DTC Index.

DTC Index

CAUTION: When probing connectors to take measurements in the course of the pinpoint tests, use the adaptor kit, part
number 3548-1358-00.
NOTES:

If the control module/transmission is suspect and the vehicle remains under manufacturer warranty, refer to the Warranty
Policy and Procedures manual (section B1.2), or determine if any prior approval programme is in operation, prior to the
installation of a new module/transmission.

Generic scan tools may not read the codes listed, or may read only five digit codes. Match the five digits from the scan
tool to the first five digits of the seven digit code listed to identify the fault (the last two digits give additional information
read by the manufacturer approved diagnostic system).

When performing electrical voltage or resistance tests, always use a digital multimeter (DMM) accurate to three decimal
places, and with an up-to-date calibration certificate. When testing resistance, always take the resistance of the DMM leads
into account.

Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

Inspect connectors for signs of water ingress, and pins for damage and/or corrosion.

If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern may be the
cause. Always check for loose connections and corroded terminals.

DTC Description Possible Cause Action P0121-86 Throttle/Pedal Position
Sensor A Circuit
Range/Performance - signal
invalid
Throttle/Pedal Position
Sensor Fault (Data
received over CAN Bus) Check Engine Control Module for stored DTCs P0219-86 Engine Overspeed Condition
- signal invalid
Engine speed too low or
too high (Data received
over CAN Bus) Check Engine Control Module for stored DTCs P0500-81
Vehicle Speed Sensor A -
invalid serial data received
Vehicle Speed Sensor
fault (Data received over
CAN Bus) Check DSC module for stored DTCs P0501-81 Vehicle Speed Sensor A
Vehicle Speed receive Check Anti-lock braking system module for stored Range/Performance invalid DTCs. Check correct Differential is installed to the serial data received over CAN Bus does not
vehicle match Transmission Output-Shaft speed P0561-1C
System Voltage Unstable -
Circuit voltage out of range
Power supply voltage out
of range when engine
running Check Engine control module for stored DTCs. Check
Charging System and Battery condition P0562-21
System Voltage Low - signal
amplitude < minimum
Circuit low voltage.
Battery supply voltage to
Transmission Control
Module (Transmission Refer to Circuit diagrams and check Power and Ground
Circuit for fault. Check Engine control module for
stored DTCs. Check Charging System and Battery
condition

Page 1437 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
DTC Description Possible Cause Action control module)
P0563-22
System Voltage High - signal
amplitude > maximum
High Battery charge,
alternator fault Check Engine control module for stored

DTC Description Possible Cause Action control module)
P0563-22
System Voltage High - signal
amplitude > maximum
High Battery charge,
alternator fault Check Engine control module for stored DTCs. Check
Charging System and Battery condition P0601-41
Internal Control Module
Memory Check Sum Error -
general checksum failure
Software error
Transmission control
module failure Re-configure the Transmission control module using
the manufacturer approved diagnostic system, clear
DTC and re-test. If DTC remains, Suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0604-00
Internal Control Module
Random Access Memory
(RAM) Error - no sub type
information
Shift-by-Wire fault Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0605-41
Internal Control Module
Read Only Memory (ROM)
Error - general checksum
failure
General checksum failure Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0606-04 Transmission control module
Processor - System Internal
Failures
Micro controller
component faults Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0606-26 Transmission control module
Processor - signal rate of
change below threshold
Micro controller
component faults Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0606-49 Transmission control module
Processor-internal electronic
failure
Micro controller
component faults Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-04 Transmission control module
Processor - System Internal
Failures
Micro controller
component faults Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-06 Transmission control module
Processor - Algorithm Based
Failures
Micro controller
component faults Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-11 Transmission control module
Processor - Circuit Short to
Ground
Watchdog fault Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-12 Transmission control module
Processor - Circuit Short to
Battery
Watchdog fault Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-13 Transmission control module
Processor - Circuit Open
Watchdog fault Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-14 Transmission control module
Processor - Circuit Short to
Ground or Open
Watchdog fault Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-21 Transmission control module
Processor - signal amplitude
< minimum
Watchdog fault Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-22 Transmission control module
Processor - signal amplitude
> maximum
Watchdog fault Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-47 Transmission control module
Processor - watchdog /
safety Micro controller
failure
Watchdog fault Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-49 Transmission control module
Processor - internal
electronic failure
Micro controller
component faults Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0613-68 Transmission control module
Processor-Event Information
Watchdog fault Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index www.JagDocs.com

Page 1438 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
DTC Description Possible Cause Action P061B-02
Internal Control Module Torque Calculation
Performance - general signal
failure
Transmission control
module - positive torque
signal not valid S

DTC Description Possible Cause Action P061B-02
Internal Control Module Torque Calculation
Performance - general signal
failure
Transmission control
module - positive torque
signal not valid Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the
top of the DTC Index P061B-26
Internal Control Module Torque Calculation
Performance - signal rate of
change below threshold
Transmission control
module positive torque
signal not valid Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the
top of the DTC Index P062F-04
Internal Control Module
EEPROM Error - System
Internal Failures
EEPROM communication
error Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0642-21
Sensor Reference Voltage A
Circuit Low - signal
amplitude < minimum
Sensor supply voltage
fault low Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0643-22
Sensor Reference Voltage A
Circuit High - signal
amplitude > maximum
Sensor supply voltage
fault high Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0657-13
Actuator Supply Voltage A
Circuit / Open - Circuit Open
Actuator supply (pressure
control valves etc) Open
Circuit Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the
top of the DTC Index P0657-1C
Actuator Supply Voltage A
Circuit / Open - Circuit
voltage out of range
Actuator supply (pressure
control valves etc)
voltage plausibility fault Refer to electrical Circuit diagrams and check
Transmission control module connector for signs of
water ingress or damage, check pin 7 for Short to
Power or Ground (should NOT be connected and
harness terminal should have a bung fitted). If no
fault identified, suspect the Transmission control
module. Check and install a new Transmission control
module as required, refer to the new
module/component installation note at the top of the
DTC Index P0658-11
Actuator Supply Voltage A
Circuit Low - Circuit Short to
Ground
Actuator supply (pressure
control valves etc)
voltage Short to Ground Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the
top of the DTC Index P0659-12
Actuator Supply Voltage A
Circuit High - Circuit Short to
Battery
Actuator supply (pressure
control valves etc)
voltage Short to Power Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the
top of the DTC Index P0667-01 PCM / Engine control module / Transmission control
module Internal Temperature
Sensor A Range/Performance
- General Electrical Failure
General electrical failure Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the
top of the DTC Index P0667-04 PCM / Engine control module / Transmission control
module Internal Temperature
Sensor A Range/Performance
- System Internal Failures
Internal Electronic Failure Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the
top of the DTC Index P0667-49 PCM / Engine control module / Transmission control
module Internal Temperature
Sensor A Range/Performance
- internal electronic failure
Internal electronic failure Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the
top of the DTC Index P0700-02 Transmission Control System
(MIL Request) - General signal failure
General Signal failure Clear DTC, Road test and re-test, Read DTCs and
Investigate as required P0700-22 Transmission Control System
(MIL Request) - signal
amplitude > maximum
Double fault from
monitoring of internal
power supply and
pressure
regulator/solenoid
control software If any of the following DTCs are also present;
P074013, P096712, P273912, P273012, P272112,
P096312, P276312, P097112, suspect the Transmission
control module, check and install a new Transmission
control module as required, refer to the new
module/component installation note at the top of the
DTC Index P0700-75 Transmission Control System
(MIL Request) - Emergency
Position Not Reachable
Emergency Position Not
Reachable Clear DTC, Road test and re-test, Read DTCs and
investigate as required

Page 1439 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
DTC Description Possible Cause Action P0710-13 Transmission Fluid Temperature Sensor A Circuit
- Circuit Open
Transmission fluid
temperature sensor
Circuit Open Circuit Clear DTC and test. If c

DTC Description Possible Cause Action P0710-13 Transmission Fluid Temperature Sensor A Circuit
- Circuit Open
Transmission fluid
temperature sensor
Circuit Open Circuit Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0711-01 Transmission Fluid Temperature Sensor A Circuit
Range/Performance -
General Electrical Failure
General electrical failure Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0711-22 Transmission Fluid Temperature Sensor A Circuit
Range/Performance - signal
amplitude > maximum
Signal amplitude >
maximum. Excessive
jump in temperature Clear DTC. Carry out cold start road test, continue
driving vehicle until normal operating temperature is
achieved. Reads DTCs, if DTC returns, suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0712-11 Transmission Fluid Temperature Sensor A Circuit
Low - Circuit Short to Ground
Transmission fluid
temperature sensor
Circuit Short to Ground Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0713-01 Transmission Fluid Temperature Sensor A Circuit
High-General Electrical
Failure
General electrical failure Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0713-12 Transmission Fluid Temperature Sensor A Circuit
High - Circuit Short to
Battery
Transmission fluid
temperature sensor
Circuit Short to Power Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0716-14 Turbine/Input Shaft Speed
Sensor A Circuit
Range/Performance - Circuit
Short to Ground or Open
Turbine/Input Shaft
Speed Sensor Circuit
Short to Ground or Open
Circuit Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0716-21 Turbine/Input Shaft Speed
Sensor A Circuit
Range/Performance - signal
amplitude < minimum
Turbine/Input Shaft
Speed Sensor signal too
small Clear DTC and road test, if DTC returns suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0716-22 Turbine/Input Shaft Speed
Sensor A Circuit
Range/Performance - signal
amplitude > maximum
Turbine/Input Shaft
Speed Sensor signal
above maximum Clear DTC and road test, if DTC returns suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0717-12 Turbine/Input Shaft Speed
Sensor A Circuit No Signal -
Circuit Short to Battery
Turbine/input shaft speed
sensor A Circuit Short to
Power Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0720-12
Output Shaft Speed Sensor
Circuit - Circuit Short to
Battery
Transmission output
shaft speed sensor
Circuit Short to Power Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0720-14
Output Shaft Speed Sensor
Circuit - Circuit Short to
Ground or Open
Transmission output
shaft speed sensor
Circuit Short to Ground or
Open Circuit Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0721-22
Output Shaft Speed Sensor
Circuit Range/Performance -
signal amplitude >
maximum
Transmission output
shaft speed sensor
signal above maximum Clear DTC and road test, if DTC returns suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0721-27
Output Shaft Speed Sensor
Circuit Range/Performance -
signal rate of change above
threshold
Output shaft speed
negative gradient too
high Clear DTC and road test, if DTC returns suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index

Page 1440 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
DTC Description Possible Cause Action P0721-64
Output Shaft Speed Sensor
Circuit Range/Performance -
signal plausibility failure
Signal plausibility failure Clear DTC and test. If code re-detec

DTC Description Possible Cause Action P0721-64
Output Shaft Speed Sensor
Circuit Range/Performance -
signal plausibility failure
Signal plausibility failure Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0731-07
Incorrect Gear Ratio-
Mechanical Failures
Gear Ratio Monitoring.
Mechanical Failures Check and correct oil level. Clear DTC. If code
re-detects suspect Transmission (gearbox) internal
fault. Install a new Transmission as required, refer to
the new module/component installation note at the top of the DTC Index P0732-07
Incorrect Gear Ratio-
Mechanical Failures
Gear Ratio Monitoring.
Mechanical Failures Check and correct oil level. Clear DTC. If code
re-detects suspect Transmission (gearbox) internal
fault. Install a new Transmission as required, refer to
the new module/component installation note at the top of the DTC Index P0733-07
Incorrect Gear Ratio-
Mechanical Failures
Gear Ratio Monitoring.
Mechanical Failures Check and correct oil level. Clear DTC. If code
re-detects suspect Transmission (gearbox) internal
fault. Install a new Transmission as required, refer to
the new module/component installation note at the top of the DTC Index P0734-07
Incorrect Gear Ratio-
Mechanical Failures
Gear Ratio Monitoring.
Mechanical Failures Check and correct oil level. Clear DTC. If code
re-detects suspect Transmission (gearbox) internal
fault. Install a new Transmission as required, refer to
the new module/component installation note at the top of the DTC Index P0735-07
Incorrect Gear Ratio-
Mechanical Failures
Gear Ratio Monitoring.
Mechanical Failures Check and correct oil level. Clear DTC. If code
re-detects suspect Transmission (gearbox) internal
fault. Install a new Transmission as required, refer to
the new module/component installation note at the top of the DTC Index P0736-07
Incorrect Gear Ratio-
Mechanical Failures
Gear Ratio Monitoring.
Mechanical Failures Check and correct oil level. Clear DTC. If code
re-detects suspect Transmission (gearbox) internal
fault. Install a new Transmission as required, refer to
the new module/component installation note at the top of the DTC Index P0740-13 Torque Converter Clutch
Solenoid Circuit / Open -
Circuit Open
Pressure control solenoid
2 Circuit Open Circuit Clear DTC and test. If code re-detects suspect the
Transmission control module. Install a new
Transmission control module as required, refer to the
new module/component installation note at the top of
the DTC Index P0741-07 Torque Converter Clutch
Solenoid Circuit
Performance/Stuck Off -
Mechanical Failures
Too high slip at torque
converter clutch.
Mechanical Failures Suspect torque converter lockup clutch. Install a new
torque converter, refer to the new module/component
installation note at the top of the DTC Index. If
transmission fluid is in very poor condition and dirty,
install a new transmission, refer to the new
module/component installation note at the top of the
DTC Index P0745-04 Pressure Control Solenoid A
- System Internal Failures
System Internal Failures Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0745-48 Pressure Control Solenoid A
- Supervision Software
Failure
Supervision Software
Failure Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0758-12
Shift Solenoid B Electrical -
Circuit Short to Battery
Circuit Short to Power Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0758-13
Shift Solenoid B Electrical -
Circuit Open
Solenoid valve 1 or
Pressure control Solenoid
G Circuit Open Circuit Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the
top of the DTC Index P0771-71
Shift Solenoid E
Performance/Stuck Off -
actuator stuck
Actuator stuck Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0775-04 Pressure Control Solenoid B
- System Internal Failures
System Internal Failures Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index P0775-48 Pressure Control Solenoid B
- Supervision Software
Failure
Supervision Software
Failure Suspect the Transmission control module. Install a
new Transmission control module as required, refer to
the new module/component installation note at the top of the DTC Index

Load next 8 pages

Page: < prev 1-10 ... 1401-1408 1409-1416 1417-1424 1425-1432 1433-1440 1441-1448 1449-1456 1457-1464 1465-1472 ... 3040 next >

handbrake dead battery fuel fill door release drain bolt jacking points warning
