Page 2457 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Instrument Panel and Console - Floor Console Cup Holder Removal and Installation Removal NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011 1.

Page 2458 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 1. NOTE: Make sure that the veneer trim panel is correctly installed and secured. To install, reverse the removal procedure.

Page 2459 of 3039

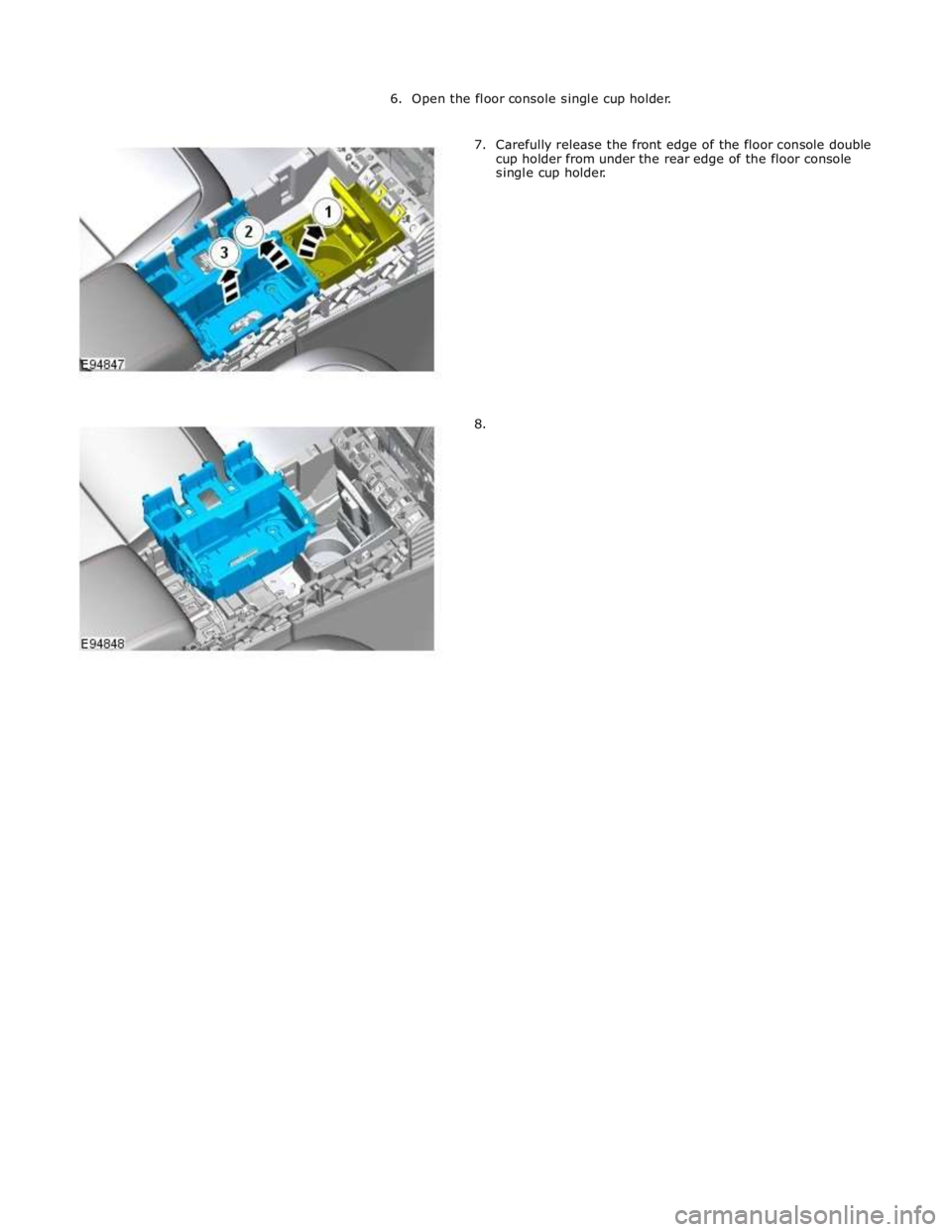

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Instrument Panel and Console - Floor Console Double Cup Holder Removal and Installation Removal NOTE: Removal steps in this procedure may contain installation details.

Page 2460 of 3039

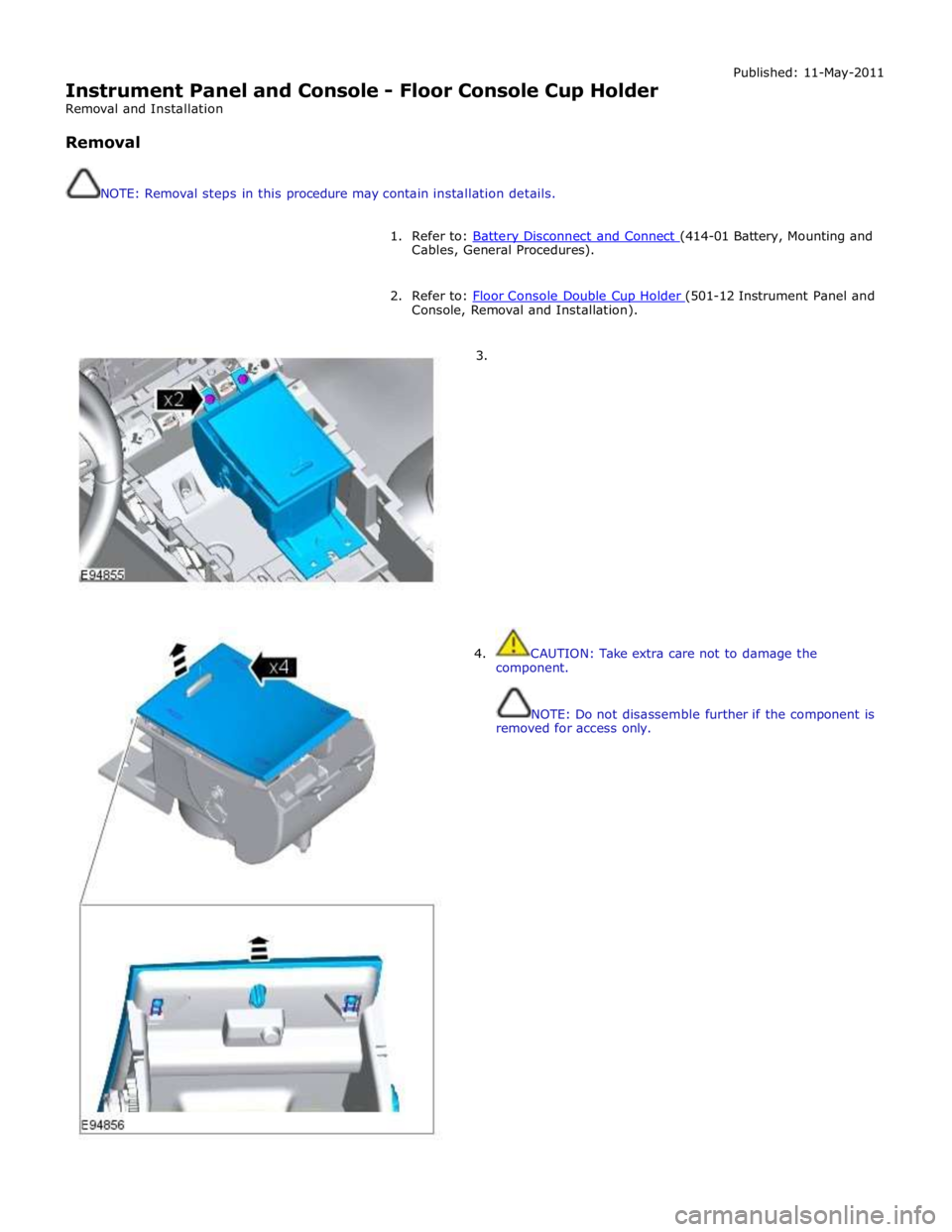

JAGUAR XFR 2010 1.G Workshop Manual

Page 2461 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 9. CAUTION: Take extra care not to damage the component. NOTE: Do not disassemble further if the component is removed for access only. 1. NOTE: Make sure that the vene

Page 2462 of 3039

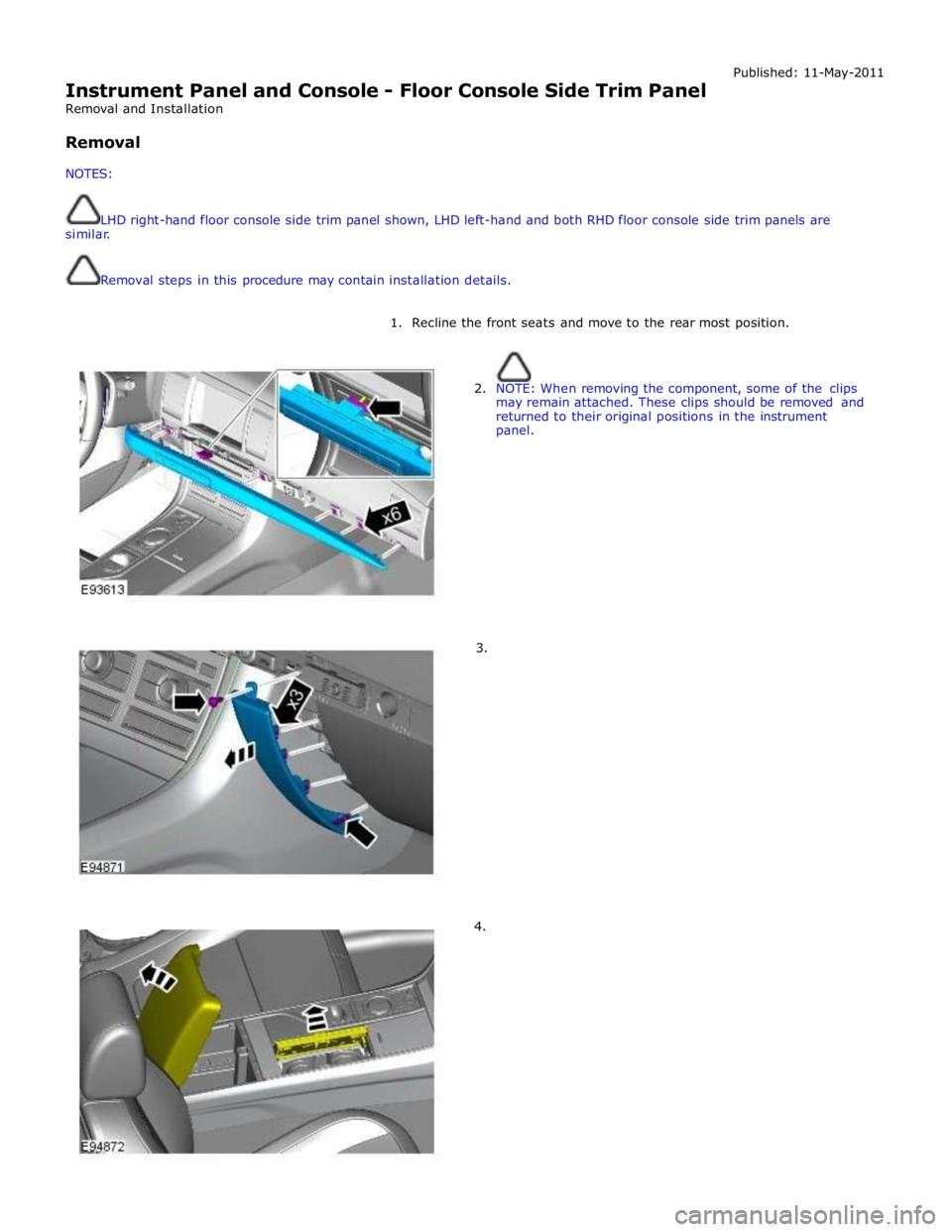

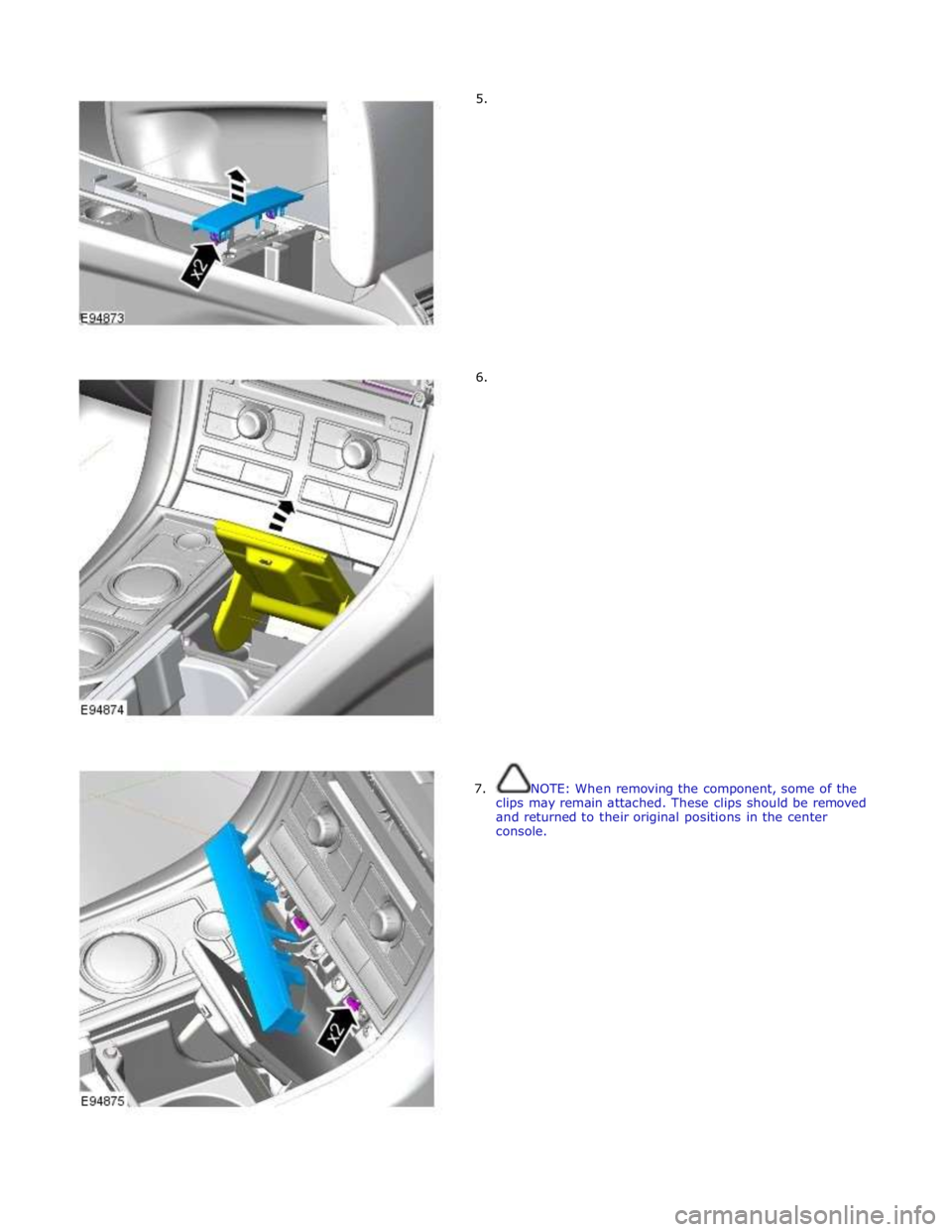

JAGUAR XFR 2010 1.G Workshop Manual Instrument Panel and Console - Floor Console Side Trim Panel Removal and Installation Removal NOTES: Published: 11-May-2011 LHD right-hand floor console side trim panel shown, LHD left-han

Page 2463 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2464 of 3039

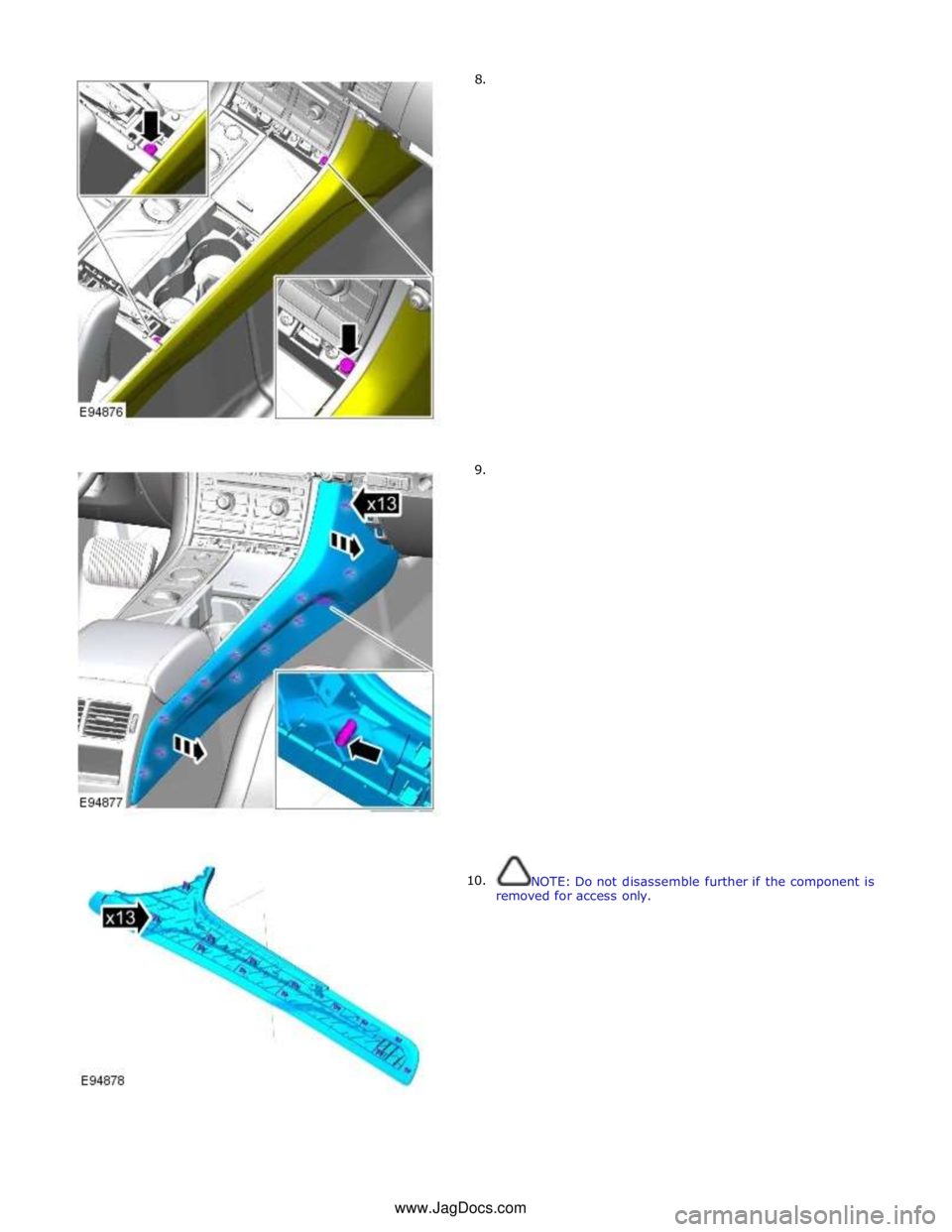

JAGUAR XFR 2010 1.G Workshop Manual 8. 9. 10. NOTE: Do not disassemble further if the component is removed for
