Page 2745 of 3039
E Front subframe front fixing hole Rear subframe rear fixing hole 3608.5 F Front subframe front fixing hole Rear subframe front fixing hole 3035.8 G Front subframe front fixing hole Rear towing eye rear fixing hole 4138.1
Page 2746 of 3039
Item From To Dimension H Rear subframe LH rear fixing hole Rear towing eye rear fixing hole 1011.8 I Rear subframe RH rear fixing hole Rear towing eye rear fixing hole 560.8 J Front subframe front fixing hole Rear towing eye rear fixing hole 1015.3 K Rear subframe front fixing hole Rear towing eye rear fixing hole 1103.6 L Rear subframe RH rear fixing hole Rear subframe LH front fixing hole 1139 M Rear subframe RH front fixing hole Rear subframe LH front fixing hole 908.9
Gap and Profile measurements
The following information is to be used as a guide to assist the technician in installing exterior body panels and trim items so
as to achieve a correctly aligned and cosmetically acceptable vehicle.
NOTE: All dimensions shown are in millimetres, (mm).
Page 2747 of 3039
A-A Hood to front bumper cover 4.0 ± 2.0 N/A B-B Hood to headlamp 4.0 ± 2.0 2.0 ± 2.0 C-C Hood to front fender 3.5 ± 1.0 0.5 ± 0.5 D-D Front fender to headlamp 2.0 ± 1.0 N/A E-E Front fender to front bumper cover 0.0 ± 0.5 0.5 ± 0.7
Page 2748 of 3039
A-A Front bumper cover to headlamp 3.0 ± 2.0 N/A B-B A-pillar to hood 3.0 ± 1.3 -1.0 ± 0.9 C-C Front fender to front bumper cover 0.0 ± 0.5 0.5 ± 0.7 D-D Front door to front fender 3.65 ± 1.0 -0.5 ± 1.0 E-E A-pillar to windshield 4.0 ± 1.0 N/A
Page 2749 of 3039
Section Description Gap Profile F-F Front bumper cover to front fender (inner sweep) N/A 0.5 ± 1.3

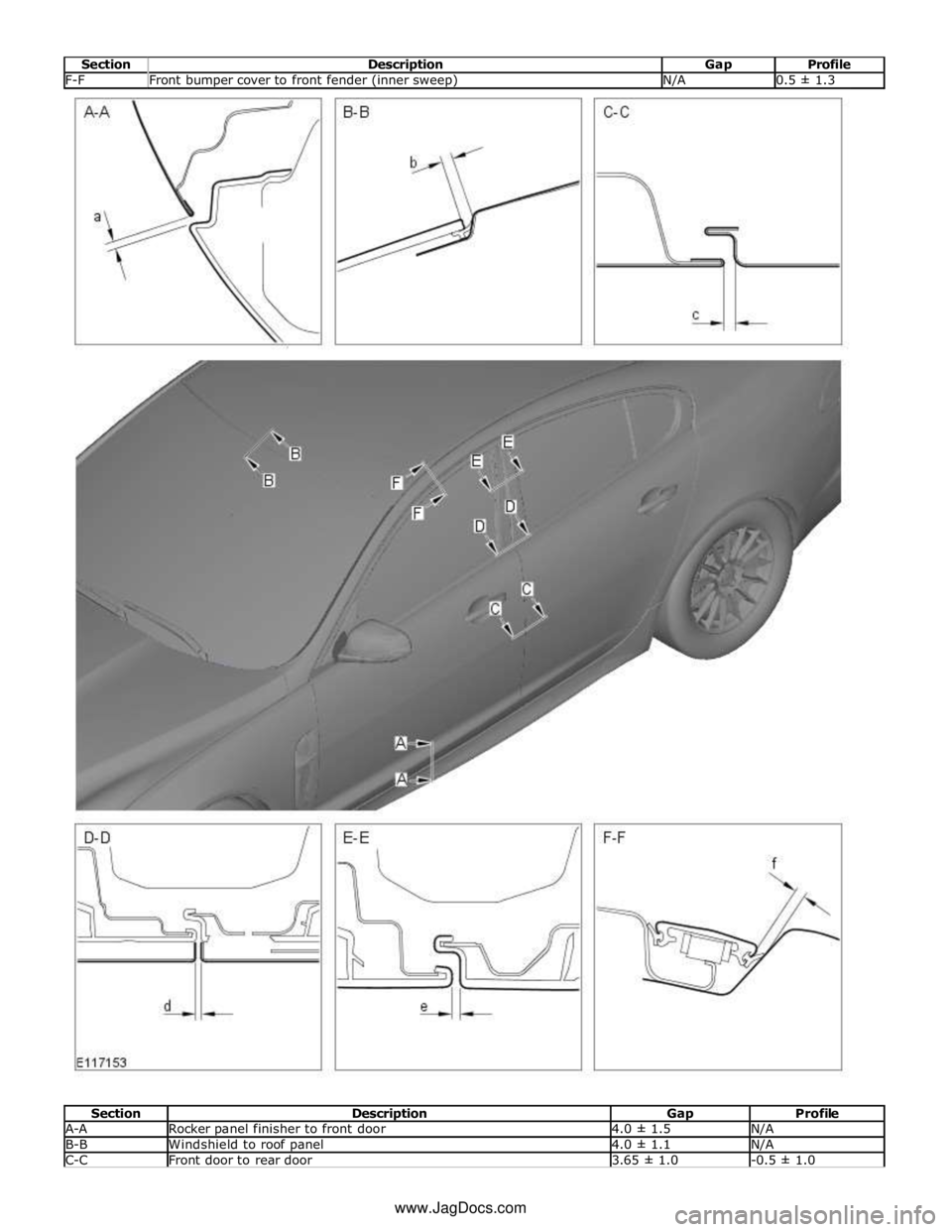

Section Description Gap Profile A-A Rocker panel finisher to front door 4.0 ± 1.5 N/A B-B Windshield to roof panel 4.0 ± 1.1 N/A C-C Front door to rear door 3.65 ± 1.0 -0.5 ± 1.0 www.JagDocs.com
Page 2750 of 3039
D-D Front door to rear door at waist 3.65 ± 1.0 0.0 ± 1.0 E-E Front door to rear door upper 3.65 ± 1.0 0.0 ± 1.0 F-F Front door to roof 11.7 ± 1.6 N/A

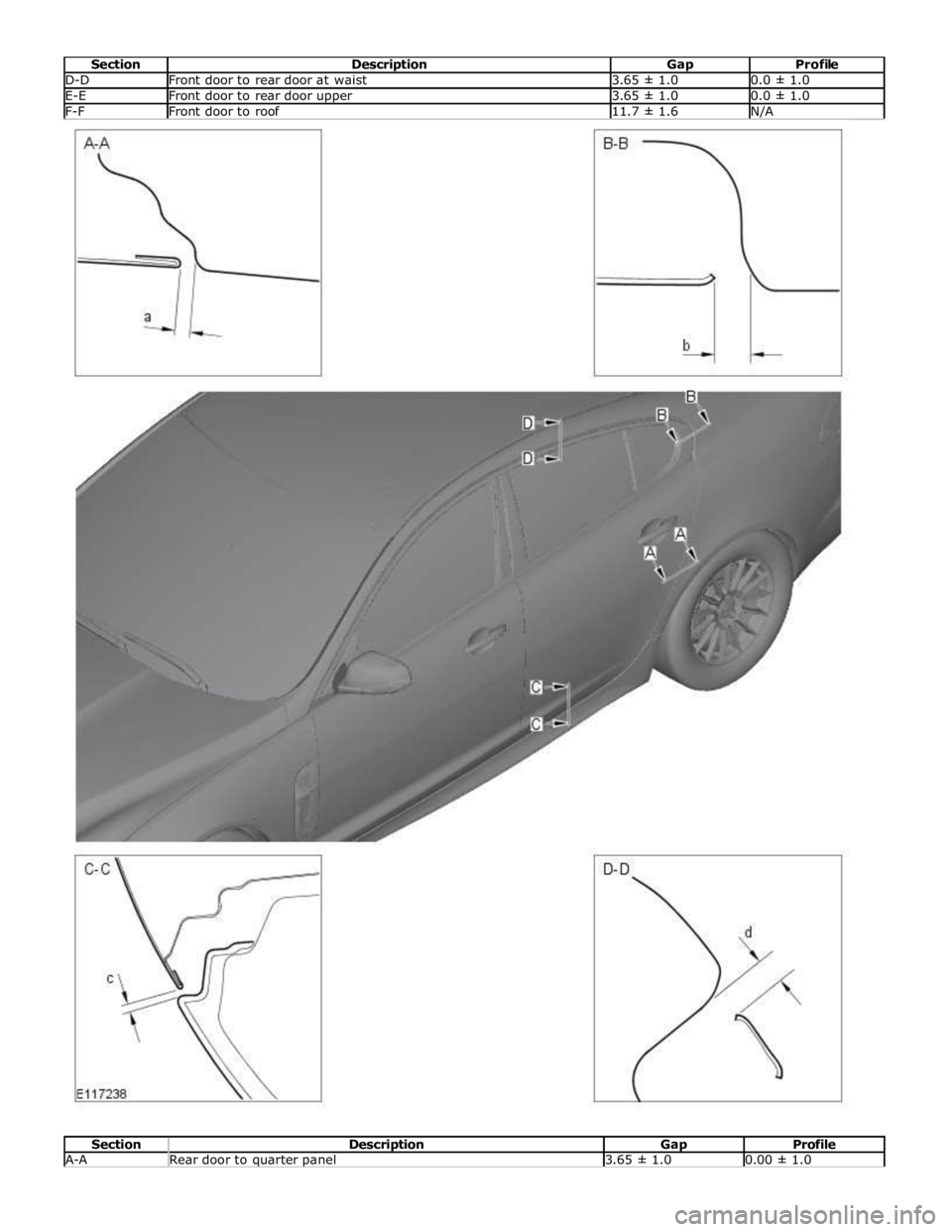

Section Description Gap Profile A-A Rear door to quarter panel 3.65 ± 1.0 0.00 ± 1.0
Page 2751 of 3039
B-B Rear door to quarter panel upper 7.9 ± 1.5 N/A C-C Rocker panel finisher to rear door 4.0 ± 1.5 N/A D-D Rear door to roof panel 7.9 ± 1.5 N/A

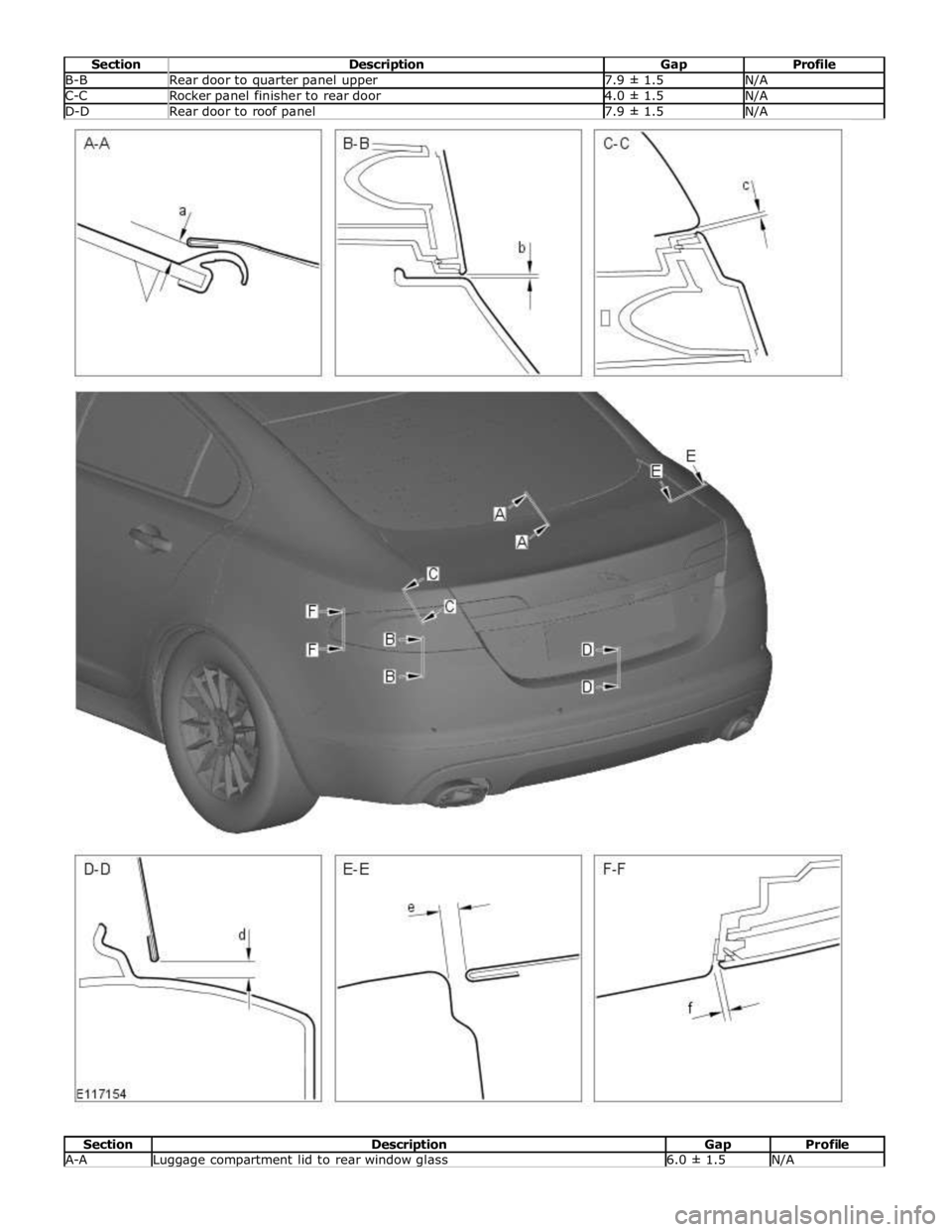

Section Description Gap Profile A-A Luggage compartment lid to rear window glass 6.0 ± 1.5 N/A
Page 2752 of 3039
B-B Rear lamp to rear bumper cover 2.0 ± 0.9 -2.0 ± 1.5 C-C Rear lamp to rear quarter upper 2.0 ± 0.9 -2.0 ± 1.5 D-D Luggage compartment lid to rear bumper cover 6.0 ± 1.7 N/A E-E Luggage compartment lid to quarter panel 3.5 ± 1.1 0.5 ± 0.5 F-F Rear lamp to rear bumper cover 2.0 ± 0.8 -2.0 ± 1.8
