JAGUAR XFR 2010 1.G Workshop Manual

6. NOTE: If necessary renew the NVH components.

Prepare the old and new panel joint surfaces, including the NVH
components.

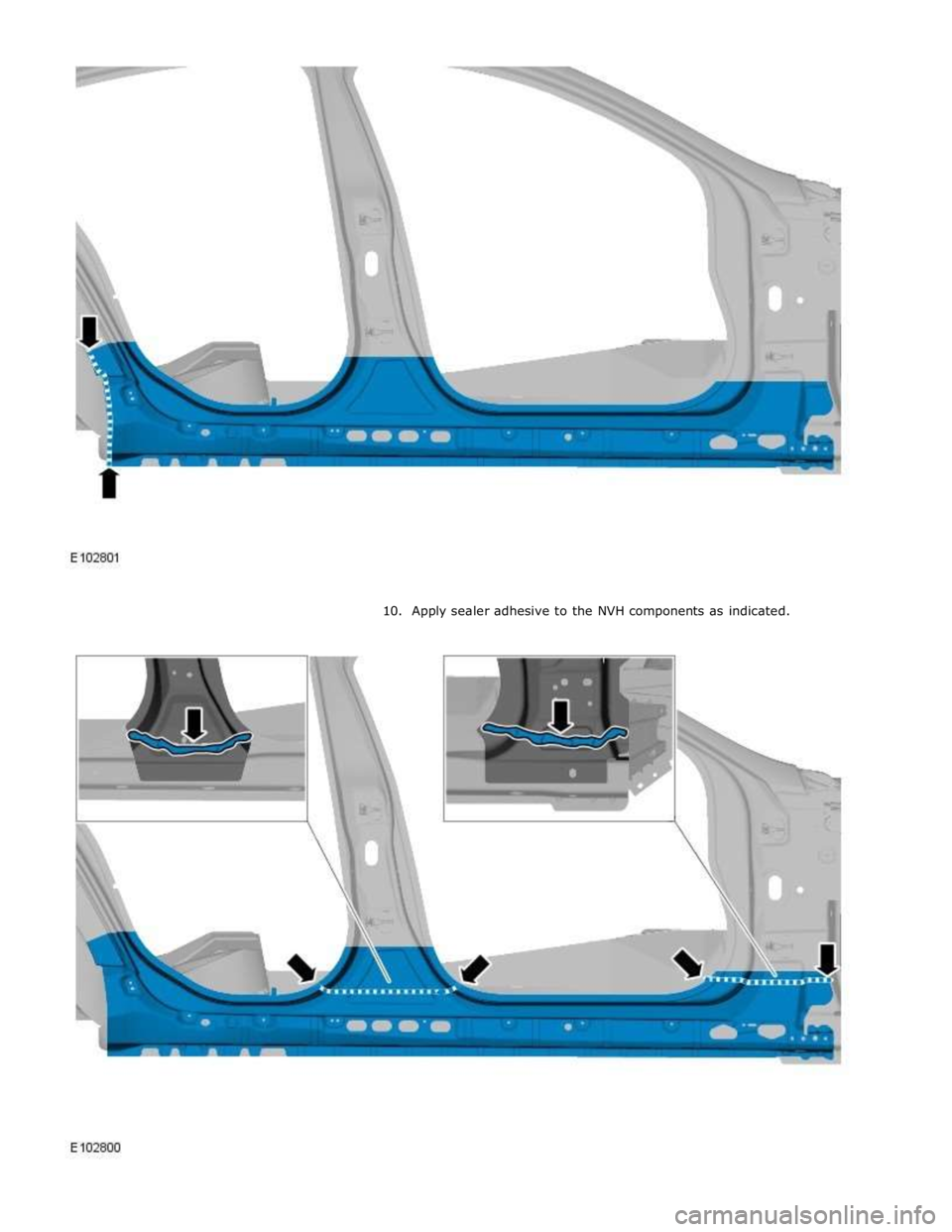

7. NOTE: Temporarily install the front and rear doors and f

Page 2898 of 3039

Page 2899 of 3039

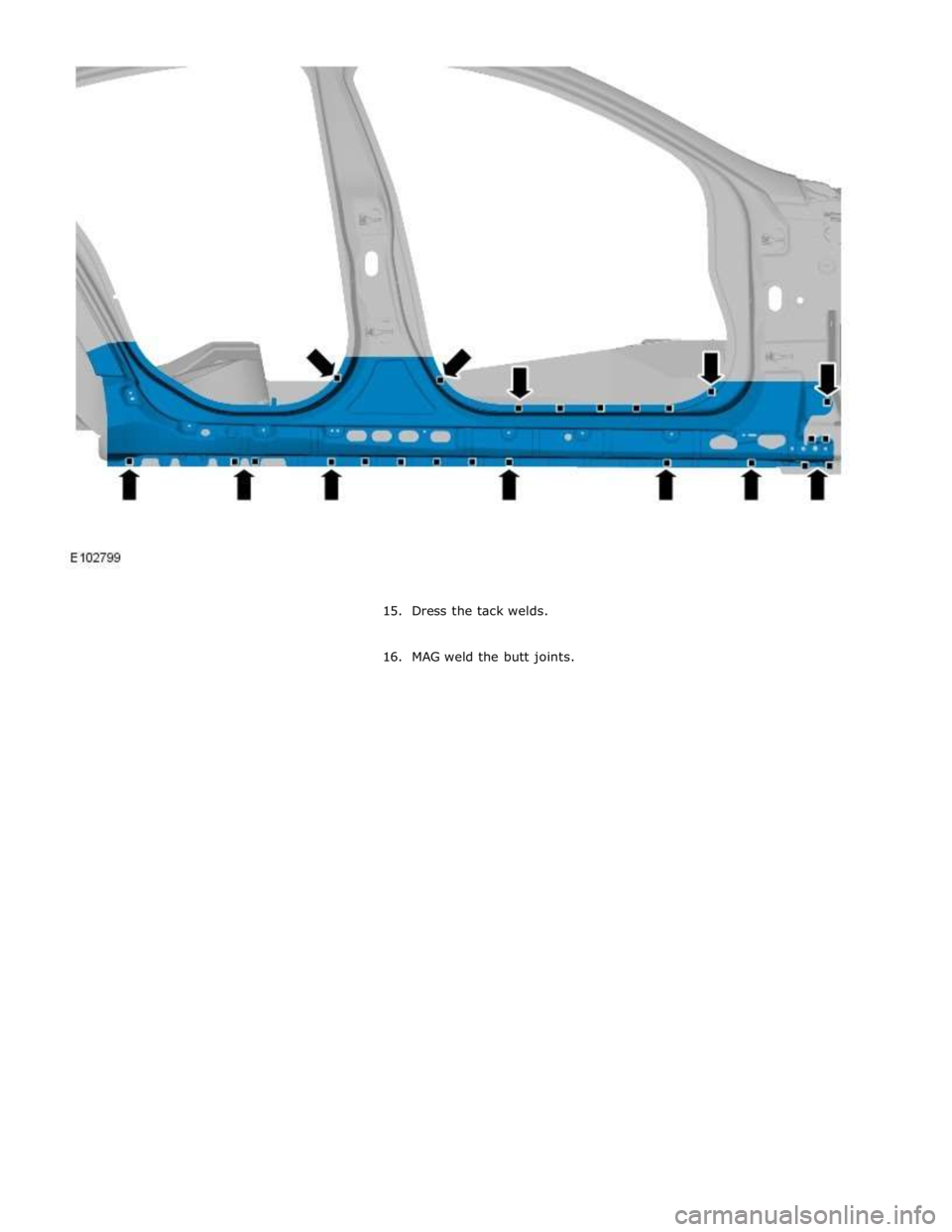

JAGUAR XFR 2010 1.G Workshop Manual 11. Offer up the new rocker panel, align and clamp into position.

12. Tack weld the butt joints.

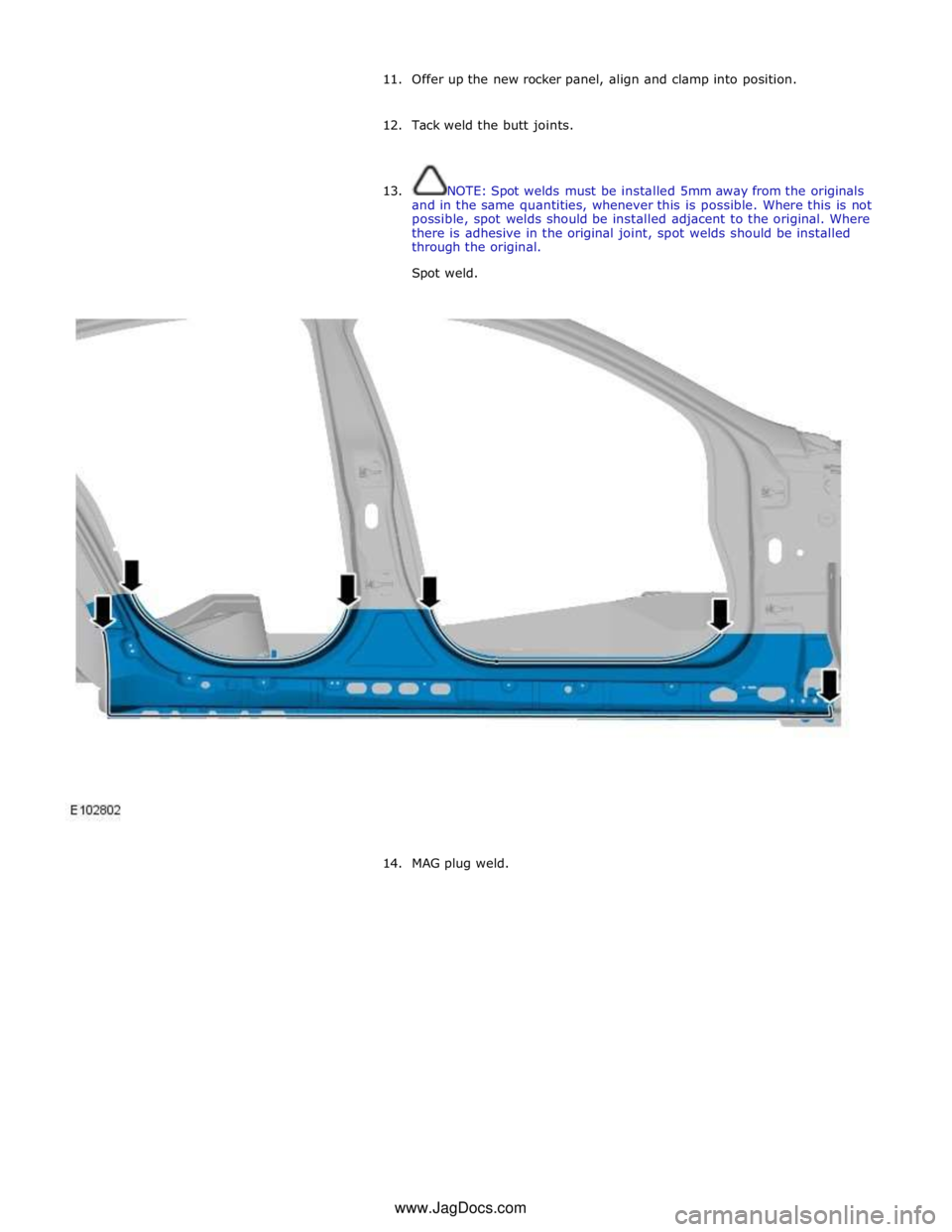

13. NOTE: Spot welds must be installed 5mm away from the originals
and in the same quantities,

Page 2900 of 3039

Page 2901 of 3039

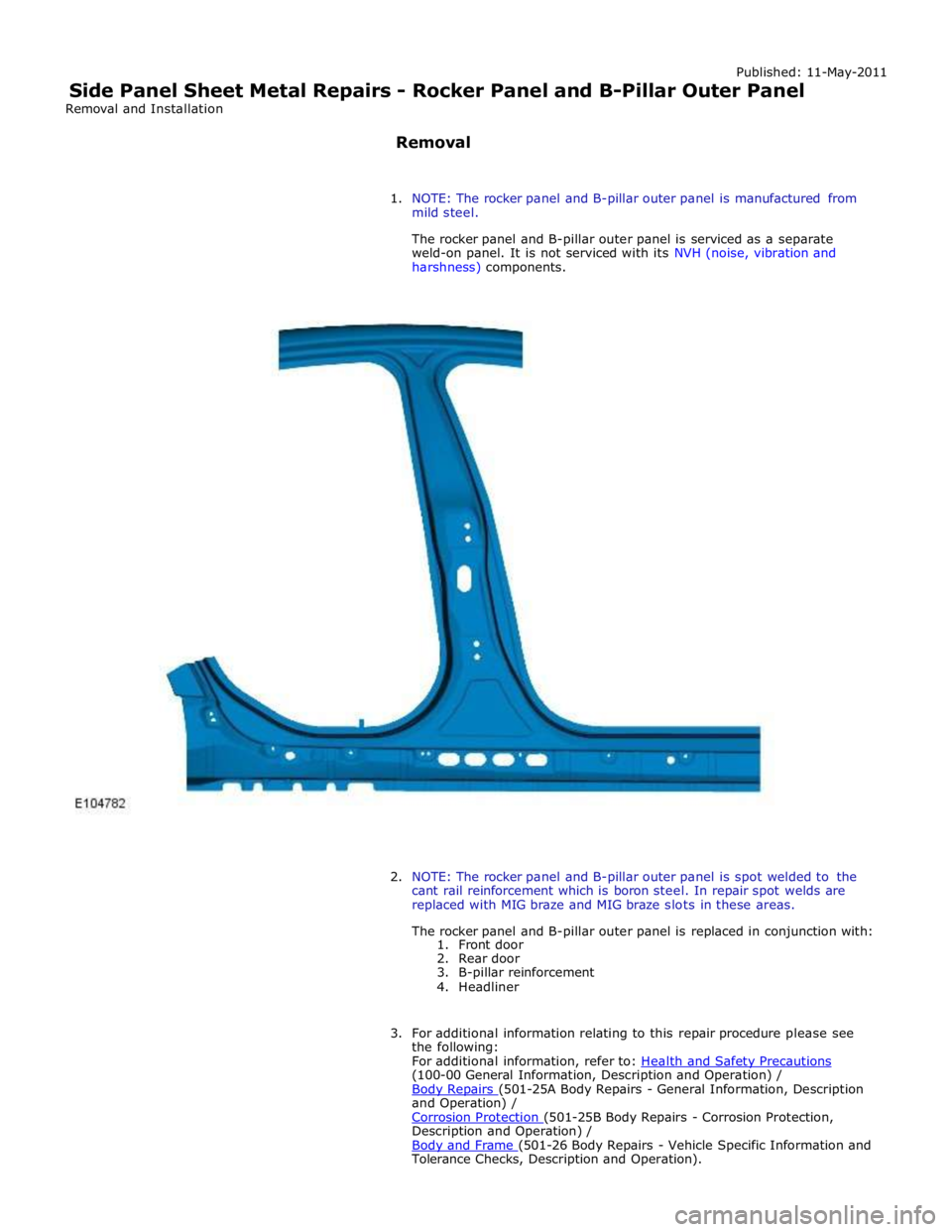

Page 2902 of 3039

JAGUAR XFR 2010 1.G Workshop Manual (100-00 General Information, Description and Operation) /
Body Repairs (501-25A Body Repairs - General Information, Description and Operation) /
Corrosion Protection (501-25B Body Repairs - Corrosio

Page 2903 of 3039

JAGUAR XFR 2010 1.G Workshop Manual and Installation).

5. Disconnect the generator electrical connectors.

6. Remove the right-hand and left-hand front scuff plate trim panels.
For additional information, refer to: Front Scuff Pla

and Installation).

5. Disconnect the generator electrical connectors.

6. Remove the right-hand and left-hand front scuff plate trim panels.
For additional information, refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

7. Remove the front and rear door weatherstrips.

8. Remove the right-hand and left-hand rear scuff plate trim panels.
For additional information, refer to: Rear Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

9. Remove the headliner.
For additional information, refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).

10. Remove the side air curtain module.
For additional information, refer to: Side Air Curtain Module (501-20B Supplemental Restraint System, Removal and Installation).

11. Remove the rear seat cushion.
For additional information, refer to: Rear Seat Cushion (501-10 Seating, Removal and Installation).

12. Remove the rear seat backrest.

13. Release and position the roof wiring harness to one side.

14. Remove the roof moulding.

15. Remove the cowl side trim panel.
For additional information, refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

16. Remove the front safety belt retractor.
For additional information, refer to: Front Safety Belt Retractor (501-20A Safety Belt System, Removal and Installation).

17. Remove the B-pillar side impact sensor.
For additional information, refer to: B-Pillar Side Impact Sensor (501-20B Supplemental Restraint System, Removal and Installation).

18. Remove the C-pillar side impact sensor.
For additional information, refer to: C-Pillar Side Impact Sensor (501-20B Supplemental Restraint System, Removal and Installation).

19. Release and position the floor covering to one side.

20. Release and position the inner rocker panel wiring harness to one side.

21. Remove the rear wheel and tire.
For additional information, refer to: Wheel and Tire (204-04 Wheels and

Page 2904 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Tires, Removal and Installation).

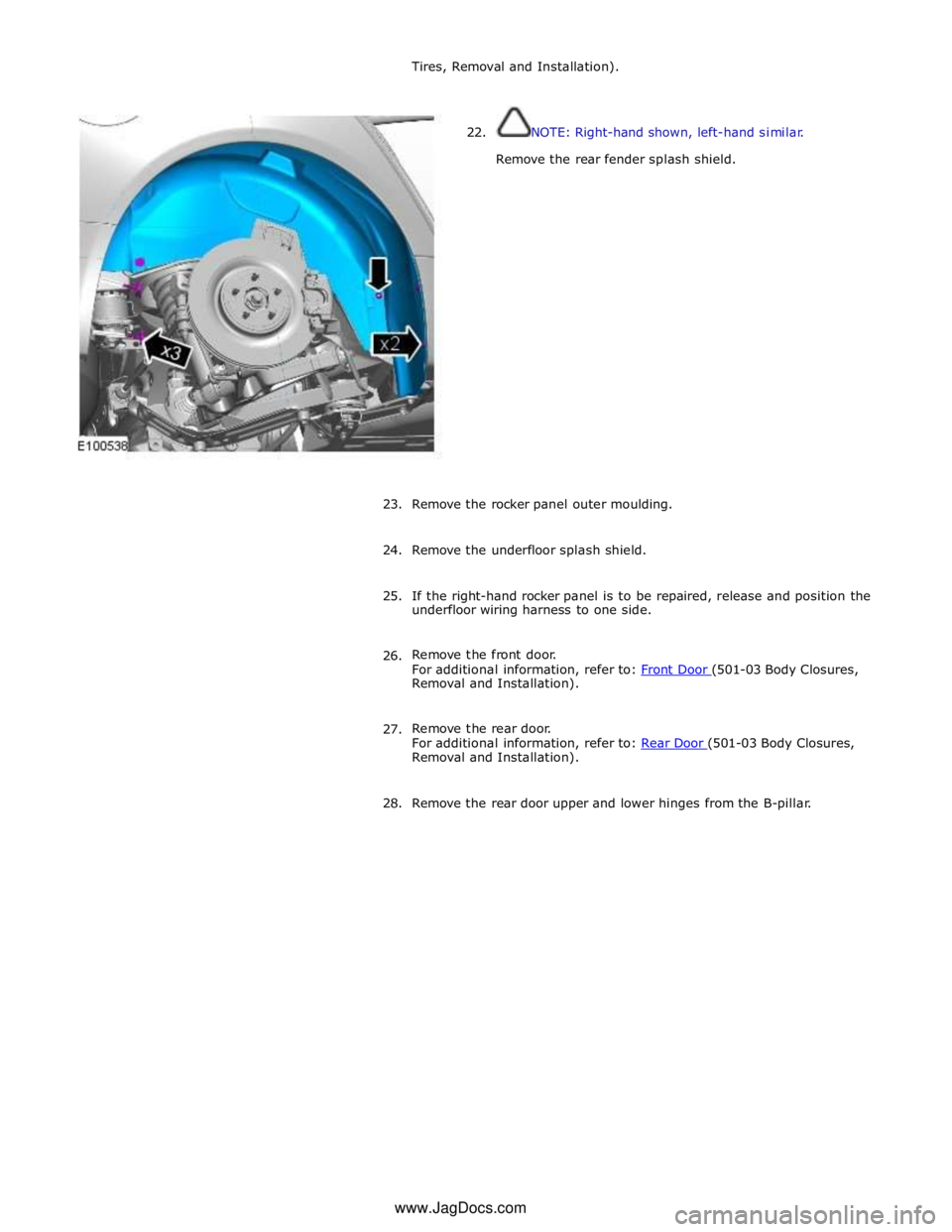

22. NOTE: Right-hand shown, left-hand similar.

Remove the rear fender splash shield.

23. Remove the rocker panel outer moul
