Page 1729 of 3039
Climate Control - Driver Side Register
Removal and Installation
Removal Published: 11-May-2011
CAUTION: Do not manually open the registers. Failure to follow this instruction may result in damage to the internal
components.
NOTES:
If the registers are set to 'Automatic' mode and one or more are disconnected during an ignition cycle, a vehicle battery
reset may be required to reconnect the affected registers to the LIN BUS.
Removal steps in this procedure may contain installation details.

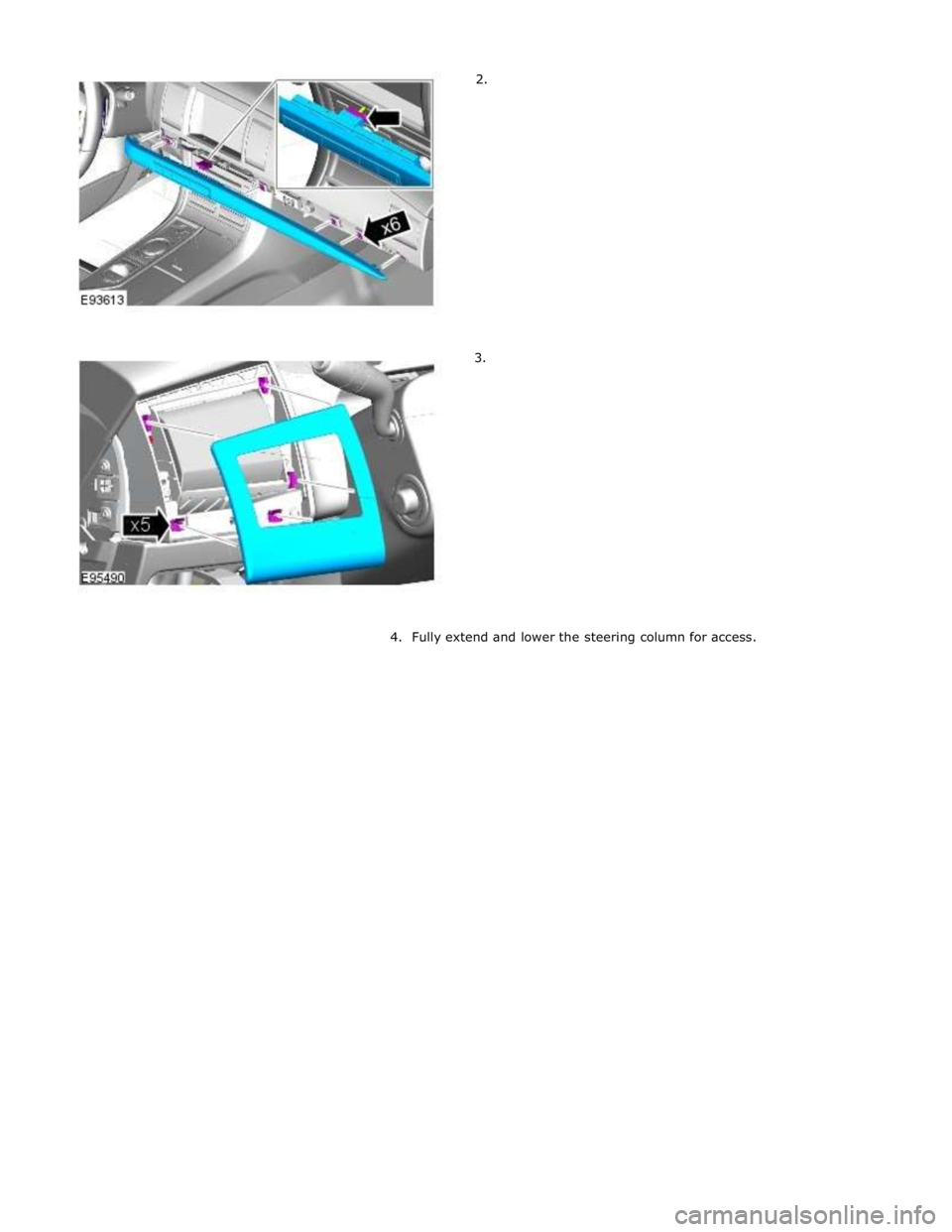

1.
Page 1730 of 3039
Page 1731 of 3039
Page 1732 of 3039
Page 1733 of 3039
Climate Control - Evaporator
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
All vehicles Published: 11-May-2011
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Refer to: Heater Core and Evaporator Core Housing (412-01 Climate Control, Removal and Installation).
3. Refer to: Thermostatic Expansion Valve (412-01 Climate Control, Removal and Installation).
Right-hand drive vehicles
4. CAUTION: Take extra care not to damage the clips or
screw threads. Failure to follow this instruction may result
in damage to the climate control assembly.
Torque: 1.3 Nm
5. Torque: 1.3 Nm
Page 1734 of 3039
Page 1735 of 3039
7.
All vehicles
8.
NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
Torque: 1.3 Nm Left-handdrivevehicles
Page 1736 of 3039
Installation
9.
10.
NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
WARNING: Only use moderate force when installing
the sensor.
CAUTIONS:
Make sure the evaporator temperature sensor harness
does not become trapped.
Make sure that the sensor is correctly installed.
NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.
1. To install, reverse the removal procedure.
