Front Safety belt shoulder height adjuster retaining bolt 25 19 - Rear safety belt lower retaining bolt 40 30 - www.JagDocs.com
Page 2226 of 3039
Interior Trim and Ornamentation - A-Pillar Trim Panel
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
1.
2. Published: 11-May-2011
3. Torque: 6 Nm
Page 2227 of 3039
Page 2228 of 3039

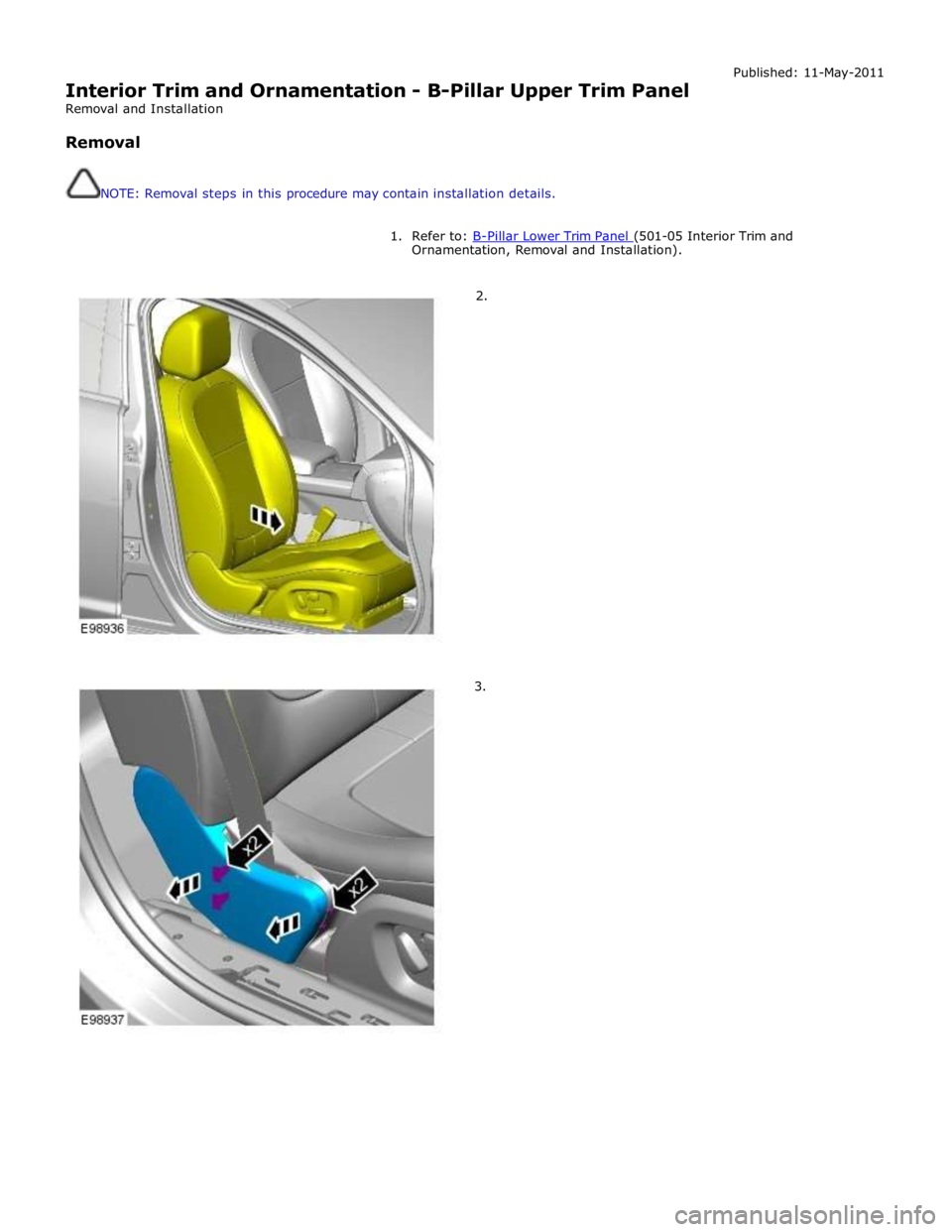

Interior Trim and Ornamentation - B-Pillar Lower Trim Panel
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
2. Refer to: Rear Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
Installation
3.
4. CAUTION: Make sure that the clips are correctly
located.
1. To install, reverse the removal procedure.
Page 2229 of 3039
Interior Trim and Ornamentation - B-Pillar Upper Trim Panel
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011
1. Refer to: B-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
2.
3.

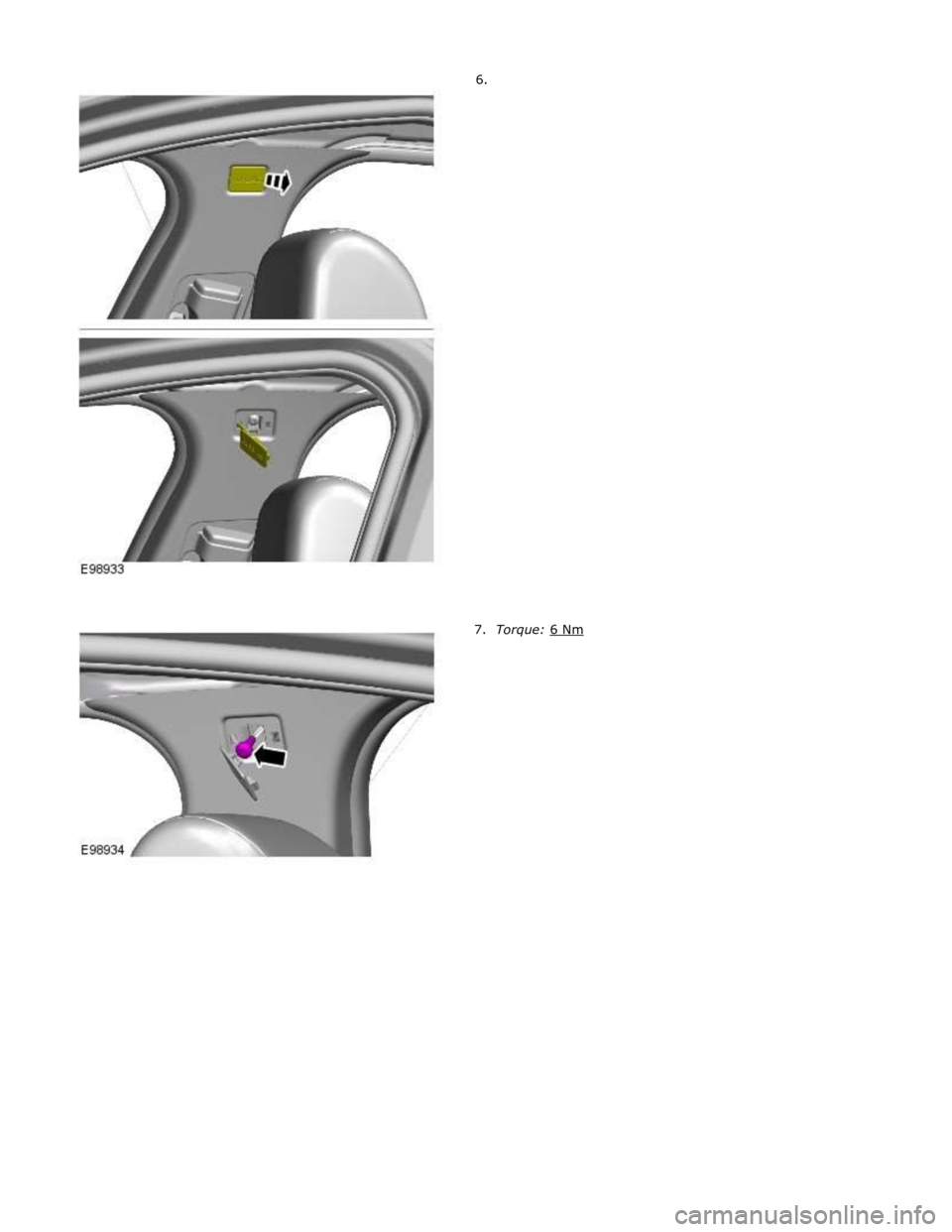

Page 2230 of 3039

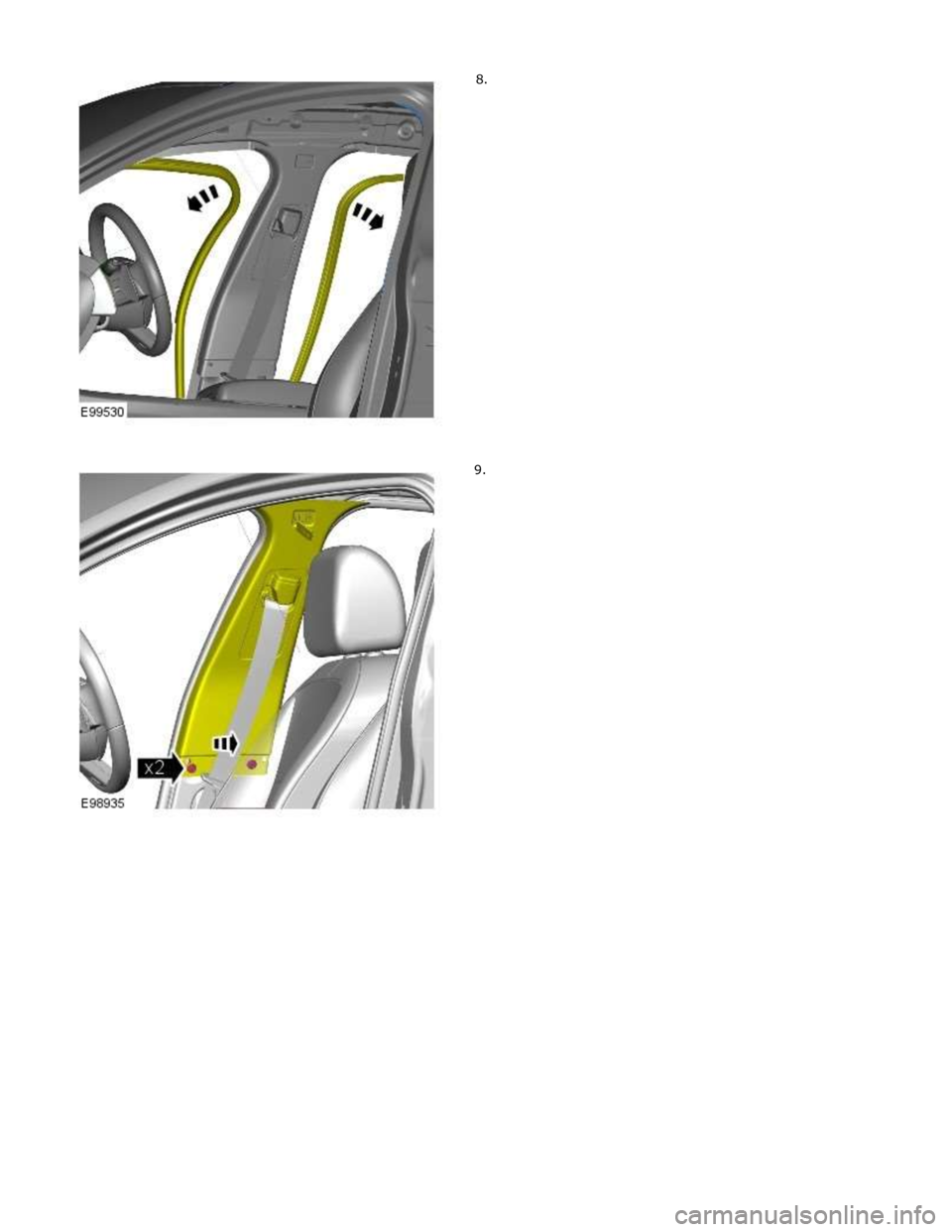

Page 2231 of 3039
Page 2232 of 3039
