JAGUAR XFR 2010 1.G Workshop Manual

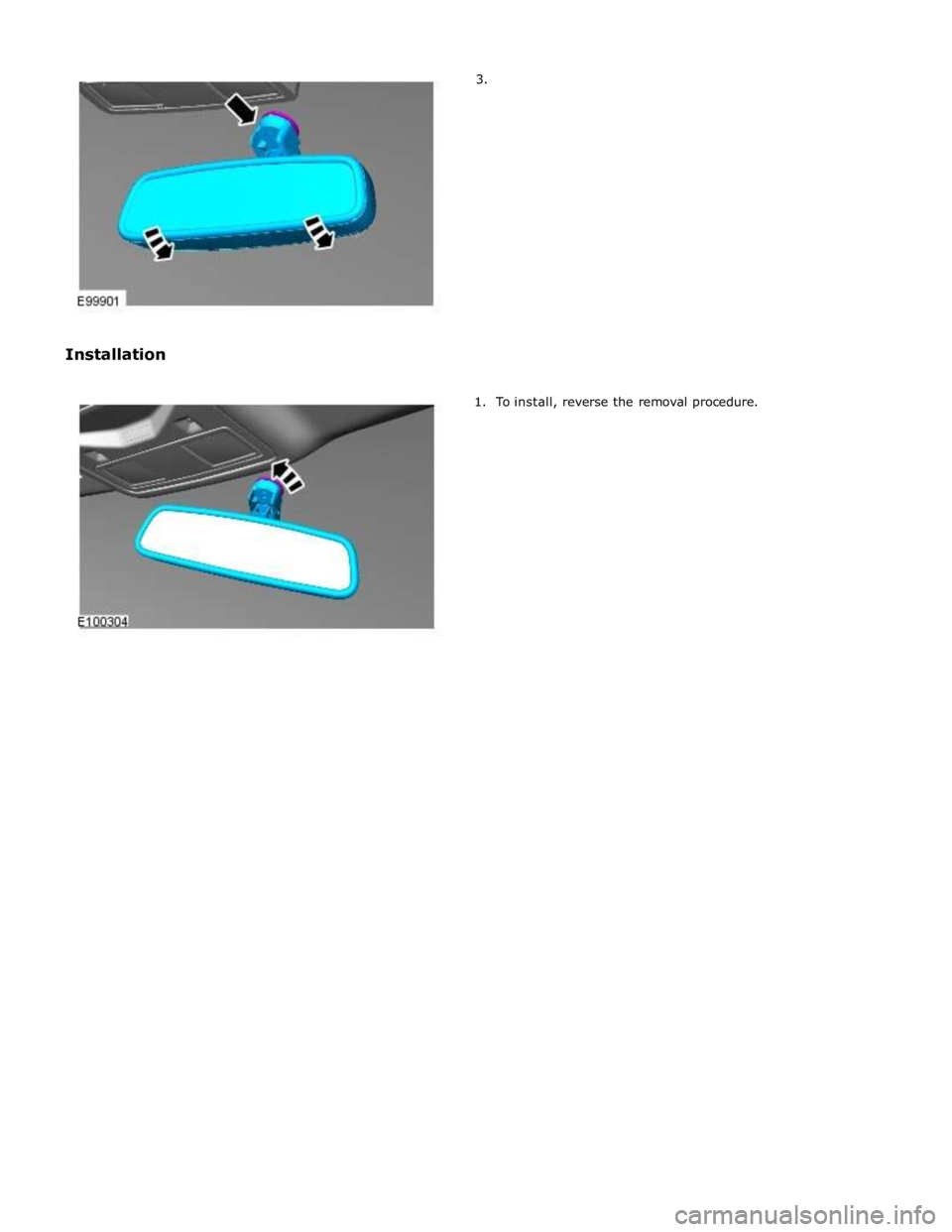

Rear View Mirrors - Interior Rear View Mirror
Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. CAUTIONS:

Page 2306 of 3039

Page 2307 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Front seat backrest retaining bolts 35 26 - Front seat safety belt anchor retaining bolts 40 30 - Front seat retaining bolts 47 35 - Front safety belt buckle retaining bolt 40 30 - Rear seat backrest

Page 2308 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Seating - Seats - Component Location
Description and Operation
COMPONENT LOCATION - MOVEMENT Published: 11-May-2011

Page 2309 of 3039

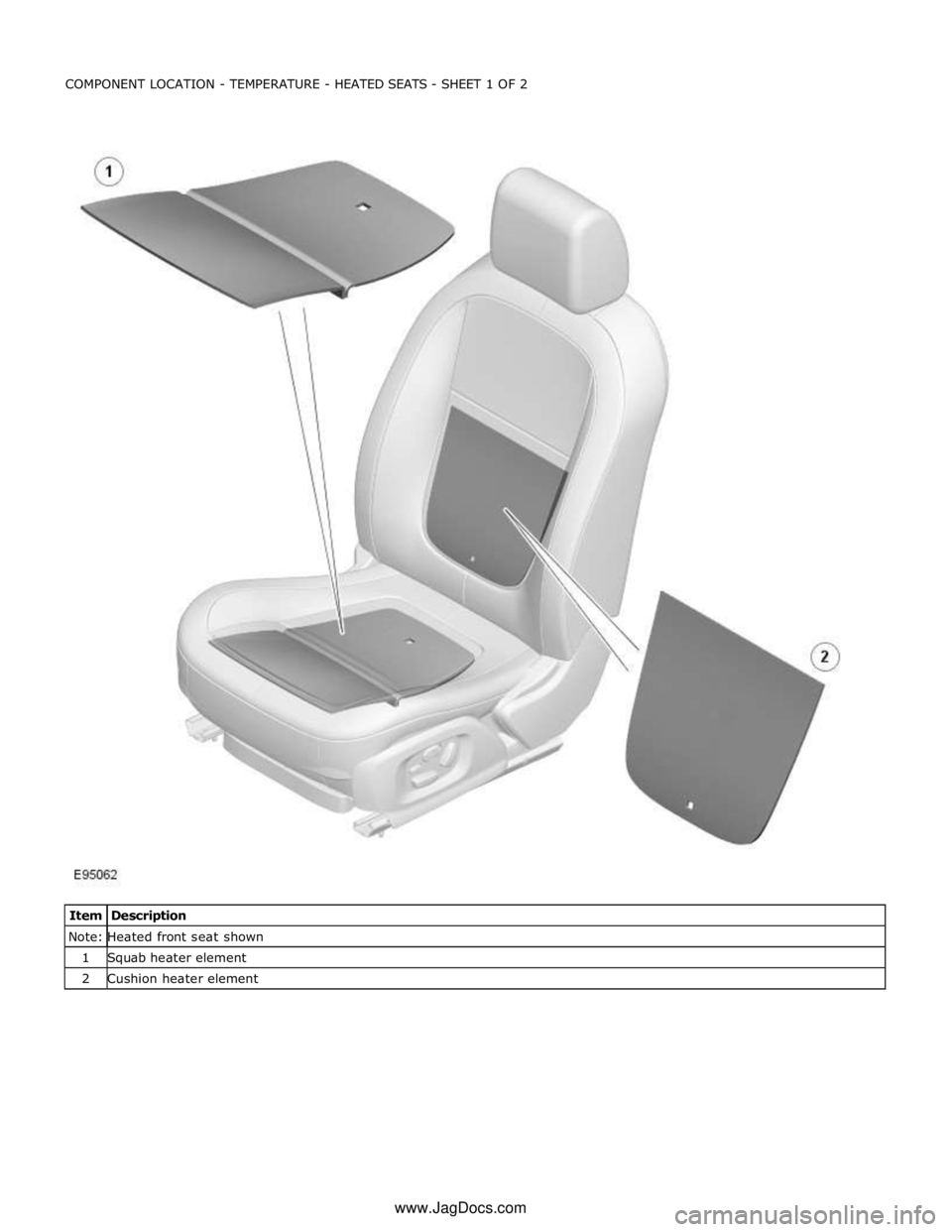

JAGUAR XFR 2010 1.G Workshop Manual Note: Heated front seat shown 1 Squab heater element 2 Cushion heater element www.JagDocs.com

Page 2310 of 3039

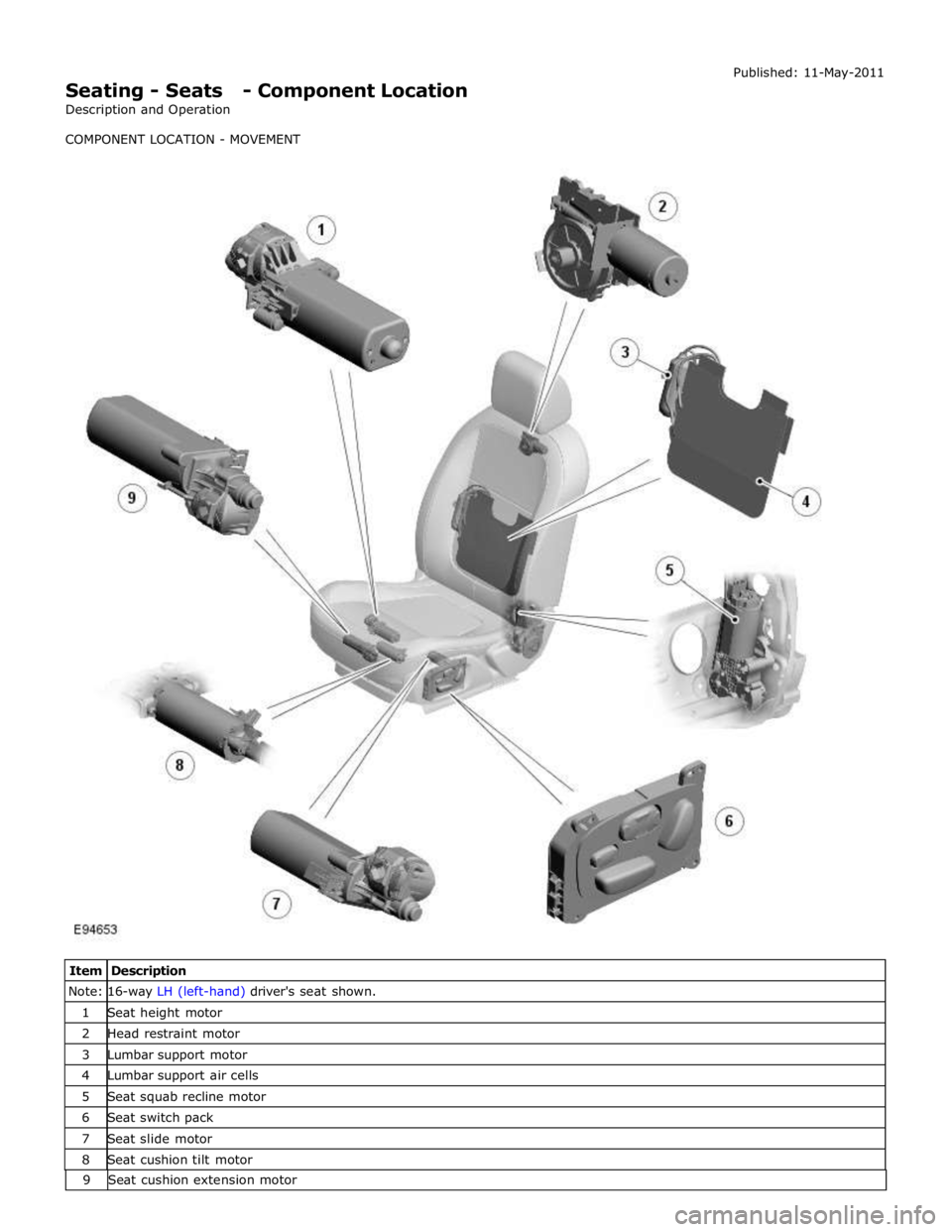

JAGUAR XFR 2010 1.G Workshop Manual Note: Heated and cooled front seat shown 1 Squab liner 2 Squab climate module 3 Squab inlet duct 4 Squab blower 5 Cushion climate module 6 Cushion inlet duct 7 Cushion blower 8 Cushion liner 9 Front s

Page 2311 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Seating - Seats - Overview
Description and Operation

OVERVIEW

Leather Seat Covers Published: 20-Nov-2013

Leather is a natural product, therefore it bears natural characteristics, such as g

Seating - Seats - Overview
Description and Operation

OVERVIEW

Leather Seat Covers Published: 20-Nov-2013

Leather is a natural product, therefore it bears natural characteristics, such as grain variations, growth & bush marks. These
non-weakening marks show the true nature of the hide and are the hallmarks of Leather. In order to maintain the beauty of the
vehicles natural Leather upholstery it requires regular cleaning, which if neglected, may cause deterioration. Where dust and
dirt are allowed to accumulate and become ingrained in the surface of the Leather, the upholstery may become permanently
damaged.

Light coloured upholstery can be particularly susceptible to soiling and staining and care should be taken to ensure that where
there is evidence of any soiling or staining on the upholstery then this should be cleaned immediately using the Jaguar/Land
Rover approved products, failure to do this could lead to the stain becoming permanent, this applies to all leather upholstery
and is not colour specific.

Leather trimmed seats will naturally exhibit areas of creasing and wrinkling over a period of time and is a normal characteristic
as the Leather ages.

Particular care should be taken where there is evidence of soiling or staining on the leather, this should be cleaned
immediately. Failure to do this could lead to the stain becoming permanent.
Particular care should be taken to prevent damage from studs, zips and buckles.
NOTES:

Please refer to Leather care label attached to seats for more information.

Creasing and wrinkling does not represent a manufacturing defect.

Damage from studs, zips and buckles do not represent manufacturing defects.

Use only Jaguar/Land Rover approved products in accordance with the instructions for use.

General

A number of front seating options are available. An 8-way electrically adjustable driver's seat is complemented by an 8-way
electrically adjustable passenger seat. A 10-way electrically adjustable driver's seat is complemented by an 10-way electrically
adjustable front passenger seat. A 16-way electrically adjustable driver's seat is complemented by a 12-way electrically
adjustable front passenger seat.

On non-memory seats, the operation of the seats is controlled directly from the driver's seat switchpack. On memory seats,
the operation of the seat motors is controlled by a seat control module which is located on the underside of the driver's seat
frame.

The driver's seat is fitted with a seat position sensor which is located on the seat rail. The sensor is used by the RCM
(restraints control module) to determine the seat position and adjust the inflation time of the airbag deployment accordingly.
Refer to: Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) (501-20B Supplemental Restraint System, Description and Operation).

Page 2312 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Note: A = Hardwired; O = LIN (local interconnect network) 1 Battery 2 BJB (battery junction box) 3 Seat switch pack 4 Lumbar support solenoids 5 Lumbar support motor 6 Seat memory switches 7 Squab rec
