2010 JAGUAR XFR Workshop Manual

bolt pattern air filter service coolant temperature lug pattern towing capacity

Load previous 8 pages

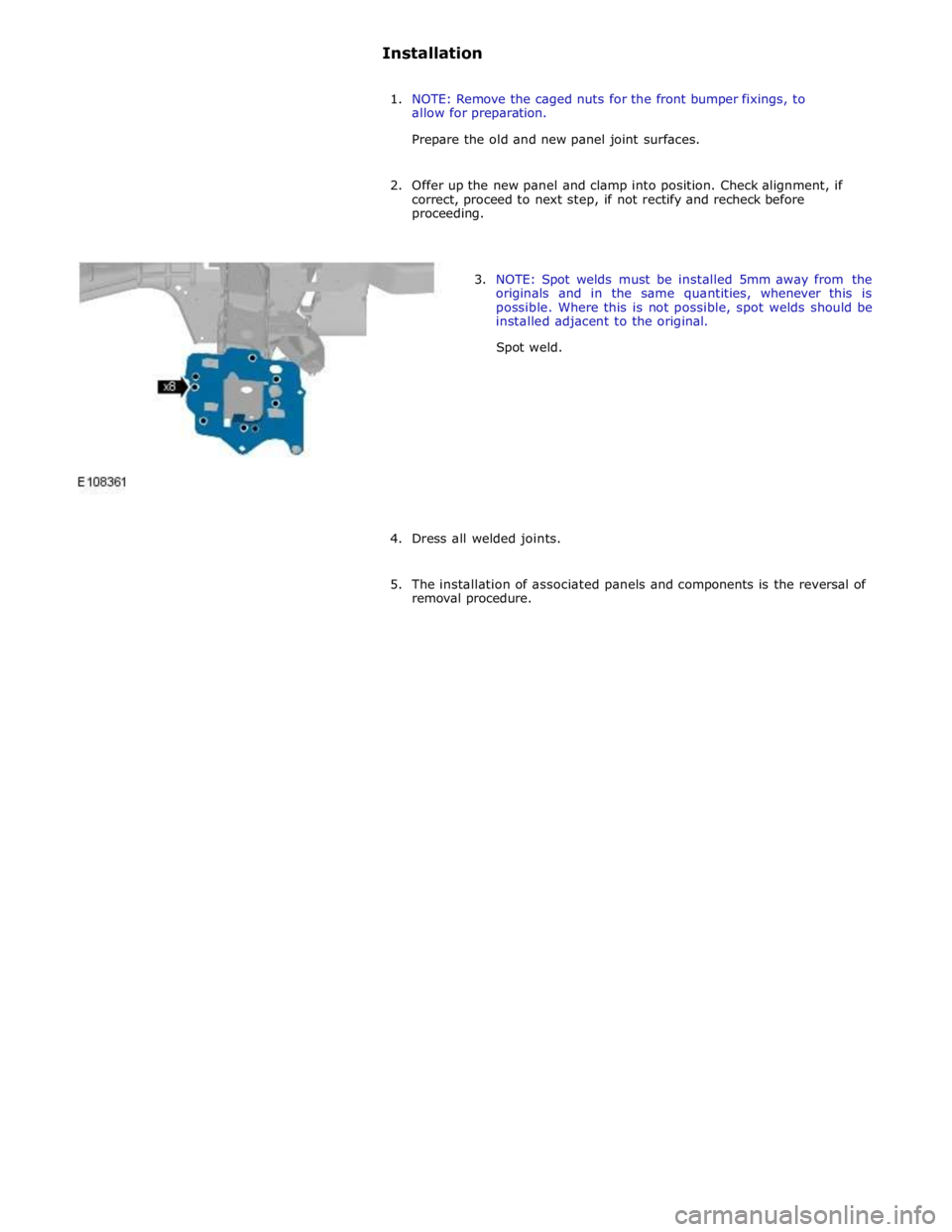

Page 2777 of 3039

Page 2778 of 3039

JAGUAR XFR 2010 1.G Workshop Manual (100-00 General Information, Description and Operation) /
Body Repairs (501-25A Body Repairs - General Information, Description and Operation) /
Corrosion Protection (501-25B Body Repairs - Corrosio

Page 2779 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

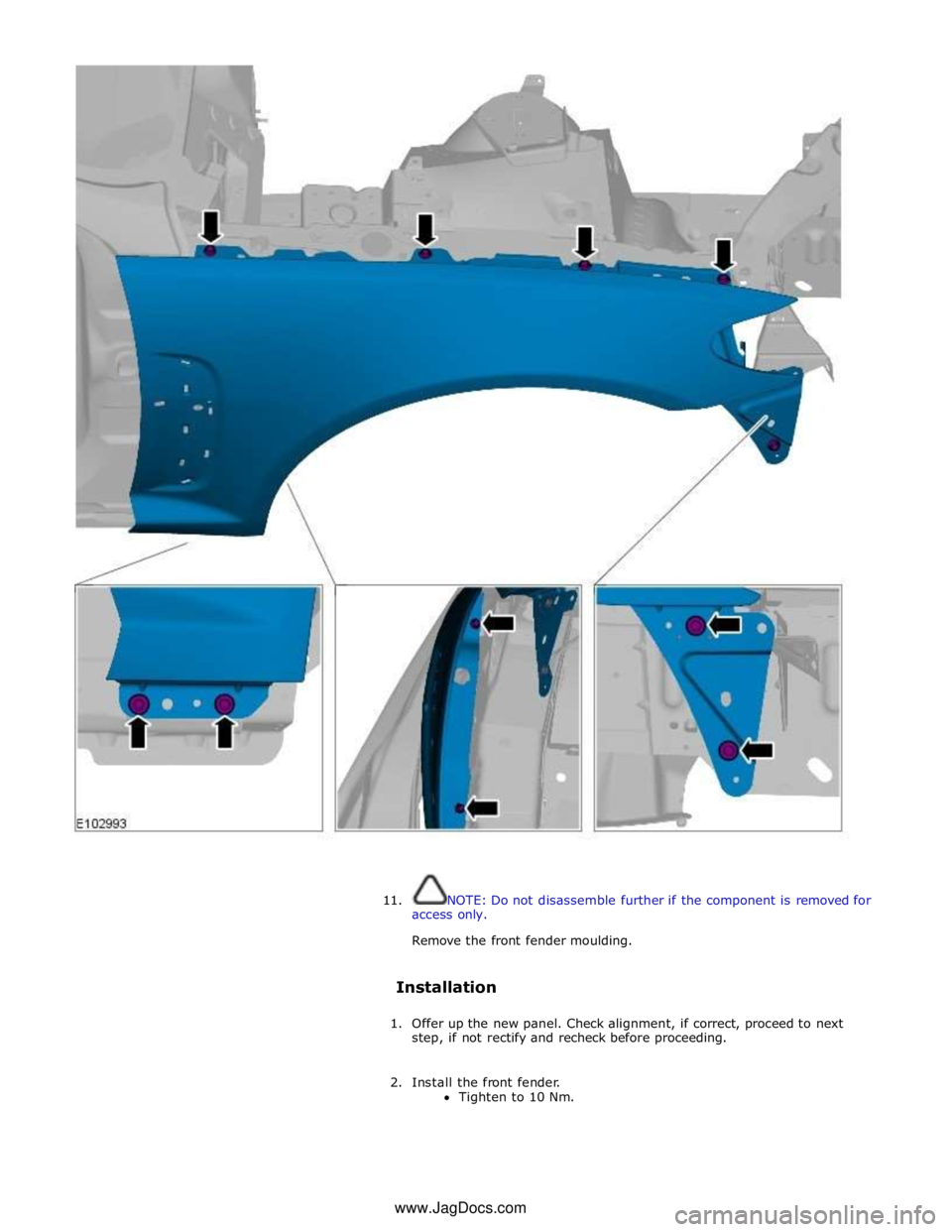

11. NOTE: Do not disassemble further if the component is removed for
access only.
Remove the front fender moulding.

Installation

1. Offer up the new panel. Check alignment, if correct,

Page 2780 of 3039

Page 2781 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Front End Sheet Metal Repairs - Front Fender Support Bracket
Removal and Installation

Removal Published: 11-May-2011

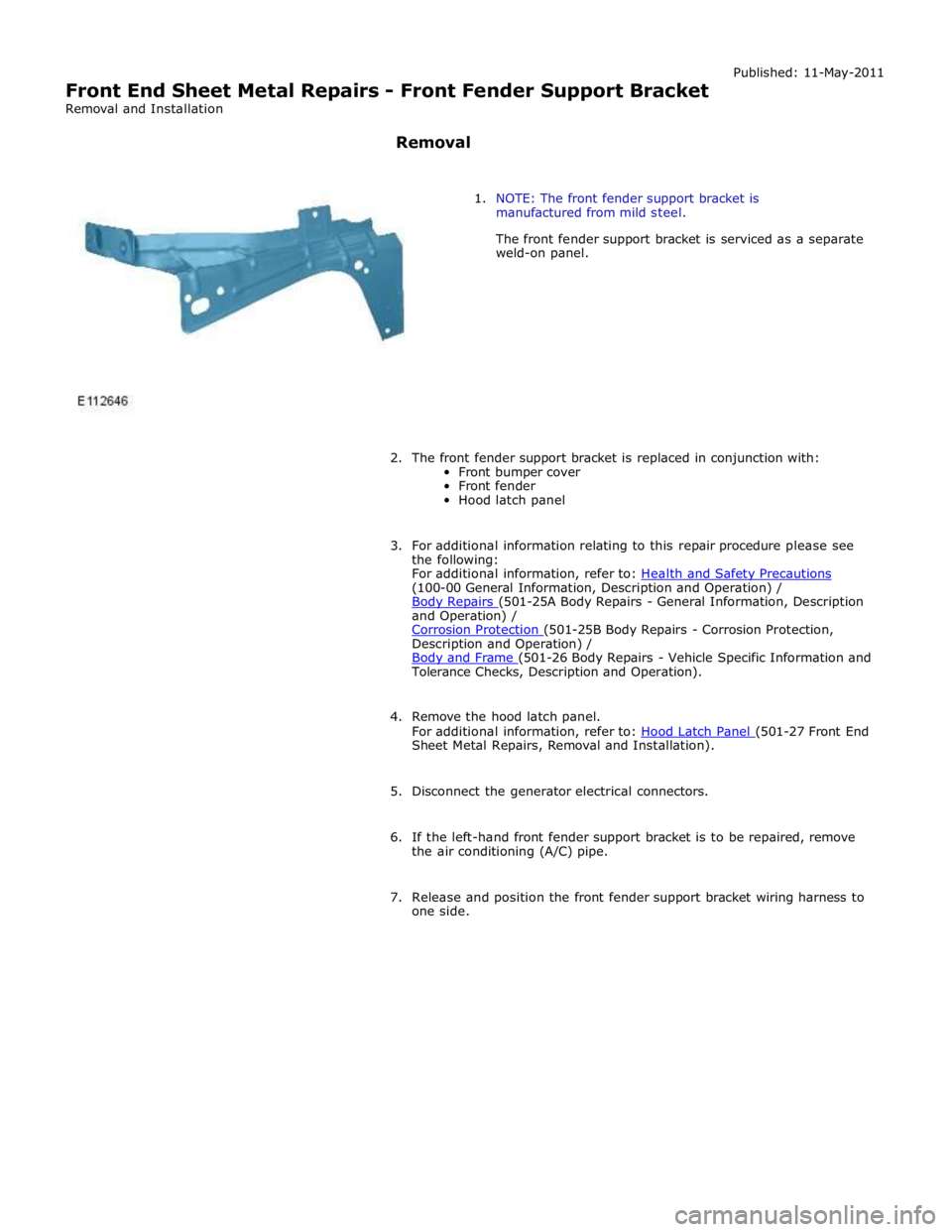

1. NOTE: The front fender support bracket is
manufactured from mild ste

Page 2782 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

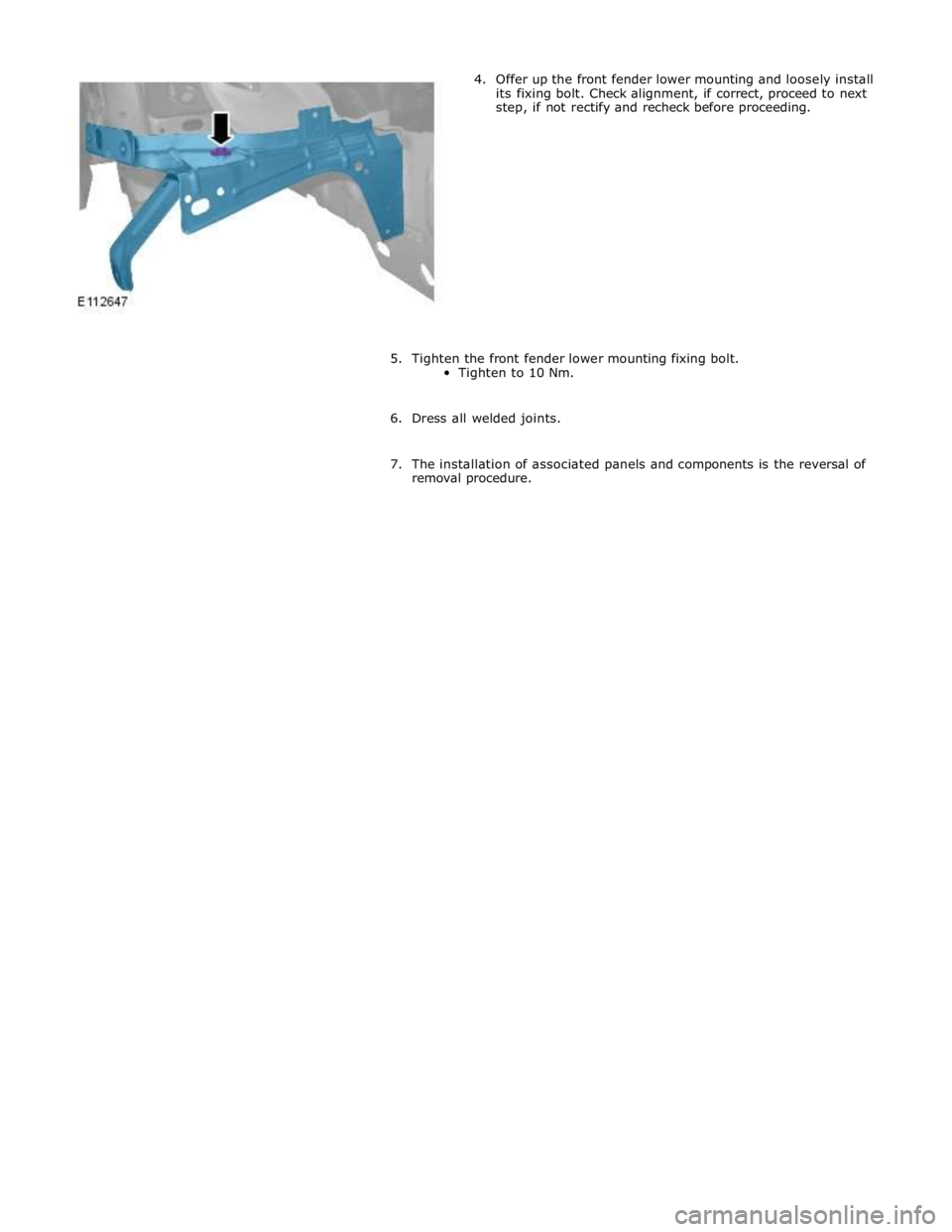

8. NOTE: If the front fender lower mounting is
undamaged it should be retained for reuse.
Remove the front fender lower mounting retaining bolt.

9. drill.
NOTE: Use a be

Page 2783 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 4. Offer up the front fender lower mounting and loosely install
its fixing bolt. Check alignment, if correct, proceed to next
step, if not rectify and recheck before proceeding.

Page 2784 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Front End Sheet Metal Repairs - Front Side Member
Removal and Installation

Removal Published: 11-May-2011

1. NOTE: The front side member is manufactured from High
Strength Low Alloy Steel,

Front End Sheet Metal Repairs - Front Side Member
Removal and Installation

Removal Published: 11-May-2011

1. NOTE: The front side member is manufactured from High
Strength Low Alloy Steel, 350MPa, (HSLA350).

The front side member is serviced as a separate weld-on
panel, which includes the hood latch panel mounting
bracket. This method is to install a "long" section of the
service panel.

2. In this procedure, make sure that the vehicle is correctly aligned, it must
be placed on an approved alignment jig.

3. The front side member is replaced in conjunction with:
Front bumper cover
Front bumper
Front bumper mounting
Hood
Hood latch panel
Front fender support bracket
Front fender support bracket mounting
Front wheelhouse section
Front side member closing panel
Engine, transmission / transaxle, front subframe and front
suspension, as an assembly

4. For additional information relating to this repair procedure please see
the following:
For additional information, refer to: Health and Safety Precautions (100-00 General Information, Description and Operation) /
Body Repairs (501-25A Body Repairs - General Information, Description and Operation) /
Corrosion Protection (501-25B Body Repairs - Corrosion Protection, Description and Operation) /
Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

5. Remove the hood.
For additional information, refer to: Hood (501-02 Front End Body Panels, Removal and Installation).

6. Remove the front wheelhouse section.
For additional information, refer to: Front Wheelhouse Section (501-27 Front End Sheet Metal Repairs, Removal and Installation).

7. Remove the engine, transmission / transaxle, front subframe and front
suspension, as an assembly.
For additional information, refer to: Engine (303-01A, Removal) /
Engine (303-01B Engine - V6 3.0L Petrol, Removal) / Engine (303-01D, Removal) /
Engine (303-01E, Removal) /
Transmission - 2.7L Diesel (307-01, Removal) /
Transmission - TDV6 3.0L Diesel (307-01B Automatic Transmission/Transaxle - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L
Petrol, Removal) / www.JagDocs.com
