Page 1049 of 3039
20.
21.
Install the special tool.
Special Tool(s): 303-1482
CAUTIONS:
Apply the torque to the end of the special tool.
Make sure that the torque wrench is aligned with the
special tool as illustrated in the graphic.
Install the torque wrench to the special tool.
Torque: 35 Nm
Page 1050 of 3039
22.
23. CAUTION: Make sure that the torque wrench does not
move whilst tightening the VVT bolts.
NOTE: Make sure to tighten the exhaust VVT unit
bolts first.
Torque: 32 Nm Special Tool(s): 303-1482
Install the oil suction tube.
Torque: 10 Nm
Page 1051 of 3039
24.
25.
Install the special tool.
Special Tool(s): 303-1482
CAUTIONS:
Apply the torque to the end of the special tool.
Make sure that the torque wrench is aligned with the
special tool as illustrated in the graphic.
Install the torque wrench to the special tool.
Torque: 35 Nm www.JagDocs.com
Page 1052 of 3039
26. CAUTION: Make sure that the torque wrench does not
move whilst tightening the VVT bolts.
first. NOTE: Make sure to tighten the inlet VVT unit bolts
Torque: 32 Nm
27.
28.
Remove the special tool.
Remove the special tool.

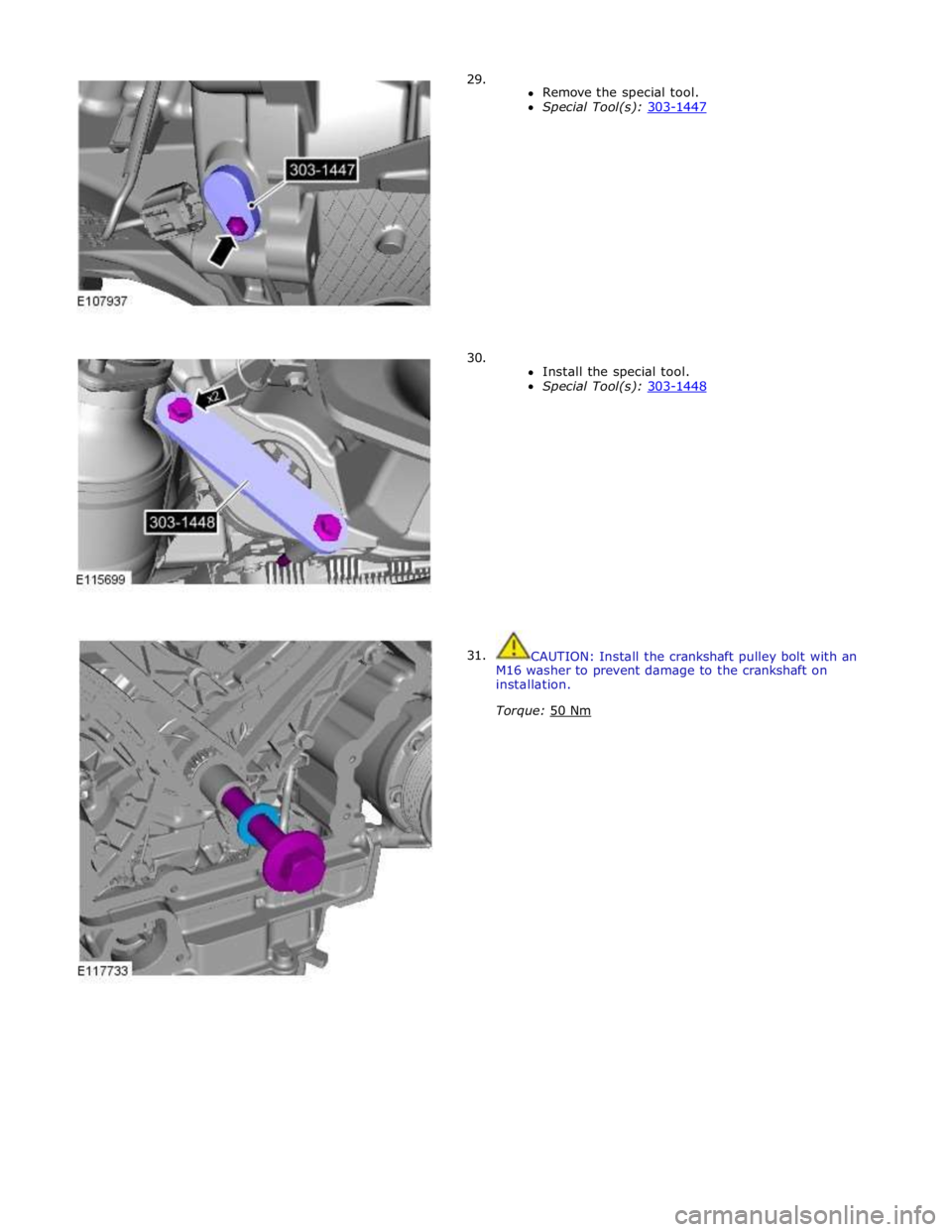

Page 1053 of 3039
29.
30.
31.
Remove the special tool.
Special Tool(s): 303-1447
Install the special tool.
Special Tool(s): 303-1448
CAUTION: Install the crankshaft pulley bolt with an
M16 washer to prevent damage to the crankshaft on
installation.
Torque: 50 Nm

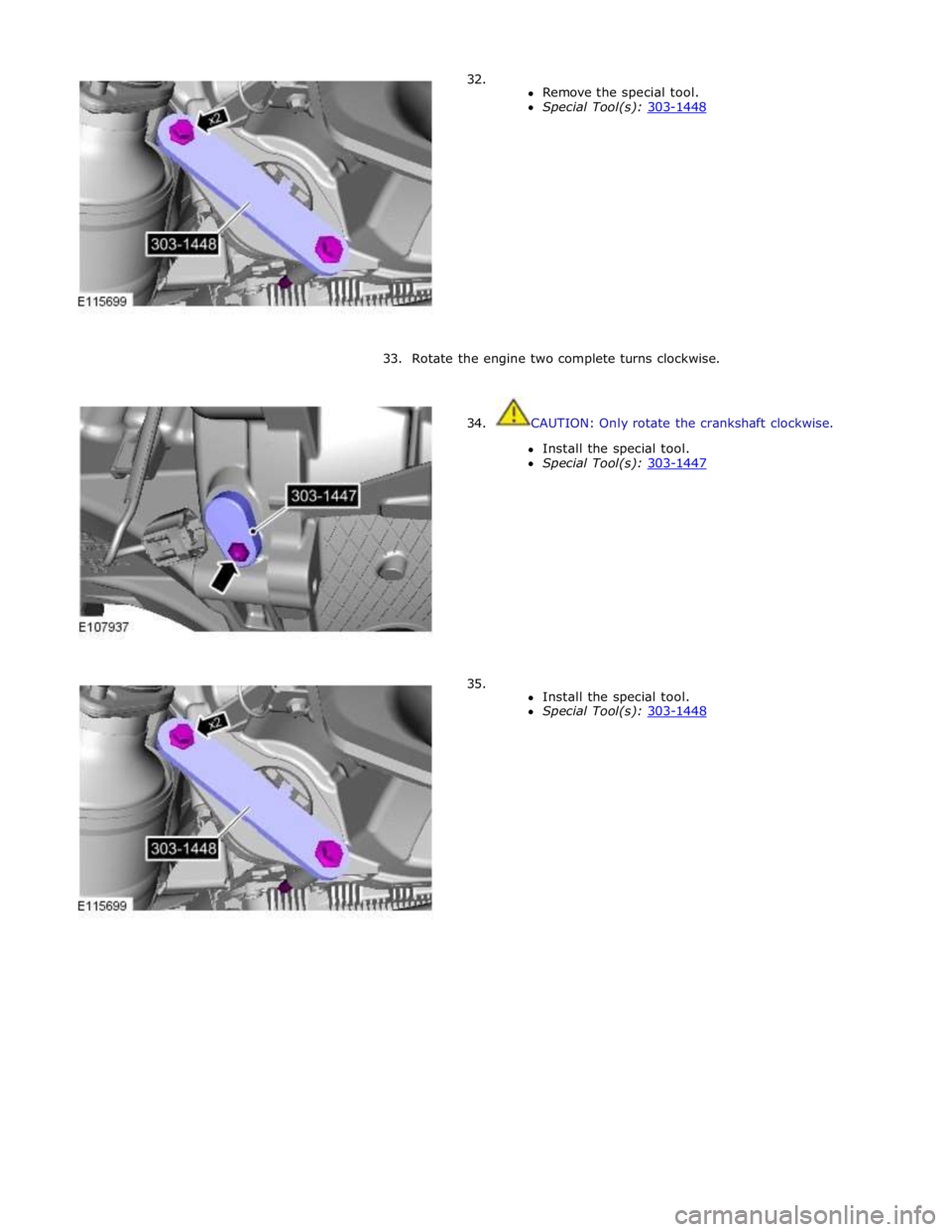

Page 1054 of 3039
32.
Remove the special tool.
Special Tool(s): 303-1448
33. Rotate the engine two complete turns clockwise.
34.
35. CAUTION: Only rotate the crankshaft clockwise.
Install the special tool.
Special Tool(s): 303-1447
Install the special tool.
Special Tool(s): 303-1448

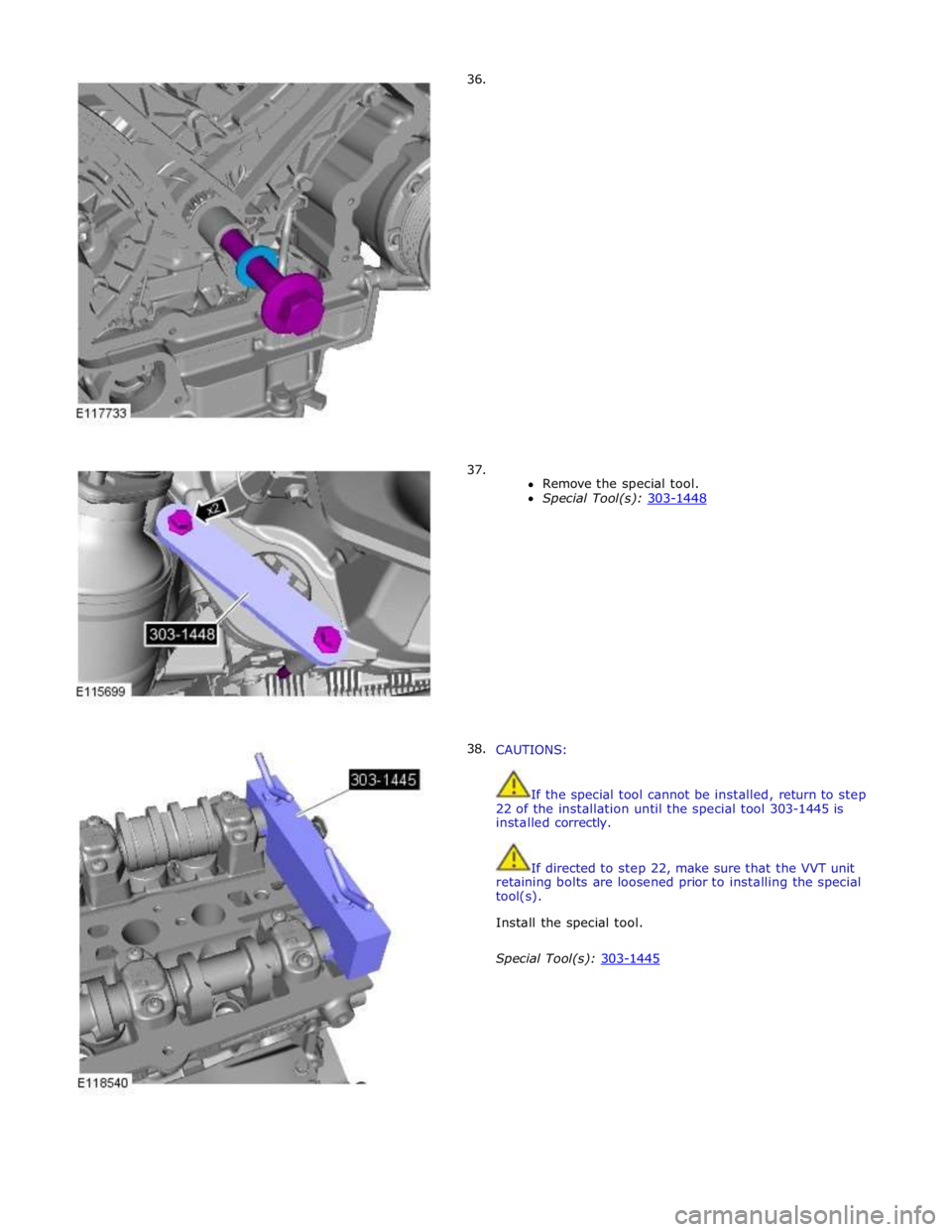

Page 1055 of 3039
36.
37.
38.
Remove the special tool.
Special Tool(s): 303-1448
CAUTIONS:
If the special tool cannot be installed, return to step
22 of the installation until the special tool 303-1445 is
installed correctly.
If directed to step 22, make sure that the VVT unit
retaining bolts are loosened prior to installing the special
tool(s).
Install the special tool.
Special Tool(s): 303-1445

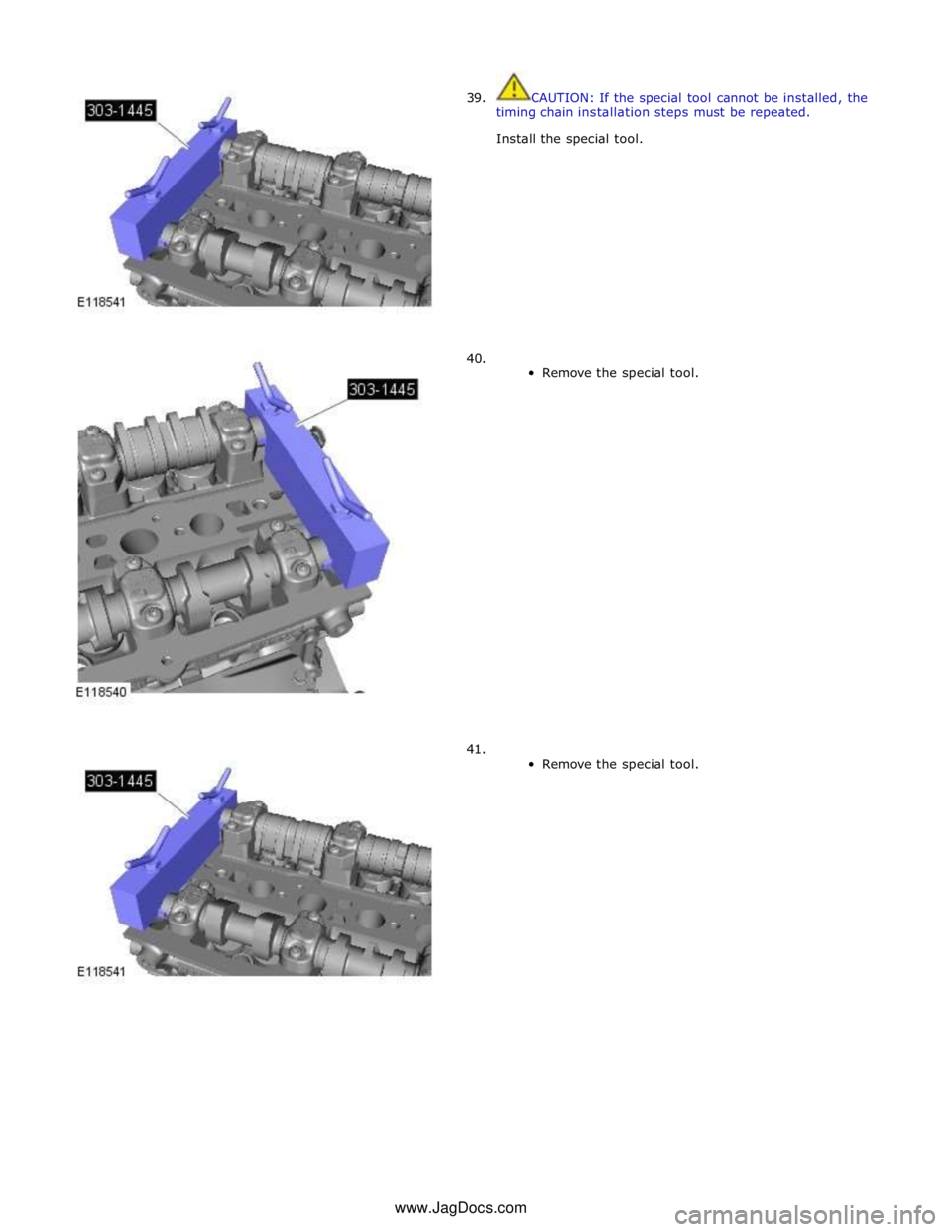

Page 1056 of 3039
39.
40.
41. CAUTION: If the special tool cannot be installed, the
timing chain installation steps must be repeated.
Install the special tool.
Remove the special tool.
Remove the special tool. www.JagDocs.com
