10.
11. Torque: 4 Nm
NOTE: Make sure that the harness is routed to the
position noted on removal. www.JagDocs.com

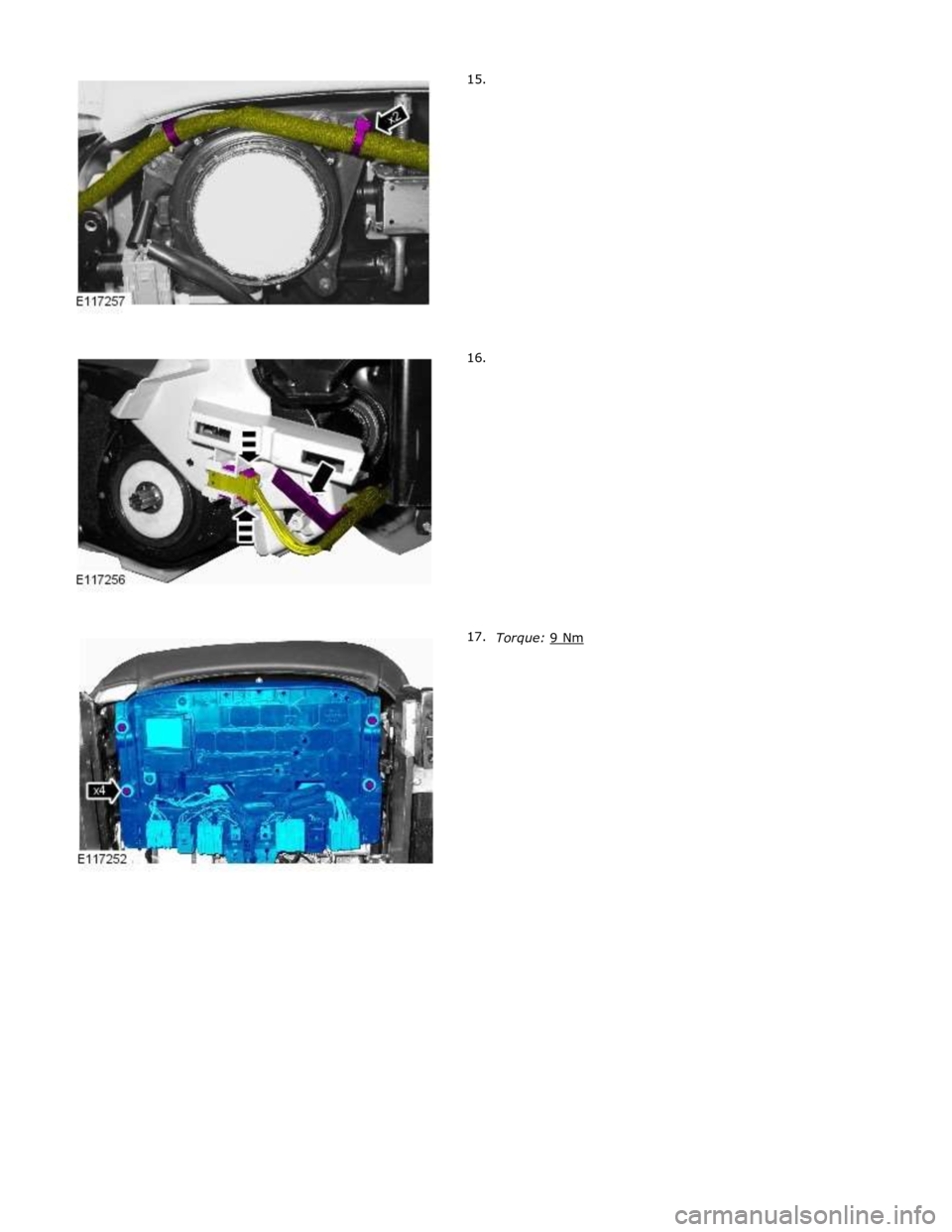

Page 2650 of 3039
12.
13.
14. CAUTION: Make sure that the wiring harness is routed
above the drive bar as shown, to avoid damage to the
wiring harness during movement of the front seat.
NOTES:
An audible click is heard when the clips are fully
latched.
Make sure the electrical connector is securely
connected.
Torque: 1.3 Nm
Page 2651 of 3039
Page 2652 of 3039
18.
19.
20. WARNING: Do not probe supplemental restraint
system (SRS) electrical connectors.
21.
Refer to: Front Seat Backrest Cover (501-10 Seating, Removal and Installation).
22. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
Page 2653 of 3039
Supplemental Restraint System - Passenger Air Bag Module
Removal and Installation Published: 11-May-2011
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
2. Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation).
3. Refer to: Driver Side Register (412-01 Climate Control, Removal and Installation).
4. Refer to: Information and Entertainment Display (415-01A Information and Entertainment System, Removal and Installation).
5. Refer to: Instrument Panel Speaker (415-01A Information and Entertainment System, Removal and Installation).
6. Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
7. Refer to: Audio and Climate Control Assembly (415-01A Information and Entertainment System, Removal and Installation). 211-326
Locking Tool, Clockspring Special Tool(s)

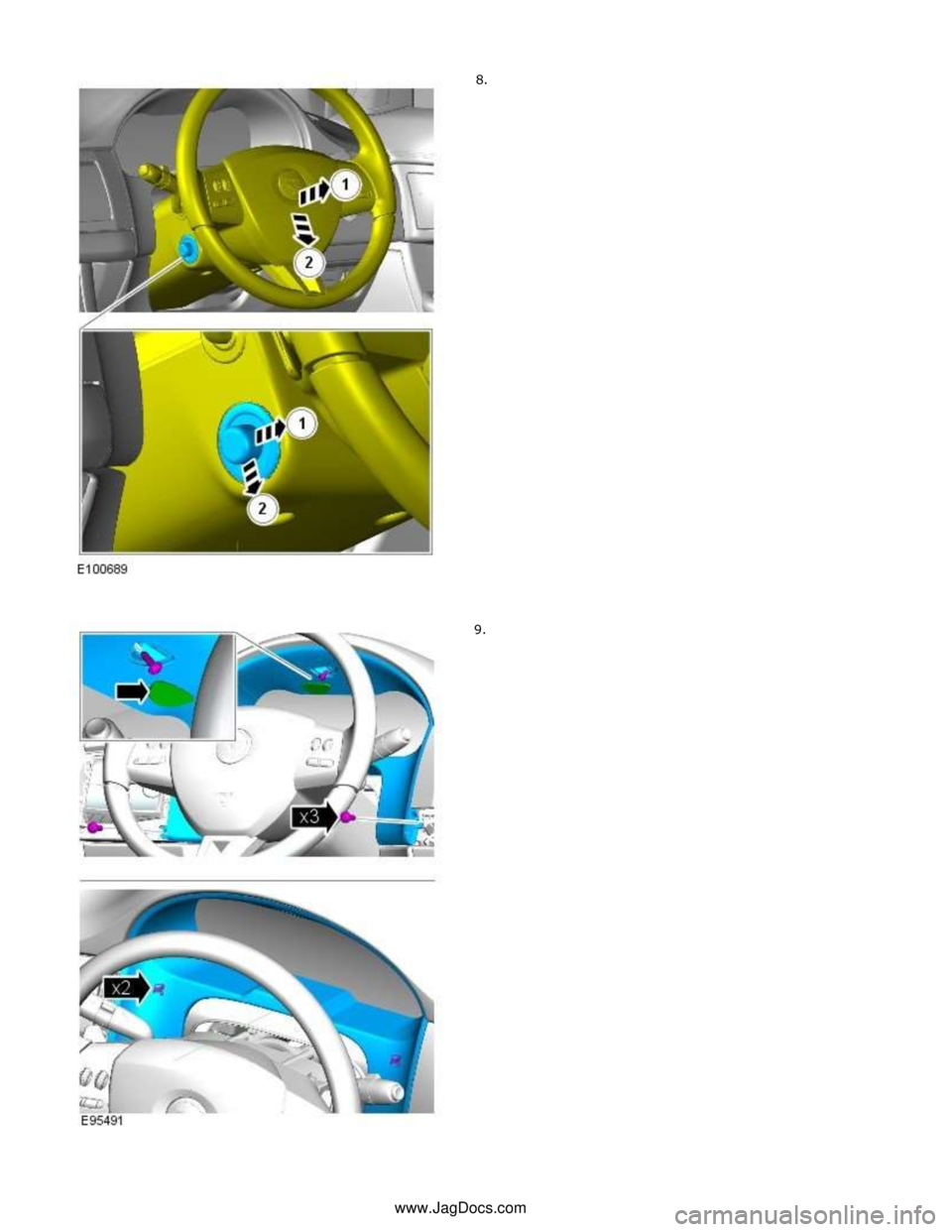

Page 2654 of 3039

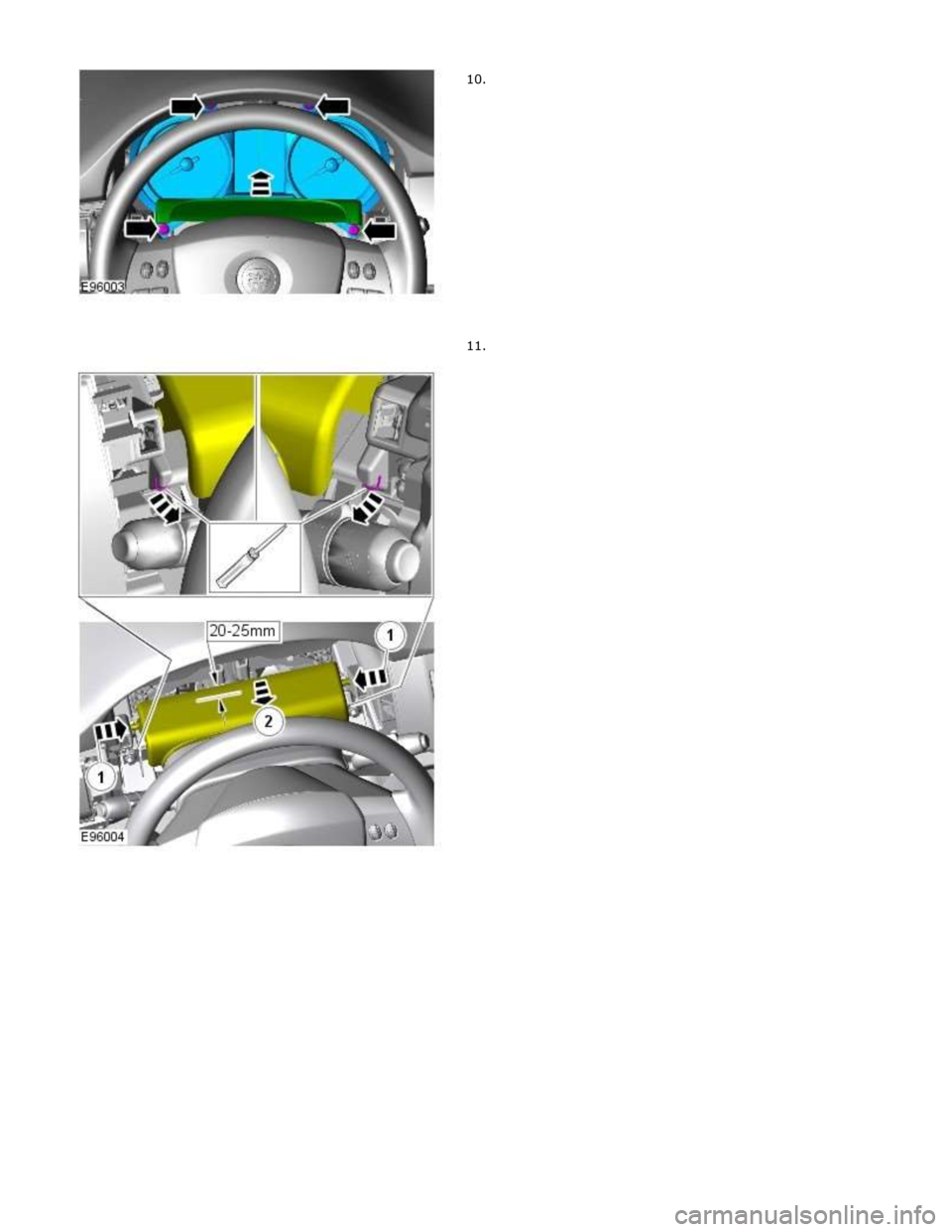

Page 2655 of 3039
Page 2656 of 3039
12.
13. CAUTION: Take extra care not to damage the
instrument cluster face.
Special Tool(s): 211-326
