JAGUAR XFR 2010 1.G Workshop Manual Installation
1. CAUTIONS:

Make sure that special tool 211-326 is installed to the
clockspring.

Make sure that the arrow on the cassette is centered
and pointing vertically (make sure tha

Page 2634 of 3039

JAGUAR XFR 2010 1.G Workshop Manual
Supplemental Restraint System - C-Pillar Side Impact Sensor
Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

Page 2635 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

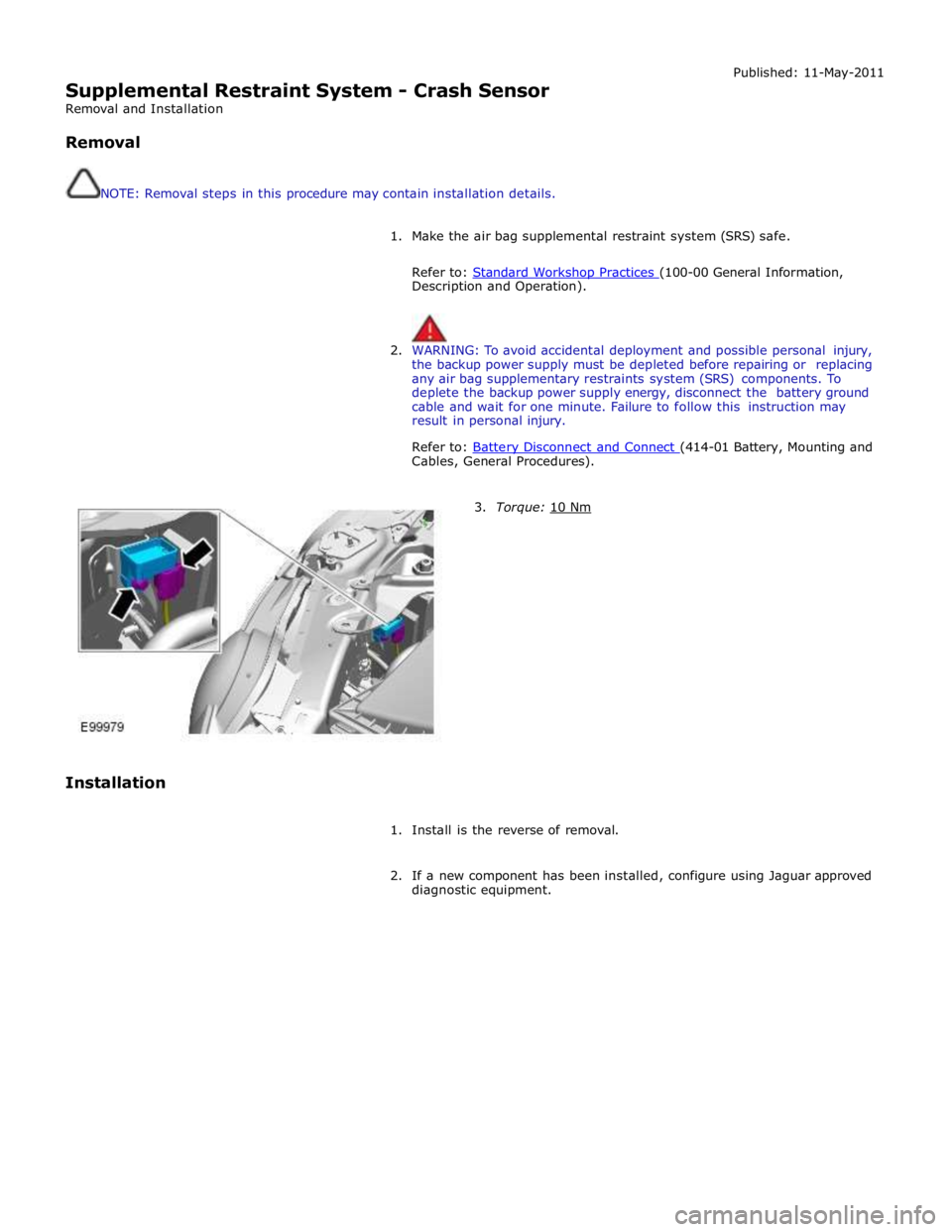

Supplemental Restraint System - Crash Sensor
Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details. Published: 11-May-2011

1. Make the a

Page 2636 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

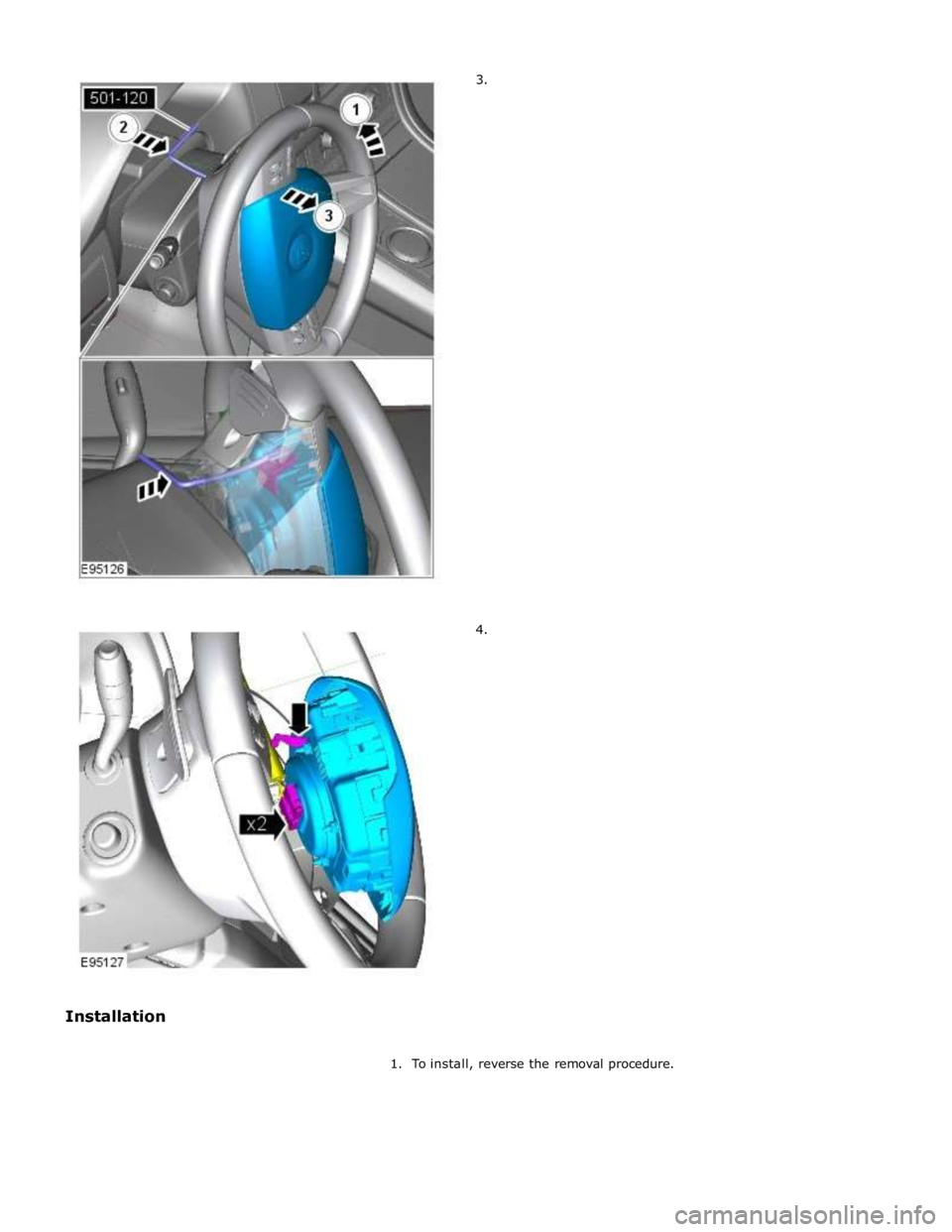

Supplemental Restraint System - Driver Air Bag Module
Removal and Installation Published: 11-May-2011

Removal

WARNING: Refer to: Supplemental Restraint System (SRS) Health and Safety Prec

Page 2637 of 3039

Page 2638 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011
Supplemental Restraint System - Occupant Classification Sensor
Removal and Installation

Removal

WARNINGS:

To avoid accidental deployment, the restraints control mod

Published: 11-May-2011
Supplemental Restraint System - Occupant Classification Sensor
Removal and Installation

Removal

WARNINGS:

To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least one
minute after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental
restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in
personal injury.

Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to
follow this instruction may result in personal injury.

To minimize the possibility of premature deployment, do not use radio key code savers when working on the
supplemental restraint system. Failure to follow this instruction may result in personal injury.

To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the
bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.

To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which
have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure
to follow this instruction may result in personal injury.

Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air
bags. Do not for any reason attempt to paint discoloured or damaged air bag module trim covers or instrument panel. Install a
new component. Failure to follow this instruction may result in personal injury.
CAUTIONS:

The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to
replace individual components. Failure to follow this instruction may result in personal injury.

Check for correct operation of the front seat after completion of the procedure to make sure that the wiring harness has
not become trapped or stretched.
NOTES:

Note the routing of the seat harness.

Some variation in the illustrations may occur, but the essential information is always correct.

1. Make the air bag supplemental restraint system (SRS) safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

3. Refer to: Front Seat Backrest Cover (501-10 Seating, Removal and Installation).

Page 2639 of 3039

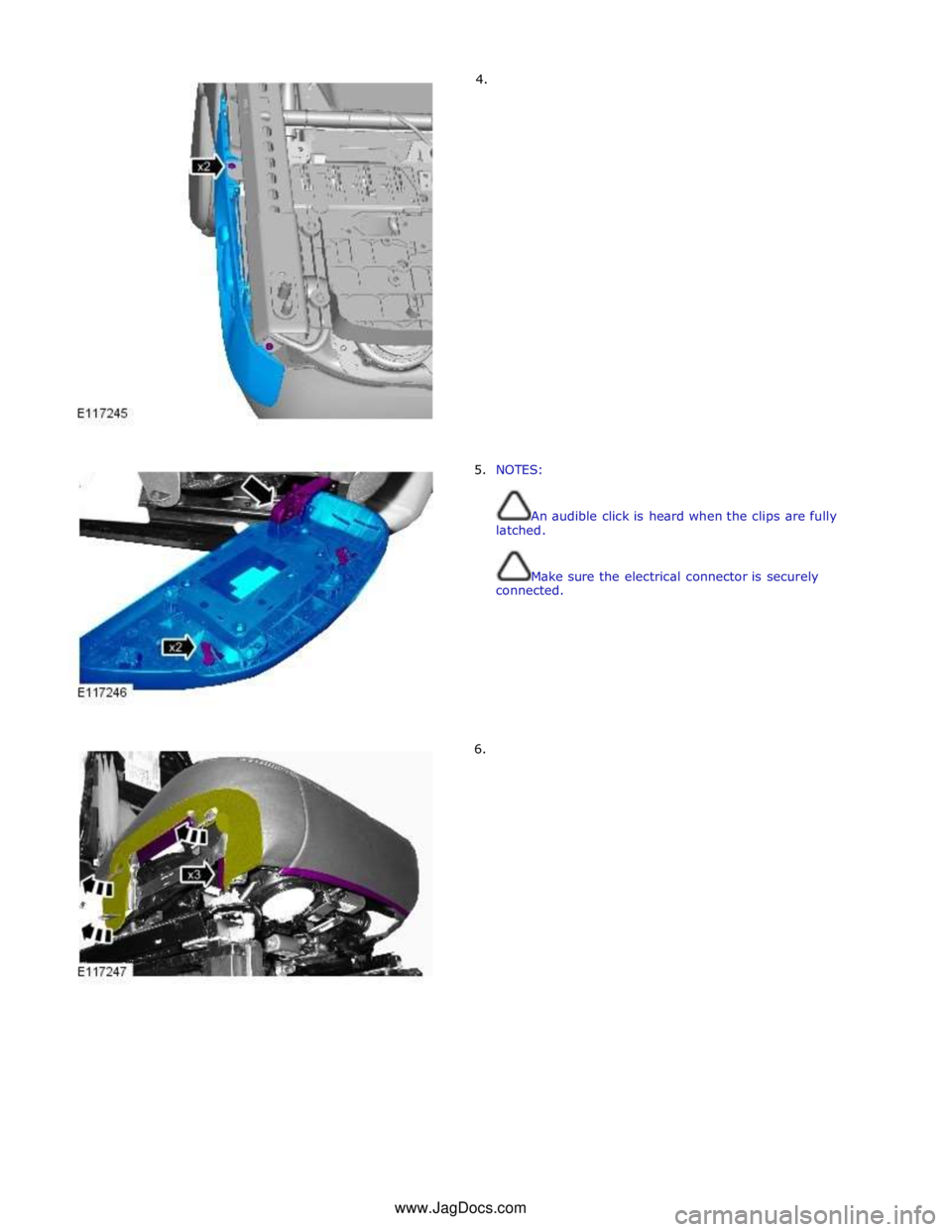

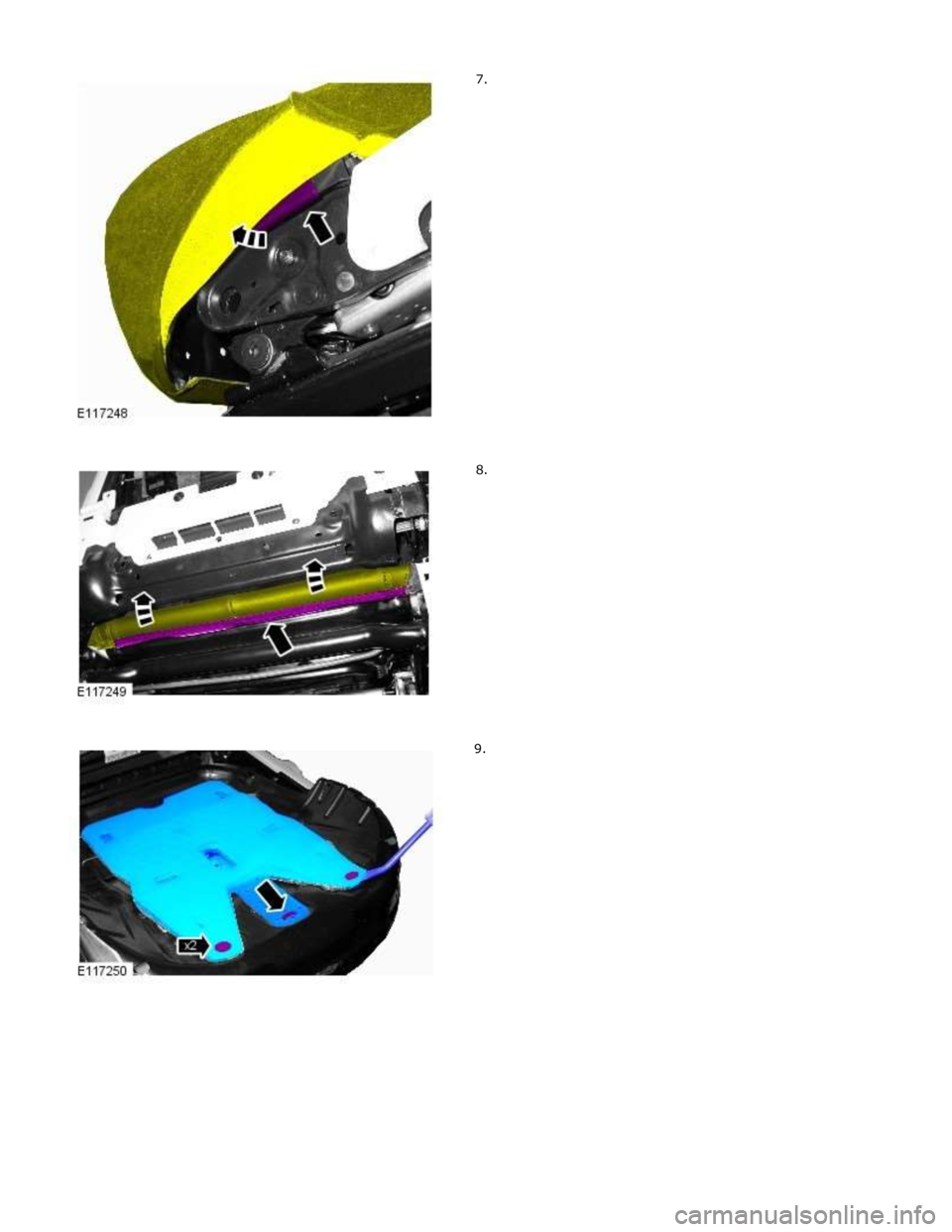

JAGUAR XFR 2010 1.G Workshop Manual 4.
5. NOTES:

An audible click is heard when the clips are fully
latched.

Make sure the electrical connector is securely
connected.

6. www.JagDocs.com
