Page 1609 of 3039
Published: 18-Jun-2014
Fuel Tank and Lines - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Fuel Tank Filler
Pipe
Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Refer to: Diesel Fuel System Health and Safety Precautions (100-00 General Information, Description and Operation).
Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation).
2. Open the fuel filler door and remove the cap.
3. WARNING: Do not work on or under a vehicle supported only by a
jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
4. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
5. Remove the right-hand wheel and tire.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

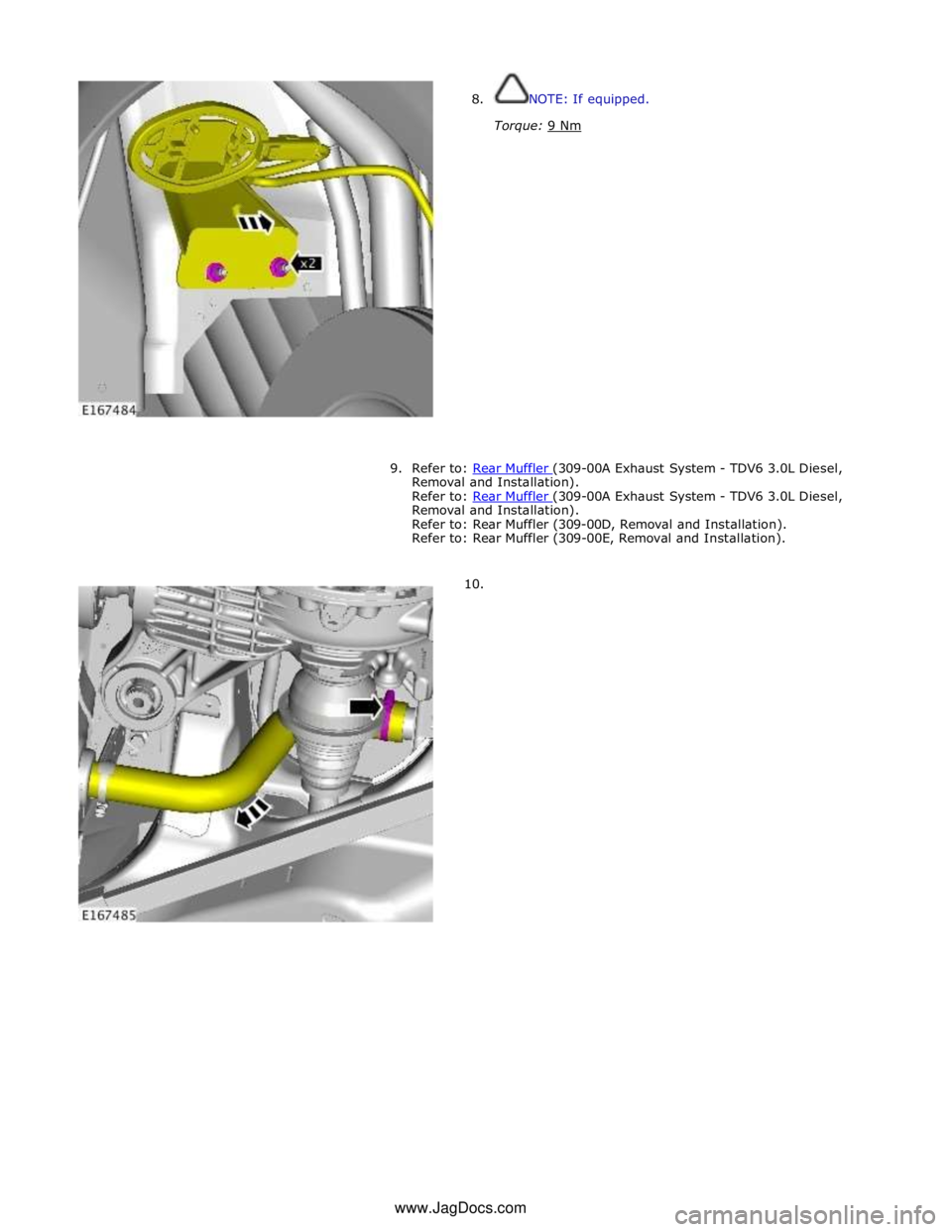

Page 1610 of 3039

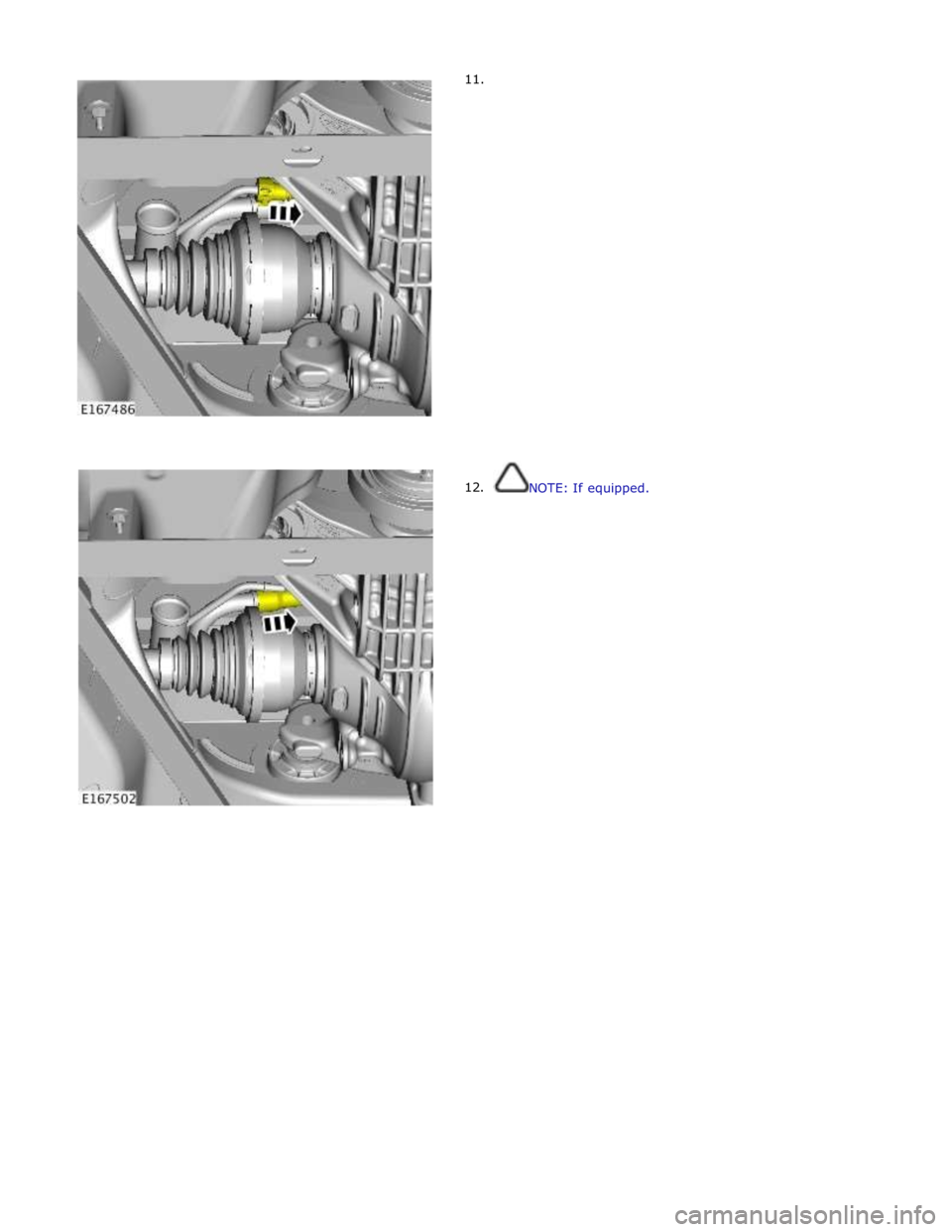

Page 1611 of 3039
8. NOTE: If equipped.
Torque: 9 Nm
9. Refer to: Rear Muffler (309-00A Exhaust System - TDV6 3.0L Diesel, Removal and Installation).
Refer to: Rear Muffler (309-00A Exhaust System - TDV6 3.0L Diesel, Removal and Installation).
Refer to: Rear Muffler (309-00D, Removal and Installation).
Refer to: Rear Muffler (309-00E, Removal and Installation).
10. www.JagDocs.com

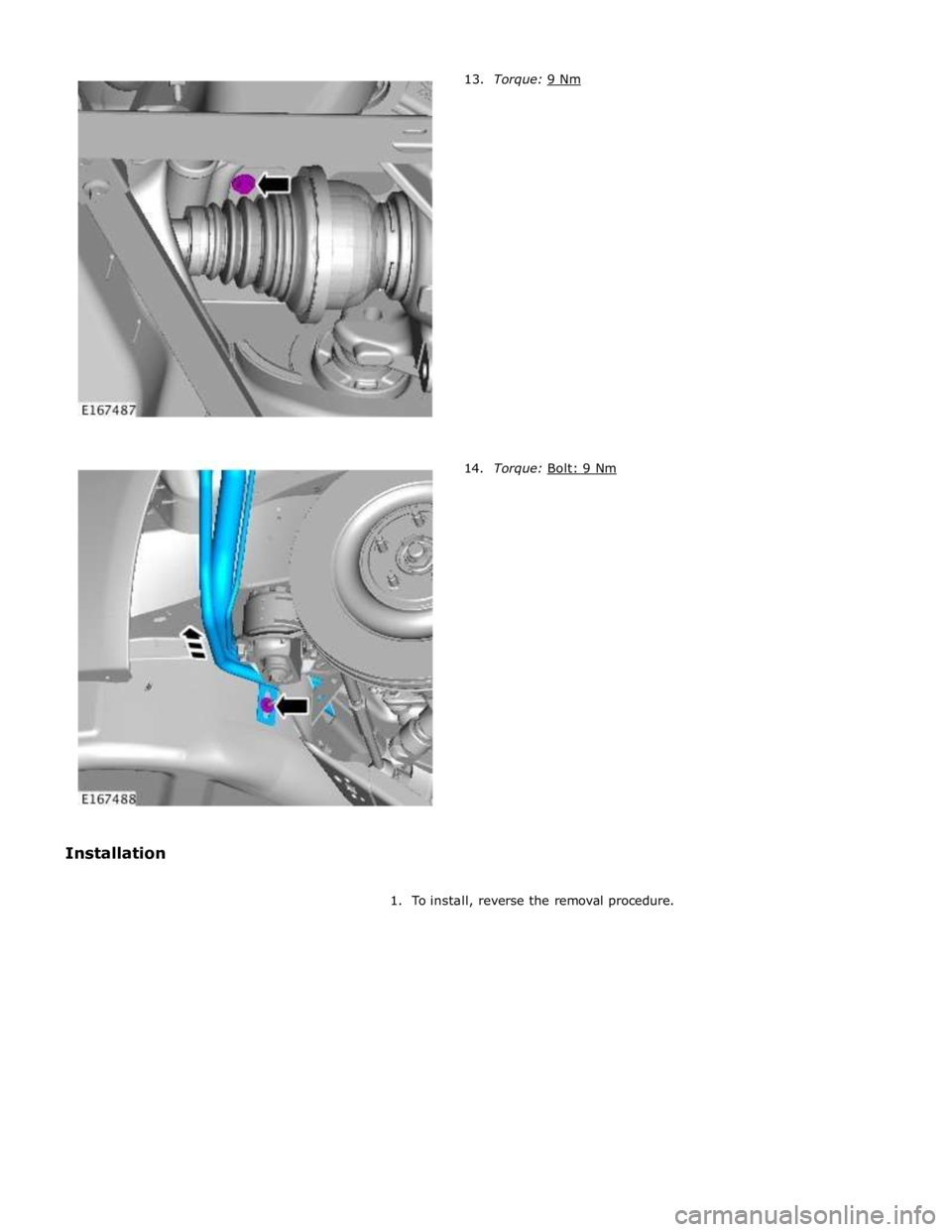

Page 1612 of 3039
11.
12.
NOTE: If equipped.
Page 1613 of 3039
Torque: Bolt: 9 Nm
1. To install, reverse the removal procedure.
Page 1614 of 3039

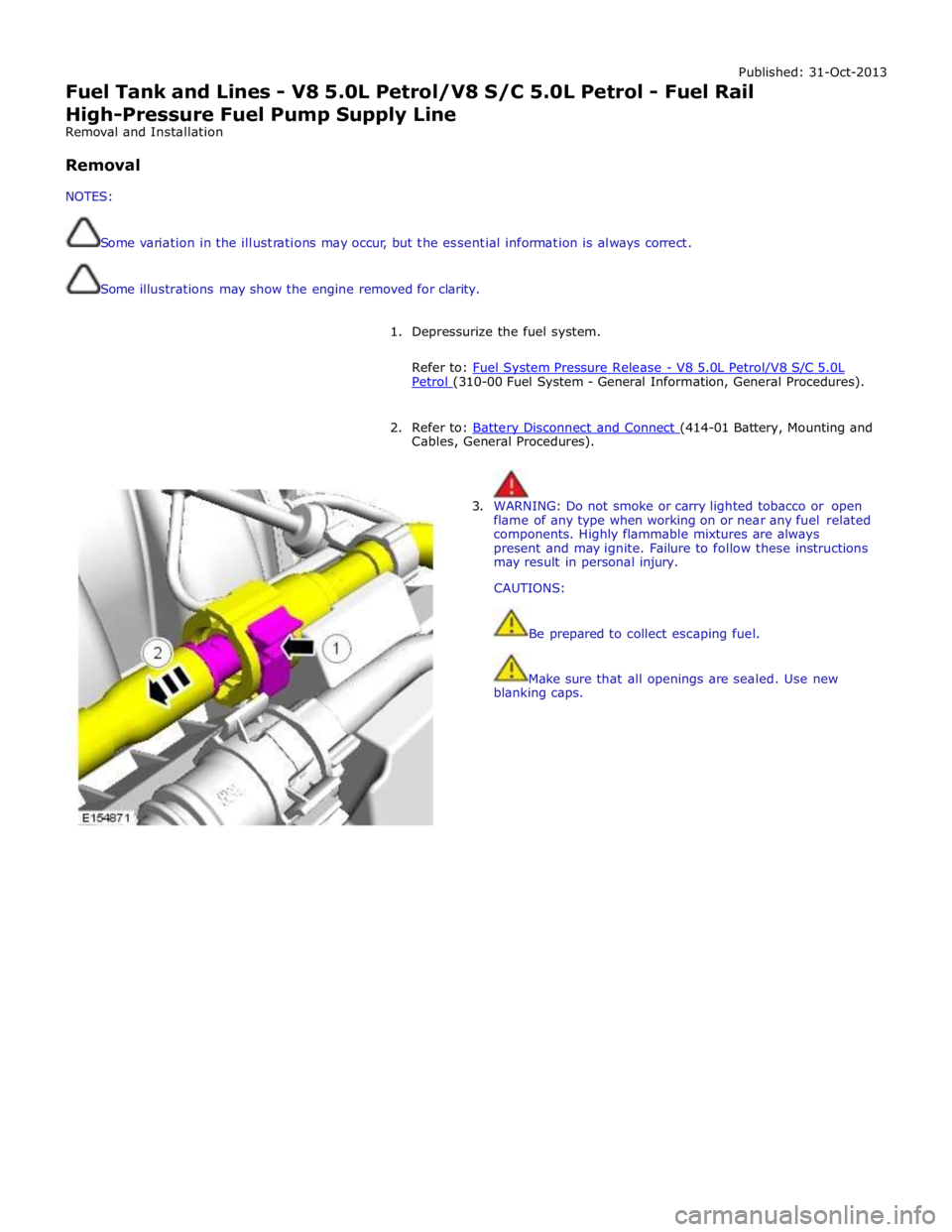

Published: 31-Oct-2013
Fuel Tank and Lines - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Fuel Rail High-Pressure Fuel Pump Supply Line
Removal and Installation
Removal
NOTES:
Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the engine removed for clarity.
1. Depressurize the fuel system.
Refer to: Fuel System Pressure Release - V8 5.0L Petrol/V8 S/C 5.0L Petrol (310-00 Fuel System - General Information, General Procedures).
2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
3. WARNING: Do not smoke or carry lighted tobacco or open
flame of any type when working on or near any fuel related
components. Highly flammable mixtures are always
present and may ignite. Failure to follow these instructions
may result in personal injury.
CAUTIONS:
Be prepared to collect escaping fuel.
Make sure that all openings are sealed. Use new
blanking caps.

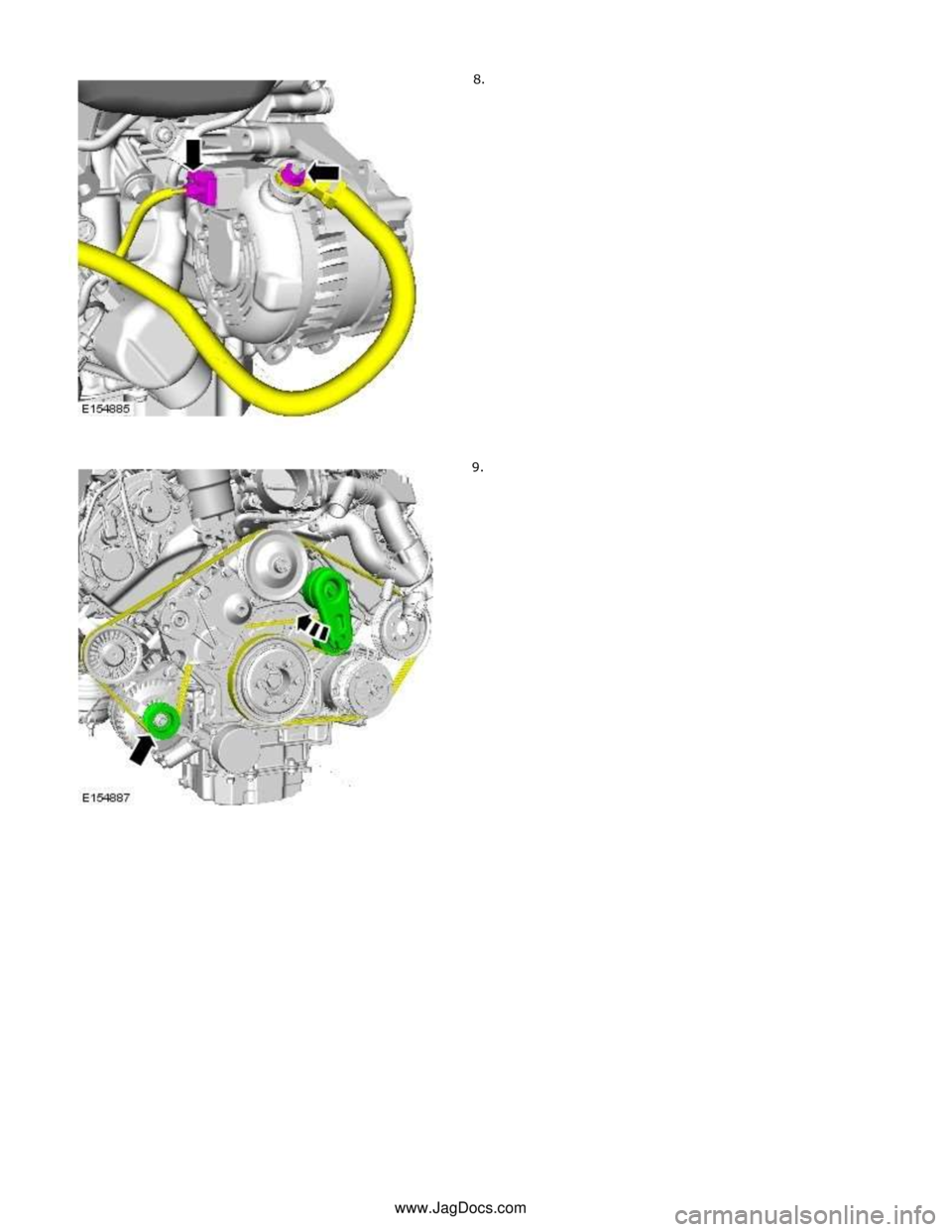

Page 1615 of 3039

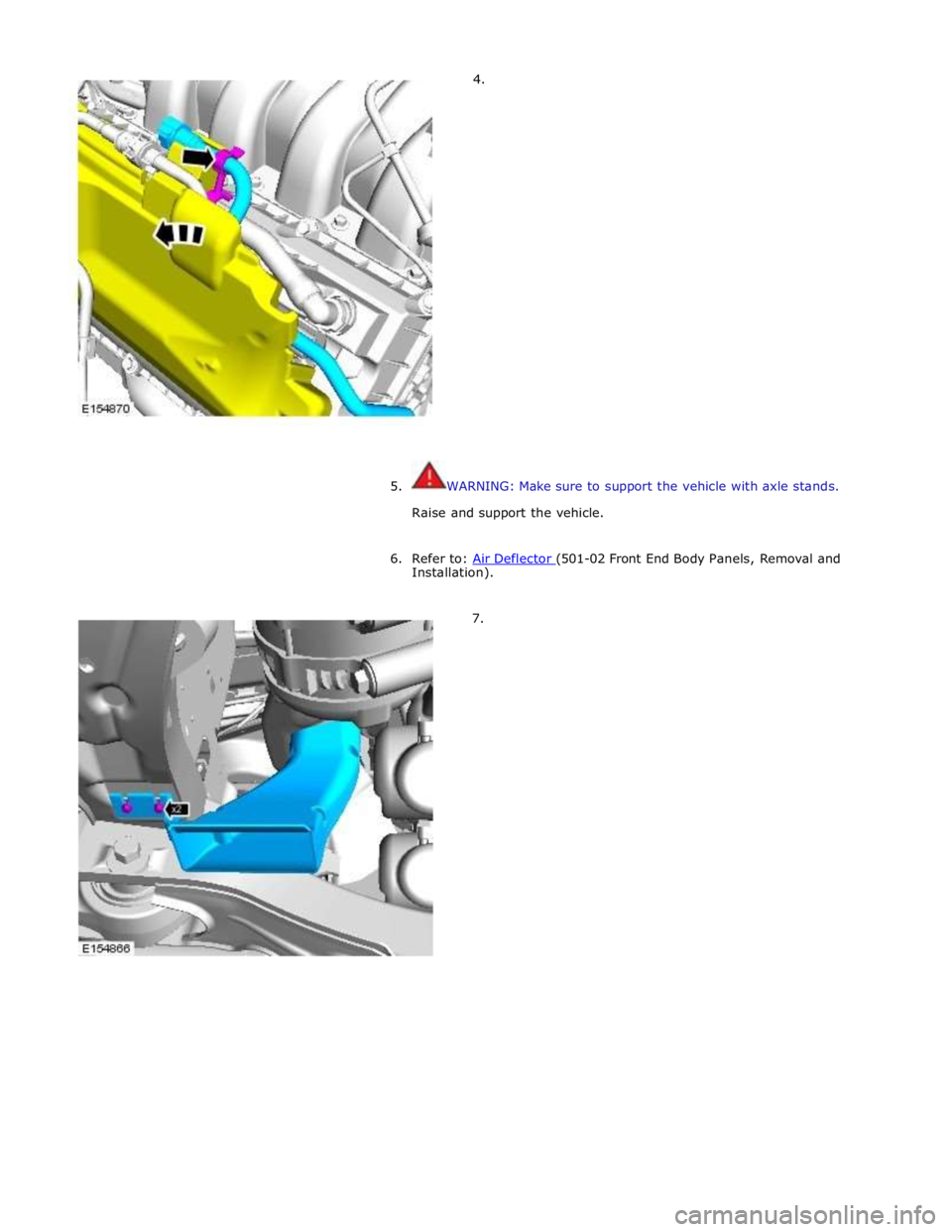

Page 1616 of 3039
