JAGUAR XFR 2010 1.G Workshop Manual

Page 2514 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Handles, Locks, Latches and Entry Systems - Exterior Rear Door Handle Removal and Installation Removal NOTE: Removal steps in this procedure may contain installation d

Page 2515 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 3. CAUTION: Take extra care not to damage the wiring harnesses. NOTE: Secure the connection in the service position. 4.

Page 2516 of 3039

JAGUAR XFR 2010 1.G Workshop Manual

Page 2517 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Handles, Locks, Latches and Entry Systems - Front Door Latch Removal and Installation Removal Published: 04-Feb-2013 1. Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms,

Page 2518 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 5. NOTE: Left-hand shown, right-hand similar. Torque: 7 Nm 6. NOTE: Left-hand shown, right-hand similar. 7. NOTE: Right-

Page 2519 of 3039

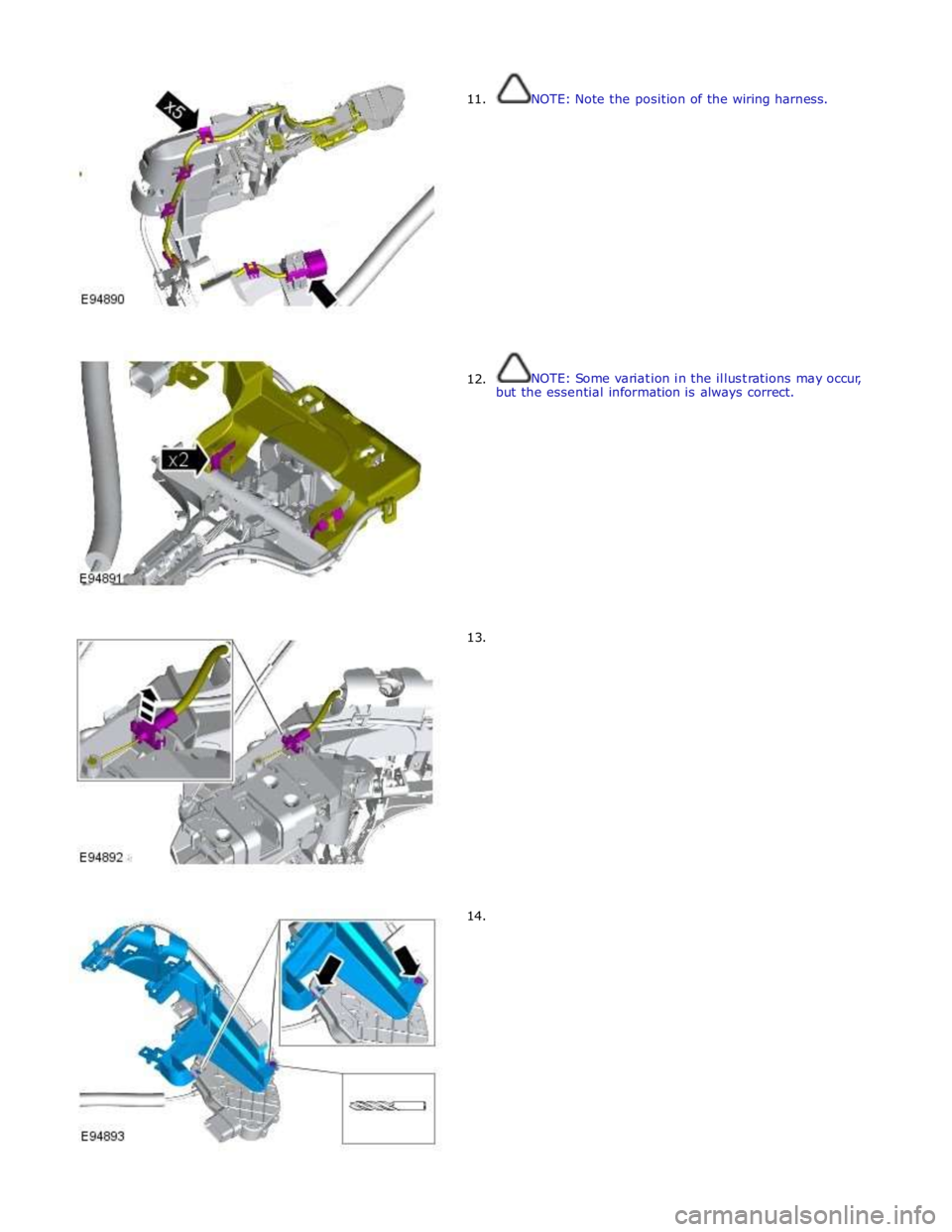

JAGUAR XFR 2010 1.G Workshop Manual 8. 9. 10. NOTE: Right-hand shown, left-hand similar. Torque: 7 Nm NOTE: Left-hand shown, right-hand similar.

Page 2520 of 3039

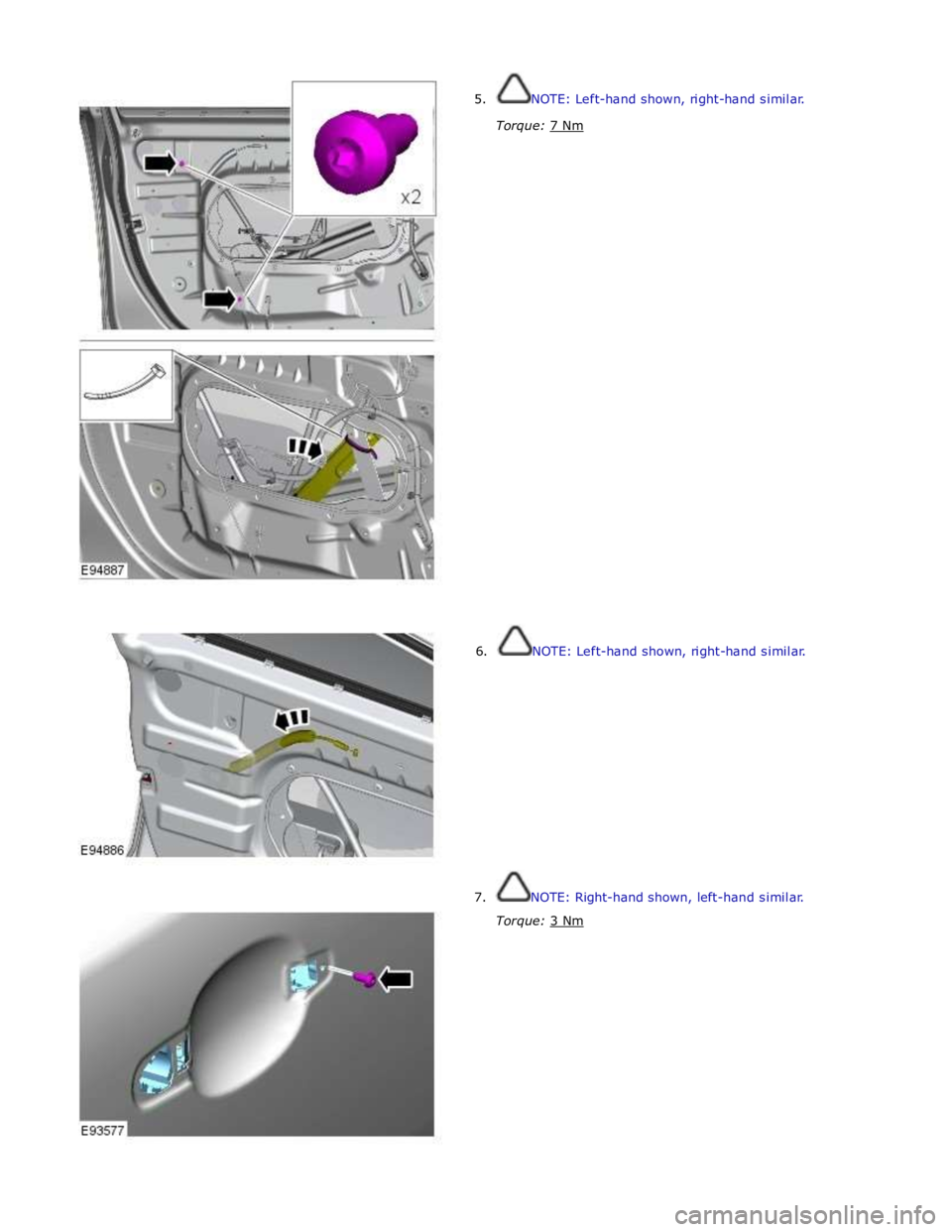

JAGUAR XFR 2010 1.G Workshop Manual 11. 12. 13. 14. NOTE: Note the position of the wiring harness. NOTE: Some variation in the illustrations may occur,
