Page 1217 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Published: 11-May-2011 Fuel Charging and Controls - V8 S/C 5.0L Petrol - Left-Hand Fuel Rail High-Pressure Fuel Pump Removal and Installation Removal CAUTION: Make sure that tools and equipme

Page 1218 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 9. CAUTION: Be prepared to collect escaping fluids. 10. Refer to: Air Cleaner Outlet Pipe RH (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal an

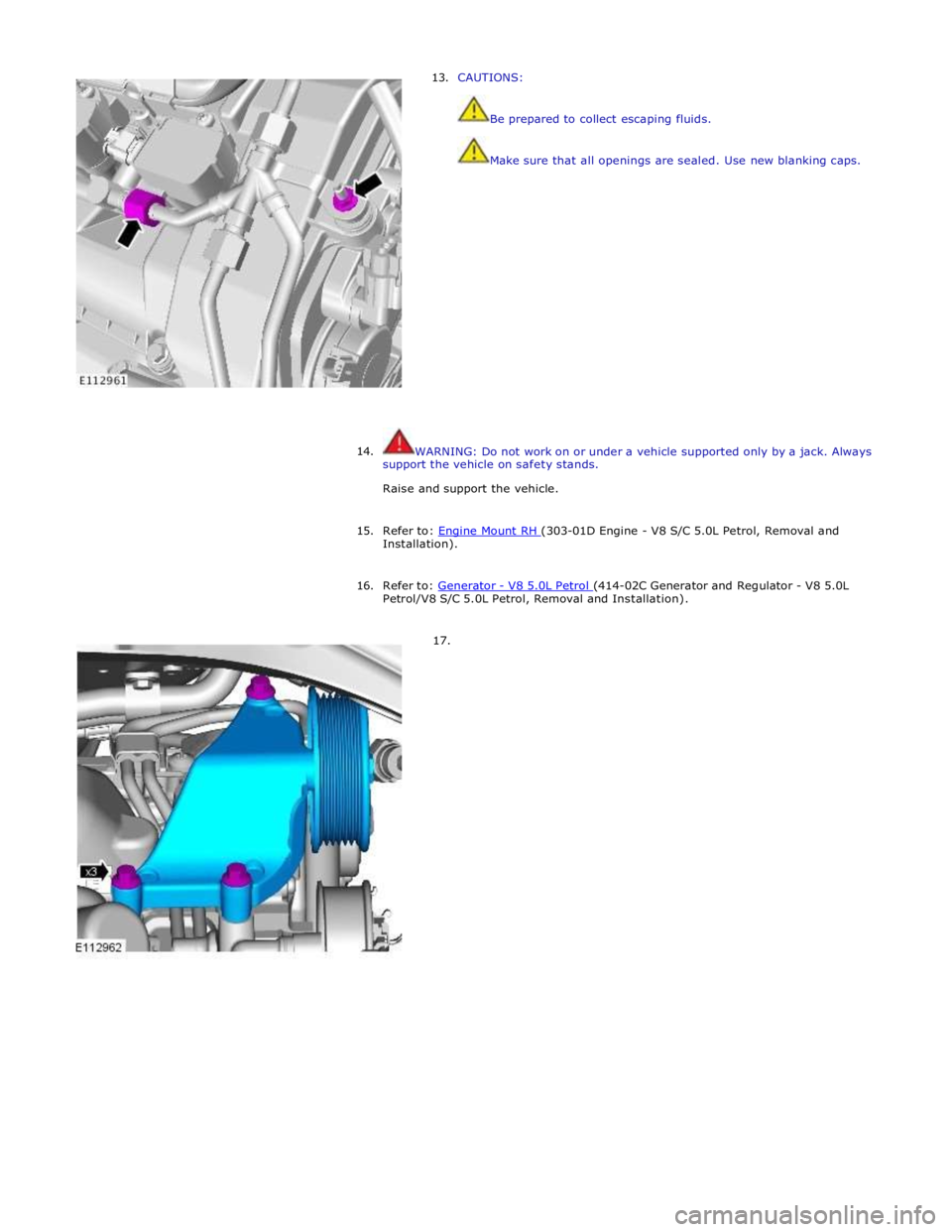

Page 1219 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 13. CAUTIONS: Be prepared to collect escaping fluids. Make sure that all openings are sealed. Use new blanking caps. 14. WARNING: Do not work on or under a vehicle

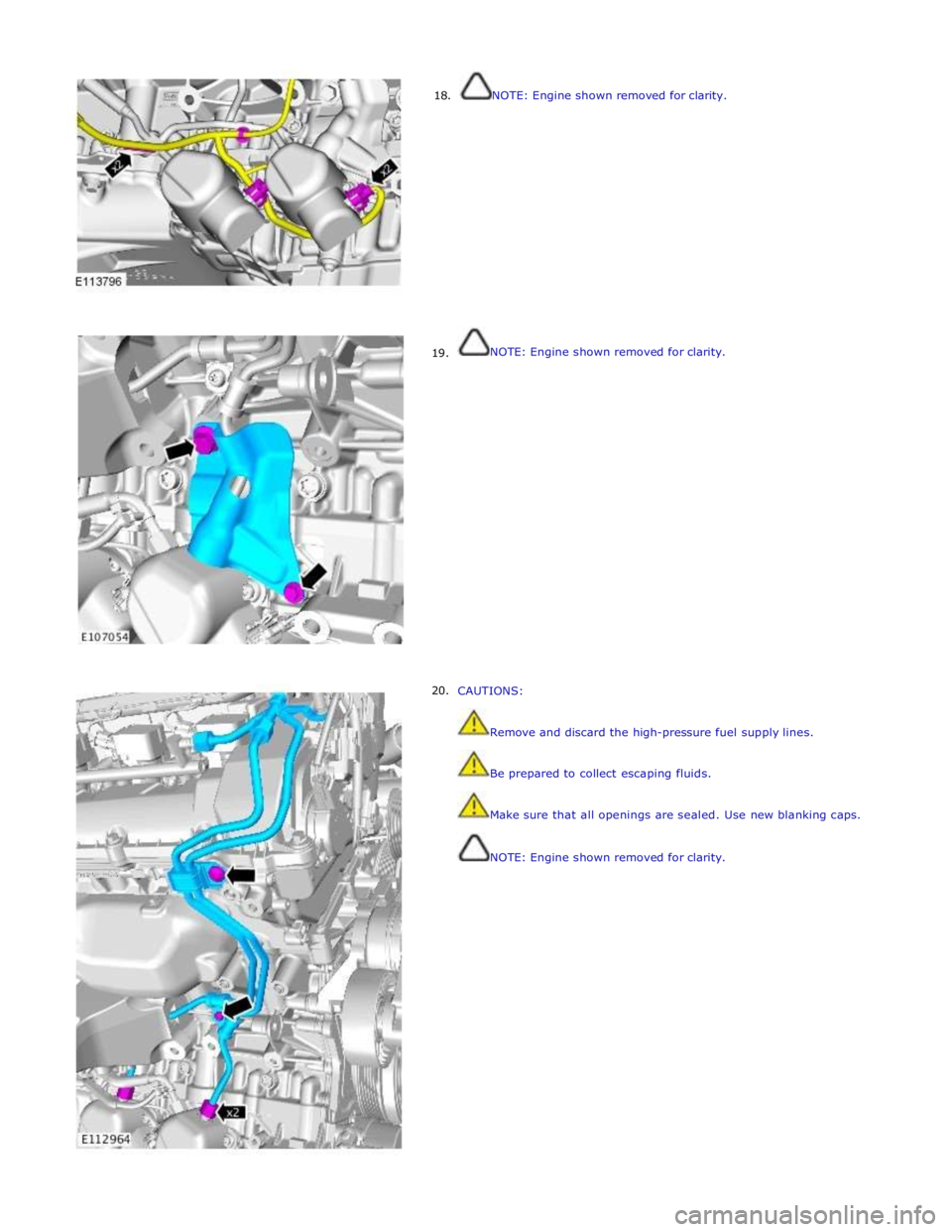

Page 1220 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 18. 19. 20. NOTE: Engine shown removed for clarity. NOTE: Engine shown removed for clarity.

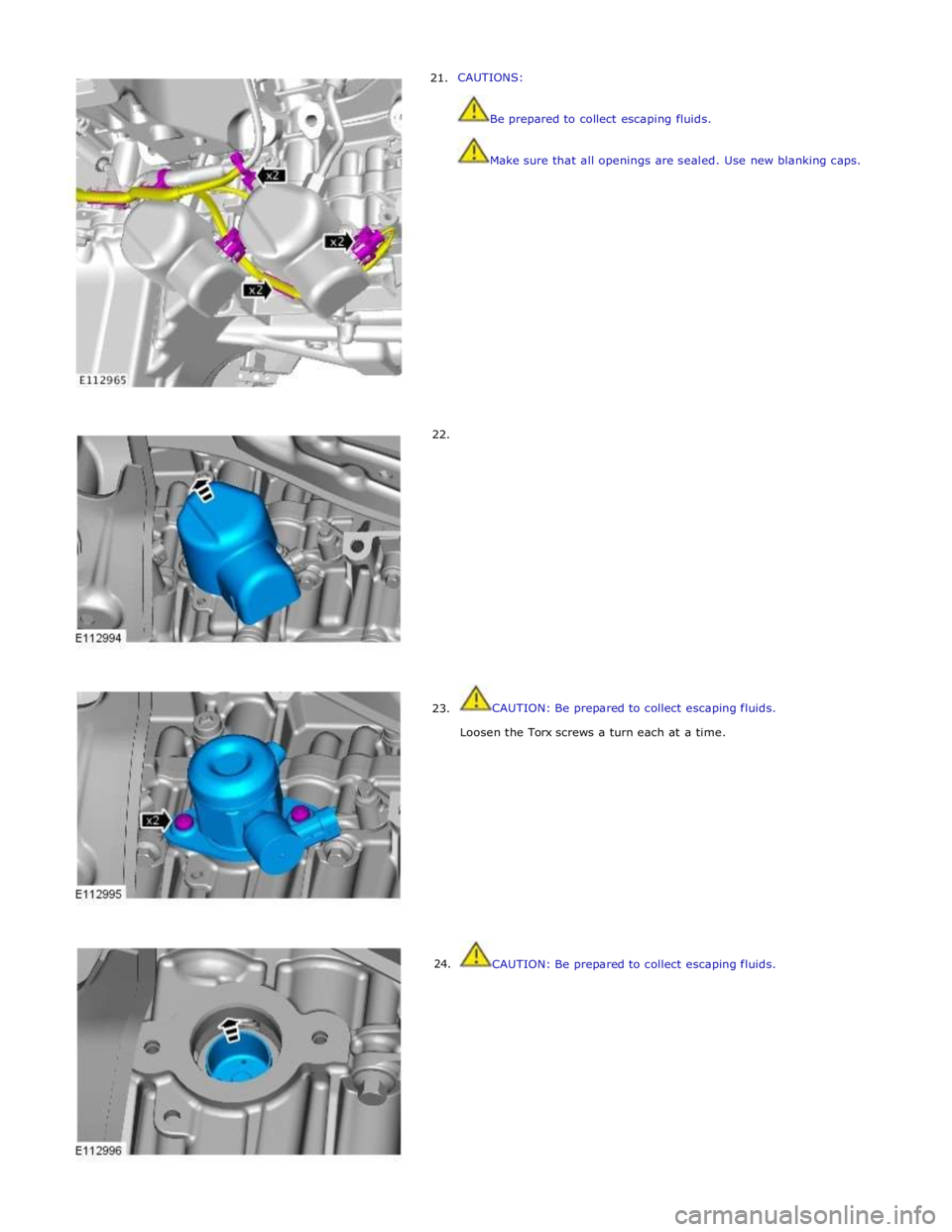

Page 1221 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 21. 22. 23. 24. CAUTIONS: Be prepared to collect escaping fluids. Make sure that all openings are sealed. Use new blanking caps.

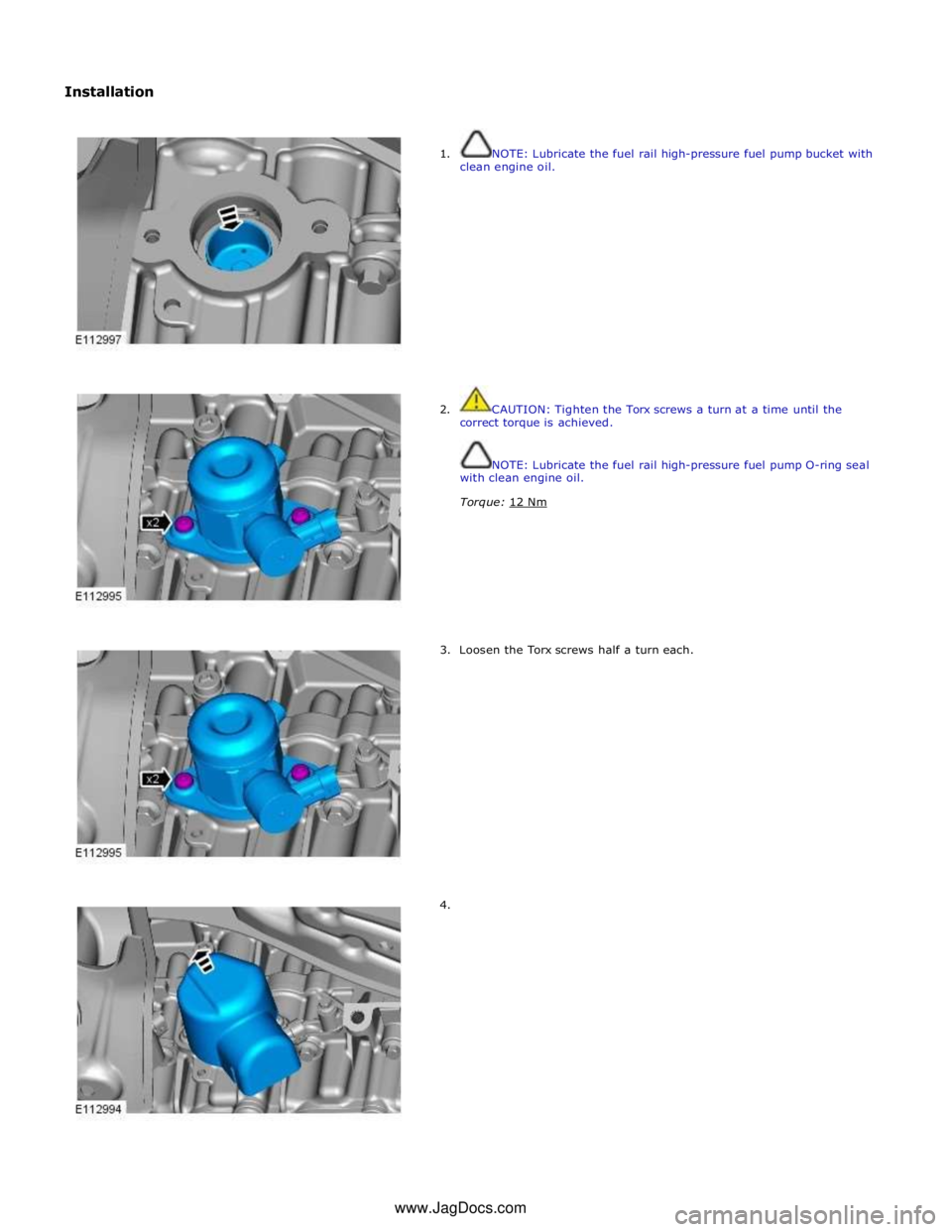

Page 1222 of 3039

JAGUAR XFR 2010 1.G Workshop Manual Installation 1. NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil. 2. CAUTION: Tighten the Torx screws a turn at a time until

Page 1223 of 3039

JAGUAR XFR 2010 1.G Workshop Manual 5. CAUTION: Install new high-pressure fuel supply lines. NOTES: Engine shown removed for clarity. Remove and discard the blanking caps. Install the bolt and unions fully finger tight bef

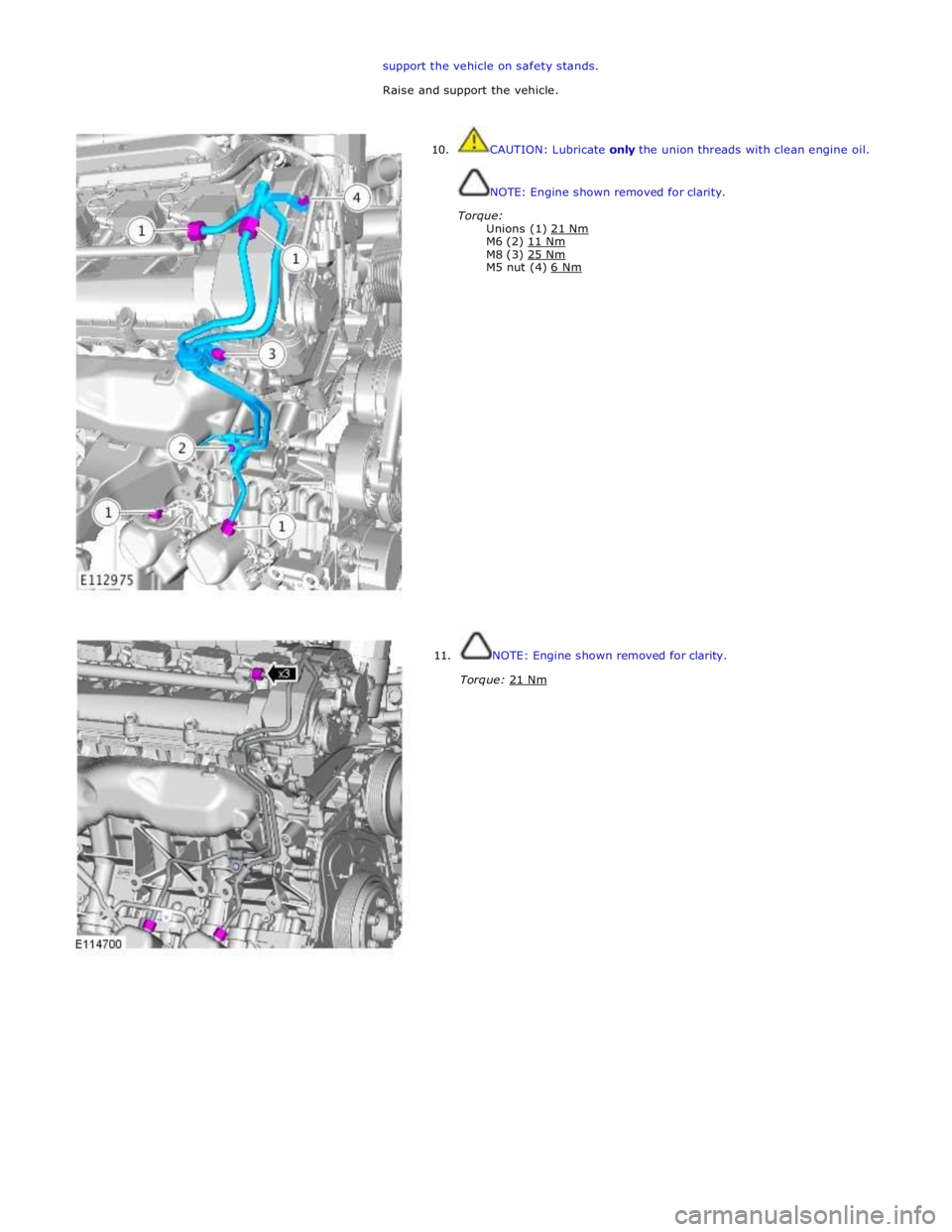

Page 1224 of 3039

JAGUAR XFR 2010 1.G Workshop Manual support the vehicle on safety stands. Raise and support the vehicle. 10. 11. CAUTION: Lubricate only the union threads
